IslandPath Analysis: Klebsiella pneumoniae 342

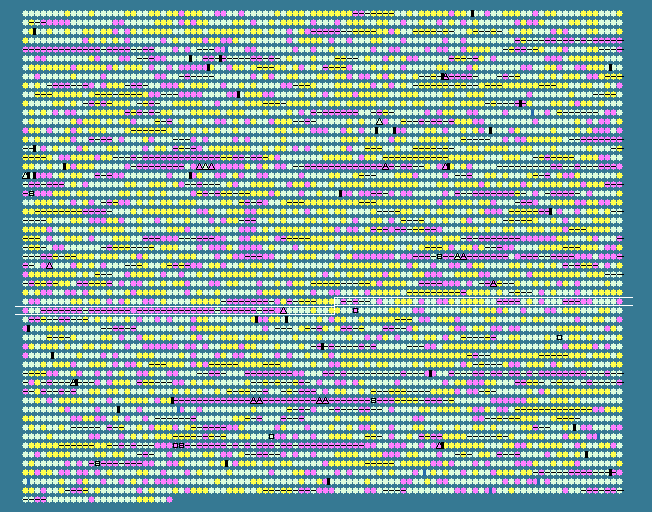

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3253	 59.07	0	3359555..3360568	+	337	206577117	-	KPK_3313	-	GAF domain/diguanylate cyclase
3254	 52.90	0	3360590..3360727	+	45	206576530	-	KPK_3314	-	hypothetical protein
3255	 57.26	0	3360685..3360801	+	38	206575794	-	KPK_3315	-	hypothetical protein
3256	 46.03	-1	3360921..3361046	+	41	206578076	-	KPK_3316	-	putative lipoprotein
3257	 54.17	0	3361106..3361369	-	87	206579550	-	KPK_3317	-	hypothetical protein
3258	 57.12	0	3361500..3362138	-	212	206580490	leuE	KPK_3318	-	leucine export protein LeuE
3259	 55.74	0	3362228..3363142	-	304	206579913	-	KPK_3319	-	lipid A biosynthesis lauroyl acyltransferase family protein
3260	 35.26	-2	3363141..3363296	+	51	206577251	-	KPK_3320	-	hypothetical protein
3261	 59.00	0	3363799..3364842	-	347	206576960	ansB	KPK_3321	-	L-asparaginase 2
3262	 56.00	0	3365151..3366359	+	402	206579044	-	KPK_3322	-	putative metal-dependent phosphohydrolase
3263	 63.08	0	3366433..3368217	+	594	206578138	-	KPK_3323	-	putative membrane-bound diguanylate cyclase
3264	 61.84	0	3368224..3369114	-	296	206580822	-	KPK_3324	-	transcriptional regulator, LysR family
3265	 61.21	0	3369235..3370737	+	500	206579340	-	KPK_3325	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase family protein
3266	 56.20	0	3370813..3371223	-	136	206575900	-	KPK_3326	-	hypothetical protein
3267	 48.51	-1	3371353..3372024	-	223	206580374	-	KPK_3327	-	cyclic diguanylate phosphodiesterase
3268	 55.10	0	3372455..3372601	-	48	206577091	-	KPK_3328	-	putative lipoprotein
3269	 58.29	0	3372674..3373306	-	210	206576499	-	KPK_3329	-	hypothetical protein
3270	 40.31	-2	3373398..3373526	-	42	206579457	-	KPK_3330	-	hypothetical protein
3271	 47.98	-1	3373879..3374076	+	65	206578854	-	KPK_3331	-	hypothetical protein
3272	 60.63	0	3374135..3374929	-	264	206580964	-	KPK_3332	-	transcriptional regulator, AraC family
3273	 57.25	0	3374944..3375081	-	45	206580378	-	KPK_3333	-	hypothetical protein
3274	 63.84	+1	3375007..3377058	+	683	206576309	-	KPK_3334	-	fusaric acid resistance domain protein
3275	 61.50	0	3377051..3377263	+	70	206575808	-	KPK_3335	-	hypothetical protein
3276	 64.17	+1	3377260..3378180	+	306	206580205	-	KPK_3337	-	auxiliary transport protein, membrane fusion protein (MFP) family
3277	 60.53	0	3378174..3379184	-	336	206577977	-	KPK_3336	-	putative cyanide-insensitive terminal oxidase CioB
3278	 58.71	0	3379181..3380587	-	468	206575836	-	KPK_3338	-	putative cyanide-insensitive terminal oxidase CioA
3279	 59.01	0	3380643..3381530	-	295	206576261	-	KPK_3339	-	putative manganese containing catalase
3280	 51.68	0	3381547..3382053	-	168	206577370	-	KPK_3340	-	hypothetical protein
3281	 46.46	-1	3382080..3382574	-	164	206577798	-	KPK_3341	-	hypothetical protein
3282	 53.23	0	3382664..3382849	-	61	206578863	-	KPK_3342	-	hypothetical protein
3283	 41.03	-2	3383233..3383349	-	38	206579278	-	KPK_3343	-	hypothetical protein
3284	 59.21	0	3383460..3384653	+	397	206577810	-	KPK_3344	-	oxidoreductase, zinc-binding dehydrogenase family
3285	 63.60	0	3384761..3384988	+	75	206577213	-	KPK_3345	-	hypothetical protein
3286	 54.76	0	3385043..3385588	-	181	206579609	-	KPK_3346	-	isochorismatase hydrolase family protein
3287	 51.27	0	3385913..3386386	+	157	206575716	-	KPK_3347	-	OsmC family protein
3288	 54.32	0	3386524..3386847	+	107	206579584	-	KPK_3348	-	antibiotic biosynthesis monooxygenase domain protein
3289	 54.96	0	3386840..3387232	+	130	206580057	-	KPK_3349	-	ACT domain protein
3290	 59.80	0	3387229..3387942	+	237	206577700	-	KPK_3350	-	transcriptional regulator, ArsR family
3291	 30.91	-2	3388156..3388320	+	54	206578291	-	KPK_3351	-	hypothetical protein
3292	 45.20	-1	3388750..3388926	-	58	206576448	-	KPK_3352	-	hypothetical protein
3293	 30.61	-2	3389972..3390118	-	48	206577479	-	KPK_3354	-	hypothetical protein
3294	 30.30	-2	3390301..3390993	-	230	206578094	-	KPK_3355	-	putative cyclic diguanylate phosphodiesterase
3295	 36.45	-2	3391350..3392408	-	352	206576280	-	KPK_3356	-	MASE2 domain/diguanylate cyclase
3296	 53.98	0	3392831..3393232	-	133	206577956	-	KPK_3357	-	hypothetical protein
3297	 58.09	0	3393186..3394724	-	512	206577426	-	KPK_3358	-	hypothetical protein
3298	 57.77	0	3394766..3395473	-	235	206579043	-	KPK_3359	-	putative phage tail assembly protein
3299	 54.27	0	3395476..3396225	-	249	206581121	-	KPK_3360	-	phage minor tail protein L
3300	 47.22	-1	3396318..3396677	-	119	206576679	-	KPK_3361	-	hypothetical protein
3301	 52.14	0	3396690..3397040	-	116	206575887	-	KPK_3362	-	phage minor tail protein
3302	 56.10	0	3397040..3397834	-	264	206576003	-	KPK_3363	-	putative major capsid protein
3303	 56.83	0	3398870..3400129	-	419	206579535	-	KPK_3365	-	phage portal protein, HK97 family
3304	 49.36	-1	3400302..3402023	-	573	206580362	-	KPK_3366	-	putative phage terminase, large subunit
3305	 52.64	0	3402023..3402457	-	144	206581076	-	KPK_3367	-	putative phage terminase, small subunit, P27 family
3306	 51.85	0	3402791..3403222	-	143	206579568	-	KPK_3368	-	hypothetical protein
3307	 53.27	0	3403222..3403542	-	106	206576851	-	KPK_3369	-	hypothetical protein
3308	 52.07	0	3403494..3403856	-	120	206580647	-	KPK_3370	-	HNH endonuclease domain protein
3309	 52.08	0	3405339..3405482	-	47	206575789	-	KPK_3371	-	hypothetical protein
3310	 51.28	0	3405457..3405807	-	116	206576526	-	KPK_3372	-	hypothetical protein
3311	 55.36	0	3405804..3406307	-	167	206576574	-	KPK_3373	-	phage lysozyme
3312	 52.34	0	3406279..3406620	-	113	206576544	-	KPK_3374	-	hypothetical protein
3313	 52.45	0	3407286..3407693	-	135	206580517	-	KPK_3375	-	hypothetical protein
3314	 47.46	-1	3407741..3407917	-	58	206576084	-	KPK_3376	-	hypothetical protein
3315	 38.66	-2	3408365..3409435	+	356	206578757	-	KPK_3377	-	hypothetical protein
3316	 34.93	-2	3409437..3410126	+	229	206578971	-	KPK_3379	-	hypothetical protein
3317	 40.80	-2	3410092..3411135	-	347	206579328	-	KPK_3378	-	DNA-cytosine methyltransferase
3318	 43.77	-2	3411225..3411569	-	114	206581112	-	KPK_3380	-	antitermination protein Q
3319	 52.71	0	3411582..3412613	-	343	206580771	-	KPK_3381	-	hypothetical protein
3320	 48.53	-1	3412613..3412816	-	67	206577824	-	KPK_3382	-	hypothetical protein
3321	 51.20	0	3412813..3413310	-	165	206578549	-	KPK_3383	-	LexA DNA binding domain protein
3322	 49.83	-1	3413246..3413536	-	96	206577211	-	KPK_3384	-	hypothetical protein
3323	 47.86	-1	3413548..3413781	-	77	206578989	-	KPK_3385	-	DinI family protein
3324	 47.69	-1	3413942..3414136	+	64	206575831	-	KPK_3386	-	hypothetical protein
3325	 37.39	-2	3414220..3414909	+	229	206579738	-	KPK_3387	-	hypothetical protein
3326	 41.50	-2	3414980..3415726	+	248	206577476	-	KPK_3388	-	oxidoreductase, short chain dehydrogenase/reductase family
3327	 42.86	-2	3415820..3416029	+	69	206577960	-	KPK_3389	-	hypothetical protein
3328	 49.12	-1	3416050..3416277	+	75	206576752	-	KPK_3390	-	hypothetical protein
3329	 51.24	0	3416228..3416428	+	66	206580068	-	KPK_3391	-	hypothetical protein
3330	 47.85	-1	3416724..3418487	-	587	206580435	-	KPK_3392	-	cyclic diguanylate phosphodiesterase (EAL) domain protein
3331	 46.24	-1	3418532..3418717	-	61	206580130	-	KPK_3393	-	hypothetical protein
3332	 53.24	0	3418800..3419246	-	148	206580659	-	KPK_3394	-	hypothetical protein
3333	 53.55	0	3419254..3419718	-	154	206579522	-	KPK_3395	-	hypothetical protein
3334	 50.81	0	3419711..3420694	-	327	206578820	-	KPK_3396	-	hypothetical protein
3335	 51.71	0	3420746..3421300	-	184	206581069	-	KPK_3397	-	hypothetical protein
3336	 45.37	-1	3421303..3421518	-	71	206578126	-	KPK_3398	-	hypothetical protein
3337	 42.82	-2	3421620..3422009	+	129	206581103	-	KPK_3399	-	DNA-binding protein
3338	 49.04	-1	3422355..3422825	-	156	206579937	-	KPK_3400	-	hypothetical protein
3339	 49.23	-1	3423059..3423253	+	64	206577683	-	KPK_3401	-	hypothetical protein
3340	 53.62	0	3423296..3423709	+	137	206576463	-	KPK_3402	-	putative transcriptional regulator
3341	 42.98	-2	3423780..3423893	+	37	206575728	-	KPK_3403	-	hypothetical protein
3342	 48.33	-1	3423964..3424143	+	59	206576465	-	KPK_3404	-	hypothetical protein
3343	 46.34	-1	3424196..3424441	+	81	206577084	-	KPK_3405	-	putative excisionase
3344	 43.35	-2	3424422..3425549	+	375	206577296	-	KPK_3406	-	site-specific recombinase, phage integrase family
3345	 55.48	0	3425667..3426917	-	416	206579025	icd	KPK_3407	-	isocitrate dehydrogenase, NADP-dependent
3346	 59.75	0	3427158..3427808	+	216	206581129	rluE	KPK_3408	-	ribosomal large subunit pseudouridine synthase E
3347	 59.48	0	3427825..3428283	+	152	206580234	-	KPK_3409	-	hydrolase, NUDIX family
3348	 58.18	0	3428340..3429446	+	368	206576946	trmU	KPK_3410	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
3349	 60.59	0	3429501..3430142	+	213	206576641	-	KPK_3411	-	hypothetical protein
3350	 56.97	0	3430146..3431516	+	456	206578270	purB	KPK_3412	-	adenylosuccinate lyase
3351	 57.30	0	3431571..3431933	-	120	206577856	-	KPK_3413	-	cupin domain protein
3352	 63.69	+1	3432017..3432823	-	268	206578780	-	KPK_3414	-	transcriptional regulator, AraC family
57.01	MEAN

6.61	STD DEV
