IslandPath Analysis: Klebsiella pneumoniae 342

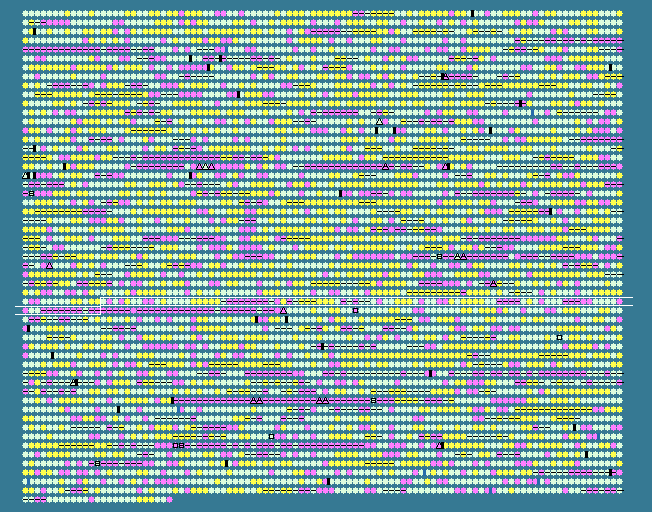

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3214	 54.07	0	3327645..3327890	+	81	206576678	-	KPK_3274	-	hypothetical protein
3215	 50.64	0	3328052..3328207	-	51	206577447	-	KPK_3275	-	hypothetical protein
3216	 58.24	0	3328206..3330899	+	897	206580515	mgtB	KPK_3276	-	magnesium-translocating P-type ATPase
3217	 44.44	-1	3330975..3331199	+	74	206577159	-	KPK_3277	-	hypothetical protein
3218	 61.10	0	3331214..3332866	+	550	206577879	-	KPK_3278	-	putative Na/Pi-cotransporter
3219	 55.07	0	3332932..3333276	+	114	206576284	-	KPK_3279	-	hypothetical protein
3220	 58.29	0	3333602..3334735	+	377	206577009	-	KPK_3280	-	putative tetracycline resistance protein
3221	 52.72	0	3334879..3335466	-	195	206580145	tetR	KPK_3281	-	tetracycline repressor protein class A from transposon 1721
3222	 40.91	-2	3335465..3335596	+	43	206580917	-	KPK_3282	-	hypothetical protein
3223	 55.58	0	3335633..3337075	+	480	206580631	-	KPK_3283	-	drug resistance MFS transporter, drug:H+ antiporter-1 (DHA2) family
3224	 60.94	0	3337198..3337983	-	261	206578725	-	KPK_3284	-	oxidoreductase, short chain dehydrogenase/reductase family
3225	 54.40	0	3338035..3338931	-	298	206579239	-	KPK_3285	-	transcriptional regulator, GntR family
3226	 57.56	0	3339124..3339936	+	270	206577215	-	KPK_3286	-	amino acid ABC transporter, periplasmic amino acid-binding protein
3227	 58.54	0	3339964..3340689	+	241	206577408	-	KPK_3287	-	amino acid ABC transporter, permease protein
3228	 58.97	0	3340686..3341426	+	246	206578157	-	KPK_3288	-	amino acid ABC transporter, ATP-binding protein
3229	 61.65	0	3341440..3342615	+	391	206576267	-	KPK_3289	-	peptidase, ArgE/DapE family
3230	 63.12	0	3342612..3343712	+	366	206577016	-	KPK_3290	-	mandelate racemase/muconate lactonizing enzyme family protein
3231	 60.85	0	3343699..3344868	+	389	206580547	-	KPK_3291	-	creatinase/peptidase, M24 family
3232	 61.04	0	3344879..3345802	+	307	206579420	-	KPK_3293	-	dihydrodipicolinate synthetase family protein
3233	 62.11	0	3345786..3346883	-	365	206578646	-	KPK_3292	-	CTP synthase family protein
3234	 58.89	0	3346952..3348160	+	402	206577490	aatA	KPK_3294	-	aspartate transaminase
3235	 49.36	-1	3348167..3348478	+	103	206578219	-	KPK_3295	-	hypothetical protein
3236	 40.43	-2	3348529..3349134	+	201	206576249	-	KPK_3296	-	transcriptional regulator, TetR family
3237	 46.59	-1	3349161..3349937	-	258	206576373	-	KPK_3297	-	hypothetical protein
3238	 26.24	-2	3350071..3350211	-	46	206576663	-	KPK_3298	-	hypothetical protein
3239	 46.90	-1	3350431..3350850	+	139	206579793	-	KPK_3299	-	protein UmuD homolog
3240	 45.21	-1	3350853..3352115	+	420	206578700	-	KPK_3300	-	protein UmuC homolog
3241	 52.26	0	3352379..3352621	+	80	206579437	-	KPK_3301	-	putative virulence protein MsgA
3242	 54.30	0	3352792..3353931	-	379	206579719	-	KPK_3302	-	heptosyltransferase family protein
3243	 39.39	-2	3353954..3354118	-	54	206577455	-	KPK_3303	-	hypothetical protein
3244	 62.67	0	3354178..3354678	+	166	206577889	-	KPK_3305	-	YbaK/prolyl-tRNA synthetase-associated domain protein
3245	 47.97	-1	3354675..3354797	-	40	206575775	-	KPK_3304	-	hypothetical protein
3246	 59.73	0	3354796..3355242	+	148	206580661	-	KPK_3307	-	hypothetical protein
3247	 63.90	+1	3355226..3356020	-	264	206579707	-	KPK_3306	-	transcriptional regulator, AraC family
3248	 67.59	+1	3356118..3357302	+	394	206581024	-	KPK_3308	-	cyanate transporter, CynX family
3249	 63.92	+1	3357334..3358026	-	230	206580153	-	KPK_3309	-	class I glutamine amidotransferase family protein
3250	 66.47	+1	3358172..3358681	+	169	206576435	-	KPK_3310	-	hypothetical protein
3251	 62.50	0	3358665..3359024	+	119	206578030	-	KPK_3312	-	hypothetical protein
3252	 61.67	0	3359014..3359253	-	79	206576256	-	KPK_3311	-	putative lipoprotein
3253	 59.07	0	3359555..3360568	+	337	206577117	-	KPK_3313	-	GAF domain/diguanylate cyclase
3254	 52.90	0	3360590..3360727	+	45	206576530	-	KPK_3314	-	hypothetical protein
3255	 57.26	0	3360685..3360801	+	38	206575794	-	KPK_3315	-	hypothetical protein
3256	 46.03	-1	3360921..3361046	+	41	206578076	-	KPK_3316	-	putative lipoprotein
3257	 54.17	0	3361106..3361369	-	87	206579550	-	KPK_3317	-	hypothetical protein
3258	 57.12	0	3361500..3362138	-	212	206580490	leuE	KPK_3318	-	leucine export protein LeuE
3259	 55.74	0	3362228..3363142	-	304	206579913	-	KPK_3319	-	lipid A biosynthesis lauroyl acyltransferase family protein
3260	 35.26	-2	3363141..3363296	+	51	206577251	-	KPK_3320	-	hypothetical protein
3261	 59.00	0	3363799..3364842	-	347	206576960	ansB	KPK_3321	-	L-asparaginase 2
3262	 56.00	0	3365151..3366359	+	402	206579044	-	KPK_3322	-	putative metal-dependent phosphohydrolase
3263	 63.08	0	3366433..3368217	+	594	206578138	-	KPK_3323	-	putative membrane-bound diguanylate cyclase
3264	 61.84	0	3368224..3369114	-	296	206580822	-	KPK_3324	-	transcriptional regulator, LysR family
3265	 61.21	0	3369235..3370737	+	500	206579340	-	KPK_3325	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase family protein
3266	 56.20	0	3370813..3371223	-	136	206575900	-	KPK_3326	-	hypothetical protein
3267	 48.51	-1	3371353..3372024	-	223	206580374	-	KPK_3327	-	cyclic diguanylate phosphodiesterase
3268	 55.10	0	3372455..3372601	-	48	206577091	-	KPK_3328	-	putative lipoprotein
3269	 58.29	0	3372674..3373306	-	210	206576499	-	KPK_3329	-	hypothetical protein
3270	 40.31	-2	3373398..3373526	-	42	206579457	-	KPK_3330	-	hypothetical protein
3271	 47.98	-1	3373879..3374076	+	65	206578854	-	KPK_3331	-	hypothetical protein
3272	 60.63	0	3374135..3374929	-	264	206580964	-	KPK_3332	-	transcriptional regulator, AraC family
3273	 57.25	0	3374944..3375081	-	45	206580378	-	KPK_3333	-	hypothetical protein
3274	 63.84	+1	3375007..3377058	+	683	206576309	-	KPK_3334	-	fusaric acid resistance domain protein
3275	 61.50	0	3377051..3377263	+	70	206575808	-	KPK_3335	-	hypothetical protein
3276	 64.17	+1	3377260..3378180	+	306	206580205	-	KPK_3337	-	auxiliary transport protein, membrane fusion protein (MFP) family
3277	 60.53	0	3378174..3379184	-	336	206577977	-	KPK_3336	-	putative cyanide-insensitive terminal oxidase CioB
3278	 58.71	0	3379181..3380587	-	468	206575836	-	KPK_3338	-	putative cyanide-insensitive terminal oxidase CioA
3279	 59.01	0	3380643..3381530	-	295	206576261	-	KPK_3339	-	putative manganese containing catalase
3280	 51.68	0	3381547..3382053	-	168	206577370	-	KPK_3340	-	hypothetical protein
3281	 46.46	-1	3382080..3382574	-	164	206577798	-	KPK_3341	-	hypothetical protein
3282	 53.23	0	3382664..3382849	-	61	206578863	-	KPK_3342	-	hypothetical protein
3283	 41.03	-2	3383233..3383349	-	38	206579278	-	KPK_3343	-	hypothetical protein
3284	 59.21	0	3383460..3384653	+	397	206577810	-	KPK_3344	-	oxidoreductase, zinc-binding dehydrogenase family
3285	 63.60	0	3384761..3384988	+	75	206577213	-	KPK_3345	-	hypothetical protein
3286	 54.76	0	3385043..3385588	-	181	206579609	-	KPK_3346	-	isochorismatase hydrolase family protein
3287	 51.27	0	3385913..3386386	+	157	206575716	-	KPK_3347	-	OsmC family protein
3288	 54.32	0	3386524..3386847	+	107	206579584	-	KPK_3348	-	antibiotic biosynthesis monooxygenase domain protein
3289	 54.96	0	3386840..3387232	+	130	206580057	-	KPK_3349	-	ACT domain protein
3290	 59.80	0	3387229..3387942	+	237	206577700	-	KPK_3350	-	transcriptional regulator, ArsR family
3291	 30.91	-2	3388156..3388320	+	54	206578291	-	KPK_3351	-	hypothetical protein
3292	 45.20	-1	3388750..3388926	-	58	206576448	-	KPK_3352	-	hypothetical protein
3293	 30.61	-2	3389972..3390118	-	48	206577479	-	KPK_3354	-	hypothetical protein
3294	 30.30	-2	3390301..3390993	-	230	206578094	-	KPK_3355	-	putative cyclic diguanylate phosphodiesterase
3295	 36.45	-2	3391350..3392408	-	352	206576280	-	KPK_3356	-	MASE2 domain/diguanylate cyclase
3296	 53.98	0	3392831..3393232	-	133	206577956	-	KPK_3357	-	hypothetical protein
3297	 58.09	0	3393186..3394724	-	512	206577426	-	KPK_3358	-	hypothetical protein
3298	 57.77	0	3394766..3395473	-	235	206579043	-	KPK_3359	-	putative phage tail assembly protein
3299	 54.27	0	3395476..3396225	-	249	206581121	-	KPK_3360	-	phage minor tail protein L
3300	 47.22	-1	3396318..3396677	-	119	206576679	-	KPK_3361	-	hypothetical protein
3301	 52.14	0	3396690..3397040	-	116	206575887	-	KPK_3362	-	phage minor tail protein
3302	 56.10	0	3397040..3397834	-	264	206576003	-	KPK_3363	-	putative major capsid protein
3303	 56.83	0	3398870..3400129	-	419	206579535	-	KPK_3365	-	phage portal protein, HK97 family
3304	 49.36	-1	3400302..3402023	-	573	206580362	-	KPK_3366	-	putative phage terminase, large subunit
3305	 52.64	0	3402023..3402457	-	144	206581076	-	KPK_3367	-	putative phage terminase, small subunit, P27 family
3306	 51.85	0	3402791..3403222	-	143	206579568	-	KPK_3368	-	hypothetical protein
3307	 53.27	0	3403222..3403542	-	106	206576851	-	KPK_3369	-	hypothetical protein
3308	 52.07	0	3403494..3403856	-	120	206580647	-	KPK_3370	-	HNH endonuclease domain protein
3309	 52.08	0	3405339..3405482	-	47	206575789	-	KPK_3371	-	hypothetical protein
3310	 51.28	0	3405457..3405807	-	116	206576526	-	KPK_3372	-	hypothetical protein
3311	 55.36	0	3405804..3406307	-	167	206576574	-	KPK_3373	-	phage lysozyme
3312	 52.34	0	3406279..3406620	-	113	206576544	-	KPK_3374	-	hypothetical protein
3313	 52.45	0	3407286..3407693	-	135	206580517	-	KPK_3375	-	hypothetical protein
57.01	MEAN

6.61	STD DEV
