IslandPathversion 1.0

IslandPath Analysis: Klebsiella pneumoniae 342

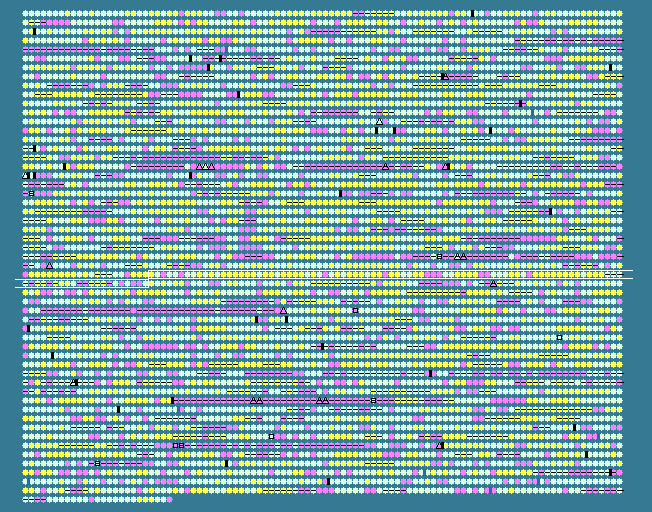

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2922	 64.99	+1	3032024..3033394	+	456	206578022	-	KPK_2981	-	efflux transporter, outer membrane factor (OMF) lipoprotein, NodT family
2923	 57.27	0	3033498..3034157	+	219	206576035	-	KPK_2982	-	O-methyltransferase family protein
2924	 50.47	0	3034258..3035109	-	283	206576607	-	KPK_2983	-	hypothetical protein
2925	 59.52	0	3035301..3039203	-	1300	206576016	hrpA	KPK_2984	-	ATP-dependent helicase HrpA
2926	 57.59	0	3039407..3040012	+	201	206576453	azoR	KPK_2985	-	FMN-dependent NADH-azoreductase
2927	 51.26	0	3040257..3040574	+	105	206576356	-	KPK_2986	-	hypothetical protein
2928	 55.09	0	3040590..3040874	+	94	206576777	-	KPK_2987	-	DNA-binding protein
2929	 58.29	0	3040907..3041503	-	198	206579257	paaY	KPK_2988	-	phenylacetic acid degradation protein PaaY
2930	 60.95	0	3041513..3042439	-	308	206578344	paaX	KPK_2989	-	phenylacetic acid degradation operon negative regulatory protein PaaX
2931	 58.01	0	3042539..3043855	-	438	206580790	paaK	KPK_2990	-	phenylacetate-CoA ligase PaaK
2932	 62.02	0	3043882..3045087	-	401	206578538	paaJ	KPK_2991	-	beta-ketoadipyl CoA thiolase PaaJ
2933	 56.97	0	3045087..3045509	-	140	206576838	paaI	KPK_2992	-	phenylacetic acid degradation protein PaaI
2934	 61.67	0	3045499..3046920	-	473	206580044	paaH	KPK_2993	-	3-hydroxybutyryl-CoA dehydrogenase PaaH
2935	 64.26	+1	3046924..3047712	-	262	206580657	paaG	KPK_2994	-	enoyl-CoA hydratase PaaG
2936	 62.37	0	3047715..3048482	-	255	206575863	paaF	KPK_2995	-	enoyl-CoA hydratase PaaF
2937	 61.62	0	3048479..3049549	-	356	206578773	paaE	KPK_2996	-	phenylacetate-CoA oxygenase, NAD(P)H oxidoreductase component PaaE
2938	 61.24	0	3049557..3050054	-	165	206580187	paaD	KPK_2997	-	phenylacetate-CoA oxygenase, gamma subunit
2939	 61.51	0	3050066..3050821	-	251	206578274	paaC	KPK_2998	-	phenylacetate-CoA oxygenase, beta subunit
2940	 54.86	0	3050829..3051116	-	95	206579005	paaB	KPK_2999	-	phenylacetate-CoA oxygenase, effector protein
2941	 60.54	0	3051128..3052057	-	309	206576257	paaA	KPK_3000	-	phenylacetyl-CoA oxygenase, alpha subunit
2942	 61.19	0	3052344..3054389	+	681	206577031	maoC	KPK_3001	-	phenylacetic acid degradation protein MaoC
2943	 57.98	0	3054884..3057151	+	755	206579926	tynA	KPK_3002	-	copper amine oxidase
2944	 66.87	+1	3057154..3058128	-	324	206580678	-	KPK_3003	-	zinc-containing alcohol dehydrogenase family protein
2945	 64.35	+1	3058151..3058969	-	272	206580924	-	KPK_3004	-	phytanoyl-CoA dioxygenase, PhyH family
2946	 66.33	+1	3058994..3060178	-	394	206578661	-	KPK_3005	-	putative acetylornithine deacetylase
2947	 66.67	+1	3060144..3060818	-	224	206575909	-	KPK_3006	-	hypothetical protein
2948	 59.31	0	3060815..3061249	-	144	206576666	-	KPK_3007	-	endoribonuclease L-PSP family protein
2949	 65.00	+1	3061274..3062533	-	419	206577498	-	KPK_3008	-	hypothetical protein
2950	 56.28	0	3062702..3063616	-	304	206578420	-	KPK_3009	-	transcriptional regulator, LysR family
2951	 28.67	-2	3063864..3064013	-	49	206579664	-	KPK_3010	-	hypothetical protein
2952	 59.70	0	3064105..3065625	+	506	206579195	-	KPK_3011	-	amino acid ABC transporter, permease/ATP-binding protein, His/Glu/Gln/Arg/opine family
2953	 64.26	+1	3065652..3066524	+	290	206579860	-	KPK_3012	-	phytanoyl-CoA dioxygenase (PhyH) family protein
2954	 58.60	0	3066548..3067378	+	276	206580801	-	KPK_3013	-	ABC transporter, periplasmic substrate-binding protein
2955	 62.70	0	3067384..3068115	+	243	206578169	-	KPK_3014	-	class II aldolase/adducin N-terminal domain protein
2956	 67.00	+1	3068134..3069024	-	296	206578066	-	KPK_3015	-	putative 2-dehydropantoate 2-reductase
2957	 65.67	+1	3069149..3070648	-	499	206580270	feaB	KPK_3016	-	phenylacetaldehyde dehydrogenase
2958	 53.97	0	3070680..3070805	-	41	206579727	-	KPK_3017	-	hypothetical protein
2959	 63.57	0	3070884..3071786	+	300	206575720	feaR	KPK_3018	-	transcriptional activator FeaR
2960	 63.89	+1	3071787..3072110	-	107	206581070	-	KPK_3019	-	hypothetical protein
2961	 49.46	-1	3072118..3072303	-	61	206577300	-	KPK_3020	-	putative lipoprotein
2962	 63.83	+1	3072300..3074939	-	879	206576542	-	KPK_3021	-	hypothetical protein
2963	 61.48	0	3075146..3075646	+	166	206579546	-	KPK_3022	-	DedA family protein
2964	 59.19	0	3075794..3076783	+	329	206578807	ldhA	KPK_3023	-	D-lactate dehydrogenase
2965	 59.41	0	3076906..3077346	+	146	206577569	hslJ	KPK_3024	-	heat shock protein HslJ
2966	 65.53	+1	3077392..3077655	-	87	206578308	-	KPK_3025	-	putative lipoprotein
2967	 61.82	0	3078018..3081545	+	1175	206575856	-	KPK_3026	-	putative pyruvate:ferredoxin (flavodoxin) oxidoreductase
2968	 38.76	-2	3081548..3081676	-	42	206576329	-	KPK_3027	-	hypothetical protein
2969	 52.71	0	3081904..3083028	+	374	206577055	ompN	KPK_3028	-	outer membrane protein N
2970	 48.83	-1	3083171..3083383	+	70	206576258	-	KPK_3029	-	hypothetical protein
2971	 54.71	0	3083466..3083900	+	144	206577899	uspF	KPK_3030	-	universal stress protein F
2972	 55.45	0	3084132..3085067	+	311	206578688	-	KPK_3031	-	PP-loop family protein
2973	 62.74	0	3085113..3086486	-	457	206576701	dbpA	KPK_3032	-	ATP-independent RNA helicase DbpA
2974	 61.59	0	3087012..3087995	-	327	206577499	zntB	KPK_3033	-	zinc transport protein ZntB
2975	 63.44	0	3088274..3089017	+	247	206576575	-	KPK_3034	-	transcriptional regulator, DeoR family
2976	 62.25	0	3089034..3090098	+	354	206576956	-	KPK_3035	-	oxidoreductase, NAD binding
2977	 48.21	-1	3090335..3090529	+	64	206576339	-	KPK_3036	-	hypothetical protein
2978	 52.40	0	3090645..3091394	-	249	206580736	-	KPK_3037	-	hypothetical protein
2979	 58.85	0	3091630..3093075	-	481	206580003	-	KPK_3038	-	putative aromatic amino acid transport protein AroP
2980	 57.92	0	3093341..3093820	+	159	206579258	-	KPK_3039	-	transcriptional regulator, AsnC family
2981	 56.10	0	3094071..3094685	+	204	206578530	-	KPK_3040	-	hypothetical protein
2982	 63.08	0	3094724..3095923	+	399	206578812	-	KPK_3041	-	putative aromatic-amino-acid transaminase
2983	 61.73	0	3095968..3096636	-	222	206578399	-	KPK_3042	-	ABC transporter, permease protein
2984	 55.82	0	3096629..3097642	-	337	206577331	-	KPK_3043	-	putative methionine ABC transporter, ATP-binding protein
2985	 51.82	0	3097651..3098310	-	219	206579171	-	KPK_3044	-	ABC transporter, periplasmic substrate-binding protein
2986	 61.82	0	3098677..3099852	+	391	206578295	-	KPK_3045	-	allinase
2987	 67.34	+1	3099900..3100934	-	344	206576262	-	KPK_3046	-	oxidoreductase, zinc-binding dehydrogenase family
2988	 66.85	+1	3101023..3101571	+	182	206576083	-	KPK_3047	-	transcriptional regulator, TetR family
2989	 67.00	+1	3101628..3102539	-	303	206575913	-	KPK_3048	-	NmrA family protein
2990	 62.83	0	3102539..3103399	-	286	206580940	-	KPK_3049	-	metallo-beta-lactamase domain protein
2991	 63.64	+1	3103490..3104413	+	307	206580170	-	KPK_3050	-	transcriptional regulator, LysR family
2992	 64.46	+1	3104433..3105338	-	301	206580580	-	KPK_3051	-	transcriptional regulator, LysR family
2993	 63.33	0	3105477..3106406	+	309	206578681	-	KPK_3052	-	NmrA family protein
2994	 56.04	0	3106432..3106638	+	68	206577701	-	KPK_3053	-	hypothetical protein
2995	 65.98	+1	3106689..3107567	-	292	206576354	-	KPK_3054	-	transcriptional regulator, AraC family
2996	 65.21	+1	3107726..3108481	+	251	206579078	-	KPK_3055	-	oxidoreductase, short chain dehydrogenase/reductase family
2997	 65.66	+1	3108486..3109079	-	197	206578176	-	KPK_3056	-	transcriptional regulator, TetR family
2998	 57.79	0	3109186..3111180	-	664	206580265	-	KPK_3057	-	putative lipoprotein
2999	 57.63	0	3111249..3111779	-	176	206578689	-	KPK_3058	-	putative lipoprotein
3000	 55.74	0	3111847..3112377	-	176	206575894	-	KPK_3059	-	putative lipoprotein
3001	 55.68	0	3112445..3112972	-	175	206576142	-	KPK_3060	-	putative lipoprotein
3002	 53.08	0	3113036..3113815	-	259	206578161	-	KPK_3061	-	hypothetical protein
3003	 62.36	0	3113816..3116185	-	789	206577667	-	KPK_3062	-	type VI secretion system Vgr family protein
3004	 64.26	+1	3116187..3118841	-	884	206578966	clpV	KPK_3063	-	type VI secretion ATPase, ClpV1 family
3005	 52.44	0	3119106..3119597	-	163	206577151	-	KPK_3064	-	type VI secretion system effector, Hcp1 family
3006	 64.79	+1	3119602..3121305	-	567	206579667	-	KPK_3065	-	OmpA domain protein
3007	 60.87	0	3121302..3121991	-	229	206579269	-	KPK_3066	-	type IV/VI secretion system protein, DotU family
3008	 61.90	0	3121988..3123331	-	447	206580867	-	KPK_3067	-	hypothetical protein
3009	 59.74	0	3123341..3124885	-	514	206580274	-	KPK_3068	-	type VI secretion protein, EvpB/VC_A0108 family
3010	 48.58	-1	3124928..3125419	-	163	206577610	-	KPK_3069	-	hypothetical protein
3011	 24.81	-2	3125473..3125601	+	42	206576640	-	KPK_3070	-	hypothetical protein
3012	 61.23	0	3126047..3126616	+	189	206578791	-	KPK_3071	-	intracellular protease, PfpI family
3013	 61.02	0	3126774..3127535	-	253	206577855	-	KPK_3072	-	oxidoreductase, short chain dehydrogenase/reductase family
3014	 64.37	+1	3127644..3128558	+	304	206580488	-	KPK_3073	-	transcriptional regulator, LysR family
3015	 47.62	-1	3128861..3129049	+	62	206576638	-	KPK_3074	-	hypothetical protein
3016	 54.78	0	3129103..3129573	-	156	206579264	-	KPK_3075	-	putative anti-sigma B factor
3017	 53.39	0	3129566..3129904	-	112	206578466	-	KPK_3076	-	anti-anti-sigma factor
3018	 58.52	0	3129894..3131108	-	404	206581136	-	KPK_3077	-	response regulator
3019	 53.00	0	3131117..3132016	-	299	206579861	-	KPK_3078	-	hypothetical protein
3020	 51.56	0	3132027..3133244	-	405	206576840	-	KPK_3079	-	hypothetical protein
3021	 57.59	0	3133521..3135338	+	605	206576278	-	KPK_3080	-	glycosyl transferase, group 2 family protein
57.01	MEAN

6.61	STD DEV
