IslandPath Analysis: Klebsiella pneumoniae 342

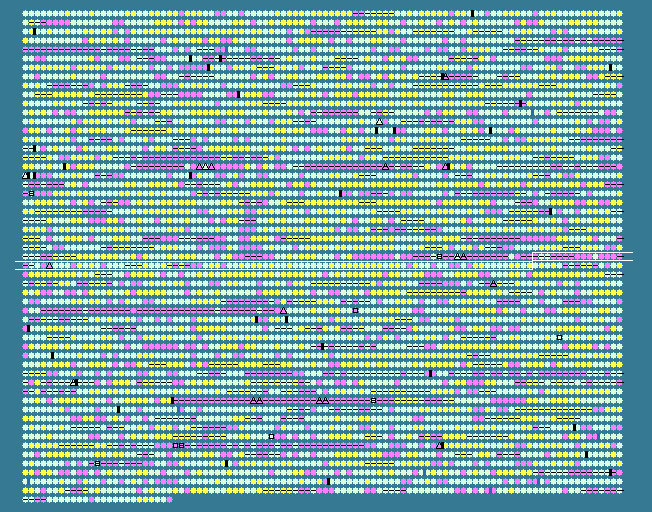

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2786	 34.87	-2	2896595..2897050	-	151	206576999	-	KPK_2844	-	hypothetical protein
2787	 55.05	0	2897106..2897570	-	154	206576689	-	KPK_2845	-	bacteriophage lysis protein
2788	 53.54	0	2897567..2898046	-	159	206576793	-	KPK_2846	-	phage lysozyme
2789	 52.16	0	2898030..2898353	-	107	206579691	-	KPK_2847	-	phage holin, lambda family
2790	 33.98	-2	2898563..2898871	-	102	206578684	-	KPK_2848	-	hypothetical protein
2791	 35.66	-2	2898947..2899633	+	228	206577521	-	KPK_2849	-	hypothetical protein
2792	 42.53	-2	2899828..2900088	-	86	206579154	-	KPK_2850	-	hypothetical protein
2793	 48.87	-1	2900233..2901030	-	265	206577129	-	KPK_2851	-	antitermination protein
2794	 49.28	-1	2901027..2901164	-	45	206580314	-	KPK_2852	-	hypothetical protein
2795	 50.42	0	2901161..2901517	-	118	206580395	-	KPK_2853	-	crossover junction endodeoxyribonuclease RusA family protein
2796	 59.06	0	2901514..2901894	-	126	206581003	-	KPK_2854	-	hypothetical protein
2797	 53.27	0	2902019..2902615	-	198	206578034	-	KPK_2855	-	hypothetical protein
2798	 48.72	-1	2902651..2902884	-	77	206579490	-	KPK_2856	-	hypothetical protein
2799	 39.56	-2	2903580..2903852	-	90	206578267	-	KPK_2857	-	putative colicin-D immunity protein
2800	 46.51	-1	2904230..2904358	-	42	206577420	-	KPK_2858	-	hypothetical protein
2801	 33.80	-2	2904462..2905310	-	282	206578035	-	KPK_2859	-	HNH endonuclease domain protein
2802	 58.72	0	2905357..2906928	-	523	206575823	-	KPK_2860	-	putative DNA modification methylase
2803	 55.37	0	2907076..2907429	+	117	206576460	-	KPK_2861	-	hypothetical protein
2804	 50.78	0	2907489..2907746	+	85	206576188	-	KPK_2862	-	hypothetical protein
2805	 47.46	-1	2907727..2908866	+	379	206578665	-	KPK_2863	-	site-specific recombinase, phage integrase family
2806	 59.87	0	2909016..2911061	-	681	206579681	dcp	KPK_2864	-	peptidyl-dipeptidase Dcp
2807	 59.33	0	2911192..2911941	+	249	206577359	-	KPK_2865	-	NADP-dependent l-serine/l-allo-threonine dehydrogenase ydfg
2808	 54.44	0	2912033..2912719	+	228	206577981	-	KPK_2866	-	transcriptional regulator, GntR family
2809	 49.77	-1	2912771..2913202	-	143	206580858	-	KPK_2867	-	universal stress family protein
2810	 62.70	0	2913469..2914932	-	487	206579109	-	KPK_2868	-	mannitol dehydrogenase family protein
2811	 59.89	0	2915219..2916502	-	427	206580438	-	KPK_2869	-	transporter, major facilitator family
2812	 64.83	+1	2916617..2916943	-	108	206581016	-	KPK_2870	-	hypothetical protein
2813	 59.94	0	2917088..2917429	+	113	206575862	-	KPK_2871	-	hypothetical protein
2814	 51.34	0	2917508..2918068	+	186	206578825	-	KPK_2873	-	acetyltransferase, GNAT family
2815	 56.82	0	2918062..2918772	-	236	206576406	-	KPK_2872	-	putative lipoprotein
2816	 56.30	0	2918874..2919143	+	89	206579321	-	KPK_2874	-	hypothetical protein
2817	 59.81	0	2919294..2921729	+	811	206576594	-	KPK_2875	-	anaerobic dimethyl sulfoxide reductase, A subunit, DmsA/YnfE family
2818	 60.36	0	2921740..2922357	+	205	206575826	dmsB_1	KPK_2876	-	anaerobic dimethyl sulfoxide reductase, B subunit
2819	 60.26	0	2922359..2923216	+	285	206581109	-	KPK_2877	-	putative anaerobic dimethyl sulfoxide reductase, C subunit
2820	 65.35	+1	2923258..2923866	+	202	206580367	dmsD	KPK_2878	-	twin-arginine leader-binding protein DmsD
2821	 64.68	+1	2924036..2925295	+	419	206580961	-	KPK_2880	-	chloride transporter, chloride channel (ClC) family
2822	 60.06	0	2925248..2925943	-	231	206579022	-	KPK_2879	-	putative dethiobiotin synthase
2823	 57.76	0	2926071..2927294	-	407	206577523	mic	KPK_2881	-	transcriptional regulator Mic
2824	 61.46	0	2927416..2928318	-	300	206577260	-	KPK_2882	-	transcriptional regulator, LysR family
2825	 61.47	0	2928449..2929699	+	416	206579551	-	KPK_2883	-	transporter, major facilitator family
2826	 50.88	0	2929730..2929843	-	37	206579104	-	KPK_2884	-	hypothetical protein
2827	 62.16	0	2930039..2931526	+	495	206576211	-	KPK_2885	-	carboxypeptidase family protein
2828	 52.96	0	2931714..2932085	-	123	206576899	-	KPK_2886	-	hypothetical protein
2829	 52.71	0	2932295..2932423	-	42	206577463	-	KPK_2887	-	hypothetical protein
2830	 51.28	0	2932473..2932589	-	38	206575987	-	KPK_2888	-	hypothetical protein
2831	 59.41	0	2933059..2933871	+	270	206578736	-	KPK_2889	-	peptidase, S1A (chymotrypsin) family
2832	 61.01	0	2933872..2936028	-	718	206579319	-	KPK_2890	-	diguanylate cyclase/cyclic diguanylate phosphodiesterase
2833	 60.91	0	2936136..2936465	-	109	206579969	mdtI	KPK_2891	-	multidrug resistance protein MdtI
2834	 48.21	-1	2936452..2936814	-	120	206580546	mdtJ	KPK_2892	-	multidrug resistance protein MdtJ
2835	 56.18	0	2937166..2938290	+	374	206580879	ydgG	KPK_2893	-	inner membrane protein YdgG
2836	 60.08	0	2938516..2940171	+	551	206577230	mdcA	KPK_2894	-	malonate decarboxylase, alpha subunit
2837	 68.56	+1	2940171..2941013	+	280	206578901	mdcB	KPK_2895	-	triphosphoribosyl-dephospho-CoA synthase MdcB
2838	 58.00	0	2941031..2941330	+	99	206580998	mdcC	KPK_2896	-	malonate decarboxylase, delta subunit
2839	 62.35	0	2941323..2942156	+	277	206580131	mdcD	KPK_2897	-	malonate decarboxylase, beta subunit
2840	 64.67	+1	2942156..2942956	+	266	206576856	mdcE	KPK_2898	-	malonate decarboxylase, gamma subunit
2841	 59.58	0	2943093..2944052	+	319	206578382	mdcF	KPK_2899	-	malonate transporter MdcF
2842	 66.99	+1	2944056..2944673	+	205	206577640	mdcG	KPK_2900	-	holo-ACP synthase, malonate decarboxylase-specific
2843	 56.85	0	2945565..2946491	-	308	206577180	-	KPK_2901	-	malonate utilization transcriptional regulator MdcR
2844	 57.55	0	2946650..2948305	-	551	206579170	mqo	KPK_2902	-	malate dehydrogenase (acceptor)
2845	 64.29	+1	2948568..2949491	-	307	206579786	-	KPK_2903	-	hypothetical protein
2846	 59.93	0	2949865..2951481	+	538	206577096	dcuS	KPK_2904	-	sensor protein DcuS
2847	 58.61	0	2951478..2952197	+	239	206578982	dcuR	KPK_2906	-	transcriptional regulatory protein DcuR
2848	 57.10	0	2952178..2953128	-	316	206577885	-	KPK_2905	-	ApbE family protein
2849	 60.15	0	2953343..2956120	-	925	206579736	-	KPK_2907	-	oxidoreductase, FAD/FMN-binding/flavocytochrome c
2850	 60.26	0	2956837..2958273	+	478	206580203	-	KPK_2908	-	putative tartrate carrier
2851	 59.47	0	2958328..2959980	+	550	206575969	fumB	KPK_2909	-	fumarate hydratase
2852	 61.90	0	2960145..2961761	+	538	206576567	-	KPK_2910	-	transporter, small conductance mechanosensitive ion channel (MscS) family
2853	 59.49	0	2962271..2962660	-	129	206577204	pcaC	KPK_2911	-	4-carboxymuconolactone decarboxylase
2854	 62.45	0	2962650..2963456	-	268	206577802	pcaD	KPK_2912	-	3-oxoadipate enol-lactonase
2855	 66.74	+1	2963407..2964759	-	450	206575977	pcaB	KPK_2913	-	3-carboxy-cis,cis-muconate cycloisomerase
2856	 65.75	+1	2964769..2965971	-	400	206580178	pcaF	KPK_2914	-	beta-ketoadipyl CoA thiolase
2857	 62.25	0	2965982..2966638	-	218	206578485	pcaJ	KPK_2915	-	3-oxoadipate CoA-transferase, subunit B
2858	 62.15	0	2966649..2967335	-	228	206579270	pcaI	KPK_2916	-	3-oxoadipate CoA-transferase, subunit A
2859	 64.44	+1	2967505..2968311	+	268	206580726	pcaR	KPK_2918	-	Pca regulon regulatory protein
2860	 60.64	0	2968308..2968871	-	187	206580031	-	KPK_2917	-	Smr domain protein
2861	 58.58	0	2968972..2969898	-	308	206576079	-	KPK_2919	-	putative HTH-type transcriptional regulator abgR
2862	 67.28	+1	2970047..2971357	+	436	206576915	abgA	KPK_2920	-	aminobenzoyl-glutamate utilization protein A
2863	 63.14	0	2971357..2972802	+	481	206577698	abgB	KPK_2921	-	aminobenzoyl-glutamate utilization protein B
2864	 60.12	0	2972926..2974452	+	508	206577128	abgT	KPK_2922	-	aminobenzoyl-glutamate transport protein
2865	 46.54	-1	2974485..2974643	-	52	206578001	-	KPK_2923	-	hypothetical protein
2866	 62.79	0	2974901..2975416	+	171	206577143	ogt	KPK_2924	-	methylated-DNA--protein-cysteine methyltransferase
2867	 54.18	0	2975611..2976363	+	250	206579764	fnr	KPK_2925	-	fumarate and nitrate reduction regulatory protein
2868	 56.47	0	2976502..2977452	+	316	206578568	uspE	KPK_2926	-	universal stress protein E
2869	 51.35	0	2977570..2977791	-	73	206577909	-	KPK_2927	-	hypothetical protein
2870	 58.10	0	2977907..2979295	-	462	206577378	-	KPK_2928	-	NAD(P) transhydrogenase, beta subunit
2871	 57.99	0	2979306..2980850	-	514	206576623	pntA	KPK_2929	-	NAD(P) transhydrogenase, alpha subunit
2872	 40.17	-2	2981033..2981149	+	38	206580972	-	KPK_2930	-	hypothetical protein
2873	 37.98	-2	2981169..2981297	-	42	206580175	-	KPK_2931	-	hypothetical protein
2874	 58.25	0	2981357..2982307	+	316	206579013	-	KPK_2933	-	hypothetical protein
2875	 51.77	0	2982285..2982425	-	46	206579761	-	KPK_2932	-	hypothetical protein
2876	 60.59	0	2982485..2983867	+	460	206580268	arcD	KPK_2934	-	arginine/ornithine antiporter
2877	 61.27	0	2983904..2984626	+	240	206579077	-	KPK_2936	-	oxidoreductase, short chain dehydrogenase/reductase family
2878	 57.44	0	2984623..2984958	-	111	206579715	-	KPK_2935	-	hypothetical protein
2879	 60.30	0	2985087..2985809	+	240	206580883	rstA	KPK_2937	-	transcriptional regulatory protein RstA
2880	 54.27	0	2986062..2986424	+	120	206580244	-	KPK_2938	-	hypothetical protein
2881	 58.68	0	2987284..2988585	+	433	206578165	rstB	KPK_2940	-	sensor protein RstB
2882	 61.84	0	2988660..2989592	+	310	206579273	tus	KPK_2942	-	DNA replication terminus site-binding protein
2883	 61.03	0	2989582..2990982	-	466	206577154	fumC	KPK_2941	-	fumarate hydratase
2884	 58.89	0	2991320..2992966	-	548	206580526	fumA	KPK_2943	-	fumarate hydratase
2885	 61.58	0	2993168..2994346	+	392	206576919	manA	KPK_2944	-	mannose-6-phosphate isomerase, class I
57.01	MEAN

6.61	STD DEV
