IslandPath Analysis: Klebsiella pneumoniae 342

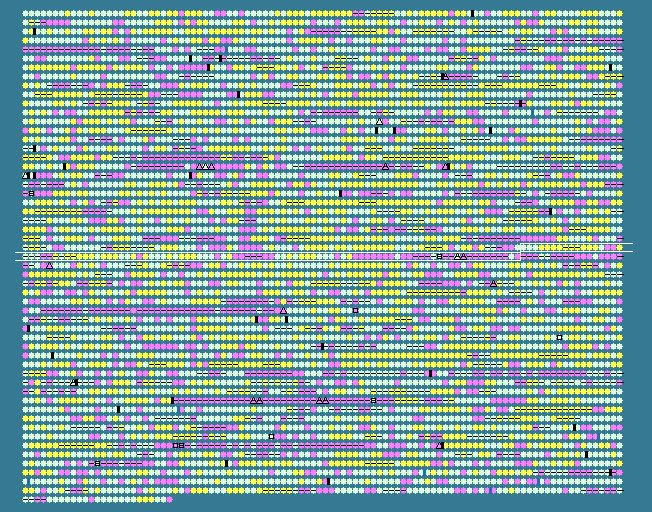

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2684	 58.82	0	2794345..2795796	-	483	206577732	uxaB	KPK_2739	-	tagaturonate reductase
2685	 59.51	0	2795910..2796440	-	176	206580894	-	KPK_2740	-	acetyltransferase, GNAT family
2686	 57.47	0	2796518..2797942	-	474	206576174	-	KPK_2741	-	putative membrane-bound diguanylate cyclase
2687	 61.79	0	2798057..2798425	-	122	206578732	-	KPK_2742	-	hypothetical protein
2688	 61.49	0	2798425..2799351	-	308	206580769	-	KPK_2743	-	glutaminase
2689	 65.51	+1	2799433..2800818	-	461	206577177	-	KPK_2744	-	aldehyde dehydrogenase (NAD) family protein
2690	 63.94	+1	2800925..2801803	+	292	206576387	-	KPK_2746	-	transcriptional regulator, LysR family
2691	 61.70	0	2801757..2802239	-	160	206579666	-	KPK_2745	-	acetyltransferase, GNAT family
2692	 62.65	0	2802385..2803329	+	314	206578175	-	KPK_2747	-	L-lactate dehydrogenase
2693	 60.76	0	2803344..2804105	-	253	206580138	-	KPK_2748	-	transcriptional regulator, DeoR family
2694	 62.21	0	2804107..2805093	-	328	206580903	-	KPK_2749	-	putative 4-hydroxythreonine-4-phosphate dehydrogenase
2695	 65.37	+1	2805086..2806321	-	411	206579093	-	KPK_2750	-	hypothetical protein
2696	 63.97	+1	2806497..2807645	+	382	206579175	-	KPK_2751	-	putative 5-hydroxyvalerate dehydrogenase
2697	 59.89	0	2807659..2808543	+	294	206578070	-	KPK_2752	-	putative dihydrodipicolinate synthase
2698	 49.21	-1	2808629..2809579	+	316	206575919	gyaR	KPK_2753	-	glyoxylate reductase
2699	 48.41	-1	2809643..2810962	+	439	206580292	-	KPK_2754	-	transporter, major facilitator family
2700	 61.26	0	2811008..2811802	-	264	206580890	-	KPK_2755	-	phenazine biosynthesis protein PhzF family
2701	 58.75	0	2812004..2813203	+	399	206580975	sotB	KPK_2756	-	sugar efflux transporter SotB
2702	 56.05	0	2813274..2813942	-	222	206579017	marC	KPK_2757	-	multiple antibiotic resistance protein MarC
2703	 54.71	0	2814204..2814638	+	144	206576176	marR	KPK_2758	-	multiple antibiotic resistance protein MarR
2704	 50.93	0	2814658..2815032	+	124	206576805	marA	KPK_2759	-	multiple antibiotic resistance protein MarA
2705	 51.60	0	2815073..2815291	+	72	206577753	marB	KPK_2760	-	multiple antibiotic resistance protein MarB
2706	 61.44	0	2815338..2816237	-	299	206577253	eamA	KPK_2761	-	transporter, 10 TMS drug/metabolite exporter (DME) family
2707	 59.72	0	2816432..2817625	+	397	206578479	-	KPK_2762	-	transporter, major facilitator family
2708	 63.77	+1	2817755..2818237	+	160	206579409	-	KPK_2763	-	DNA-binding protein
2709	 63.66	+1	2818273..2818971	-	232	206579976	urtE	KPK_2764	-	urea ABC transporter, ATP-binding protein UrtE
2710	 61.90	0	2818981..2819778	-	265	206580895	urtD	KPK_2765	-	urea ABC transporter, ATP-binding protein UrtD
2711	 63.87	+1	2819778..2820851	-	357	206576241	urtC	KPK_2766	-	urea ABC transporter, permease protein UrtC
2712	 64.95	+1	2820851..2822425	-	524	206577028	urtB	KPK_2767	-	urea ABC transporter, permease protein UrtB
2713	 58.10	0	2822487..2823758	-	423	206578033	urtA	KPK_2768	-	urea ABC transporter, urea binding protein
2714	 61.05	0	2823929..2825032	-	367	206577395	-	KPK_2769	-	methionine synthase, vitamin-B12 independent family protein
2715	 63.16	0	2825181..2825579	-	132	206577761	-	KPK_2770	-	hypothetical protein
2716	 64.75	+1	2825647..2826744	+	365	206579529	-	KPK_2771	-	transcriptional regulator, AraC family
2717	 56.48	0	2826713..2826928	+	71	206580572	-	KPK_2772	-	hypothetical protein
2718	 56.69	0	2826981..2827421	-	146	206580426	-	KPK_2773	-	acetyltransferase, GNAT family
2719	 66.48	+1	2827687..2828751	-	354	206576645	lacI	KPK_2774	-	lactose operon repressor
2720	 41.46	-2	2828773..2828895	+	40	206575729	-	KPK_2775	-	hypothetical protein
2721	 63.90	+1	2828948..2832055	+	1035	206577397	lacZ	KPK_2776	-	beta-galactosidase
2722	 55.69	0	2832110..2833375	+	421	206579375	lacY	KPK_2777	-	lactose permease
2723	 60.42	0	2833404..2834492	-	362	206576343	-	KPK_2778	-	RecF/RecN/SMC N-terminal domain protein
2724	 55.17	0	2834579..2834839	-	86	206577134	-	KPK_2779	-	hypothetical protein
2725	 64.69	+1	2835134..2835994	+	286	206577539	-	KPK_2780	-	beta-lactamase
2726	 60.24	0	2836012..2836773	-	253	206579660	-	KPK_2781	-	transcriptional regulator, DeoR family
2727	 64.23	+1	2837034..2837936	+	300	206579549	-	KPK_2782	-	3-hydroxyisobutyrate dehydrogenase family protein
2728	 65.17	+1	2837948..2839213	+	421	206580892	-	KPK_2783	-	YgbK domain protein
2729	 61.51	0	2839206..2839826	+	206	206579927	-	KPK_2784	-	aldolase, class II, AraD/FucA family
2730	 57.47	0	2839831..2840613	+	260	206576609	-	KPK_2785	-	AP endonuclease, family 2
2731	 59.34	0	2840671..2842035	+	454	206575798	-	KPK_2786	-	transporter, gluconate:H+ symporter (GntP) family
2732	 55.67	0	2842084..2842983	-	299	206577762	-	KPK_2787	-	putative transcriptional regulator, AraC family
2733	 43.79	-1	2843294..2843905	+	203	206578142	-	KPK_2788	-	transcriptional regulator, LuxR family
2734	 58.05	0	2844455..2845672	+	405	206576332	-	KPK_2789	-	BLUF domain/cyclic diguanylate phosphodiesterase
2735	 61.48	0	2845693..2846193	-	166	206576975	-	KPK_2790	-	competence/damage-inducible protein CinA C-terminal domain protein
2736	 51.05	0	2846373..2846846	-	157	206579003	-	KPK_2791	-	Hsp20/alpha crystallin family protein
2737	 44.92	-1	2847873..2848502	+	209	206577808	-	KPK_2793	-	transcriptional regulator, LuxR family
2738	 37.40	-2	2848499..2848621	-	40	206579753	-	KPK_2792	-	hypothetical protein
2739	 31.75	-2	2848676..2848801	-	41	206578582	-	KPK_2794	-	hypothetical protein
2740	 50.92	0	2848971..2849516	-	181	206576593	-	KPK_2795	-	acetyltransferase, GNAT family
2741	 47.09	-1	2849736..2850629	+	297	206577316	-	KPK_2796	-	transcriptional regulator, LysR family
2742	 38.26	-2	2850640..2850903	-	87	206578694	-	KPK_2797	-	hypothetical protein
2743	 55.85	0	2850968..2851420	-	150	206579422	-	KPK_2798	-	hypothetical protein
2744	 55.17	0	2851507..2851767	-	86	206581067	-	KPK_2799	-	hypothetical protein
2745	 64.69	+1	2852062..2852922	+	286	206580492	-	KPK_2800	-	beta-lactamase
2746	 60.24	0	2852940..2853701	-	253	206576742	-	KPK_2801	-	transcriptional regulator, DeoR family
2747	 64.23	+1	2853962..2854864	+	300	206580324	-	KPK_2802	-	3-hydroxyisobutyrate dehydrogenase family protein
2748	 65.17	+1	2854876..2856141	+	421	206577964	-	KPK_2803	-	YgbK domain protein
2749	 61.51	0	2856134..2856754	+	206	206575961	-	KPK_2804	-	aldolase, class II, AraD/FucA family
2750	 57.47	0	2856759..2857541	+	260	206577791	-	KPK_2805	-	AP endonuclease, family 2
2751	 59.34	0	2857599..2858963	+	454	206577027	-	KPK_2806	-	transporter, gluconate:H+ symporter (GntP) family
2752	 55.67	0	2859012..2859911	-	299	206578362	-	KPK_2807	-	putative transcriptional regulator, AraC family
2753	 43.79	-1	2860222..2860833	+	203	206579359	-	KPK_2808	-	transcriptional regulator, LuxR family
2754	 58.05	0	2861383..2862600	+	405	206578937	-	KPK_2809	-	BLUF domain/cyclic diguanylate phosphodiesterase
2755	 61.48	0	2862621..2863121	-	166	206579826	-	KPK_2810	-	competence/damage-inducible protein CinA C-terminal domain protein
2756	 51.05	0	2863301..2863774	-	157	206579398	-	KPK_2811	-	Hsp20/alpha crystallin family protein
2757	 44.92	-1	2864801..2865430	+	209	206580537	-	KPK_2813	-	transcriptional regulator, LuxR family
2758	 37.40	-2	2865427..2865549	-	40	206576030	-	KPK_2812	-	hypothetical protein
2759	 31.75	-2	2865604..2865729	-	41	206576160	-	KPK_2814	-	hypothetical protein
2760	 50.92	0	2865899..2866444	-	181	206580999	-	KPK_2815	-	acetyltransferase, GNAT family
2761	 47.09	-1	2866664..2867557	+	297	206577089	-	KPK_2816	-	transcriptional regulator, LysR family
2762	 40.82	-2	2867568..2868155	-	195	206576231	-	KPK_2817	-	translocator protein, LysE family
2763	 56.67	0	2868300..2868989	-	229	206578620	-	KPK_2818	-	Integral membrane protein
2764	 49.57	-1	2869043..2869627	-	194	206580508	-	KPK_2819	-	hypothetical protein
2765	 51.85	0	2869759..2870352	-	197	206578046	-	KPK_2820	-	transcriptional regulator, TetR family
2766	 51.12	0	2870522..2871415	+	297	206577467	-	KPK_2821	-	3-beta hydroxysteroid dehydrogenase/isomerase family protein
2767	 46.38	-1	2872107..2873018	-	303	206576830	-	KPK_2822	-	transcriptional regulator, LysR family
2768	 52.01	0	2874506..2875426	+	306	206577006	-	KPK_2824	-	transcriptional regulator, LysR family
2769	 54.67	0	2878009..2878158	+	49	206578330	-	KPK_2826	-	hypothetical protein
2770	 53.90	0	2878719..2879642	-	307	206576168	-	KPK_2827	-	IS903, transposase
2771	 31.11	-2	2879783..2880097	+	104	206580345	-	KPK_2828	-	hypothetical protein
2772	 35.78	-2	2880113..2880562	+	149	206581134	-	KPK_2829	-	hypothetical protein
2773	 55.36	0	2881862..2882860	+	332	206579294	-	KPK_2831	-	site-specific recombinase, phage integrase family
2774	 48.44	-1	2882857..2885067	+	736	206579886	-	KPK_2832	-	site-specific recombinase, phage integrase family
2775	 38.15	-2	2885160..2885678	-	172	206580481	-	KPK_2833	-	hypothetical protein
2776	 39.77	-2	2885691..2886545	-	284	206575830	-	KPK_2834	-	hypothetical protein
2777	 46.36	-1	2886682..2887863	+	393	206576600	-	KPK_2835	-	hypothetical protein
2778	 45.22	-1	2887860..2890088	+	742	206577731	-	KPK_2836	-	ThiF family protein
2779	 48.65	-1	2890263..2890745	-	160	206578336	-	KPK_2837	-	protein UmuD homolog
2780	 48.79	-1	2891208..2891414	+	68	206578609	-	KPK_2838	-	DinI family protein
2781	 37.86	-2	2891691..2892242	-	183	206576236	-	KPK_2839	-	hypothetical protein
2782	 57.29	0	2892525..2893121	-	198	206579209	hin	KPK_2840	-	DNA-invertase hin
2783	 52.31	0	2893261..2895120	+	619	206581053	-	KPK_2841	-	hypothetical protein
57.01	MEAN

6.61	STD DEV
