IslandPath Analysis: Klebsiella pneumoniae 342

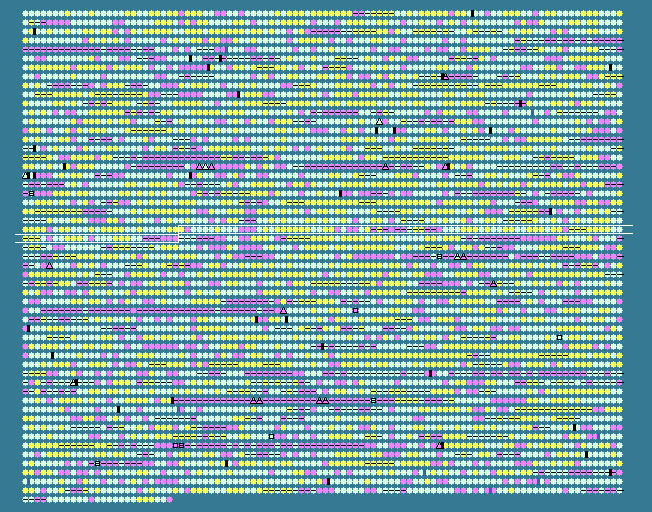

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2427	 61.84	0	2539397..2540515	+	372	206580973	catB	KPK_2481	-	muconate cycloisomerase
2428	 47.08	-1	2540528..2540818	+	96	206580202	catC	KPK_2482	-	muconolactone delta-isomerase
2429	 58.04	0	2540888..2541814	+	308	206575994	catA	KPK_2483	-	catechol 1,2-dioxygenase
2430	 54.81	0	2541924..2543306	+	460	206580643	cbeA	KPK_2484	-	2-chlorobenzoate 1,2-dioxygenase, alpha subunit
2431	 54.73	0	2543306..2543791	+	161	206577206	cbeB	KPK_2485	-	2-chlorobenzoate 1,2-dioxygenase, beta subunit
2432	 60.08	0	2543801..2544817	+	338	206576942	cbeC	KPK_2486	-	2-chlorobenzoate 1,2-dioxygenase, electron transfer subunit
2433	 63.57	0	2544827..2545600	+	257	206579311	cbeD	KPK_2488	-	cis-diol dehydrogenase
2434	 59.73	0	2545597..2546475	-	292	206579924	-	KPK_2487	-	hypothetical protein
2435	 57.97	0	2546701..2549748	+	1015	206580114	fdnG	KPK_2489	-	formate dehydrogenase, nitrate inducible, alpha subunit, selenocysteine-containing
2436	 56.84	0	2549760..2550644	+	294	206580675	fdnH	KPK_2490	-	formate dehydrogenase, nitrate-inducible, iron-sulfur subunit
2437	 52.21	0	2550637..2551293	+	218	206577722	fdnI	KPK_2491	-	formate dehydrogenase, gamma subunit
2438	 40.43	-2	2551346..2551669	-	107	206578326	-	KPK_2492	-	hypothetical protein
2439	 41.94	-2	2551669..2551854	-	61	206578594	-	KPK_2493	-	hypothetical protein
2440	 58.24	0	2552033..2552851	-	272	206579193	-	KPK_2494	-	putative polyphosphate kinase
2441	 64.61	+1	2552938..2553375	-	145	206579382	-	KPK_2495	-	glyoxalase family protein
2442	 60.26	0	2553653..2554807	+	384	206579975	-	KPK_2496	-	putative transporter AraJ
2443	 65.20	+1	2554814..2555905	-	363	206576163	-	KPK_2497	-	putative peroxidase
2444	 65.05	+1	2555915..2556901	-	328	206578862	-	KPK_2498	-	monooxygenase, luciferase family
2445	 63.76	+1	2556901..2558517	-	538	206577373	-	KPK_2499	-	ABC transporter, ATP-binding protein
2446	 67.14	+1	2558514..2559362	-	282	206576694	-	KPK_2500	-	ABC transporter, permease protein
2447	 62.86	0	2559359..2560303	-	314	206581072	-	KPK_2501	-	ABC transporter, permease protein
2448	 61.00	0	2560314..2561936	-	540	206580318	-	KPK_2502	-	ABC transporter, periplasmic substrate-binding protein
2449	 59.74	0	2562094..2563104	-	336	206579606	-	KPK_2503	-	alcohol dehydrogenase
2450	 57.17	0	2563358..2563957	+	199	206578848	-	KPK_2504	-	inorganic diphosphatase
2451	 61.32	0	2564125..2565078	+	317	206578055	-	KPK_2505	-	transcriptional regulator, MarR family/acetyltransferase, GNAT family
2452	 65.15	+1	2565115..2566830	-	571	206577112	-	KPK_2506	-	ABC transporter, ATP-binding protein
2453	 51.27	0	2567228..2567935	-	235	206577555	-	KPK_2507	-	hypothetical protein
2454	 58.72	0	2568119..2569816	-	565	206580960	sfcA	KPK_2508	-	malate dehydrogenase (oxaloacetate-decarboxylating)
2455	 43.41	-2	2569872..2570000	+	42	206579435	-	KPK_2510	-	hypothetical protein
2456	 51.06	0	2569997..2570137	-	46	206578589	-	KPK_2509	-	30S ribosomal protein, S22 family
2457	 59.04	0	2570315..2571166	-	283	206577901	-	KPK_2511	-	metallo-beta-lactamase family protein
2458	 66.33	+1	2571279..2572175	+	298	206578406	-	KPK_2512	-	transcriptional regulator, LysR family
2459	 51.63	0	2572243..2572488	-	81	206576054	-	KPK_2513	-	hypothetical protein
2460	 61.64	0	2572655..2573569	-	304	206576822	-	KPK_2514	-	oxidoreductase, short chain dehydrogenase/reductase family
2461	 33.33	-2	2573876..2574001	+	41	206576754	-	KPK_2515	-	hypothetical protein
2462	 51.61	0	2574223..2574408	+	61	206577702	-	KPK_2516	-	hypothetical protein
2463	 35.61	-2	2574516..2574647	-	43	206580984	-	KPK_2517	-	hypothetical protein
2464	 49.07	-1	2574612..2574827	+	71	206579859	-	KPK_2518	-	hypothetical protein
2465	 54.83	0	2574851..2575357	+	168	206576523	-	KPK_2519	-	hypothetical protein
2466	 61.69	0	2575612..2577237	+	541	206578398	-	KPK_2521	-	putative trehalose synthase
2467	 63.45	0	2577234..2578229	-	331	206581104	-	KPK_2520	-	oxidoreductase, short chain dehydrogenase/reductase family
2468	 44.97	-1	2578544..2578990	-	148	206577642	-	KPK_2522	-	hypothetical protein
2469	 50.20	-1	2578999..2579502	-	167	206579205	-	KPK_2523	-	hypothetical protein
2470	 35.56	-2	2579488..2579622	+	44	206578513	-	KPK_2524	-	hypothetical protein
2471	 57.53	0	2579648..2580052	+	134	206578195	-	KPK_2525	-	conserved hypothetical protein TIGR00156
2472	 58.50	0	2580068..2580214	+	48	206577739	-	KPK_2526	-	hypothetical protein
2473	 57.41	0	2580328..2580759	+	143	206579220	osmC	KPK_2527	-	peroxiredoxin OsmC
2474	 65.52	+1	2580863..2581732	+	289	206577223	-	KPK_2528	-	hypothetical protein
2475	 64.48	+1	2581736..2582422	-	228	206579650	-	KPK_2529	-	putative periplasmic substrate-binding protein
2476	 61.64	0	2582643..2583596	+	317	206579036	-	KPK_2530	-	cation diffusion facilitator family transporter
2477	 58.17	0	2583840..2584757	+	305	206579653	-	KPK_2531	-	hypothetical protein
2478	 62.19	0	2585100..2587379	+	759	206578845	-	KPK_2532	-	molybdopterin oxidoreductase, alpha subunit
2479	 58.62	0	2587528..2588409	+	293	206580915	-	KPK_2533	-	transcriptional regulator, LysR family
2480	 59.91	0	2588430..2589836	-	468	206580191	-	KPK_2534	-	transporter, major facilitator family
2481	 60.82	0	2590117..2591160	+	347	206577346	-	KPK_2535	-	ATPase, AFG1 family
2482	 62.81	0	2591195..2593372	-	725	206576568	katG	KPK_2536	-	catalase/peroxidase HPI
2483	 56.24	0	2593811..2594443	+	210	206579024	-	KPK_2537	-	translocator protein, LysE family
2484	 60.13	0	2594665..2596575	+	636	206580100	-	KPK_2538	-	penicillin-binding protein
2485	 65.85	+1	2596687..2597424	+	245	206579679	-	KPK_2540	-	class I glutamine amidotransferase family protein
2486	 68.68	+1	2597421..2599706	-	761	206579112	pqqF	KPK_2539	-	coenzyme PQQ biosynthesis protein PqqF
2487	 60.54	0	2599706..2600848	-	380	206577759	pqqE	KPK_2541	-	coenzyme PQQ biosynthesis protein E
2488	 59.50	0	2600835..2601113	-	92	206579644	pqqD	KPK_2542	-	coenzyme PQQ synthesis protein D
2489	 60.71	0	2601116..2601871	-	251	206577925	pqqC	KPK_2543	-	pyrroloquinoline-quinone synthase
2490	 60.95	0	2601865..2602791	-	308	206577171	pqqB	KPK_2544	-	coenzyme PQQ biosynthesis protein B
2491	 41.67	-2	2602846..2602917	-	23	206578272	pqqA	KPK_2545	-	coenzyme PQQ biosynthesis protein A
2492	 61.57	0	2603054..2604073	-	339	206580087	-	KPK_2546	-	renal dipeptidase family protein
2493	 63.34	0	2604317..2605309	+	330	206576557	-	KPK_2547	-	hydrolase, alpha/beta fold family
2494	 60.59	0	2605396..2606136	+	246	206578894	-	KPK_2548	-	DNA-binding response regulator
2495	 66.15	+1	2606133..2607476	+	447	206577107	-	KPK_2549	-	sensor histidine kinase
2496	 66.33	+1	2607579..2608769	+	396	206579447	-	KPK_2550	-	cytochrome c biogenesis protein/redoxin
2497	 65.19	+1	2609159..2610040	-	293	206576494	-	KPK_2551	-	transcriptional regulator, LysR family
2498	 60.93	0	2610257..2611738	-	493	206575761	ddc	KPK_2552	-	L-2,4-diaminobutyrate decarboxylase
2499	 58.87	0	2611748..2613133	-	461	206580384	dat	KPK_2553	-	diaminobutyrate--2-oxoglutarate aminotransferase
2500	 59.40	0	2613440..2614375	-	311	206576928	-	KPK_2554	-	ABC transporter, periplasmic substrate-binding protein
2501	 63.43	0	2614400..2615140	-	246	206579612	-	KPK_2555	-	ABC transporter, permease protein
2502	 69.14	+1	2615137..2615865	-	242	206578999	-	KPK_2556	-	ABC transporter, ATP-binding protein
2503	 62.07	0	2615862..2616557	-	231	206578113	-	KPK_2557	-	TENA/THI-4 family protein
2504	 58.16	0	2616554..2616694	-	46	206577549	-	KPK_2558	-	hypothetical protein
2505	 43.48	-2	2616731..2616868	-	45	206581040	-	KPK_2559	-	hypothetical protein
2506	 55.28	0	2617161..2617283	+	40	206578940	-	KPK_2560	-	hypothetical protein
2507	 55.66	0	2617302..2618246	+	314	206577164	-	KPK_2561	-	putative lipoprotein
2508	 61.34	0	2618312..2619418	+	368	206577754	-	KPK_2562	-	hypothetical protein
2509	 62.32	0	2619456..2620628	-	390	206575920	-	KPK_2563	-	oxidoreductase, NAD-binding
2510	 62.88	0	2620642..2621565	-	307	206576506	-	KPK_2564	-	AP endonuclease, family 2
2511	 60.23	0	2621757..2622797	-	346	206580225	-	KPK_2565	-	transcriptional regulator, LacI family
2512	 49.96	-1	2623195..2624451	+	418	206580868	-	KPK_2566	-	sensory box-containing diguanylate cyclase
2513	 59.66	0	2624576..2625517	+	313	206579050	-	KPK_2567	-	hypothetical protein
2514	 59.80	0	2625639..2626949	-	436	206579621	guaD	KPK_2568	-	guanine deaminase
2515	 59.19	0	2627050..2628546	-	498	206578885	-	KPK_2569	-	permease, cytosine/purine, uracil, thiamine, allantoin family
2516	 61.92	0	2628691..2629407	+	238	206579461	-	KPK_2570	-	transcriptional regulator, GntR family
2517	 63.84	+1	2629407..2630150	+	247	206575926	hyuE	KPK_2571	-	hydantoin racemase
2518	 63.02	0	2630163..2631095	+	310	206576420	-	KPK_2572	-	putative urate catabolism protein
2519	 57.20	0	2631183..2631974	-	263	206580459	-	KPK_2573	-	hypothetical protein
2520	 57.29	0	2632084..2632851	+	255	206581063	-	KPK_2574	-	transcriptional regulator, AraC family
2521	 44.89	-1	2633055..2633279	+	74	206579677	-	KPK_2575	-	hypothetical protein
2522	 49.05	-1	2633557..2634924	+	455	206580250	-	KPK_2576	-	hypothetical protein
2523	 51.24	0	2635134..2635859	-	241	206577362	-	KPK_2577	-	class I glutamine amidotransferase family protein
2524	 51.44	0	2635952..2636752	+	266	206577970	-	KPK_2578	-	transcriptional regulator, AraC family
2525	 43.33	-2	2637214..2638113	-	299	206580587	-	KPK_2579	-	hypothetical protein
2526	 45.56	-1	2638315..2638764	-	149	206575949	-	KPK_2580	-	hypothetical protein
57.01	MEAN

6.61	STD DEV
