IslandPath Analysis: Klebsiella pneumoniae 342

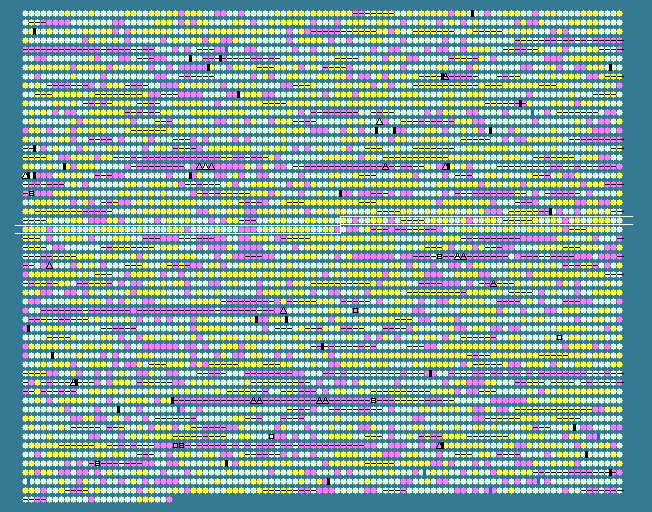

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2354	 62.99	0	2465032..2466036	+	334	206575810	tehA	KPK_2408	-	tellurite resistance protein TehA
2355	 57.12	0	2466033..2466629	+	198	206576419	tehB	KPK_2409	-	tellurite resistance protein TehB
2356	 50.88	0	2466655..2466768	+	37	206578315	-	KPK_2410	-	hypothetical protein
2357	 55.46	0	2466890..2467558	+	222	206577187	-	KPK_2411	-	putative lipoprotein
2358	 58.42	0	2467605..2468501	-	298	206576871	-	KPK_2412	-	hypothetical protein
2359	 60.69	0	2468683..2469552	+	289	206580235	-	KPK_2414	-	transcriptional regulator, AraC family
2360	 66.32	+1	2469529..2470695	-	388	206576092	-	KPK_2413	-	benzoate transporter family protein
2361	 59.65	0	2470869..2471438	+	189	206580811	-	KPK_2415	-	DNA-binding protein
2362	 48.21	-1	2471449..2471616	-	55	206578500	-	KPK_2416	-	hypothetical protein
2363	 57.49	0	2471650..2473611	+	653	206579768	-	KPK_2417	-	peptidase, U32 family
2364	 64.96	+1	2473624..2473857	-	77	206577279	-	KPK_2418	-	hypothetical protein
2365	 58.82	0	2474008..2474313	-	101	206577917	-	KPK_2419	-	hypothetical protein
2366	 60.32	0	2474409..2474534	-	41	206577755	-	KPK_2420	-	hypothetical protein
2367	 61.92	0	2474534..2475544	-	336	206577806	cioB	KPK_2421	-	cyanide-insensitive terminal oxidase CioB
2368	 60.09	0	2475544..2476941	-	465	206578387	cioA	KPK_2422	-	cyanide-insensitive terminal oxidase CioA
2369	 61.36	0	2477623..2479035	+	470	206580636	-	KPK_2423	-	transcriptional regulator, GntR family/aminotransferase, classes I and II
2370	 58.64	0	2479341..2480486	+	381	206580069	-	KPK_2424	-	ABC transporter, periplasmic substrate-binding protein
2371	 62.82	0	2480503..2481516	+	337	206579834	-	KPK_2425	-	ABC transporter, ATP-binding protein
2372	 59.89	0	2481518..2482447	+	309	206579240	-	KPK_2426	-	ABC transporter, permease protein
2373	 59.36	0	2482437..2483243	+	268	206575982	-	KPK_2427	-	ABC transporter, permease protein
2374	 61.76	0	2483266..2484693	+	475	206580820	ydcW	KPK_2428	-	gamma-aminobutyraldehyde dehydrogenase
2375	 51.22	0	2485026..2485148	-	40	206576734	-	KPK_2429	-	hypothetical protein
2376	 53.97	0	2485641..2485892	+	83	206580407	-	KPK_2430	-	hypothetical protein
2377	 54.02	0	2486233..2486406	+	57	206577045	-	KPK_2431	-	hypothetical protein
2378	 61.20	0	2486493..2487242	+	249	206576197	-	KPK_2432	-	hydrolase, alpha/beta fold family
2379	 63.88	+1	2487255..2488688	-	477	206581057	vdh	KPK_2433	-	vanillin dehydrogenase
2380	 56.97	0	2488958..2490556	+	532	206580416	-	KPK_2434	-	periplasmic dipeptide transport protein
2381	 58.55	0	2490573..2490806	+	77	206576469	-	KPK_2435	-	hypothetical protein
2382	 64.22	+1	2490815..2491264	-	149	206575821	-	KPK_2436	-	hypothetical protein
2383	 58.19	0	2491261..2491779	-	172	206578555	-	KPK_2437	-	acetyltransferase, GNAT family
2384	 62.03	0	2491942..2492523	+	193	206578107	-	KPK_2438	-	DNA-binding protein
2385	 61.95	0	2492589..2493626	+	345	206579519	-	KPK_2439	-	oxidoreductase, zinc-binding dehydrogenase family
2386	 61.65	0	2493689..2494624	-	311	206579354	rihA	KPK_2440	-	pyrimidine-specific ribonucleoside hydrolase RihA
2387	 57.14	0	2494586..2494816	+	76	206576845	-	KPK_2441	-	hypothetical protein
2388	 56.67	0	2494906..2495205	+	99	206577491	-	KPK_2442	-	hypothetical protein
2389	 61.40	0	2495278..2497383	-	701	206580463	-	KPK_2443	-	TonB-dependent receptor
2390	 58.29	0	2497643..2498704	+	353	206576307	-	KPK_2444	-	hypothetical protein
2391	 51.80	0	2498861..2499082	+	73	206577495	-	KPK_2445	-	putative lipoprotein
2392	 59.52	0	2499133..2500587	-	484	206578761	ansP	KPK_2446	-	L-asparagine permease
2393	 63.63	+1	2500777..2501664	-	295	206576336	-	KPK_2447	-	transcriptional regulator, LysR family
2394	 56.06	0	2501859..2502725	+	288	206576941	-	KPK_2448	-	putative diaminopimelate epimerase
2395	 55.03	0	2502749..2503444	-	231	206579912	-	KPK_2449	-	thiopurine S-methyltransferase family protein
2396	 65.22	+1	2503540..2504091	+	183	206579979	-	KPK_2450	-	hypothetical protein
2397	 66.37	+1	2504183..2505190	+	335	206580460	-	KPK_2451	-	monooxygenase, luciferase family
2398	 63.99	+1	2505180..2506301	+	373	206578531	-	KPK_2452	-	amidohydrolase family protein
2399	 56.16	0	2506326..2507639	+	437	206579355	-	KPK_2453	-	Ytnj protein
2400	 59.70	0	2507657..2508589	+	310	206578320	-	KPK_2454	-	ABC transporter, periplasmic substrate-binding protein
2401	 60.78	0	2508601..2509110	+	169	206577365	-	KPK_2455	-	acetyltransferase, GNAT family
2402	 62.03	0	2509120..2510046	+	308	206576764	-	KPK_2456	-	amino acid ABC transporter, permease protein
2403	 60.51	0	2510030..2510809	+	259	206575788	-	KPK_2457	-	amino acid ABC transporter, ATP-binding protein
2404	 65.55	+1	2510806..2511699	+	297	206580640	-	KPK_2458	-	amino acid ABC transporter, periplasmic amino acid-binding protein
2405	 53.47	0	2511765..2513075	-	436	206581079	-	KPK_2459	-	transporter, major facilitator family
2406	 59.48	0	2513280..2514476	-	398	206576533	-	KPK_2460	-	mandelate racemase/muconate lactonizing enzyme family protein
2407	 61.89	0	2514781..2515785	+	334	206576113	-	KPK_2461	-	sugar binding transcriptional regulator, LacI family
2408	 62.94	0	2515869..2516486	+	205	206578092	-	KPK_2462	-	glutathione S-transferase domain protein
2409	 56.58	0	2516557..2516784	+	75	206579572	-	KPK_2463	-	tautomerase enzyme family protein
2410	 59.28	0	2516824..2518434	-	536	206578943	-	KPK_2464	-	porin, LamB family
2411	 60.30	0	2518477..2519859	-	460	206578465	-	KPK_2465	-	sugar transporter, glycoside-pentoside-hexuronide (GPH):cation symporter family
2412	 61.70	0	2519883..2521451	-	522	206580379	-	KPK_2466	-	alpha-L-rhamnosidase family protein
2413	 54.30	0	2521656..2522480	+	274	206576536	-	KPK_2467	-	putative HTH-type transcriptional activator RhaS
2414	 64.09	+1	2522536..2523117	-	193	206575835	-	KPK_2468	-	flavin reductase domain protein
2415	 63.83	+1	2523329..2524033	+	234	206578128	-	KPK_2469	-	ABC transporter, ATP-binding protein
2416	 62.44	0	2524030..2524998	+	322	206578156	-	KPK_2470	-	ABC transporter, periplasmic substrate-binding protein
2417	 65.94	+1	2525057..2526712	+	551	206579380	-	KPK_2471	-	ABC transporter, permease protein
2418	 59.22	0	2526789..2527634	+	281	206577294	nhoA	KPK_2472	-	N-hydroxyarylamine O-acetyltransferase
2419	 59.77	0	2527831..2528511	-	226	206580562	narV	KPK_2473	-	respiratory nitrate reductase 2, gamma subunit
2420	 61.06	0	2528508..2529203	-	231	206578472	narW	KPK_2474	-	nitrate reductase molybdenum cofactor assembly chaperone 2
2421	 58.71	0	2529203..2530747	-	514	206577007	narY	KPK_2475	-	nitrate reductase 2, beta subunit
2422	 59.69	0	2530744..2534484	-	1246	206580298	narZ	KPK_2476	-	nitrate reductase 2, alpha subunit
2423	 55.89	0	2534598..2535980	-	460	206579784	narU	KPK_2477	-	nitrite extrusion protein 2
2424	 60.24	0	2536155..2536730	-	191	206577557	-	KPK_2478	-	transcriptional regulator, TetR family
2425	 64.13	+1	2536850..2538349	+	499	206578957	-	KPK_2480	-	putative methyl viologen resistance protein SmvA
2426	 65.16	+1	2538344..2539141	-	265	206578614	-	KPK_2479	-	transcriptional regulator, IclR family
2427	 61.84	0	2539397..2540515	+	372	206580973	catB	KPK_2481	-	muconate cycloisomerase
2428	 47.08	-1	2540528..2540818	+	96	206580202	catC	KPK_2482	-	muconolactone delta-isomerase
2429	 58.04	0	2540888..2541814	+	308	206575994	catA	KPK_2483	-	catechol 1,2-dioxygenase
2430	 54.81	0	2541924..2543306	+	460	206580643	cbeA	KPK_2484	-	2-chlorobenzoate 1,2-dioxygenase, alpha subunit
2431	 54.73	0	2543306..2543791	+	161	206577206	cbeB	KPK_2485	-	2-chlorobenzoate 1,2-dioxygenase, beta subunit
2432	 60.08	0	2543801..2544817	+	338	206576942	cbeC	KPK_2486	-	2-chlorobenzoate 1,2-dioxygenase, electron transfer subunit
2433	 63.57	0	2544827..2545600	+	257	206579311	cbeD	KPK_2488	-	cis-diol dehydrogenase
2434	 59.73	0	2545597..2546475	-	292	206579924	-	KPK_2487	-	hypothetical protein
2435	 57.97	0	2546701..2549748	+	1015	206580114	fdnG	KPK_2489	-	formate dehydrogenase, nitrate inducible, alpha subunit, selenocysteine-containing
2436	 56.84	0	2549760..2550644	+	294	206580675	fdnH	KPK_2490	-	formate dehydrogenase, nitrate-inducible, iron-sulfur subunit
2437	 52.21	0	2550637..2551293	+	218	206577722	fdnI	KPK_2491	-	formate dehydrogenase, gamma subunit
2438	 40.43	-2	2551346..2551669	-	107	206578326	-	KPK_2492	-	hypothetical protein
2439	 41.94	-2	2551669..2551854	-	61	206578594	-	KPK_2493	-	hypothetical protein
2440	 58.24	0	2552033..2552851	-	272	206579193	-	KPK_2494	-	putative polyphosphate kinase
2441	 64.61	+1	2552938..2553375	-	145	206579382	-	KPK_2495	-	glyoxalase family protein
2442	 60.26	0	2553653..2554807	+	384	206579975	-	KPK_2496	-	putative transporter AraJ
2443	 65.20	+1	2554814..2555905	-	363	206576163	-	KPK_2497	-	putative peroxidase
2444	 65.05	+1	2555915..2556901	-	328	206578862	-	KPK_2498	-	monooxygenase, luciferase family
2445	 63.76	+1	2556901..2558517	-	538	206577373	-	KPK_2499	-	ABC transporter, ATP-binding protein
2446	 67.14	+1	2558514..2559362	-	282	206576694	-	KPK_2500	-	ABC transporter, permease protein
2447	 62.86	0	2559359..2560303	-	314	206581072	-	KPK_2501	-	ABC transporter, permease protein
2448	 61.00	0	2560314..2561936	-	540	206580318	-	KPK_2502	-	ABC transporter, periplasmic substrate-binding protein
2449	 59.74	0	2562094..2563104	-	336	206579606	-	KPK_2503	-	alcohol dehydrogenase
2450	 57.17	0	2563358..2563957	+	199	206578848	-	KPK_2504	-	inorganic diphosphatase
2451	 61.32	0	2564125..2565078	+	317	206578055	-	KPK_2505	-	transcriptional regulator, MarR family/acetyltransferase, GNAT family
2452	 65.15	+1	2565115..2566830	-	571	206577112	-	KPK_2506	-	ABC transporter, ATP-binding protein
2453	 51.27	0	2567228..2567935	-	235	206577555	-	KPK_2507	-	hypothetical protein
57.01	MEAN

6.61	STD DEV
