IslandPath Analysis: Klebsiella pneumoniae 342

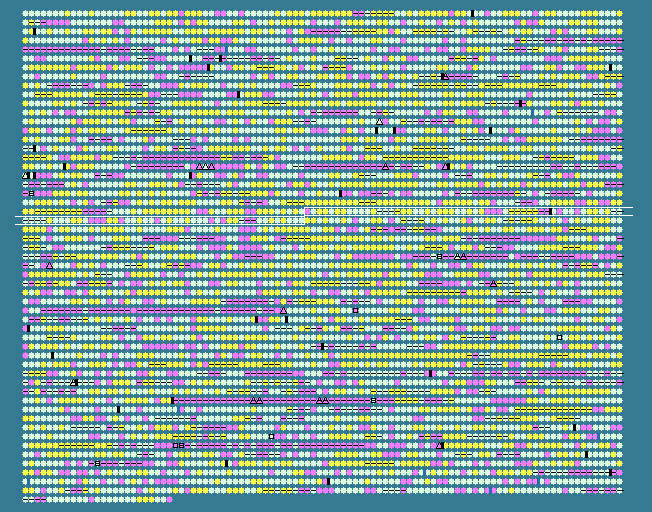

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2248	 51.04	0	2364787..2364978	-	63	206579300	-	KPK_2299	-	hypothetical protein
2249	 58.22	0	2364977..2365876	+	299	206578710	-	KPK_2300	-	transcriptional regulator, LysR family
2250	 61.52	0	2366173..2367162	+	329	206580550	-	KPK_2301	-	ABC transporter, periplasmic substrate-binding protein
2251	 66.31	+1	2367174..2368592	+	472	206579968	-	KPK_2302	-	amidohydrolase family protein
2252	 59.39	0	2368613..2369602	+	329	206579360	-	KPK_2303	-	oxidoreductase, 2OG-Fe(II) oxygenase family
2253	 61.56	0	2369618..2370400	-	260	206578705	-	KPK_2304	-	transcriptional regulator, DeoR family
2254	 61.96	0	2370493..2371830	-	445	206578206	-	KPK_2305	-	aminotransferase, class III
2255	 59.21	0	2371820..2372851	-	343	206577585	-	KPK_2306	-	phosphotransferase family protein
2256	 59.79	0	2373304..2374074	+	256	206577646	-	KPK_2307	-	oxidoreductase, short chain dehydrogenase/reductase family
2257	 55.86	0	2374089..2375615	+	508	206579467	-	KPK_2308	-	amino acid permease family protein
2258	 59.48	0	2375677..2376594	-	305	206580873	-	KPK_2309	-	transcriptional regulator, LysR family
2259	 62.36	0	2376711..2378243	+	510	206580227	-	KPK_2310	-	transporter, major facilitator family
2260	 56.89	0	2378387..2379460	+	357	206579990	-	KPK_2311	-	transcriptional regulator, LuxR family
2261	 56.24	0	2379474..2379962	-	162	206576556	-	KPK_2312	-	DinB family protein
2262	 56.26	0	2380080..2380598	-	172	206580269	-	KPK_2313	-	hypothetical protein
2263	 63.17	0	2380976..2381947	-	323	206576686	-	KPK_2314	-	peptide ABC transporter, ATP-binding protein
2264	 66.97	+1	2381944..2382924	-	326	206575914	-	KPK_2315	-	peptide ABC transporter, ATP-binding protein
2265	 63.09	0	2382921..2383871	-	316	206577999	-	KPK_2316	-	peptide ABC transporter, permease protein
2266	 60.42	0	2383868..2384827	-	319	206580448	-	KPK_2317	-	peptide ABC transporter, permease protein
2267	 58.22	0	2384873..2386576	-	567	206581033	-	KPK_2318	-	peptide ABC transporter, periplasmic peptide-binding protein
2268	 64.08	+1	2386725..2387768	-	347	206578871	-	KPK_2319	-	ABC transporter, ATP-binding protein
2269	 56.89	0	2387821..2388597	-	258	206579600	-	KPK_2320	-	ABC transporter, periplasmic substrate-binding protein
2270	 63.56	0	2388629..2389303	-	224	206579891	-	KPK_2321	-	ABC transporter, permease protein
2271	 64.47	+1	2389305..2390531	-	408	206580549	-	KPK_2322	-	acyl-CoA dehydrogenase, C-terminal domain protein
2272	 60.96	0	2390798..2391481	-	227	206578782	-	KPK_2323	-	chloramphenicol O-acetyltransferase
2273	 60.42	0	2391513..2391896	-	127	206579285	-	KPK_2324	-	glyoxalase family protein
2274	 59.01	0	2391987..2392757	+	256	206579573	-	KPK_2325	-	transcriptional regulator, DeoR family
2275	 61.90	0	2392762..2393391	-	209	206577431	-	KPK_2326	-	translocator protein, LysE family
2276	 55.97	0	2393641..2394276	+	211	206577922	-	KPK_2327	-	carbonate dehydratase
2277	 62.54	0	2394313..2395329	-	338	206577015	-	KPK_2328	-	oxidoreductase, zinc-binding dehydrogenase family
2278	 51.90	0	2395484..2395693	-	69	206576598	-	KPK_2329	-	hypothetical protein
2279	 52.86	0	2395778..2396494	-	238	206576194	-	KPK_2330	-	hypothetical protein
2280	 45.29	-1	2396540..2396974	-	144	206580564	-	KPK_2331	-	hypothetical protein
2281	 56.00	0	2397376..2397525	+	49	206580129	-	KPK_2332	-	hypothetical protein
2282	 64.16	+1	2397597..2398433	-	278	206577231	-	KPK_2333	-	metallo-beta-lactamase domain protein
2283	 62.40	0	2398441..2398956	-	171	206577804	-	KPK_2334	-	hypothetical protein
2284	 64.52	+1	2399113..2399997	+	294	206579045	-	KPK_2335	-	transcriptional regulator, LysR family
2285	 63.74	+1	2399999..2400919	-	306	206579662	-	KPK_2336	-	transcriptional regulator, AraC family
2286	 62.28	0	2401018..2401770	+	250	206579397	-	KPK_2337	-	NAD dependent epimerase/dehydratase family protein
2287	 50.88	0	2401805..2401918	+	37	206580049	-	KPK_2338	-	hypothetical protein
2288	 36.84	-2	2402249..2402419	+	56	206577544	-	KPK_2339	-	hypothetical protein
2289	 60.28	0	2403575..2404153	+	192	206579661	-	KPK_2344	-	putative lysine decarboxylase
2290	 50.00	-1	2404146..2404277	-	43	206578163	-	KPK_2343	-	hypothetical protein
2291	 57.63	0	2404294..2404758	-	154	206579069	-	KPK_2345	-	acid shock repeat protein
2292	 59.97	0	2404936..2406309	-	457	206577417	mdtK	KPK_2346	-	multidrug resistance protein MdtK
2293	 52.99	0	2406539..2407174	+	211	206576451	ribE	KPK_2347	-	riboflavin synthase, alpha subunit
2294	 54.22	0	2407210..2408358	-	382	206575918	cfa	KPK_2348	-	cyclopropane-fatty-acyl-phospholipid synthase
2295	 62.10	0	2408652..2409833	-	393	206580738	-	KPK_2349	-	drug resistance transporter, Bcr/CflA subfamily
2296	 62.28	0	2409946..2410857	+	303	206579943	-	KPK_2350	-	transcriptional regulator, LysR family
2297	 55.46	0	2410877..2411902	-	341	206580370	purR	KPK_2351	-	transcriptional repressor PurR
2298	 60.50	0	2412455..2413621	+	388	206576817	-	KPK_2352	-	transporter, major facilitator family
2299	 56.53	0	2413684..2414265	-	193	206578167	sodB	KPK_2353	-	superoxide dismutase (Fe)
2300	 55.97	0	2414748..2415233	+	161	206579320	-	KPK_2355	-	transcriptional regulator, AraC family
2301	 55.10	0	2415188..2416060	-	290	206577560	-	KPK_2354	-	NlpC/P60 family protein
2302	 56.32	0	2416401..2416748	+	115	206578748	-	KPK_2356	-	putative monothiol glutaredoxin
2303	 59.88	0	2416796..2417443	-	215	206580062	rnt	KPK_2357	-	ribonuclease T
2304	 58.82	0	2417581..2417988	-	135	206576417	gloA	KPK_2358	-	lactoylglutathione lyase
2305	 61.48	0	2418067..2419164	-	365	206575817	nemA	KPK_2359	-	N-ethylmaleimide reductase
2306	 57.17	0	2419218..2419817	-	199	206580638	-	KPK_2360	-	transcriptional regulator, TetR family
2307	 58.44	0	2419957..2420199	+	80	206576183	-	KPK_2361	-	hypothetical protein
2308	 58.53	0	2420248..2421144	+	298	206576785	ydhF	KPK_2362	-	oxidoreductase YdhF
2309	 62.26	0	2421214..2421735	+	173	206578186	sodC	KPK_2364	-	superoxide dismutase (Cu-Zn)
2310	 61.04	0	2421728..2423752	-	674	206577383	-	KPK_2363	-	fusaric acid resistance domain protein
2311	 59.59	0	2423752..2424669	-	305	206577905	-	KPK_2365	-	auxiliary transport protein, membrane fusion protein (MFP) family
2312	 53.16	0	2424659..2424895	-	78	206577733	-	KPK_2366	-	hypothetical protein
2313	 52.87	0	2425074..2425508	+	144	206576743	slyA	KPK_2367	-	transcriptional regulator SlyA
2314	 49.49	-1	2425544..2426905	-	453	206576162	-	KPK_2368	-	diguanylate cyclase (GGDEF) domain protein
2315	 60.90	0	2427126..2427593	-	155	206580728	slyB	KPK_2369	-	outer membrane lipoprotein SlyB
2316	 60.89	0	2427862..2428986	+	374	206579303	-	KPK_2370	-	hypothetical protein
2317	 52.71	0	2429052..2429402	+	116	206580393	-	KPK_2371	-	putative lipoprotein
2318	 57.77	0	2429454..2430116	+	220	206580497	pdxH	KPK_2372	-	pyridoxamine 5'-phosphate oxidase
2319	 53.63	0	2430241..2431521	+	426	206580905	tyrS	KPK_2373	-	tyrosyl-tRNA synthetase
2320	 60.63	0	2431580..2432440	+	286	206580193	pdxY	KPK_2374	-	pyridoxal kinase
2321	 57.92	0	2432483..2433088	-	201	206579728	gst	KPK_2375	-	glutathione S-transferase
2322	 56.77	0	2433199..2434704	-	501	206578958	tppB	KPK_2376	-	tripeptide permease TppB
2323	 30.50	-2	2434895..2435035	+	46	206577840	-	KPK_2377	-	hypothetical protein
2324	 57.39	0	2435306..2435941	-	211	206577080	nth	KPK_2378	-	endonuclease III
2325	 60.80	0	2435943..2436641	-	232	206576624	rnfE	KPK_2379	-	electron transport complex, RnfABCDGE type, E subunit
2326	 57.81	0	2436644..2437264	-	206	206579998	rnfG	KPK_2380	-	electron transport complex, RnfABCDGE type, G subunit
2327	 60.49	0	2437275..2438327	-	350	206576676	rnfD	KPK_2381	-	electron transport complex, RnfABCDGE type, D subunit
2328	 64.24	+1	2438328..2440589	-	753	206575962	rnfC	KPK_2382	-	electron transport complex, RnfABCDGE type, C subunit
2329	 58.20	0	2440582..2441160	-	192	206577903	rnfB	KPK_2383	-	electron transport complex, RnfABCDGE type, B subunit
2330	 53.61	0	2441160..2441741	-	193	206579745	rnfA	KPK_2384	-	electron transport complex, RnfABCDGE type, A subunit
2331	 58.05	0	2441820..2442260	-	146	206578976	-	KPK_2385	-	hypothetical protein
2332	 48.15	-1	2442336..2442551	-	71	206580936	-	KPK_2386	-	haemolysin expression modulating protein
2333	 57.62	0	2442770..2444140	-	456	206579431	pbgA	KPK_2387	-	6-phospho-beta-glucosidase pbgA
2334	 46.38	-1	2444256..2444393	-	45	206577509	blr	KPK_2388	-	beta-lactam resistance protein
2335	 61.00	0	2444584..2445624	+	346	206578307	-	KPK_2389	-	oxidoreductase, NAD-binding
2336	 62.08	0	2445660..2446661	-	333	206576076	add	KPK_2390	-	adenosine deaminase
2337	 59.79	0	2446819..2447967	-	382	206578242	-	KPK_2391	-	transporter, major facilitator family
2338	 52.47	0	2448162..2448626	+	154	206577743	-	KPK_2392	-	putative transcriptional regulator
2339	 52.15	0	2448869..2449054	+	61	206579231	-	KPK_2393	-	hypothetical protein
2340	 57.72	0	2449064..2449432	-	122	206578505	-	KPK_2394	-	hypothetical protein
2341	 55.30	0	2449706..2450233	+	175	206580775	-	KPK_2395	-	nickel-dependent hydrogenases b-type cytochrome subunit
2342	 60.51	0	2450342..2450617	+	91	206580060	-	KPK_2396	-	hypothetical protein
2343	 59.79	0	2450642..2451760	+	372	206580142	adhC	KPK_2397	-	S-(hydroxymethyl)glutathione dehydrogenase/class III alcohol dehydrogenase
2344	 61.53	0	2451830..2454202	-	790	206576961	quiA_2	KPK_2398	-	quinate dehydrogenase (pyrroloquinoline-quinone)
2345	 59.63	0	2454499..2455422	-	307	206576333	-	KPK_2399	-	transcriptional regulator, LysR family
2346	 58.62	0	2455597..2456217	-	206	206576715	pcaG	KPK_2400	-	protocatechuate 3,4-dioxygenase, alpha subunit
2347	 58.70	0	2456214..2456954	-	246	206579871	pcaH	KPK_2401	-	protocatechuate 3,4-dioxygenase, beta subunit
57.01	MEAN

6.61	STD DEV
