IslandPathversion 1.0

IslandPath Analysis: Klebsiella pneumoniae 342

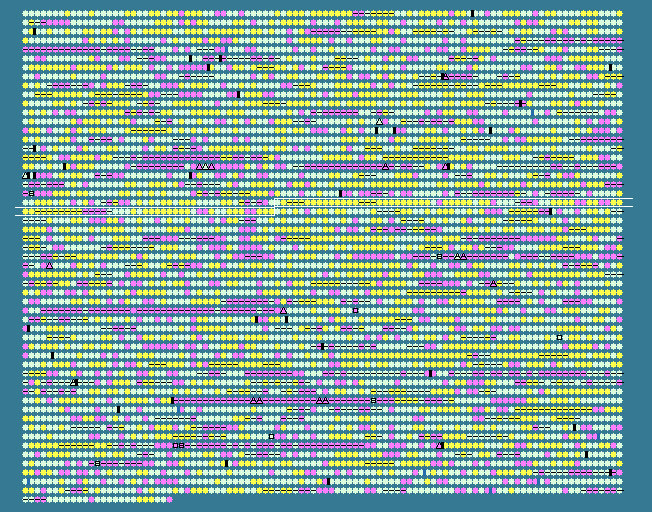

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2143	 58.06	0	2260530..2261168	-	212	206581042	-	KPK_2192	-	transcriptional regulator, TetR family
2144	 64.29	+1	2261295..2263148	+	617	206580454	-	KPK_2193	-	AP endonuclease, family 2/4-hydroxyphenylpyruvate dioxygenase
2145	 62.81	0	2263220..2264542	+	440	206579503	-	KPK_2194	-	transporter, major facilitator family
2146	 64.28	+1	2264558..2265394	+	278	206578951	-	KPK_2195	-	putative shikimate 5-dehydrogenase
2147	 66.94	+1	2265451..2266194	+	247	206576053	-	KPK_2197	-	putative molybdate ABC transporter, periplasmic molybdate-binding protein
2148	 67.33	+1	2266178..2266927	-	249	206576483	-	KPK_2196	-	iron chelate ABC transporter, ATP-binding protein
2149	 67.26	+1	2266924..2267931	-	335	206579345	-	KPK_2198	-	iron chelate ABC transporter, permease protein
2150	 62.32	0	2267921..2268979	-	352	206579933	-	KPK_2199	-	iron chelate ABC transporter, periplasmic iron chelate-binding protein
2151	 63.59	0	2269072..2269884	-	270	206576774	mhpR	KPK_2200	-	Mhp operon transcriptional activator
2152	 63.90	+1	2270062..2271726	+	554	206577716	mhpA	KPK_2201	-	3-(3-hydroxy-phenyl)propionate hydroxylase
2153	 65.29	+1	2271728..2272672	+	314	206576010	mhpB	KPK_2202	-	2,3-dihydroxyphenylpropionate 1,2-dioxygenase
2154	 61.36	0	2272690..2273556	+	288	206576466	mhpC	KPK_2203	-	2-hydroxy-6-ketonona-2,4-dienedioic acid hydrolase
2155	 64.56	+1	2273567..2274373	+	268	206579954	mhpD	KPK_2204	-	2-keto-4-pentenoate hydratase
2156	 63.30	0	2274366..2275316	+	316	206581050	mhpF	KPK_2205	-	acetaldehyde dehydrogenase
2157	 63.32	0	2275313..2276329	+	338	206579113	mhpE	KPK_2206	-	4-hydroxy-2-oxovalerate aldolase
2158	 67.42	+1	2276405..2277601	+	398	206578533	-	KPK_2207	-	putative 3-hydroxyphenylpropionic acid transporter MhpT
2159	 62.34	0	2277667..2278428	+	253	206580013	-	KPK_2208	-	conserved hypothetical protein TIGR00726
2160	 68.37	+1	2278441..2280021	-	526	206580632	-	KPK_2209	-	glpE family protein
2161	 61.36	0	2280027..2280629	-	200	206578550	-	KPK_2210	-	cysteine dioxygenase, type I
2162	 65.10	+1	2280736..2281629	+	297	206579267	-	KPK_2211	-	transcriptional regulator, LysR family
2163	 65.29	+1	2281774..2282859	+	361	206577703	-	KPK_2212	-	monooxygenase, luciferase family
2164	 66.32	+1	2282856..2284007	+	383	206578340	-	KPK_2213	-	acyl-CoA dehydrogenase family protein
2165	 64.59	+1	2284013..2284975	+	320	206576204	-	KPK_2214	-	aliphatic sulfonates ABC transporter family, periplasmic substrate-binding protein
2166	 62.24	0	2284972..2286009	+	345	206576801	-	KPK_2215	-	ABC transporter, periplasmic substrate-binding protein
2167	 65.86	+1	2285990..2286985	+	331	206576191	-	KPK_2216	-	ABC transporter, permease protein
2168	 65.53	+1	2286979..2287767	+	262	206576341	-	KPK_2217	-	ABC transporter, ATP-binding protein
2169	 57.94	0	2288147..2290300	-	717	206579833	-	KPK_2218	-	TonB-dependent siderophore receptor
2170	 38.79	-2	2290510..2290674	+	54	206577513	-	KPK_2219	-	hypothetical protein
2171	 62.41	0	2290725..2291546	+	273	206578348	fitB	KPK_2220	-	iron ABC transporter, ATP-binding protein
2172	 69.24	+1	2291558..2292568	+	336	206578580	fitC	KPK_2221	-	iron ABC transporter, permease protein
2173	 68.28	+1	2292565..2293617	+	350	206577727	fitD	KPK_2222	-	iron ABC transporter, permease protein
2174	 61.84	0	2293631..2294584	+	317	206580109	fitE	KPK_2223	-	iron ABC transporter, periplasmic iron-binding protein
2175	 64.45	+1	2294581..2295483	+	300	206580666	-	KPK_2224	-	SIS domain protein
2176	 56.25	0	2295576..2296343	+	255	206576724	-	KPK_2225	-	amino acid ABC transporter, periplasmic amino acid-binding protein
2177	 60.78	0	2296407..2297171	+	254	206580088	-	KPK_2226	-	amino acid ABC transporter, permease protein
2178	 60.86	0	2297158..2297880	+	240	206580280	-	KPK_2227	-	amino acid ABC transporter, ATP-binding protein
2179	 39.95	-2	2297946..2298338	-	130	206575979	-	KPK_2228	-	endoribonuclease L-PSP family protein
2180	 56.48	0	2298459..2299940	-	493	206579091	-	KPK_2229	-	transporter, major facilitator family
2181	 56.22	0	2300002..2300748	-	248	206579712	-	KPK_2230	-	NAD dependent epimerase/dehydratase family
2182	 59.44	0	2300847..2301746	+	299	206577835	-	KPK_2231	-	transcriptional regulator, LysR family
2183	 55.74	0	2301749..2302288	-	179	206579075	-	KPK_2232	-	nickel-dependent hydrogenase, b-type cytochrome subunit family
2184	 50.47	0	2302285..2303340	-	351	206576591	-	KPK_2233	-	catalase
2185	 45.72	-1	2303388..2303960	-	190	206577229	-	KPK_2234	-	hypothetical protein
2186	 50.09	-1	2304160..2304744	-	194	206580816	-	KPK_2235	-	transcriptional regulator, TetR family
2187	 60.05	0	2304887..2305279	-	130	206576653	-	KPK_2236	-	hypothetical protein
2188	 56.78	0	2305321..2305755	-	144	206580701	-	KPK_2237	-	glyoxalase family protein
2189	 65.17	+1	2305870..2307069	-	399	206580020	-	KPK_2238	-	transporter, major facilitator family
2190	 66.32	+1	2307366..2308523	+	385	206576860	-	KPK_2239	-	amidohydrolase family protein
2191	 61.97	0	2308566..2310716	-	716	206576132	fdhA	KPK_2240	-	formate dehydrogenase, alpha subunit
2192	 66.85	+1	2310963..2312042	-	359	206577773	-	KPK_2241	-	malate/L-lactate dehydrogenase
2193	 44.44	-1	2312139..2312327	+	62	206576815	-	KPK_2242	-	hypothetical protein
2194	 53.26	0	2312346..2313434	+	362	206578938	-	KPK_2243	-	ABC transporter, periplasmic substrate-binding protein
2195	 61.64	0	2313509..2315278	+	589	206578720	-	KPK_2244	-	ABC transporter, permease protein
2196	 63.59	0	2315271..2316341	+	356	206580065	-	KPK_2245	-	ABC transporter, ATP-binding protein
2197	 45.33	-1	2316457..2316606	-	49	206579349	-	KPK_2246	-	hypothetical protein
2198	 47.54	-1	2316921..2317448	+	175	206579724	-	KPK_2247	-	hypothetical protein
2199	 61.56	0	2317509..2317880	-	123	206578959	-	KPK_2248	-	glyoxalase family protein
2200	 61.38	0	2318381..2319136	+	251	206575764	-	KPK_2249	-	gluconate 2-dehydrogenase, subunit 3
2201	 60.95	0	2319139..2320923	+	594	206578448	-	KPK_2250	-	gluconate 2-dehydrogenase, flavoprotein subunit
2202	 62.79	0	2320934..2322274	+	446	206580048	-	KPK_2251	-	gluconate 2-dehydrogenase, cytochrome c subunit
2203	 68.91	+1	2322358..2322981	+	207	206576540	ccmA	KPK_2252	-	heme ABC exporter, ATP-binding protein CcmA
2204	 69.85	+1	2322978..2323637	+	219	206578039	ccmB	KPK_2253	-	heme exporter protein B
2205	 64.77	+1	2323687..2324424	+	245	206577115	ccmC	KPK_2254	-	heme exporter protein C
2206	 67.53	+1	2324421..2324651	+	76	206576659	ccmD	KPK_2255	-	heme exporter protein D
2207	 62.75	0	2324635..2325093	+	152	206576029	ccmE	KPK_2256	-	cytochrome c-type biogenesis protein CcmE
2208	 65.08	+1	2325090..2327042	+	650	206578729	ccmF	KPK_2257	-	cytochrome c-type biogenesis protein CcmF
2209	 63.60	0	2327039..2327593	+	184	206580156	dsbE	KPK_2258	-	thiol:disulfide interchange protein DsbE
2210	 67.62	+1	2328048..2328890	+	280	206576565	ccmI	KPK_2260	-	cytochrome c-type biogenesis protein CcmI
2211	 43.33	-2	2330364..2330783	-	139	206577169	-	KPK_2261	-	acetyltransferase, GNAT family
2212	 50.83	0	2331182..2331301	+	39	206579445	-	KPK_2262	-	hypothetical protein
2213	 48.72	-1	2331580..2331735	+	51	206579030	-	KPK_2263	-	hypothetical protein
2214	 45.93	-1	2332964..2333098	-	44	206580619	-	KPK_2264	-	hypothetical protein
2215	 55.05	0	2333561..2334541	-	326	206580201	-	KPK_2265	-	oxidoreductase, zinc-binding dehydrogenase family
2216	 54.21	0	2334649..2335515	+	288	206576879	-	KPK_2266	-	transcriptional regulator, LysR family
2217	 55.32	0	2336190..2337317	+	375	206577608	-	KPK_2268	-	monooxygenase, luciferase family
2218	 59.66	0	2337407..2338177	-	256	206579399	budC	KPK_2269	-	acetoin dehydrogenase
2219	 63.93	+1	2338201..2339880	-	559	206578776	alsS	KPK_2270	-	acetolactate synthase, catabolic
2220	 60.26	0	2339890..2340669	-	259	206580555	budA	KPK_2271	-	alpha-acetolactate decarboxylase
2221	 61.05	0	2340776..2341648	+	290	206580982	-	KPK_2272	-	putative transcriptional regulator BudR
2222	 64.85	+1	2341668..2342438	-	256	206578050	bdhA	KPK_2273	-	3-hydroxybutyrate dehydrogenase
2223	 63.79	+1	2342462..2343853	-	463	206576750	-	KPK_2274	-	citrate transporter family protein
2224	 68.51	+1	2343901..2344824	-	307	206577550	-	KPK_2275	-	3-hydroxyacyl-CoA dehydrogenase family protein
2225	 68.36	+1	2344836..2346017	-	393	206577707	-	KPK_2276	-	acetyl-CoA acetyltransferase
2226	 62.71	0	2346027..2346683	-	218	206576844	-	KPK_2277	-	3-oxoacid CoA-transferase, subunit B family
2227	 63.14	0	2346685..2347392	-	235	206577655	-	KPK_2278	-	3-oxoacid CoA-transferase, subunit A family
2228	 62.18	0	2347533..2348423	+	296	206577833	-	KPK_2279	-	transcriptional regulator, LysR family
2229	 55.32	0	2348471..2348611	-	46	206578631	-	KPK_2280	-	hypothetical protein
2230	 36.75	-2	2348840..2348956	+	38	206580050	-	KPK_2281	-	hypothetical protein
2231	 49.73	-1	2349073..2349810	+	245	206576205	-	KPK_2282	-	hypothetical protein
2232	 64.53	+1	2349893..2351110	-	405	206576779	-	KPK_2283	-	transporter, major facilitator family
2233	 60.17	0	2351288..2351749	-	153	206577593	-	KPK_2284	-	putative transcriptional regulator
2234	 60.24	0	2351810..2352058	+	82	206577632	-	KPK_2285	-	tautomerase domain protein
2235	 65.48	+1	2352260..2353438	+	392	206578424	-	KPK_2286	-	transporter, major facilitator family
2236	 62.50	0	2353567..2354526	+	319	206576725	chrB	KPK_2287	-	chromate resistance protein
2237	 60.75	0	2354495..2355862	+	455	206576206	-	KPK_2288	-	chromate transporter, chromate ion transporter (CHR) family
2238	 47.50	-1	2356001..2356480	-	159	206575993	-	KPK_2289	-	hypothetical protein
2239	 25.20	-2	2356479..2356601	+	40	206580840	-	KPK_2290	-	hypothetical protein
2240	 63.57	0	2357085..2358503	-	472	206579840	-	KPK_2291	-	FAD-binding protein
2241	 60.54	0	2358533..2359348	-	271	206579262	-	KPK_2292	-	ABC transporter, permease protein
2242	 63.78	+1	2359350..2360180	-	276	206577580	-	KPK_2293	-	ABC transporter, ATP-binding protein
57.01	MEAN

6.61	STD DEV
