IslandPath Analysis: Klebsiella pneumoniae 342

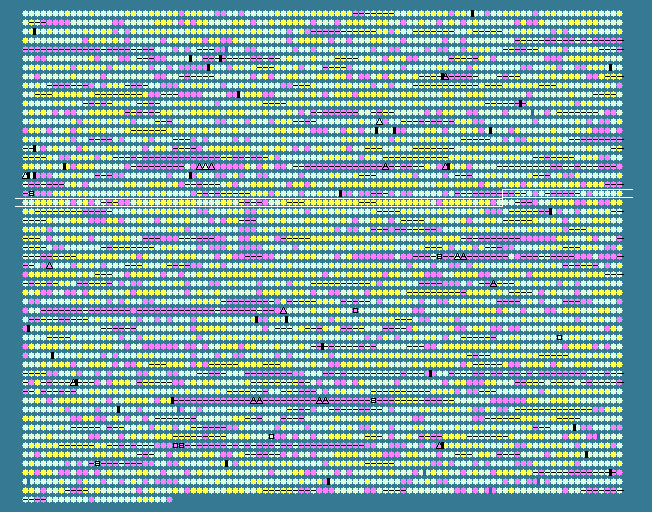

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2081	 42.37	-2	2199075..2199572	-	165	206577402	-	KPK_2129	-	hypothetical protein
2082	 43.32	-2	2199912..2201483	-	523	206576485	-	KPK_2130	-	site-specific recombinase, resolvase family
2083	 62.06	0	2201573..2202310	+	245	206575743	tonB	KPK_2131	-	protein TonB
2084	 57.73	0	2202353..2203225	-	290	206578084	-	KPK_2132	-	fructosamine kinase family protein
2085	 57.54	0	2203331..2203615	-	94	206577282	-	KPK_2133	-	hypothetical protein
2086	 38.46	-2	2204691..2204807	+	38	206579010	-	KPK_2135	-	hypothetical protein
2087	 55.60	0	2204996..2205754	+	252	206580913	-	KPK_2136	-	hypothetical protein
2088	 56.84	0	2206025..2206258	+	77	206576762	-	KPK_2137	-	hypothetical protein
2089	 51.63	0	2206691..2208619	+	642	206580341	thrS	KPK_2138	-	threonyl-tRNA synthetase
2090	 48.72	-1	2208698..2209165	+	155	206575853	infC	KPK_2139	-	translation initiation factor IF-3
2091	 49.49	-1	2209262..2209459	+	65	206576444	rpmI	KPK_2140	-	ribosomal protein L35
2092	 48.74	-1	2209510..2209866	+	118	206580211	rplT	KPK_2141	-	ribosomal protein L20
2093	 57.22	0	2210173..2211156	+	327	206578650	pheS	KPK_2142	-	phenylalanyl-tRNA synthetase, alpha subunit
2094	 58.29	0	2211172..2213559	+	795	206576685	pheT	KPK_2143	-	phenylalanyl-tRNA synthetase, beta subunit
2095	 51.00	0	2213564..2213863	+	99	206579803	ihfA	KPK_2144	-	integration host factor, alpha subunit
2096	 55.08	0	2213916..2214269	-	117	206577399	-	KPK_2145	-	endoribonuclease L-PSP family protein
2097	 57.26	0	2214266..2215519	-	417	206577979	-	KPK_2146	-	FAD-dependent oxidoreductase
2098	 58.14	0	2215569..2216483	-	304	206577829	-	KPK_2147	-	transcriptional regulator, LysR family
2099	 58.44	0	2216761..2218194	+	477	206575824	-	KPK_2148	-	citrate transporter family protein
2100	 64.94	+1	2218318..2219304	+	328	206580598	btuC	KPK_2149	-	vitamin B12 import system permease protein BtuC
2101	 53.93	0	2219341..2220141	-	266	206577038	-	KPK_2150	-	lipoprotein, YaeC family
2102	 56.88	0	2220378..2220929	+	183	206576250	btuE	KPK_2151	-	vitamin B12 transport periplasmic protein BtuE
2103	 63.33	0	2220929..2221678	+	249	206578256	btuD	KPK_2152	-	vitamin B12 import ATP-binding protein BtuD
2104	 61.29	0	2221760..2222224	+	154	206577435	-	KPK_2153	-	lipoprotein, NlpC/P60 family
2105	 62.79	0	2222338..2223780	+	480	206579419	-	KPK_2154	-	hypothetical protein
2106	 54.50	0	2223810..2223998	-	62	206578706	-	KPK_2155	-	hypothetical protein
2107	 62.37	0	2224145..2225191	-	348	206576613	aroH	KPK_2156	-	3-deoxy-7-phosphoheptulonate synthase, Trp-sensitive
2108	 56.83	0	2225346..2226179	-	277	206579006	-	KPK_2157	-	hypothetical protein
2109	 34.17	-2	2226324..2226443	-	39	206581022	-	KPK_2158	-	hypothetical protein
2110	 59.90	0	2226519..2228897	+	792	206580254	ppsA	KPK_2159	-	phosphoenolpyruvate synthase
2111	 61.37	0	2229281..2230393	-	370	206576471	ydiK	KPK_2160	-	inner membrane protein YdiK
2112	 38.89	-2	2230463..2230606	-	47	206575722	-	KPK_2161	-	hypothetical protein
2113	 60.29	0	2230612..2233668	+	1018	206578037	-	KPK_2162	-	putative oxidase, FAD-binding
2114	 60.10	0	2233665..2234075	+	136	206579605	ydiI	KPK_2163	-	esterase YdiI
2115	 51.81	0	2234279..2234527	+	82	206579569	-	KPK_2164	-	hypothetical protein
2116	 66.04	+1	2234625..2234945	-	106	206578830	-	KPK_2165	-	hypothetical protein
2117	 43.03	-2	2235127..2235291	+	54	206580780	-	KPK_2166	-	hypothetical protein
2118	 48.32	-1	2235554..2236534	+	326	206576766	-	KPK_2167	-	hypothetical protein
2119	 58.53	0	2236558..2237589	+	343	206577190	-	KPK_2168	-	cobalamine-independent methonine synthase
2120	 64.96	+1	2237674..2238906	-	410	206579134	-	KPK_2169	-	transporter, major facilitator family
2121	 60.10	0	2238918..2239679	-	253	206578856	-	KPK_2170	-	iron ABC transporter, ATP-binding protein
2122	 64.26	+1	2239679..2240716	-	345	206580993	-	KPK_2171	-	iron ABC transporter, permease protein
2123	 57.06	0	2240716..2241714	-	332	206580852	-	KPK_2172	-	iron ABC transporter, periplasmic iron-binding protein
2124	 64.91	+1	2241873..2242784	-	303	206580186	-	KPK_2173	-	transcriptional regulator, LysR family
2125	 63.96	+1	2242881..2243876	+	331	206576042	-	KPK_2174	-	3-beta hydroxysteroid dehydrogenase/isomerase family protein
2126	 58.21	0	2243972..2244586	+	204	206577867	-	KPK_2175	-	transcriptional regulator, TetR family
2127	 70.09	+1	2244661..2245770	+	369	206579751	-	KPK_2176	-	efflux transporter, RND family, MFP subunit
2128	 62.73	0	2245767..2248868	+	1033	206575973	-	KPK_2177	-	RND transporter, hydrophobe/amphiphile efflux-1 (HAE1) family
2129	 63.97	+1	2248924..2250108	-	394	206579076	-	KPK_2178	-	putative L-lactate dehydrogenase (cytochrome)
2130	 53.57	0	2250350..2250685	+	111	206579705	-	KPK_2179	-	hypothetical protein
2131	 56.08	0	2251160..2251537	+	125	206578670	sufA	KPK_2180	-	FeS assembly scaffold SufA
2132	 58.00	0	2251540..2253027	+	495	206578883	sufB	KPK_2181	-	FeS assembly protein SufB
2133	 56.09	0	2253044..2253790	+	248	206577153	sufC	KPK_2182	-	FeS assembly ATPase SufC
2134	 62.82	0	2253765..2255039	+	424	206579410	sufD	KPK_2183	-	FeS assembly protein SufD
2135	 64.62	+1	2255036..2256256	+	406	206576958	sufS	KPK_2184	-	cysteine desulfurase
2136	 54.92	0	2256268..2256684	+	138	206576367	sufE	KPK_2185	-	cysteine desulfuration protein SufE
2137	 61.80	0	2256785..2257771	+	328	206580759	-	KPK_2186	-	LysM domain/ErfK/YbiS/YcfS/YnhG family protein
2138	 51.90	0	2257833..2258069	-	78	206575873	lpp	KPK_2187	-	major outer membrane lipoprotein
2139	 55.77	0	2258382..2259794	-	470	206575957	pykF	KPK_2188	-	pyruvate kinase I
2140	 43.18	-2	2259932..2260063	+	43	206577911	-	KPK_2189	-	hypothetical protein
2141	 48.33	-1	2260081..2260200	+	39	206579845	-	KPK_2190	-	hypothetical protein
2142	 55.87	0	2260300..2260512	+	70	206576454	-	KPK_2191	-	hypothetical protein
2143	 58.06	0	2260530..2261168	-	212	206581042	-	KPK_2192	-	transcriptional regulator, TetR family
2144	 64.29	+1	2261295..2263148	+	617	206580454	-	KPK_2193	-	AP endonuclease, family 2/4-hydroxyphenylpyruvate dioxygenase
2145	 62.81	0	2263220..2264542	+	440	206579503	-	KPK_2194	-	transporter, major facilitator family
2146	 64.28	+1	2264558..2265394	+	278	206578951	-	KPK_2195	-	putative shikimate 5-dehydrogenase
2147	 66.94	+1	2265451..2266194	+	247	206576053	-	KPK_2197	-	putative molybdate ABC transporter, periplasmic molybdate-binding protein
2148	 67.33	+1	2266178..2266927	-	249	206576483	-	KPK_2196	-	iron chelate ABC transporter, ATP-binding protein
2149	 67.26	+1	2266924..2267931	-	335	206579345	-	KPK_2198	-	iron chelate ABC transporter, permease protein
2150	 62.32	0	2267921..2268979	-	352	206579933	-	KPK_2199	-	iron chelate ABC transporter, periplasmic iron chelate-binding protein
2151	 63.59	0	2269072..2269884	-	270	206576774	mhpR	KPK_2200	-	Mhp operon transcriptional activator
2152	 63.90	+1	2270062..2271726	+	554	206577716	mhpA	KPK_2201	-	3-(3-hydroxy-phenyl)propionate hydroxylase
2153	 65.29	+1	2271728..2272672	+	314	206576010	mhpB	KPK_2202	-	2,3-dihydroxyphenylpropionate 1,2-dioxygenase
2154	 61.36	0	2272690..2273556	+	288	206576466	mhpC	KPK_2203	-	2-hydroxy-6-ketonona-2,4-dienedioic acid hydrolase
2155	 64.56	+1	2273567..2274373	+	268	206579954	mhpD	KPK_2204	-	2-keto-4-pentenoate hydratase
2156	 63.30	0	2274366..2275316	+	316	206581050	mhpF	KPK_2205	-	acetaldehyde dehydrogenase
2157	 63.32	0	2275313..2276329	+	338	206579113	mhpE	KPK_2206	-	4-hydroxy-2-oxovalerate aldolase
2158	 67.42	+1	2276405..2277601	+	398	206578533	-	KPK_2207	-	putative 3-hydroxyphenylpropionic acid transporter MhpT
2159	 62.34	0	2277667..2278428	+	253	206580013	-	KPK_2208	-	conserved hypothetical protein TIGR00726
2160	 68.37	+1	2278441..2280021	-	526	206580632	-	KPK_2209	-	glpE family protein
2161	 61.36	0	2280027..2280629	-	200	206578550	-	KPK_2210	-	cysteine dioxygenase, type I
2162	 65.10	+1	2280736..2281629	+	297	206579267	-	KPK_2211	-	transcriptional regulator, LysR family
2163	 65.29	+1	2281774..2282859	+	361	206577703	-	KPK_2212	-	monooxygenase, luciferase family
2164	 66.32	+1	2282856..2284007	+	383	206578340	-	KPK_2213	-	acyl-CoA dehydrogenase family protein
2165	 64.59	+1	2284013..2284975	+	320	206576204	-	KPK_2214	-	aliphatic sulfonates ABC transporter family, periplasmic substrate-binding protein
2166	 62.24	0	2284972..2286009	+	345	206576801	-	KPK_2215	-	ABC transporter, periplasmic substrate-binding protein
2167	 65.86	+1	2285990..2286985	+	331	206576191	-	KPK_2216	-	ABC transporter, permease protein
2168	 65.53	+1	2286979..2287767	+	262	206576341	-	KPK_2217	-	ABC transporter, ATP-binding protein
2169	 57.94	0	2288147..2290300	-	717	206579833	-	KPK_2218	-	TonB-dependent siderophore receptor
2170	 38.79	-2	2290510..2290674	+	54	206577513	-	KPK_2219	-	hypothetical protein
2171	 62.41	0	2290725..2291546	+	273	206578348	fitB	KPK_2220	-	iron ABC transporter, ATP-binding protein
2172	 69.24	+1	2291558..2292568	+	336	206578580	fitC	KPK_2221	-	iron ABC transporter, permease protein
2173	 68.28	+1	2292565..2293617	+	350	206577727	fitD	KPK_2222	-	iron ABC transporter, permease protein
2174	 61.84	0	2293631..2294584	+	317	206580109	fitE	KPK_2223	-	iron ABC transporter, periplasmic iron-binding protein
2175	 64.45	+1	2294581..2295483	+	300	206580666	-	KPK_2224	-	SIS domain protein
2176	 56.25	0	2295576..2296343	+	255	206576724	-	KPK_2225	-	amino acid ABC transporter, periplasmic amino acid-binding protein
2177	 60.78	0	2296407..2297171	+	254	206580088	-	KPK_2226	-	amino acid ABC transporter, permease protein
2178	 60.86	0	2297158..2297880	+	240	206580280	-	KPK_2227	-	amino acid ABC transporter, ATP-binding protein
2179	 39.95	-2	2297946..2298338	-	130	206575979	-	KPK_2228	-	endoribonuclease L-PSP family protein
2180	 56.48	0	2298459..2299940	-	493	206579091	-	KPK_2229	-	transporter, major facilitator family
57.01	MEAN

6.61	STD DEV
