IslandPathversion 1.0

IslandPath Analysis: Klebsiella pneumoniae 342

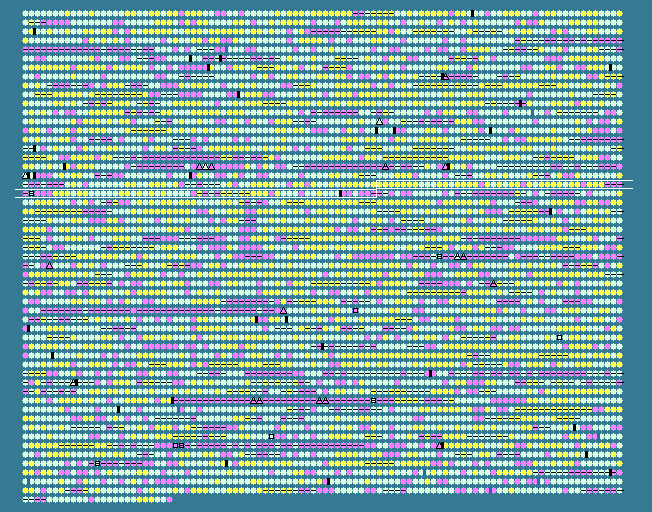

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1960	 62.92	0	2067168..2068154	+	328	206580107	-	KPK_2006	-	fatty acid desaturase
1961	 67.54	+1	2068147..2068947	+	266	206579185	-	KPK_2007	-	hypothetical protein
1962	 62.03	0	2068995..2070311	-	438	206578598	-	KPK_2008	-	monooxygenase, luciferase family
1963	 60.78	0	2070370..2071269	-	299	206578363	-	KPK_2009	-	quaternary amine uptake ABC transporter (QAT) family, periplasmic amine-binding protein
1964	 63.98	+1	2071330..2071998	-	222	206577751	-	KPK_2010	-	quaternary amine uptake ABC transporter (QAT) family, permease protein
1965	 63.33	0	2071998..2072627	-	209	206576816	-	KPK_2011	-	quaternary amine uptake ABC transporter (QAT) family, permease protein
1966	 62.53	0	2072620..2073708	-	362	206576203	-	KPK_2012	-	quaternary amine uptake ABC transporter (QAT) family, ATP-binding protein
1967	 55.48	0	2074466..2075404	+	312	206579483	tdcA	KPK_2013	-	transcriptional regulator tdcA
1968	 53.64	0	2075498..2076487	+	329	206578838	tdcB	KPK_2014	-	threonine dehydratase, catabolic
1969	 56.83	0	2076513..2077844	+	443	206578809	tdcC	KPK_2015	-	threonine/serine transporter
1970	 64.51	+1	2077872..2079077	+	401	206579594	tdcD	KPK_2016	-	propionate kinase
1971	 62.53	0	2079106..2081400	+	764	206580300	-	KPK_2017	-	putative formate acetyltransferase
1972	 59.46	0	2081795..2082946	+	383	206581073	-	KPK_2018	-	hydrophobic amino acid ABC transporter, periplasmic amino acid-binding protein
1973	 61.42	0	2083056..2083970	+	304	206575778	-	KPK_2019	-	hydrophobic amino acid ABC transporter, permease protein
1974	 63.87	+1	2083980..2085266	+	428	206576552	-	KPK_2020	-	hydrophobic amino acid ABC transporter, permease protein
1975	 61.42	0	2085263..2086138	+	291	206578487	-	KPK_2021	-	hydrophobic amino acid ABC transporter, ATP-binding protein
1976	 63.75	+1	2086135..2086854	+	239	206579232	-	KPK_2022	-	hydrophobic amino acid ABC transporter, ATP-binding protein
1977	 51.93	0	2086860..2087768	-	302	206579942	-	KPK_2023	-	transcriptional regulator, LysR family
1978	 61.07	0	2088037..2089680	+	547	206580493	-	KPK_2024	-	putative phosphoenolpyruvate carboxykinase (ATP)
1979	 59.12	0	2089730..2090206	-	158	206576379	-	KPK_2025	-	acetyltransferase, GNAT family
1980	 64.52	+1	2090305..2091237	+	310	206576968	-	KPK_2026	-	transcriptional regulator, LysR family
1981	 60.42	0	2091447..2092838	+	463	206576482	citH	KPK_2027	-	citrate:proton symporter
1982	 65.80	+1	2092850..2093659	+	269	206580838	-	KPK_2029	-	ABC transporter, periplasmic substrate-binding protein
1983	 61.56	0	2093634..2094533	-	299	206579870	-	KPK_2028	-	transcriptional regulator, LysR family
1984	 49.28	-1	2094646..2095128	-	160	206578678	-	KPK_2030	-	cold-shock DNA-binding domain protein
1985	 63.38	0	2095320..2096018	+	232	206579623	-	KPK_2031	-	pseudouridine synthase, RluA family
1986	 54.08	0	2096044..2096655	-	203	206577679	-	KPK_2032	-	hypothetical protein
1987	 60.72	0	2096952..2097641	+	229	206578408	dgoR	KPK_2033	-	galactonate operon transcriptional repressor
1988	 64.16	+1	2097638..2098555	+	305	206577795	dgoK	KPK_2034	-	2-dehydro-3-deoxygalactonokinase
1989	 67.80	+1	2098500..2099117	+	205	206577805	dgoA	KPK_2035	-	2-dehydro-3-deoxy-6-phosphogalactonate aldolase
1990	 60.75	0	2099114..2100262	+	382	206577224	-	KPK_2036	-	mandelate racemase/muconate lactonizing enzyme family protein
1991	 55.63	0	2100357..2101670	+	437	206579717	-	KPK_2037	-	transporter, major facilitator family
1992	 64.66	+1	2101667..2102614	+	315	206578811	-	KPK_2038	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
1993	 64.24	+1	2102672..2103001	-	109	206580907	-	KPK_2039	-	hypothetical protein
1994	 28.81	-2	2103171..2103347	+	58	206580664	-	KPK_2040	-	hypothetical protein
1995	 64.35	+1	2103631..2104971	+	446	206576125	-	KPK_2041	-	hypothetical protein
1996	 63.61	0	2104968..2105621	+	217	206578427	-	KPK_2042	-	type IV/VI secretion system protein, DotU family
1997	 65.55	+1	2105625..2107322	+	565	206577657	-	KPK_2043	-	OmpA domain protein
1998	 52.47	0	2107440..2107601	+	53	206577448	-	KPK_2045	-	hypothetical protein
1999	 31.67	-2	2107595..2107714	-	39	206579150	-	KPK_2044	-	hypothetical protein
2000	 51.56	0	2107781..2110408	+	875	206578686	-	KPK_2046	-	type VI secretion system Vgr family protein
2001	 41.04	-2	2110411..2110929	+	172	206579448	-	KPK_2047	-	LysM domain protein
2002	 53.90	0	2110992..2111915	+	307	206576814	-	KPK_2048	-	IS903, transposase
2003	 37.81	-2	2112089..2113495	+	468	206576718	-	KPK_2049	-	transglycosylase SLT domain/M23 peptidase domain protein
2004	 32.08	-2	2113716..2114351	+	211	206575904	-	KPK_2050	-	hypothetical protein
2005	 34.82	-2	2114639..2115850	+	403	206580609	-	KPK_2051	-	hypothetical protein
2006	 63.23	0	2116315..2119281	+	988	206579221	-	KPK_2052	-	ImcF-related family protein
2007	 60.71	0	2119415..2121178	+	587	206578488	-	KPK_2053	-	hypothetical protein
2008	 62.00	0	2121133..2122224	+	363	206578179	-	KPK_2054	-	type VI secretion protein, VC_A0111 family
2009	 58.47	0	2122205..2122741	+	178	206578921	-	KPK_2055	-	type VI secretion lipoprotein, VC_A0113 family
2010	 60.81	0	2122744..2123187	+	147	206576798	-	KPK_2056	-	type VI secretion system lysozyme-related protein
2011	 65.73	+1	2123207..2124592	+	461	206578041	-	KPK_2057	-	ImpA domain protein
2012	 57.49	0	2124741..2125655	+	304	206576480	-	KPK_2058	-	putative periplasmic sugar-binding protein
2013	 59.39	0	2125739..2126068	+	109	206577766	-	KPK_2059	-	hypothetical protein
2014	 54.61	0	2126151..2127245	-	364	206581061	engD	KPK_2060	-	GTP-binding protein EngD
2015	 56.92	0	2127363..2127947	-	194	206576264	pth	KPK_2061	-	peptidyl-tRNA hydrolase
2016	 55.43	0	2128220..2128495	+	91	206578768	-	KPK_2062	-	hypothetical protein
2017	 63.99	+1	2128716..2129762	+	348	206579353	-	KPK_2063	-	transcriptional regulator, MerR family/albicidin resistance protein
2018	 62.79	0	2129763..2131415	-	550	206577937	-	KPK_2064	-	sulfate permease, SulP family
2019	 53.90	0	2131693..2132640	-	315	206577157	prs	KPK_2065	-	ribose-phosphate pyrophosphokinase
2020	 61.13	0	2132824..2133672	-	282	206576137	ispE	KPK_2066	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
2021	 60.13	0	2133672..2134283	-	203	206576985	lolB	KPK_2067	-	outer membrane lipoprotein LolB
2022	 61.18	0	2134555..2135811	+	418	206580891	hemA	KPK_2068	-	glutamyl-tRNA reductase
2023	 59.83	0	2135854..2136936	+	360	206580278	prfA	KPK_2069	-	peptide chain release factor 1
2024	 65.84	+1	2136936..2137784	+	282	206578511	hemK	KPK_2070	-	protein-(glutamine-N5) methyltransferase, release factor-specific
2025	 54.20	0	2137784..2138176	+	130	206579107	-	KPK_2071	-	putative Invasion gene expression up-regulator SirB
2026	 57.81	0	2138180..2138992	+	270	206578095	-	KPK_2072	-	SirB1 protein
2027	 58.13	0	2139032..2139886	+	284	206577322	kdsA	KPK_2073	-	3-deoxy-8-phosphooctulonate synthase
2028	 59.40	0	2139974..2141074	-	366	206576549	chaA	KPK_2074	-	calcium/proton antiporter
2029	 48.92	-1	2141338..2141568	+	76	206579553	chaB	KPK_2075	-	cation transport regulator
2030	 62.41	0	2141705..2142385	+	226	206575724	chaC	KPK_2076	-	cation transport protein
2031	 38.33	-2	2142427..2142546	+	39	206578108	-	KPK_2077	-	hypothetical protein
2032	 55.14	0	2142603..2142845	-	80	206575756	-	KPK_2078	-	hypothetical protein
2033	 41.46	-2	2142927..2143049	-	40	206577850	-	KPK_2079	-	hypothetical protein
2034	 62.43	0	2143084..2143437	-	117	206579936	-	KPK_2080	-	DsrE/DsrF family protein
2035	 63.37	0	2143506..2144687	+	393	206580365	nasR	KPK_2081	-	nitrate regulatory protein
2036	 54.70	0	2144699..2144815	+	38	206579779	-	KPK_2082	-	hypothetical protein
2037	 65.16	+1	2144930..2146186	+	418	206578870	nasF	KPK_2083	-	nitrate ABC transporter, periplasmic nitrate-binding protein
2038	 64.07	+1	2146188..2147072	+	294	206577969	nasE	KPK_2084	-	nitrate ABC transporter, permease protein
2039	 61.34	0	2147082..2147870	+	262	206577858	nasD	KPK_2085	-	nitrate ABC transporter, ATP-binding protein
2040	 64.51	+1	2149075..2151948	+	957	206579889	nasB	KPK_2086	-	nitrite reductase [NAD(P)H], large subunit
2041	 68.16	+1	2151948..2154554	+	868	206576922	nasA	KPK_2087	-	nitrate reductase
2042	 52.67	0	2154557..2154706	+	49	206577562	-	KPK_2088	-	hypothetical protein
2043	 61.07	0	2154712..2156088	+	458	206579033	-	KPK_2090	-	intimin/invasin family protein
2044	 58.68	0	2156085..2156735	-	216	206579284	narL	KPK_2089	-	nitrate/nitrite response regulator protein NarL
2045	 60.37	0	2156746..2158524	-	592	206578617	narX	KPK_2091	-	nitrate/nitrite sensor protein NarX
2046	 59.54	0	2158836..2160224	+	462	206580722	narK	KPK_2092	-	nitrite extrusion protein 1
2047	 37.72	-2	2160424..2160537	-	37	206580008	-	KPK_2093	-	hypothetical protein
2048	 58.76	0	2160630..2164373	+	1247	206576866	narG	KPK_2094	-	nitrate reductase 1, alpha subunit
2049	 57.62	0	2164370..2165905	+	511	206578698	narH	KPK_2095	-	nitrate reductase 1, beta subunit
2050	 60.76	0	2165902..2166612	+	236	206580777	narJ	KPK_2096	-	nitrate reductase molybdenum cofactor assembly chaperone 1
2051	 59.00	0	2166612..2167289	+	225	206579169	narI	KPK_2098	-	respiratory nitrate reductase 1, gamma subunit
2052	 58.75	0	2167286..2168182	-	298	206579844	-	KPK_2097	-	UAA transporter family protein
2053	 59.68	0	2168290..2168733	+	147	206578664	-	KPK_2099	-	transcriptional regulator, AsnC family
2054	 52.91	0	2169923..2170765	-	280	206581039	purU	KPK_2102	-	formyltetrahydrofolate deformylase
2055	 53.16	0	2170808..2171266	-	152	206579827	-	KPK_2103	-	SEC-C motif domain protein
2056	 58.36	0	2171379..2172281	+	300	206576739	-	KPK_2104	-	phospholipase, patatin family
2057	 53.16	0	2172371..2173384	+	337	206576323	-	KPK_2105	-	response regulator
2058	 51.83	0	2173582..2174484	+	300	206578643	galU	KPK_2106	-	UTP-glucose-1-phosphate uridylyltransferase
2059	 48.04	-1	2174608..2175015	-	135	206579438	hns	KPK_2107	-	DNA-binding protein H-NS
57.01	MEAN

6.61	STD DEV
