IslandPathversion 1.0

IslandPath Analysis: Klebsiella pneumoniae 342

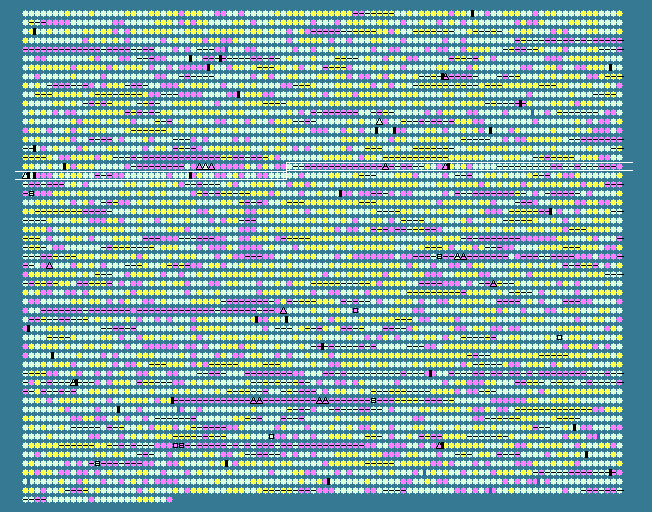

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1745	 54.77	0	1847938..1850685	-	915	206578808	-	KPK_1783	-	type IV secretion/conjugal transfer ATPase, VirB4 family
1746	 59.71	0	1850697..1850969	-	90	206579750	-	KPK_1784	-	putative type IV secretion system protein
1747	 59.38	0	1850972..1851616	-	214	206580305	-	KPK_1785	-	transglycosylase SLT domain protein
1748	 50.45	0	1851688..1851909	-	73	206580671	-	KPK_1786	-	hypothetical protein
1749	 46.19	-1	1852304..1852513	-	69	206575843	-	KPK_1787	-	phage/conjugal plasmid C-4 type zinc finger protein, TraR family
1750	 51.19	0	1852503..1853090	-	195	206576066	-	KPK_1788	-	hypothetical protein
1751	 42.38	-2	1853144..1853353	-	69	206577392	-	KPK_1789	-	transcriptional regulator, AlpA family
1752	 39.11	-2	1853686..1854603	-	305	206577638	-	KPK_1790	-	hypothetical protein
1753	 45.49	-1	1854863..1856047	-	394	206579618	-	KPK_1791	-	transporter, major facilitator family
1754	 45.47	-1	1856044..1857279	-	411	206580350	-	KPK_1792	-	hypothetical protein
1755	 47.57	-1	1857329..1858684	-	451	206581130	-	KPK_1793	-	oxidase, FAD-binding
1756	 37.80	-2	1858730..1859782	-	350	206575755	-	KPK_1794	-	hypothetical protein
1757	 40.92	-2	1859791..1860528	-	245	206577644	-	KPK_1795	-	threonyl and alanyl tRNA synthetase domain protein
1758	 43.87	-1	1860585..1861637	-	350	206577291	-	KPK_1796	-	putative histidinol-phosphate aminotransferase
1759	 46.46	-1	1861634..1863217	-	527	206577826	-	KPK_1797	-	putative histidine ammonia-lyase
1760	 47.32	-1	1863244..1864251	-	335	206579564	-	KPK_1798	-	hypothetical protein
1761	 51.64	0	1864670..1865920	-	416	206579977	-	KPK_1799	-	integrase
1762	 50.49	0	1866564..1867484	+	306	206581085	-	KPK_1800	-	transcriptional regulator, LysR family
1763	 53.66	0	1867529..1869019	-	496	206576255	-	KPK_1801	-	putative gamma-glutamyl-gamma-aminobutyraldehyde dehydrogenase
1764	 52.88	0	1869012..1870658	-	548	206575800	alkJ	KPK_1802	-	alcohol dehydrogenase (acceptor)
1765	 49.86	-1	1870673..1872076	-	467	206576421	-	KPK_1803	-	permease, cytosine/purine, uracil, thiamine, allantoin family
1766	 58.08	0	1872685..1873953	+	422	206577915	-	KPK_1804	-	hypothetical protein
1767	 54.69	0	1873963..1874388	+	141	206578687	-	KPK_1805	-	endoribonuclease L-PSP family protein
1768	 61.19	0	1874385..1875059	+	224	206579441	-	KPK_1806	-	hypothetical protein
1769	 57.54	0	1875052..1876212	+	386	206580157	-	KPK_1807	-	putative acetylornithine deacetylase
1770	 41.41	-2	1877500..1877697	+	65	206577648	-	KPK_1809	-	hypothetical protein
1771	 48.38	-1	1879467..1880735	-	422	206576783	-	KPK_1811	-	integrase
1772	 61.66	0	1881303..1882220	+	305	206576166	nac	KPK_1813	-	nitrogen assimilation regulatory protein Nac
1773	 58.99	0	1882327..1883277	+	316	206579366	cbl	KPK_1814	-	transcriptional regulator Cbl
1774	 61.22	0	1883361..1884296	+	311	206578471	-	KPK_1815	-	ErfK/YbiS/YcfS/YnhG family protein
1775	 40.93	-2	1884495..1884731	-	78	206578379	-	KPK_1816	-	hypothetical protein
1776	 56.35	0	1885040..1885960	-	306	206577674	-	KPK_1817	-	transcriptional regulator, LysR family
1777	 54.62	0	1886103..1886492	+	129	206577723	-	KPK_1818	-	endoribonuclease L-PSP family protein
1778	 60.42	0	1886619..1887578	+	319	206576888	-	KPK_1819	-	oxidoreductase, zinc-binding dehydrogenase family
1779	 54.18	0	1887976..1888872	+	298	206576131	-	KPK_1820	-	amino acid ABC transporter, periplasmic amino acid-binding protein
1780	 53.57	0	1888869..1889807	+	312	206577524	-	KPK_1821	-	amino acid ABC transporter, permease protein
1781	 53.54	0	1889800..1890561	+	253	206576281	-	KPK_1823	-	amino acid ABC transporter, ATP-binding protein
1782	 59.23	0	1890556..1891899	-	447	206579967	-	KPK_1822	-	MmgE/PrpD family protein
1783	 57.72	0	1892067..1893251	-	394	206580475	-	KPK_1824	-	amidohydrolase family protein
1784	 55.49	0	1893252..1893788	-	178	206579960	-	KPK_1825	-	acetyltransferase, GNAT family
1785	 55.24	0	1893785..1895167	-	460	206579580	-	KPK_1826	-	putative adenylosuccinate lyase
1786	 57.00	0	1895533..1896618	+	361	206578724	-	KPK_1827	-	putative glycerol dehydrogenase
1787	 56.83	0	1896623..1897954	+	443	206576269	ntaA	KPK_1828	-	nitrilotriacetate monooxygenase, component A
1788	 57.59	0	1897976..1899187	+	403	206578441	aatB	KPK_1829	-	aspartate transaminase
1789	 43.75	-2	1899497..1899640	-	47	206580785	-	KPK_1830	-	hypothetical protein
1790	 32.05	-2	1900197..1900352	-	51	206577353	-	KPK_1831	-	hypothetical protein
1791	 60.23	0	1900421..1900684	+	87	206579115	-	KPK_1832	-	hypothetical protein
1792	 60.46	0	1901229..1901663	+	144	206578544	-	KPK_1833	-	hypothetical protein
1793	 40.30	-2	1901821..1902150	-	109	206580159	-	KPK_1834	-	NIPSNAP family protein
1794	 56.73	0	1902911..1904269	-	452	206581049	-	KPK_1835	-	putative methylenomycin A resistance protein Mmr
1795	 56.35	0	1904375..1905256	+	293	206575917	-	KPK_1836	-	transcriptional regulator, LysR family
1796	 53.73	0	1905666..1906616	+	316	206576651	-	KPK_1837	-	putative antirestriction protein
1797	 42.61	-2	1907918..1909060	+	380	206579331	-	KPK_1838	-	thioester reductase domain protein
1798	 44.84	-1	1909076..1910257	+	393	206579905	-	KPK_1839	-	transporter, major facilitator family
1799	 49.18	-1	1910258..1911481	+	407	206576007	-	KPK_1840	-	beta-ketoadipyl CoA thiolase homolog
1800	 44.56	-1	1911485..1912375	-	296	206580207	-	KPK_1841	-	transcriptional regulator, LysR family
1801	 54.77	0	1912830..1914098	-	422	206580819	-	KPK_1842	-	integrase
1802	 57.39	0	1914436..1915233	-	265	206575975	mtfA	KPK_1844	-	Mlc titration factor MtfA
1803	 51.75	0	1915691..1916836	-	381	206576563	-	KPK_1846	-	outer membrane protein, gram-negative porin family
1804	 33.90	-2	1917050..1917226	-	58	206578403	-	KPK_1847	-	hypothetical protein
1805	 52.50	0	1917202..1917321	+	39	206578085	-	KPK_1848	-	hypothetical protein
1806	 59.57	0	1917375..1917656	+	93	206580941	-	KPK_1849	-	hypothetical protein
1807	 61.16	0	1917699..1918406	+	235	206579019	-	KPK_1850	-	putative metal-dependent phosphohydrolase
1808	 60.18	0	1918450..1919883	+	477	206577074	dcm	KPK_1851	-	DNA-cytosine methyltransferase
1809	 61.21	0	1919864..1920358	+	164	206575947	vsr	KPK_1853	-	very short patch repair protein
1810	 61.51	0	1920333..1921244	-	303	206576380	-	KPK_1852	-	drug/metabolite transporter, DMT family
1811	 58.33	0	1921427..1922338	+	303	206577459	-	KPK_1854	-	hypothetical protein
1812	 58.57	0	1922454..1924133	+	559	206577141	-	KPK_1855	-	diguanylate cyclase
1813	 45.61	-1	1924205..1924318	+	37	206579440	-	KPK_1856	-	hypothetical protein
1814	 54.76	0	1924433..1924642	-	69	206578633	-	KPK_1857	-	hypothetical protein
1815	 50.52	0	1924788..1924979	+	63	206581021	-	KPK_1858	-	hypothetical protein
1816	 41.83	-2	1925012..1925635	-	207	206580325	-	KPK_1859	-	transcriptional regulator, LuxR family
1817	 52.63	0	1925897..1926010	+	37	206576867	-	KPK_1860	-	hypothetical protein
1818	 58.10	0	1926010..1926441	+	143	206576067	-	KPK_1861	-	putative lipoprotein
1819	 55.98	0	1926488..1927975	-	495	206579532	amyA	KPK_1862	-	alpha-amylase, cytoplasmic
1820	 54.56	0	1928176..1928976	+	266	206576658	-	KPK_1863	-	cystine ABC transporter, periplasmic cystine-binding protein
1821	 60.49	0	1929072..1930058	+	328	206575905	dcyD	KPK_1864	-	D-cysteine desulfhydrase
1822	 59.04	0	1930074..1930742	+	222	206580951	-	KPK_1865	-	amino acid ABC transporter, permease protein
1823	 58.17	0	1930739..1931491	+	250	206580125	-	KPK_1866	-	amino acid ABC transporter, ATP-binding protein
1824	 53.80	0	1931810..1932532	+	240	206576935	sdiA	KPK_1867	-	regulatory protein SdiA
1825	 49.33	-1	1932600..1932824	-	74	206580222	-	KPK_1868	-	hypothetical protein
1826	 53.58	0	1933286..1933942	+	218	206578416	uvrY	KPK_1869	-	response regulator UvrY
1827	 57.06	0	1933939..1935771	+	610	206576376	uvrC	KPK_1870	-	excinuclease ABC, C subunit
1828	 57.56	0	1935829..1936377	+	182	206579287	pgsA	KPK_1871	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1829	 39.51	-2	1937082..1937972	-	296	206577748	-	KPK_1875	-	hypothetical protein
1830	 64.17	+1	1938302..1939183	+	293	206576848	-	KPK_1876	-	dihydrodipicolinate synthetase family protein
1831	 59.79	0	1939268..1939936	+	222	206576094	-	KPK_1877	-	SEC-C domain protein
1832	 60.15	0	1939962..1941173	-	403	206578512	tyrP	KPK_1878	-	tyrosine-specific transport protein
1833	 50.42	0	1941364..1941603	+	79	206580770	-	KPK_1879	-	hypothetical protein
1834	 49.20	-1	1941640..1942137	-	165	206577636	ftnA	KPK_1880	-	ferritin-1
1835	 55.24	0	1942550..1943188	+	212	206579199	-	KPK_1881	-	ribose/galactose isomerase family protein
1836	 61.25	0	1943225..1944646	-	473	206576044	-	KPK_1882	-	transporter, major facilitator family
1837	 51.98	0	1944796..1945047	+	83	206578373	-	KPK_1883	-	hypothetical protein
1838	 54.63	0	1945085..1946596	-	503	206580788	togT	KPK_1884	-	oligogalacturonide transporter TogT
1839	 54.90	0	1946891..1947400	-	169	206576112	-	KPK_1885	-	ferritin family protein
1840	 44.72	-1	1947370..1947492	-	40	206580649	-	KPK_1886	-	hypothetical protein
1841	 35.46	-2	1947495..1947635	+	46	206579046	-	KPK_1887	-	hypothetical protein
1842	 55.86	0	1948290..1949270	+	326	206576903	araF	KPK_1888	-	L-arabinose ABC transporter, periplasmic L-arabinose-binding protein
1843	 57.89	0	1949331..1950845	+	504	206580245	araG	KPK_1889	-	L-arabinose ABC transporter, ATP-binding protein
1844	 58.72	0	1950860..1951840	+	326	206577578	araH	KPK_1890	-	L-arabinose ABC transporter, permease protein
57.01	MEAN

6.61	STD DEV
