IslandPath Analysis: Klebsiella pneumoniae 342

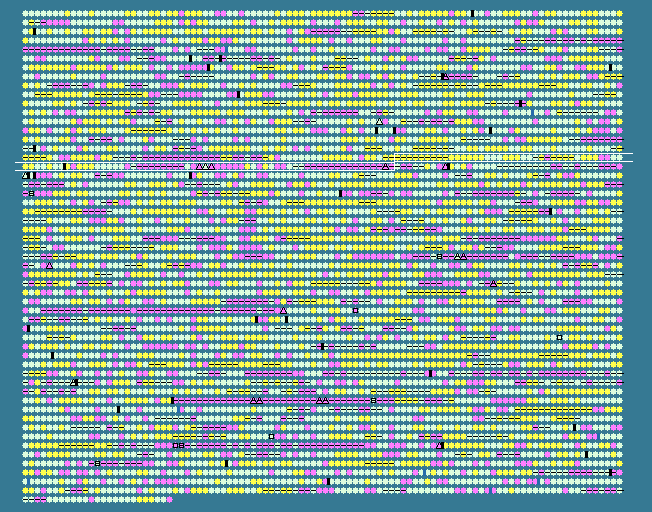

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1663	 66.03	+1	1751294..1752700	-	468	206576626	nifB	KPK_1697	-	nitrogenase cofactor biosynthesis protein NifB
1664	 64.83	+1	1752865..1754439	-	524	206578014	nifA	KPK_1698	-	Nif-specific regulatory protein
1665	 64.78	+1	1754436..1755920	-	494	206578926	nifL	KPK_1699	-	nitrogen fixation negative regulator NifL
1666	 64.97	+1	1756240..1756770	+	176	206579770	nifF	KPK_1700	-	flavodoxin
1667	 70.29	+2	1756793..1757593	-	266	206580185	nifM	KPK_1701	-	nitrogen fixation protein NifM
1668	 64.64	+1	1757593..1758036	-	147	206578586	-	KPK_1702	-	putative nifZ protein
1669	 63.18	0	1758033..1758290	-	85	206580682	-	KPK_1703	-	putative nifW protein
1670	 68.41	+1	1758293..1759438	-	381	206579843	nifV	KPK_1704	-	homocitrate synthase
1671	 64.75	+1	1759451..1760653	-	400	206577044	nifS	KPK_1705	-	cysteine desulfurase NifS
1672	 62.74	0	1760669..1761508	-	279	206576904	nifU	KPK_1706	-	Fe-S cluster assembly protein NifU
1673	 64.97	+1	1761703..1762173	-	156	206576259	nifX	KPK_1707	-	nifX protein
1674	 66.09	+1	1762160..1763545	-	461	206578245	nifN	KPK_1708	-	nitrogenase molybdenum-iron cofactor biosynthesis protein NifN
1675	 66.96	+1	1763555..1764928	-	457	206577450	nifE	KPK_1709	-	nitrogenase MoFe cofactor biosynthesis protein NifE
1676	 64.56	+1	1765509..1766171	-	220	206577606	-	KPK_1710	-	NifY protein
1677	 64.38	+1	1766182..1766400	-	72	206577324	nifT	KPK_1711	-	probable nitrogen fixation protein FixT
1678	 59.18	0	1766440..1768002	-	520	206579310	nifK	KPK_1712	-	nitrogenase molybdenum-iron protein beta chain
1679	 58.87	0	1768058..1769506	-	482	206580266	nifD	KPK_1713	-	nitrogenase molybdenum-iron protein alpha chain
1680	 58.16	0	1769523..1770404	-	293	206580625	nifH	KPK_1714	-	nitrogenase iron protein
1681	 63.62	+1	1770808..1774323	+	1171	206575958	nifJ	KPK_1715	-	pyruvate-flavodoxin oxidoreductase
1682	 61.81	0	1774340..1774648	-	102	206576365	-	KPK_1716	-	putative transcriptional regulator
1683	 61.86	0	1774889..1776991	+	700	206576980	fusA_2	KPK_1717	-	translation elongation factor G
1684	 60.21	0	1777473..1778897	-	474	206578810	sbcB	KPK_1718	-	exodeoxyribonuclease I
1685	 59.40	0	1779072..1780241	+	389	206579571	dacD	KPK_1719	-	serine-type D-Ala-D-Ala carboxypeptidase
1686	 59.49	0	1780418..1780891	+	157	206576643	gyrI	KPK_1720	-	DNA gyrase inhibitory protein
1687	 61.28	0	1780990..1782048	+	352	206576746	-	KPK_1721	-	hypothetical protein
1688	 48.46	-1	1782216..1782539	+	107	206577576	-	KPK_1722	-	hypothetical protein
1689	 65.45	+1	1782851..1783591	+	246	206577887	cobS	KPK_1723	-	cobalamin 5'-phosphate synthase
1690	 66.95	+1	1783619..1784686	+	355	206579117	-	KPK_1724	-	putative nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
1691	 62.07	0	1784732..1785841	-	369	206579206	-	KPK_1725	-	putative adenosylhomocysteinase
1692	 66.12	+1	1786042..1786773	+	243	206579978	-	KPK_1726	-	HPP family protein
1693	 58.97	0	1786795..1787184	-	129	206580656	msaD	KPK_1727	-	malonate-semialdehyde dehydrogenase (acetylating)
1694	 66.14	+1	1787300..1788256	+	318	206576577	-	KPK_1729	-	transcriptional regulator, LysR family
1695	 68.29	+1	1788216..1788956	-	246	206575998	-	KPK_1728	-	hypothetical protein
1696	 62.58	0	1789003..1790322	-	439	206578519	shiA	KPK_1730	-	shikimate transporter
1697	 46.18	-1	1790629..1791126	+	165	206579203	-	KPK_1731	-	hypothetical protein
1698	 53.22	0	1791137..1793047	+	636	206578357	-	KPK_1732	-	diguanylate cyclase/cyclic diguanylate phosphodiesterase
1699	 56.16	0	1793269..1793601	+	110	206576345	-	KPK_1733	-	hypothetical protein
1700	 54.37	0	1793692..1793943	+	83	206576847	-	KPK_1734	-	hypothetical protein
1701	 64.37	+1	1793949..1794863	-	304	206580045	-	KPK_1735	-	transcriptional regulator, LysR family
1702	 70.66	+2	1794995..1795570	+	191	206580772	-	KPK_1736	-	hypothetical protein
1703	 59.14	0	1795749..1796585	+	278	206578496	-	KPK_1737	-	hydrolase, alpha/beta fold family
1704	 59.26	0	1796791..1797762	+	323	206580473	-	KPK_1739	-	GAF domain/diguanylate cyclase (GGDEF) domain protein
1705	 60.67	0	1797759..1798859	-	366	206581045	-	KPK_1738	-	hypothetical protein
1706	 53.88	0	1799386..1799643	+	85	206577196	pemI	KPK_1740	-	protein PemI
1707	 55.26	0	1799644..1799976	+	110	206579306	pemK	KPK_1741	-	protein PemK
1708	 60.82	0	1802108..1803562	-	484	206580267	amn	KPK_1745	-	AMP nucleosidase
1709	 51.22	0	1803693..1803938	-	81	206576974	pmrD	KPK_1746	-	polymyxin B resistance protein pmrD
1710	 63.15	0	1804209..1805831	+	540	206578611	-	KPK_1747	-	hypothetical protein
1711	 64.31	+1	1806792..1807769	-	325	206580525	-	KPK_1748	-	quinone oxidoreductase, YhdH family
1712	 60.59	0	1807766..1808473	-	235	206578012	-	KPK_1749	-	transcriptional regulator, TetR family
1713	 58.72	0	1809030..1810664	+	544	206577226	-	KPK_1750	-	Na+/H+ antiporter
1714	 55.12	0	1812100..1813017	+	305	206576944	-	KPK_1752	-	putative cysteine synthase B
1715	 58.51	0	1813010..1813438	+	142	206576184	-	KPK_1753	-	hypothetical protein
1716	 59.79	0	1813498..1813788	+	96	206580705	-	KPK_1754	-	thiS family protein
1717	 57.23	0	1813785..1814960	+	391	206580134	-	KPK_1755	-	putative thiazole biosynthesis adenylyltransferase ThiF/rhodanese domain protein
1718	 53.44	0	1814998..1815942	+	314	206579058	-	KPK_1756	-	hypothetical protein
1719	 59.69	0	1815929..1817419	+	496	206578489	-	KPK_1757	-	cysteine desulfurase, SufS family
1720	 45.40	-1	1817656..1822089	-	1477	206577566	-	KPK_1758	-	hypothetical protein
1721	 46.64	-1	1822758..1824380	+	540	206576927	-	KPK_1759	-	hypothetical protein
1722	 50.11	-1	1824430..1826628	+	732	206580213	-	KPK_1760	-	putative helicase
1723	 48.47	-1	1826914..1827858	+	314	206579981	-	KPK_1761	-	putative antirestriction protein
1724	 42.76	-2	1828278..1829189	-	303	206576117	-	KPK_1762	-	hypothetical protein
1725	 41.41	-2	1829309..1829989	-	226	206576695	-	KPK_1763	-	hypothetical protein
1726	 43.31	-2	1830383..1831324	-	313	206576331	-	KPK_1764	-	hypothetical protein
1727	 49.61	-1	1831716..1831844	-	42	206578158	-	KPK_1765	-	hypothetical protein
1728	 54.15	0	1832136..1833110	-	324	206577639	-	KPK_1766	-	oxidoreductase, zinc-binding dehydrogenase family
1729	 53.15	0	1833218..1834075	+	285	206579208	-	KPK_1767	-	transcriptional regulator, LysR family
1730	 51.92	0	1834119..1835135	-	338	206578539	-	KPK_1768	-	site-specific recombinase, phage integrase family
1731	 53.72	0	1835128..1836054	-	308	206580735	-	KPK_1769	-	site-specific recombinase, phage integrase family
1732	 53.48	0	1836051..1836998	-	315	206580032	-	KPK_1770	-	site-specific recombinase, phage integrase family
1733	 51.90	0	1837137..1838030	-	297	206576064	-	KPK_1771	-	DNA methylase
1734	 49.50	-1	1838023..1838826	-	267	206579785	-	KPK_1772	-	putative mobC protein
1735	 45.65	-1	1838835..1840571	-	578	206579389	-	KPK_1773	-	type IV conjugative transfer system coupling protein TraD
1736	 46.20	-1	1841340..1841642	-	100	206579590	-	KPK_1774	-	putative lipoprotein
1737	 48.53	-1	1841703..1842722	-	339	206577848	virB11	KPK_1775	-	P-type DNA transfer ATPase VirB11
1738	 61.54	0	1842712..1844019	-	435	206577255	-	KPK_1776	-	bacterial conjugation TrbI-like protein
1739	 59.60	0	1844016..1844906	-	296	206577680	virB9	KPK_1777	-	P-type conjugative transfer protein VirB9
1740	 51.32	0	1844903..1845586	-	227	206577036	virB8	KPK_1778	-	type IV secretion system protein VirB8
1741	 60.99	0	1845579..1845719	-	46	206576185	-	KPK_1779	-	putative conjugal transfer protein
1742	 55.00	0	1845809..1846828	-	339	206580674	-	KPK_1780	-	TrbL/VirB6 plasmid conjugal transfer protein
1743	 50.00	-1	1846900..1847175	-	91	206577493	-	KPK_1781	-	putative lipoprotein
1744	 46.09	-1	1847187..1847915	-	242	206578288	-	KPK_1782	-	type IV secretion system protein
1745	 54.77	0	1847938..1850685	-	915	206578808	-	KPK_1783	-	type IV secretion/conjugal transfer ATPase, VirB4 family
1746	 59.71	0	1850697..1850969	-	90	206579750	-	KPK_1784	-	putative type IV secretion system protein
1747	 59.38	0	1850972..1851616	-	214	206580305	-	KPK_1785	-	transglycosylase SLT domain protein
1748	 50.45	0	1851688..1851909	-	73	206580671	-	KPK_1786	-	hypothetical protein
1749	 46.19	-1	1852304..1852513	-	69	206575843	-	KPK_1787	-	phage/conjugal plasmid C-4 type zinc finger protein, TraR family
1750	 51.19	0	1852503..1853090	-	195	206576066	-	KPK_1788	-	hypothetical protein
1751	 42.38	-2	1853144..1853353	-	69	206577392	-	KPK_1789	-	transcriptional regulator, AlpA family
1752	 39.11	-2	1853686..1854603	-	305	206577638	-	KPK_1790	-	hypothetical protein
1753	 45.49	-1	1854863..1856047	-	394	206579618	-	KPK_1791	-	transporter, major facilitator family
1754	 45.47	-1	1856044..1857279	-	411	206580350	-	KPK_1792	-	hypothetical protein
1755	 47.57	-1	1857329..1858684	-	451	206581130	-	KPK_1793	-	oxidase, FAD-binding
1756	 37.80	-2	1858730..1859782	-	350	206575755	-	KPK_1794	-	hypothetical protein
1757	 40.92	-2	1859791..1860528	-	245	206577644	-	KPK_1795	-	threonyl and alanyl tRNA synthetase domain protein
1758	 43.87	-1	1860585..1861637	-	350	206577291	-	KPK_1796	-	putative histidinol-phosphate aminotransferase
1759	 46.46	-1	1861634..1863217	-	527	206577826	-	KPK_1797	-	putative histidine ammonia-lyase
1760	 47.32	-1	1863244..1864251	-	335	206579564	-	KPK_1798	-	hypothetical protein
1761	 51.64	0	1864670..1865920	-	416	206579977	-	KPK_1799	-	integrase
1762	 50.49	0	1866564..1867484	+	306	206581085	-	KPK_1800	-	transcriptional regulator, LysR family
57.01	MEAN

6.61	STD DEV
