IslandPath Analysis: Klebsiella pneumoniae 342

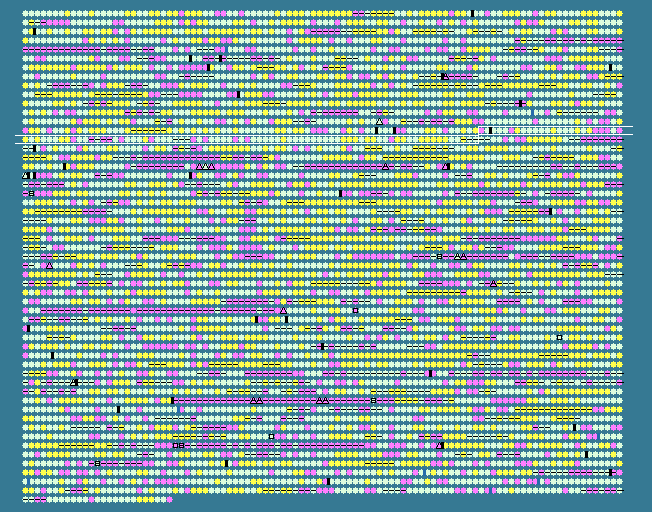

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.01 STD DEV: 6.61
Klebsiella pneumoniae 342, complete genome - 1..5641239
5425 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1377	 46.03	-1	1431688..1432656	-	322	206578213	-	KPK_1407	-	hypothetical protein
1378	 57.97	0	1432927..1433409	-	160	206576977	-	KPK_1409	-	hypothetical protein
1379	 55.05	0	1433823..1434752	-	309	206576375	-	KPK_1411	-	hypothetical protein
1380	 56.69	0	1435042..1435803	+	253	206580527	-	KPK_1412	-	lipoprotein, VacJ family
1381	 57.86	0	1435864..1437192	-	442	206579930	fadL	KPK_1413	-	long-chain fatty acid transport protein
1382	 52.63	0	1437560..1437844	+	94	206579338	-	KPK_1414	-	hypothetical protein
1383	 61.33	0	1438002..1439312	+	436	206579726	fadI	KPK_1415	-	acetyl-CoA C-acyltransferase FadI
1384	 59.21	0	1439312..1441456	+	714	206576247	fadJ	KPK_1416	-	fatty oxidation complex, alpha subunit FadJ
1385	 58.23	0	1441666..1442151	+	161	206575814	sixA	KPK_1417	-	phosphohistidine phosphatase SixA
1386	 55.80	0	1442170..1442721	-	183	206577812	-	KPK_1418	-	Smr domain protein
1387	 57.56	0	1442889..1443821	+	310	206577308	prmB	KPK_1419	-	ribosomal large subunit L3 protein glutamine methyltransferase
1388	 59.76	0	1443864..1444949	+	361	206576459	aroC	KPK_1420	-	chorismate synthase
1389	 62.67	0	1444952..1445776	+	274	206575806	mepA	KPK_1421	-	penicillin-insensitive murein endopeptidase
1390	 58.27	0	1445776..1446585	+	269	206578099	-	KPK_1422	-	hypothetical protein
1391	 55.19	0	1446585..1447133	+	182	206577496	-	KPK_1423	-	hypothetical protein
1392	 56.38	0	1447165..1447446	+	93	206579557	-	KPK_1424	-	hypothetical protein
1393	 61.94	0	1447508..1449496	-	662	206578237	mnmC	KPK_1425	-	tRNA U-34 5-methylaminomethyl-2-thiouridine biosynthesis protein MnmC
1394	 59.38	0	1449655..1450875	+	406	206577113	fabB	KPK_1426	-	3-oxoacyl-[acyl-carrier-protein] synthase 1
1395	 63.96	+1	1451085..1452266	+	393	206576490	-	KPK_1427	-	transporter, major facilitator family
1396	 45.66	-1	1452268..1453005	-	245	206575907	-	KPK_1428	-	transcriptional regulator, GntR family
1397	 42.22	-2	1453201..1453515	+	104	206580725	-	KPK_1429	-	PTS system, lactose/cellobiose specific IIB subunit
1398	 53.44	0	1453633..1454970	+	445	206580889	-	KPK_1430	-	PTS system, lactose/cellobiose family IIC component
1399	 57.05	0	1454957..1455268	+	103	206580215	-	KPK_1431	-	PTS system, lactose/cellobiose specific IIA subunit
1400	 51.25	0	1455329..1457002	+	557	206576317	-	KPK_1432	-	porin, LamB family
1401	 63.61	0	1457061..1458041	-	326	206576905	-	KPK_1433	-	div protein
1402	 59.45	0	1458152..1459288	+	378	206580321	pdxB	KPK_1434	-	erythronate-4-phosphate dehydrogenase
1403	 60.65	0	1459352..1460365	+	337	206579908	-	KPK_1435	-	aspartate-semialdehyde dehydrogenase family protein
1404	 58.18	0	1460365..1461177	+	270	206580474	truA	KPK_1436	-	tRNA pseudouridine synthase A
1405	 54.70	0	1461204..1461863	+	219	206578743	-	KPK_1437	-	membrane protein, DedA family
1406	 59.61	0	1462050..1462970	+	306	206579365	accD	KPK_1438	-	acetyl-CoA carboxylase, carboxyl transferase, beta subunit
1407	 62.96	0	1463046..1464314	+	422	206579830	folC	KPK_1439	-	tetrahydrofolate synthase/dihydrofolate synthase
1408	 63.33	0	1464304..1465023	+	239	206580592	-	KPK_1440	-	sporulation and cell division repeat protein
1409	 51.53	0	1465240..1465728	+	162	206578909	cvpA	KPK_1441	-	CvpA protein
1410	 55.93	0	1465762..1467279	+	505	206579433	purF	KPK_1442	-	amidophosphoribosyltransferase
1411	 57.26	0	1467415..1467999	+	194	206577725	ubiX	KPK_1443	-	3-octaprenyl-4-hydroxybenzoate carboxy-lyase
1412	 46.30	-1	1468065..1468226	-	53	206579087	-	KPK_1444	-	hypothetical protein
1413	 55.04	0	1468272..1469054	+	260	206580482	argT	KPK_1445	-	lysine-arginine-ornithine-binding periplasmic protein
1414	 41.27	-2	1469103..1469228	-	41	206580072	-	KPK_1446	-	hypothetical protein
1415	 51.98	0	1469322..1470104	+	260	206576547	hisJ	KPK_1447	-	histidine ABC transporter, periplasmic histidine-binding protein
1416	 58.08	0	1470169..1470855	+	228	206576837	hisQ	KPK_1448	-	histidine ABC transporter, permease protein HisQ
1417	 53.42	0	1470852..1471568	+	238	206578110	hisM	KPK_1449	-	histidine ABC transporter, permease protein HisM
1418	 56.20	0	1471576..1472349	+	257	206578402	hisP	KPK_1450	-	histidine ABC transporter, ATP-binding protein
1419	 59.28	0	1472355..1472882	-	175	206577629	-	KPK_1451	-	acetyltransferase, GNAT family
1420	 58.73	0	1472996..1473121	+	41	206578552	-	KPK_1453	-	hypothetical protein
1421	 60.74	0	1473101..1473994	-	297	206579241	-	KPK_1452	-	NAD dependent epimerase/dehydratase family protein
1422	 49.59	-1	1474013..1474375	-	120	206579494	folX	KPK_1454	-	D-erythro-7,8-dihydroneopterin triphosphate epimerase
1423	 56.03	0	1474441..1475070	-	209	206578895	-	KPK_1455	-	putative glutathione S-transferase
1424	 59.53	0	1475261..1475905	+	214	206577273	-	KPK_1456	-	glutathione S-transferase domain protein
1425	 55.98	0	1475962..1476513	+	183	206576642	-	KPK_1457	-	phosphodiesterase, YfcE family
1426	 56.78	0	1476571..1477116	+	181	206576362	yfcD	KPK_1458	-	hydrolase YfcD
1427	 60.10	0	1477207..1479354	-	715	206580523	pta	KPK_1459	-	phosphate acetyltransferase
1428	 55.53	0	1479555..1480757	-	400	206580316	ackA	KPK_1460	-	acetate kinase
1429	 39.68	-2	1480783..1480908	-	41	206579732	-	KPK_1461	-	hypothetical protein
1430	 58.11	0	1481096..1481551	+	151	206578134	-	KPK_1462	-	putative inner membrane protein YfbV
1431	 53.13	0	1481639..1482133	+	164	206579007	-	KPK_1463	-	YfbU domain protein
1432	 60.00	0	1482145..1482804	+	219	206579759	yfbT	KPK_1464	-	sugar-phosphatase, YfbT
1433	 58.81	0	1482881..1484713	+	610	206580240	-	KPK_1465	-	transporter, divalent anion:Na+ symporter (DASS) family
1434	 54.17	0	1484759..1485358	-	199	206580959	yfbR	KPK_1466	-	5'-nucleotidase
1435	 56.24	0	1485440..1486657	-	405	206579023	-	KPK_1467	-	aminotransferase, classes I and II
1436	 45.00	-1	1487198..1487317	+	39	206579781	-	KPK_1468	-	hypothetical protein
1437	 59.55	0	1487534..1488460	+	308	206577249	lrhA	KPK_1469	-	transcriptional regulator LrhA
1438	 42.18	-2	1488577..1488723	+	48	206577894	-	KPK_1470	-	hypothetical protein
1439	 54.88	0	1489115..1489555	+	146	206575889	nuoA	KPK_1471	-	NADH-quinone oxidoreductase, A subunit
1440	 56.30	0	1489571..1490245	+	224	206576675	nuoB	KPK_1472	-	NADH-quinone oxidoreductase, B subunit
1441	 58.54	0	1490333..1492141	+	602	206578814	nuoC	KPK_1473	-	NADH-quinone oxidoreductase, C/D subunit
1442	 56.89	0	1492144..1492644	+	166	206579544	nuoE	KPK_1474	-	NADH-quinone oxidoreductase, E subunit
1443	 60.31	0	1492641..1493978	+	445	206579298	nuoF	KPK_1475	-	NADH-quinone oxidoreductase, F subunit
1444	 61.61	0	1494010..1496736	+	908	206577381	nuoG	KPK_1476	-	NADH-quinone oxidoreductase, G subunit
1445	 57.26	0	1496733..1497710	+	325	206577886	nuoH	KPK_1477	-	NADH-quinone oxidoreductase, H subunit
1446	 56.35	0	1497725..1498267	+	180	206576263	nuoI	KPK_1478	-	NADH-quinone oxidoreductase, I subunit
1447	 58.38	0	1498278..1498832	+	184	206577065	nuoJ	KPK_1479	-	NADH-quinone oxidoreductase, J subunit
1448	 56.77	0	1498829..1499131	+	100	206580383	nuoK	KPK_1480	-	NADH-quinone oxidoreductase, K subunit
1449	 59.12	0	1499128..1500969	+	613	206580971	nuoL	KPK_1481	-	NADH-quinone oxidoreductase, L subunit
1450	 57.78	0	1501271..1502800	+	509	206580685	nuoM	KPK_1482	-	NADH-quinone oxidoreductase, M subunit
1451	 60.49	0	1502807..1504264	+	485	206579588	nuoN	KPK_1483	-	NADH-quinone oxidoreductase, N subunit
1452	 60.48	0	1504318..1505238	-	306	206578868	rnz	KPK_1484	-	ribonuclease Z
1453	 59.09	0	1505296..1505757	+	153	206581002	-	KPK_1485	-	acetyltransferase, GNAT family
1454	 63.49	0	1505893..1507182	+	429	206580380	menF	KPK_1486	-	isochorismate synthase, menaquinone-specific
1455	 65.35	+1	1507265..1508935	+	556	206579611	menD	KPK_1487	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylic acid synthase/2-oxoglutarate decarboxylase
1456	 63.64	+1	1508932..1509690	+	252	206578855	-	KPK_1488	-	hydrolase, alpha/beta fold family
1457	 59.32	0	1509705..1510562	+	285	206577427	menB	KPK_1489	-	naphthoate synthase
1458	 63.87	+1	1510562..1511527	+	321	206576470	menC	KPK_1490	-	o-succinylbenzoic acid (OSB) synthetase
1459	 63.25	0	1511527..1512900	+	457	206575747	menE	KPK_1491	-	o-succinylbenzoate-CoA ligase
1460	 55.16	0	1512956..1513381	-	141	206580542	nudI	KPK_1492	-	pyrimidine deoxynucleoside triphosphate pyrophosphohydrolase
1461	 58.33	0	1513519..1514454	+	311	206580139	-	KPK_1493	-	hypothetical protein
1462	 42.28	-2	1514532..1514654	-	40	206580910	-	KPK_1494	-	hypothetical protein
1463	 60.59	0	1514735..1515277	+	180	206578968	-	KPK_1495	-	outer membrane protein, YfaZ
1464	 61.90	0	1515380..1516576	+	398	206579774	-	KPK_1496	-	CinA family protein
1465	 57.89	0	1516782..1517567	+	261	206576487	-	KPK_1497	-	transcriptional regulator, IclR family
1466	 59.95	0	1517578..1518783	+	401	206577631	-	KPK_1498	-	mandelate racemase/muconate lactonizing enzyme family protein
1467	 61.78	0	1518826..1520115	+	429	206580717	-	KPK_1499	-	transporter, major facilitator family
1468	 62.19	0	1520130..1520933	+	267	206575736	-	KPK_1500	-	putative 2,4-dihydroxyhept-2-ene-1,7-dioic acid aldolase
1469	 60.56	0	1520962..1522140	-	392	206577147	glpC	KPK_1501	-	glycerol-3-phosphate dehydrogenase, anaerobic, C subunit
1470	 64.60	+1	1522137..1523396	-	419	206577983	glpB	KPK_1502	-	glycerol-3-phosphate dehydrogenase, anaerobic, B subunit
1471	 64.57	+1	1523386..1525008	-	540	206579472	glpA	KPK_1503	-	glycerol-3-phosphate dehydrogenase, anaerobic, A subunit
1472	 57.02	0	1525280..1526626	+	448	206579014	glpT	KPK_1504	-	glycerol-3-phosphate transporter
1473	 54.25	0	1526636..1527706	+	356	206579482	glpQ	KPK_1505	-	glycerophosphoryl diester phosphodiesterase
1474	 62.59	0	1527715..1527861	+	48	206578888	-	KPK_1506	-	hypothetical protein
1475	 56.47	0	1528168..1528422	-	84	206578008	-	KPK_1507	-	2Fe-2S iron-sulfur cluster-binding protein
1476	 55.70	0	1528422..1529552	-	376	206577425	nrdB	KPK_1508	-	ribonucleoside-diphosphate reductase, beta subunit
57.01	MEAN

6.61	STD DEV
