IslandPath Analysis: Klebsiella pneumoniae subsp. pneumoniae MGH 78578

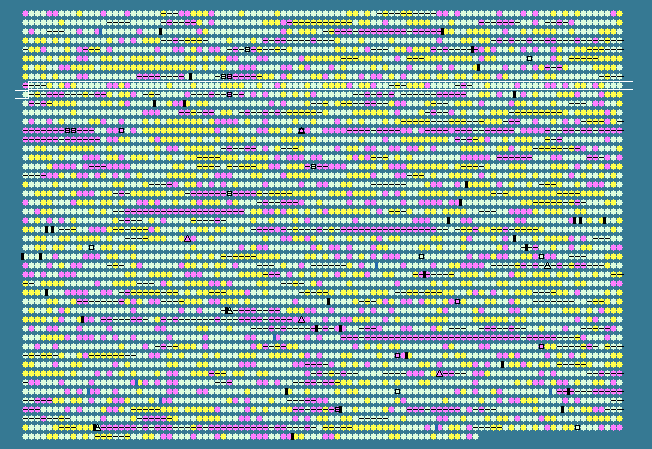

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.88 STD DEV: 5.81
Klebsiella pneumoniae subsp. pneumoniae MGH 78578, complete genome - 1..5315120
4776 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
802	 60.00	0	921793..922542	+	249	152969384	-	KPN_00827	-	putative short-chain dehydrogenase/reductase SDR
803	 60.28	0	922556..923401	+	281	152969385	-	KPN_00828	-	putative transketolase
804	 60.42	0	923401..924393	+	330	152969386	-	KPN_00829	-	putative transketolase
805	 62.98	0	924608..925963	+	451	152969387	rhlE	KPN_00830	-	ATP-dependent RNA helicase RhlE
806	 59.94	0	926151..928307	+	718	152969388	dinG	KPN_00831	-	ATP-dependent DNA helicase DinG
807	 63.26	0	928337..929305	+	322	152969389	ybiB	KPN_00832	-	hypothetical protein
808	 53.26	0	929415..929675	-	86	152969390	ybiJ	KPN_00833	-	hypothetical protein
809	 64.26	+1	930248..930538	-	96	152969391	ybiM	KPN_00834	-	hypothetical protein
810	 60.33	0	930648..931262	-	204	152969392	-	KPN_00835	-	hypothetical protein
811	 60.44	0	931359..932273	+	304	152969393	ybiN	KPN_00836	-	putative SAM-dependent methyltransferase
812	 59.97	0	932276..934471	-	731	152969394	ybiO	KPN_00837	-	hypothetical protein
813	 57.26	0	934583..935305	-	240	152969395	glnQ	KPN_00838	-	glutamine ABC transporter ATP-binding protein
814	 58.79	0	935302..935961	-	219	152969396	glnP	KPN_00839	-	glutamine ABC transporter permease protein
815	 51.27	-1	936087..936833	-	248	152969397	glnH	KPN_00840	-	glutamine ABC transporter periplasmic protein
816	 54.17	0	937242..937745	-	167	152969398	dps	KPN_00841	-	DNA starvation/stationary phase protection protein Dps
817	 62.95	0	937983..938870	-	295	152969399	ybiF	KPN_00842	-	threonine and homoserine efflux system
818	 51.27	-1	939222..939734	+	170	152969400	ompX	KPN_00843	-	outer membrane protein X
819	 54.78	0	939825..941405	-	526	152969401	ybiP	KPN_00844	-	putative enzyme
820	 58.22	0	942021..942458	+	145	152969402	mntR	KPN_00845	-	manganese transport regulator MntR
821	 59.48	0	942455..943567	+	370	152969403	ybiR	KPN_00846	-	putative transport protein
822	 55.81	0	943788..945113	+	441	152969404	-	KPN_00847	-	glycoside hydrolase family protein 1
823	 58.37	0	945164..945898	+	244	152969405	-	KPN_00848	-	putative transcriptional regulator
824	 57.27	0	946043..946957	-	304	152969406	ybiS	KPN_00849	-	hypothetical protein
825	 62.98	0	947158..947943	-	261	152969407	-	KPN_00850	-	anaerobic C4-dicarboxylate transporter
826	 57.04	0	948146..949714	+	522	152969408	ybiT	KPN_00851	-	putative ATP-binding component of a transport system
827	 59.90	0	949870..952233	-	787	152969409	-	KPN_00852	-	putative alpha-xylosidase
828	 58.83	0	952249..953550	-	433	152969410	-	KPN_00853	-	putative general substrate transporter
829	 64.34	+1	953849..954922	+	357	152969411	-	KPN_00854	-	putative periplasmic binding protein/LacI transcriptional regulator
830	 61.30	0	954919..956184	-	421	152969412	ybiU	KPN_00855	-	hypothetical protein
831	 54.90	0	956324..957139	-	271	152969413	ybiV	KPN_00856	-	hypothetical protein
832	 59.97	0	957316..959748	-	810	152969414	ybiW	KPN_00857	-	putative formate acetyltransferase 3
833	 60.33	0	959753..960652	-	299	152969415	ybiY	KPN_00858	-	putative pyruvate formate lyase activating enzyme
834	 63.23	0	960807..961562	-	251	152969416	moeB	KPN_00859	-	molybdopterin biosynthesis protein MoeB
835	 64.08	+1	961562..962797	-	411	152969417	moeA	KPN_00860	-	molybdopterin biosynthesis protein MoeA
836	 63.59	0	963033..963974	+	313	152969418	ybiK	KPN_00861	-	L-asparaginase
837	 64.25	+1	963992..965851	+	619	152969419	yliA	KPN_00862	-	glutathione transporter ATP-binding protein
838	 58.43	0	965884..967425	+	513	152969420	yliB	KPN_00863	-	peptide ABC transporter periplasmic substrate-binding protein
839	 60.80	0	967472..968392	+	306	152969421	yliC	KPN_00864	-	peptide ABC transporter membrane protein
840	 61.84	0	968436..969305	+	289	152969422	yliD	KPN_00865	-	peptide ABC transporter membrane protein
841	 59.35	0	969710..971035	-	441	152969423	yliG	KPN_00866	-	hypothetical protein
842	 54.83	0	971268..972509	-	413	152969424	-	KPN_00867	-	putative proton/sugar symporter, LacY
843	 50.95	-1	972852..973271	+	139	152969425	yliH	KPN_00868	-	biofilm formation regulatory protein BssR
844	 62.70	0	973387..974496	+	369	152969426	yliI	KPN_00869	-	putative dehydrogenase
845	 60.61	0	974499..975125	-	208	152969427	yliJ	KPN_00870	-	putative glutathione S-transferase
846	 56.53	0	977437..978639	+	400	152969428	dacC	KPN_00871	-	D-alanyl-D-alanine carboxypeptidase fraction C
847	 59.95	0	978678..979436	-	252	152969429	deoR	KPN_00872	-	DNA-binding transcriptional repressor DeoR
848	 62.63	0	979538..980131	-	197	152969430	ybjG	KPN_00873	-	undecaprenyl pyrophosphate phosphatase
849	 60.26	0	980459..981691	+	410	152969431	cmr	KPN_00874	-	major facilitator superfamily multidrug/chloramphenicol efflux transporter
850	 56.83	0	981729..982541	-	270	152969432	ybjI	KPN_00875	-	hypothetical protein
851	 64.84	+1	982541..983743	-	400	152969433	ybjJ	KPN_00876	-	putative DEOR-type transcriptional regulator
852	 62.94	0	983826..984389	+	187	152969434	ybjK	KPN_00877	-	putative DEOR-type transcriptional regulator
853	 61.69	0	984567..986054	-	495	152969435	ybjL	KPN_00878	-	hypothetical protein
854	 61.72	0	986600..986902	+	100	152969436	ybjM	KPN_00879	-	hypothetical protein
855	 50.38	-1	986909..987172	-	87	152969437	grxA	KPN_00880	-	glutaredoxin 1
856	 57.99	0	987375..987662	+	95	152969438	ybjC	KPN_00881	-	hypothetical protein
857	 62.52	0	987646..988368	+	240	152969439	nfsA	KPN_00882	-	nitroreductase A
858	 64.77	+1	988597..989385	+	262	152969440	rimK	KPN_00883	-	ribosomal protein S6 modification protein
859	 54.17	0	989474..989953	+	159	152969441	ybjN	KPN_00884	-	putative sensory transduction regulator
860	 55.53	0	990302..991414	+	370	152969442	potF	KPN_00885	-	putrescine transporter subunit: periplasmic-binding component of ABC superfamily
861	 59.39	0	991530..992711	+	393	152969443	potG	KPN_00886	-	putrescine transporter ATP-binding subunit
862	 59.22	0	992722..993675	+	317	152969444	potH	KPN_00887	-	putrescine transporter subunit: membrane component of ABC superfamily
863	 62.29	0	993672..994517	+	281	152969445	potI	KPN_00888	-	putrescine transporter subunit: membrane component of ABC superfamily
864	 56.24	0	994575..995063	+	162	152969446	ybjO	KPN_00889	-	hypothetical protein
865	 63.56	0	995105..996232	+	375	152969447	ybjF	KPN_00890	-	23S rRNA methyluridine methyltransferase
866	 61.65	0	996311..997027	+	238	152969448	-	KPN_00891	-	putative positive response regulator
867	 63.34	0	997024..998496	+	490	152969449	-	KPN_00892	-	putative signal transduction histidine kinase
868	 54.23	0	998583..999314	-	243	152969450	artJ	KPN_00893	-	arginine 3rd transport system periplasmic binding protein
869	 58.15	0	999498..1000166	-	222	152969451	artM	KPN_00894	-	arginine transporter permease subunit ArtM
870	 59.97	0	1000166..1000882	-	238	152969452	artQ	KPN_00895	-	arginine transporter permease subunit ArtQ
871	 55.38	0	1000889..1001641	-	250	152969453	artI	KPN_00896	-	arginine 3rd transport system periplasmic binding protein
872	 59.26	0	1001641..1002369	-	242	152969454	artP	KPN_00897	-	arginine transporter ATP-binding subunit
873	 61.24	0	1002596..1003111	-	171	152969455	ybjP	KPN_00898	-	putative lipoprotein
874	 53.47	0	1004075..1005127	+	350	152969456	-	KPN_00899	-	hypothetical protein
875	 59.23	0	1005102..1005989	+	295	152969457	ybjR	KPN_00900	-	N-acetylmuramoyl-L-alanine amidase
876	 58.58	0	1005986..1006999	-	337	152969458	ybjS	KPN_00901	-	putative dehydrogenase, NAD(P)-binding
877	 60.71	0	1007087..1008529	-	480	152969459	ybjT	KPN_00902	-	hypothetical protein
878	 63.77	+1	1008540..1009541	-	333	152969460	ltaE	KPN_00903	-	L-threonine aldolase
879	 60.53	0	1009580..1011307	-	575	152969461	poxB	KPN_00904	-	pyruvate dehydrogenase
880	 57.70	0	1011450..1011884	+	144	152969462	-	KPN_00905	-	hypothetical protein
881	 61.32	0	1012096..1013031	-	311	152969463	hcr	KPN_00906	-	HCP oxidoreductase, NADH-dependent
882	 58.54	0	1013075..1014760	-	561	152969464	hcp	KPN_00907	-	hydroxylamine reductase
883	 53.89	0	1014871..1015770	-	299	152969465	ybjE	KPN_00908	-	putative surface protein
884	 60.49	0	1015886..1016581	-	231	152969466	aqpZ	KPN_00909	-	aquaporin Z
885	 59.49	0	1017001..1018659	+	552	152969467	ybjD	KPN_00910	-	hypothetical protein
886	 59.23	0	1018806..1019921	+	371	152969468	macA	KPN_00911	-	macrolide transporter subunit MacA
887	 60.38	0	1019918..1021858	+	646	152969469	macB	KPN_00912	-	macrolide transporter ATP-binding /permease protein
888	 52.25	0	1021935..1022156	-	73	152969470	cspD	KPN_00913	-	DNA replication inhibitor
889	 45.91	-2	1022482..1022799	+	105	152969471	clpS	KPN_00914	-	ATP-dependent Clp protease adaptor protein ClpS
890	 57.02	0	1022830..1025109	+	759	152969472	clpA	KPN_00915	-	ATP-dependent Clp protease ATP-binding subunit
891	 49.77	-1	1025229..1025447	-	72	152969473	infA	KPN_00916	-	translation initiation factor IF-1
892	 58.97	0	1025801..1026502	-	233	152969474	aat	KPN_00917	-	leucyl/phenylalanyl-tRNA--protein transferase
893	 62.31	0	1026547..1028268	-	573	152969475	cydC	KPN_00918	-	cysteine/glutathione ABC transporter membrane/ATP-binding component
894	 61.57	0	1028269..1030035	-	588	152969476	cydD	KPN_00919	-	cysteine/glutathione ABC transporter membrane/ATP-binding component
895	 58.53	0	1030150..1031145	-	331	152969477	trxB	KPN_00920	-	thioredoxin reductase
896	 47.88	-1	1031651..1032145	+	164	152969478	lrp	KPN_00921	-	leucine-responsive transcriptional regulator
897	 62.62	0	1032281..1036534	+	1417	152969479	ftsK	KPN_00922	-	cell division protein
898	 55.56	0	1036657..1037268	+	203	152969480	lolA	KPN_00923	-	outer-membrane lipoprotein carrier protein
899	 60.71	0	1037277..1038620	+	447	152969481	ycaJ	KPN_00924	-	recombination factor protein RarA
900	 57.93	0	1038711..1040003	+	430	152969482	serS	KPN_00925	-	seryl-tRNA synthetase
901	 58.02	0	1040204..1042642	+	812	152969483	dmsA	KPN_00926	-	anaerobic dimethyl sulfoxide (DMSO) reductase, subunit A
57.88	MEAN

5.81	STD DEV
