IslandPathversion 1.0

IslandPath Analysis: Klebsiella pneumoniae subsp. pneumoniae MGH 78578

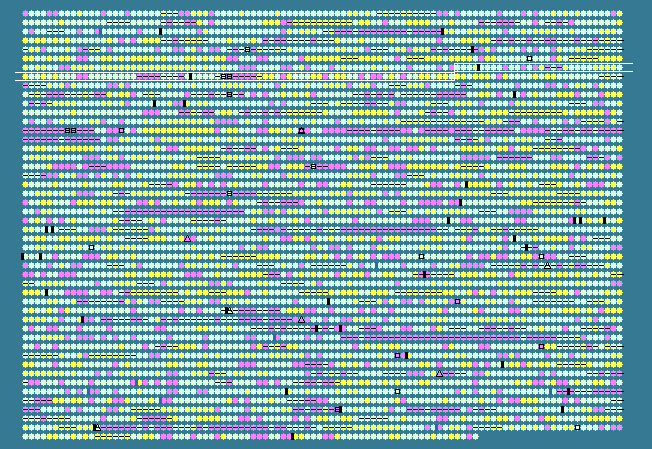

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.88 STD DEV: 5.81
Klebsiella pneumoniae subsp. pneumoniae MGH 78578, complete genome - 1..5315120
4776 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
673	 56.75	0	774081..774554	-	157	152969255	ybeY	KPN_00684	-	putative metalloprotease
674	 57.98	0	774551..775597	-	348	152969256	ybeZ	KPN_00685	-	putative ATP-binding protein in pho regulon
675	 57.05	0	775751..777112	-	453	152969257	yleA	KPN_00686	-	hypothetical protein
676	 65.73	+1	777355..778530	+	391	152969258	ubiF	KPN_00687	-	2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
677	 58.02	0	779638..781302	-	554	152969259	asnB	KPN_00695	-	asparagine synthetase B
678	 56.71	0	781581..782333	-	250	152969260	nagD	KPN_00696	-	UMP phosphatase
679	 58.89	0	782450..783670	-	406	152969261	nagC	KPN_00697	-	ROK family transcriptional regulator
680	 57.44	0	783679..784827	-	382	152969262	nagA	KPN_00698	-	N-acetylglucosamine-6-phosphate deacetylase
681	 52.81	0	784941..785741	-	266	152969263	nagB	KPN_00699	-	glucosamine-6-phosphate deaminase
682	 59.82	0	786056..788011	+	651	152969264	nagE	KPN_00700	-	N-acetyl glucosamine specific PTS system components IIABC
683	 56.29	0	788190..789857	+	555	152969265	glnS	KPN_00701	-	glutaminyl-tRNA synthetase
684	 36.25	-2	789911..790219	-	102	152969266	metH	KPN_00702	-	B12-dependent methionine synthase
685	 54.91	0	790293..791696	+	467	152969267	ybfM	KPN_00703	-	hypothetical protein
686	 52.85	0	791744..792076	+	110	152969268	ybfN	KPN_00704	-	hypothetical protein
687	 61.75	0	792073..792642	-	189	152969269	citA	KPN_00705	-	putative citrate utilization protein A
688	 52.32	0	792692..793144	-	150	152969270	fur	KPN_00706	-	ferric uptake regulator
689	 55.37	0	793436..793966	-	176	152969271	fldA	KPN_00707	-	flavodoxin FldA
690	 54.08	0	794118..794411	-	97	152969272	ybfE	KPN_00708	-	LexA regulated protein
691	 63.82	+1	794545..795318	-	257	152969273	ybfF	KPN_00709	-	hypothetical protein
692	 54.46	0	795502..796050	+	182	152969274	seqA	KPN_00710	-	replication initiation regulator SeqA
693	 60.21	0	796083..797723	+	546	152969275	pgm	KPN_00711	-	phosphoglucomutase
694	 57.32	0	797820..798215	+	131	152969276	ydgI	KPN_00712	-	putative arginine/ornithine antiporter
695	 60.77	0	798197..798874	-	225	152969277	kdpE	KPN_00713	-	regulator of kdp operon (transcriptional effector)
696	 65.22	+1	798871..801558	-	895	152969278	kdpD	KPN_00714	-	sensor protein KdpD
697	 62.85	0	801559..802134	-	191	152969279	kdpC	KPN_00715	-	potassium-transporting ATPase subunit C
698	 63.35	0	802145..804193	-	682	152969280	kdpB	KPN_00716	-	potassium-transporting ATPase subunit B
699	 62.56	0	804214..805893	-	559	152969281	kdpA	KPN_00717	-	potassium-transporting ATPase subunit A
700	 57.14	0	806289..806498	+	69	152969282	ybfA	KPN_00718	-	hypothetical protein
701	 62.72	0	806682..808124	+	480	152969283	phrB	KPN_00719	-	deoxyribodipyrimidine photolyase
702	 60.85	0	808096..809574	-	492	152969284	ybgH	KPN_00720	-	putative transport protein
703	 60.89	0	809842..810585	+	247	152969285	ybgI	KPN_00721	-	putative hydrolase-oxidase
704	 62.40	0	810600..811256	+	218	152969286	ybgJ	KPN_00722	-	putative carboxylase
705	 60.56	0	811250..812182	+	310	152969287	ybgK	KPN_00723	-	putative carboxylase
706	 64.38	+1	812172..812915	+	247	152969288	ybgL	KPN_00724	-	hypothetical protein
707	 58.64	0	814721..815368	+	215	152969289	-	KPN_00725	-	pyrrolidone-carboxylate peptidase
708	 58.96	0	815384..816175	+	263	152969290	nei	KPN_00726	-	endonuclease VIII
709	 54.52	0	816266..817549	-	427	152969291	gltA	KPN_00727	-	type II citrate synthase
710	 51.81	-1	818319..818594	+	91	152969292	sdhC	KPN_00728	-	hypothetical protein
711	 52.87	0	818588..818935	+	115	152969293	sdhD	KPN_00729	-	succinate dehydrogenase cytochrome b556 small membrane subunit
712	 59.82	0	818935..820701	+	588	152969294	sdhA	KPN_00730	-	succinate dehydrogenase flavoprotein subunit
713	 55.65	0	820717..821433	+	238	152969295	sdhB	KPN_00731	-	succinate dehydrogenase iron-sulfur subunit
714	 57.91	0	821815..824622	+	935	152969296	sucA	KPN_00732	-	alpha-ketoglutarate decarboxylase
715	 59.49	0	824637..825863	+	408	152969297	sucB	KPN_00733	-	dihydrolipoamide acetyltransferase
716	 58.01	0	825967..827133	+	388	152969298	sucC	KPN_00734	-	succinyl-CoA synthetase subunit beta
717	 57.93	0	827133..828002	+	289	152969299	sucD	KPN_00735	-	succinyl-CoA synthetase subunit alpha
718	 56.23	0	828824..830395	+	523	152969300	cydA	KPN_00736	-	cytochrome d terminal oxidase, polypeptide subunit I
719	 58.95	0	830411..831550	+	379	152969301	cydB	KPN_00737	-	cytochrome d terminal oxidase polypeptide subunit II
720	 52.14	0	831566..831682	+	38	152969302	ribH	KPN_00738	-	riboflavin synthase subunit beta
721	 54.30	0	831682..831972	+	96	152969303	ybgE	KPN_00739	-	hypothetical protein
722	 51.85	-1	832122..832526	+	134	152969304	ybgC	KPN_00740	-	acyl-CoA thioester hydrolase YbgC
723	 54.24	0	832532..833215	+	227	152969305	tolQ	KPN_00741	-	colicin uptake protein TolQ
724	 55.48	0	833219..833647	+	142	152969306	tolR	KPN_00742	-	colicin uptake protein TolR
725	 59.06	0	833747..835060	+	437	152969307	tolA	KPN_00743	-	cell envelope integrity inner membrane protein TolA
726	 58.79	0	835226..836482	+	418	152969308	tolB	KPN_00744	-	translocation protein TolB
727	 52.95	0	836517..837041	+	174	152969309	pal	KPN_00745	-	peptidoglycan-associated outer membrane lipoprotein
728	 54.47	0	837051..837845	+	264	152969310	ybgF	KPN_00746	-	hypothetical protein
729	 59.98	0	839642..840688	+	348	152969311	nadA	KPN_00754	-	quinolinate synthetase
730	 55.69	0	840724..841443	+	239	152969312	pnuC	KPN_00755	-	nucleoside/purine/pyrimidine transport protein
731	 61.06	0	841440..842384	-	314	152969313	ybgR	KPN_00756	-	zinc transporter ZitB
732	 57.38	0	842502..842867	-	121	152969314	ybgS	KPN_00757	-	putative homeobox protein
733	 58.59	0	843182..844234	+	350	152969315	aroG	KPN_00758	-	phospho-2-dehydro-3-deoxyheptonate aldolase
734	 55.16	0	844918..845421	-	167	152969316	-	KPN_00759	-	putative IS1 transposase
735	 53.62	0	845340..845615	-	91	152969317	-	KPN_00760	-	putative transposase
736	 40.43	-2	845712..846557	-	281	152969318	-	KPN_00761	-	fumarate hydratase
737	 35.14	-2	846680..847564	+	294	152969319	-	KPN_00762	-	transcriptional regulator LysR
738	 40.56	-2	847570..848496	-	308	152969320	-	KPN_00763	-	transcriptional regulator LysR
739	 40.19	-2	848775..850043	+	422	152969321	-	KPN_00764	-	putative response regulator, membrane protein
740	 67.01	+1	850358..852124	+	588	152969322	-	KPN_00765	-	pyruvate carboxylase subunit B
741	 66.59	+1	852140..853441	+	433	152969323	-	KPN_00766	-	putative oxaloacetate decarboxylase beta chain
742	 65.27	+1	853567..854211	+	214	152969324	-	KPN_00767	-	hypothetical protein
743	 56.44	0	854248..855000	-	250	152969325	gpmA	KPN_00768	-	phosphoglyceromutase
744	 40.00	-2	855057..855161	+	34	152969326	-	KPN_00769	-	hypothetical protein
745	 63.60	0	855292..856335	-	347	152969327	galM	KPN_00770	-	aldose 1-epimerase
746	 59.81	0	856329..857480	-	383	152969328	galK	KPN_00771	-	galactokinase
747	 61.03	0	857480..858526	-	348	152969329	galT	KPN_00772	-	galactose-1-phosphate uridylyltransferase
748	 59.00	0	858536..859552	-	338	152969330	galE	KPN_00773	-	UDP-galactose-4-epimerase
749	 61.85	0	859762..861234	-	490	152969331	modF	KPN_00774	-	putative molybdenum transport ATP-binding protein ModF
750	 61.72	0	861302..862090	-	262	152969332	modE	KPN_00775	-	DNA-binding transcriptional regulator ModE
751	 50.00	-1	862243..862392	+	49	152969333	ybhT	KPN_00776	-	hypothetical protein
752	 60.47	0	862535..863308	+	257	152969334	modA	KPN_00777	-	molybdate transporter periplasmic protein
753	 63.48	0	863308..863997	+	229	152969335	modB	KPN_00778	-	molybdate ABC transporter permease protein
754	 63.28	0	863997..865058	+	353	152969336	modC	KPN_00779	-	molybdate transporter ATP-binding protein
755	 58.36	0	865059..865877	-	272	152969337	ybhA	KPN_00780	-	phosphotransferase
756	 57.87	0	866034..867101	+	355	152969338	ybhE	KPN_00781	-	6-phosphogluconolactonase
757	 51.40	-1	868538..869749	+	403	152969339	-	KPN_00782	-	hypothetical protein
758	 56.46	0	869905..870639	+	244	152969340	-	KPN_00783	-	putative regulatory protein  MerR
759	 45.77	-2	870681..871235	-	184	152969341	-	KPN_00784	-	LuxR transcriptional regulator
760	 49.31	-1	872265..872771	+	168	152969342	-	KPN_00785	-	hypothetical protein
761	 58.71	0	873750..876815	-	1021	152969343	-	KPN_00786	-	putative AcrB, cation/multidrug efflux pump
762	 62.65	0	876816..877811	-	331	152969344	-	KPN_00787	-	hypothetical protein
763	 55.86	0	877956..878066	-	36	152969345	-	KPN_00788	-	hypothetical protein
764	 51.16	-1	878435..878866	+	143	152969346	-	KPN_00789	-	hypothetical protein
765	 59.60	0	878918..881605	+	895	152969347	-	KPN_00790	-	putative cation transport protein
766	 60.51	0	881879..883162	-	427	152969348	ybhC	KPN_00791	-	putative pectinesterase
767	 64.12	+1	883418..884635	+	405	152969349	hutI	KPN_00792	-	imidazolonepropionase
768	 65.94	+1	884632..885588	+	318	152969350	hutG	KPN_00793	-	formimidoylglutamase
769	 60.74	0	885650..886375	+	241	152969351	hutC	KPN_00794	-	histidine utilization repressor
770	 62.58	0	886518..888206	+	562	152969352	-	KPN_00795	-	urocanate hydratase
771	 64.44	+1	888203..889729	+	508	152969353	hutH	KPN_00796	-	histidine ammonia-lyase
772	 60.38	0	889828..891210	+	460	152969354	proY	KPN_00797	-	putative amino acid permease
57.88	MEAN

5.81	STD DEV
