IslandPath Analysis: Klebsiella pneumoniae subsp. pneumoniae MGH 78578

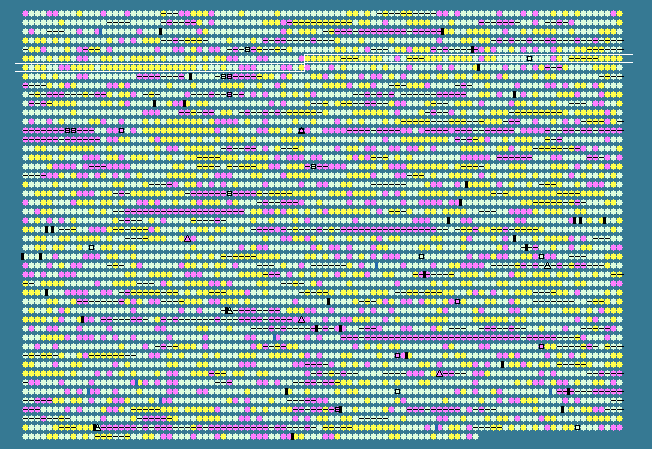

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.88 STD DEV: 5.81
Klebsiella pneumoniae subsp. pneumoniae MGH 78578, complete genome - 1..5315120
4776 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
548	 62.65	0	625066..627780	+	904	152969130	-	KPN_00559	-	Mg2+ transport ATPase, P-type 1
549	 66.48	+1	627833..628912	+	359	152969131	-	KPN_00560	-	putative secretion protein HlyD
550	 65.92	+1	628926..632018	+	1030	152969132	-	KPN_00561	-	putative acridine efflux pump
551	 61.67	0	632367..633086	-	239	152969133	-	KPN_00562	-	hypothetical protein
552	 62.28	0	633134..634249	-	371	152969134	-	KPN_00563	-	carboxylate-amine ligase
553	 61.93	0	634576..636243	+	555	152969135	-	KPN_00564	-	extracellular solute-binding family protein 5
554	 62.89	0	636262..637215	+	317	152969136	-	KPN_00565	-	putative binding-protein-dependent transport systems inner membrane component
555	 63.53	0	637218..638111	+	297	152969137	-	KPN_00566	-	putative binding-protein-dependent transport systems inner membrane component
556	 64.64	+1	638115..639152	+	345	152969138	-	KPN_00567	-	putative ABC transporter
557	 67.66	+1	639142..640152	+	336	152969139	-	KPN_00568	-	putative ABC transport system ATP-binding protein
558	 64.70	+1	640250..641518	+	422	152969140	-	KPN_00569	-	putative amidohydrolase
559	 65.39	+1	642655..643989	+	444	152969141	-	KPN_00570	-	aminotransferase regulator domain-containing protein
560	 63.59	0	643986..645545	-	519	152969142	-	KPN_00571	-	GntR transcriptional regulator
561	 54.87	0	645712..646542	+	276	152969143	-	KPN_00572	-	glutamine ABC transporter periplasmic-binding protein
562	 61.06	0	646590..647231	+	213	152969144	-	KPN_00573	-	putative binding-protein-dependent transport systems inner membrane component
563	 50.30	-1	647246..647911	+	221	152969145	-	KPN_00574	-	putative binding-protein-dependent transport systems inner membrane component
564	 58.66	0	647904..648665	+	253	152969146	-	KPN_00575	-	putative ABC transporter
565	 63.53	0	648719..649483	-	254	152969147	-	KPN_00576	-	putative oxidoreductase
566	 63.83	+1	649664..651001	+	445	152969148	-	KPN_00577	-	hypothetical protein
567	 63.40	0	651248..651952	-	234	152969149	-	KPN_00578	-	putative ATP-binding component of a transport system
568	 67.14	+1	651939..652775	-	278	152969150	-	KPN_00579	-	putative ABC transporter
569	 68.59	+1	652768..653601	-	277	152969151	-	KPN_00580	-	putative ABC transport system permease protein
570	 64.52	+1	653601..654623	-	340	152969152	-	KPN_00581	-	putative ABC transport system permease protein
571	 60.04	0	654743..656311	-	522	152969153	-	KPN_00582	-	putative ABC transport system periplasmic binding protein
572	 63.82	+1	656511..657212	+	233	152969154	-	KPN_00583	-	putative GCN5-related N-acetyltransferase
573	 63.24	0	657333..658997	-	554	152969155	-	KPN_00584	-	choline dehydrogenase
574	 62.57	0	659011..660474	-	487	152969156	-	KPN_00585	-	betaine aldehyde dehydrogenase
575	 62.21	0	660497..661102	-	201	152969157	-	KPN_00586	-	transcriptional regulator BetI
576	 59.83	0	661213..663246	+	677	152969158	-	KPN_00587	-	choline transport protein BetT
577	 53.46	0	663963..665219	+	418	152969159	-	KPN_00588	-	putative transport
578	 66.78	+1	665216..666109	-	297	152969160	-	KPN_00589	-	transcriptional regulator LysR
579	 62.87	0	666364..666969	+	201	152969161	-	KPN_00590	-	putative S-transferase
580	 59.80	0	667028..668527	-	499	152969162	-	KPN_00591	-	putative carbohydrate kinase
581	 56.90	0	668542..669933	-	463	152969163	-	KPN_00592	-	putative L-fucose isomerase, C-terminal
582	 59.41	0	669995..670945	-	316	152969164	-	KPN_00593	-	putative transketolase C-terminal section
583	 56.80	0	670938..671768	-	276	152969165	-	KPN_00594	-	putative transketolase
584	 56.80	0	672038..673030	+	330	152969166	-	KPN_00595	-	putative sugar-binding region
585	 55.24	0	673027..673989	-	320	152969167	-	KPN_00596	-	putative transposase, YhgA-like protein
586	 56.20	0	674145..675233	-	362	152969168	-	KPN_00597	-	putative inner-membrane translocator
587	 55.99	0	675235..676761	-	508	152969169	-	KPN_00598	-	putative ABC transporter
588	 58.66	0	676761..677372	-	203	152969170	-	KPN_00599	-	hypothetical protein
589	 54.26	0	677380..678282	-	300	152969171	-	KPN_00600	-	D-ribose periplasmic binding protein
590	 63.33	0	678439..679098	-	219	152969172	entD	KPN_00601	-	enterochelin synthetase, component D
591	 59.89	0	679165..681393	-	742	152969173	fepA	KPN_00602	-	outer membrane receptor FepA
592	 67.54	+1	681713..682861	+	382	152969174	fes	KPN_00603	-	enterobactin/ferric enterobactin esterase
593	 62.25	0	682889..683092	+	67	152969175	ychP	KPN_00604	-	invasin-like protein
594	 68.02	+1	683082..686984	+	1300	152969176	entF	KPN_00605	-	enterobactin synthase subunit F
595	 64.78	+1	687049..687843	-	264	152969177	fepC	KPN_00606	-	iron-enterobactin transporter ATP-binding protein
596	 66.87	+1	687840..688832	-	330	152969178	fepG	KPN_00607	-	iron-enterobactin transporter permease
597	 68.55	+1	688829..689836	-	335	152969179	fepD	KPN_00608	-	iron-enterobactin transporter membrane protein
598	 66.75	+1	689949..691190	+	413	152969180	ybdA	KPN_00609	-	enterobactin exporter EntS
599	 63.65	0	691334..692293	-	319	152969181	fepB	KPN_00610	-	iron-enterobactin transporter periplasmic binding protein
600	 65.22	+1	692482..693657	+	391	152969182	entC	KPN_00611	-	isochorismate synthase
601	 62.19	0	693667..695274	+	535	152969183	entE	KPN_00612	-	enterobactin synthase subunit E
602	 60.56	0	695288..696139	+	283	152969184	entB	KPN_00613	-	2,3-dihydro-2,3-dihydroxybenzoate synthetase, isochroismatase
603	 64.42	+1	696139..696894	+	251	152969185	entA	KPN_00614	-	2,3-dihydroxybenzoate-2,3-dehydrogenase
604	 66.43	+1	696895..697308	+	137	152969186	ybdB	KPN_00615	-	hypothetical protein
605	 60.87	0	698575..700680	+	701	152969187	cstA	KPN_00616	-	carbon starvation protein
606	 56.06	0	700773..700970	+	65	152969188	-	KPN_00617	-	hypothetical protein
607	 54.07	0	700967..701371	-	134	152969189	-	KPN_00618	-	putative transcriptional regulators
608	 45.54	-2	701346..701648	-	100	152969190	-	KPN_00619	-	hypothetical protein
609	 63.31	0	701832..702575	-	247	152969191	-	KPN_00620	-	putative short-chain alcohol dehydrogenase
610	 65.11	+1	702633..703721	-	362	152969192	ybdH	KPN_00621	-	hypothetical protein
611	 62.74	0	703885..705387	+	500	152969193	-	KPN_00622	-	putative ABC transporter
612	 62.23	0	705459..706382	+	307	152969194	-	KPN_00623	-	putative ABC transporter, permease protein
613	 61.22	0	706403..707467	+	354	152969195	-	KPN_00624	-	putative periplasmic binding protein/LacI transcriptional regulator
614	 62.27	0	707605..708810	+	401	152969196	-	KPN_00625	-	hypothetical protein
615	 63.17	0	709024..710223	-	399	152969197	-	KPN_00626	-	methylthioribose kinase
616	 65.89	+1	710325..711353	+	342	152969198	-	KPN_00627	-	methyltransferase domain-containing protein
617	 64.93	+1	711414..712682	-	422	152969199	-	KPN_00628	-	putative 3-phytase precursor
618	 61.44	0	712708..714066	-	452	152969200	-	KPN_00629	-	hypothetical protein
619	 64.57	+1	714177..714986	-	269	152969201	-	KPN_00630	-	putative inositol monophosphatase
620	 63.78	+1	715108..716148	-	346	152969202	-	KPN_00631	-	putative periplasmic binding protein/LacI transcriptional regulator
621	 63.28	0	716204..717442	-	412	152969203	-	KPN_00632	-	putative cytosine deaminase and related metal-dependent hydrolases
622	 63.74	+1	718671..719933	-	420	152969204	-	KPN_00633	-	cytosine permease
623	 61.74	0	720385..720993	+	202	152969205	-	KPN_00634	-	hypothetical protein
624	 66.93	+1	721006..722502	+	498	152969206	-	KPN_00635	-	putative carbohydrate kinase, FGGY
625	 64.04	+1	722499..723527	+	342	152969207	-	KPN_00636	-	putative D-3-phosphoglycerate dehydrogenase
626	 65.71	+1	723570..724511	-	313	152969208	-	KPN_00637	-	putative kinase
627	 65.07	+1	724523..725527	-	334	152969209	-	KPN_00638	-	putative inner-membrane translocator
628	 65.76	+1	725524..726513	-	329	152969210	-	KPN_00639	-	sugar ABC transporter membrane protein
629	 65.83	+1	726510..728060	-	516	152969211	-	KPN_00640	-	putative ABC-type sugar transport system, ATPase component
630	 55.45	0	728057..729037	-	326	152969212	-	KPN_00641	-	sugar ABC transporter periplasmic substrate-binding protein
631	 64.29	+1	729446..731755	+	769	152969213	-	KPN_00642	-	biotin sulfoxide reductase
632	 58.56	0	731863..732405	-	180	152969214	-	KPN_00643	-	putative acireductone dioxygenase, ARD
633	 57.68	0	732402..733091	-	229	152969215	-	KPN_00644	-	phosphoglycolate phosphatase
634	 63.22	0	733218..734378	+	386	152969216	ybdL	KPN_00645	-	putative aminotransferase
635	 59.62	0	734379..735017	-	212	152969217	ybdM	KPN_00646	-	hypothetical protein
636	 55.37	0	734990..736219	-	409	152969218	ybdN	KPN_00647	-	hypothetical protein
637	 46.52	-1	736324..737256	-	310	152969219	ybdO	KPN_00648	-	putative transcriptional regulator (LysR familiy)
638	 53.95	0	737437..738057	-	206	152969220	dsbG	KPN_00649	-	disulfide isomerase, thiol-disulphide oxidase, periplasmic
639	 52.84	0	738598..739161	+	187	152969221	ahpC	KPN_00650	-	alkyl hydroperoxide reductase subunit C
640	 58.37	0	739349..740914	+	521	152969222	ahpF	KPN_00651	-	alkyl hydroperoxide reductase subunit, FAD/NAD(P)-binding protein
641	 56.41	0	740991..741419	-	142	152969223	ybdQ	KPN_00652	-	hypothetical protein
642	 61.23	0	741607..742029	-	140	152969224	rnk	KPN_00653	-	nucleoside diphosphate kinase regulator
643	 57.13	0	743086..744459	-	457	152969225	dcuC	KPN_00654	-	C4-dicarboxylate transporter DcuC
644	 52.11	0	744747..745316	+	189	152969226	crcA	KPN_00655	-	palmitoyl transferase for Lipid A
645	 44.76	-2	745511..745720	+	69	152969227	cspE	KPN_00656	-	cold shock protein CspE
646	 58.73	0	745788..746102	-	104	152969228	ccrB	KPN_00657	-	camphor resistance protein CrcB
647	 62.36	0	746330..747049	+	239	152969229	ybeM	KPN_00658	-	NAD(P)-binding amidase-type enzyme
57.88	MEAN

5.81	STD DEV
