IslandPath Analysis: Klebsiella pneumoniae subsp. pneumoniae MGH 78578

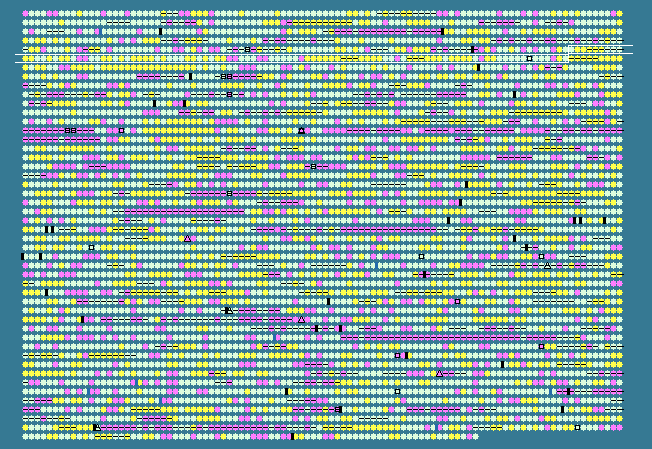

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.88 STD DEV: 5.81
Klebsiella pneumoniae subsp. pneumoniae MGH 78578, complete genome - 1..5315120
4776 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
492	 57.28	0	553734..554159	-	141	152969074	-	KPN_00503	-	hypothetical protein
493	 62.98	0	554731..555651	+	306	152969075	-	KPN_00504	-	hypothetical protein
494	 62.06	0	555648..556820	+	390	152969076	-	KPN_00505	-	putative oxidoreductase
495	 64.83	+1	556830..557861	+	343	152969077	-	KPN_00506	-	putative oxidoreductase
496	 66.07	+1	558667..559674	-	335	152969078	-	KPN_00507	-	putative oxidoreductase
497	 65.59	+1	559776..560795	+	339	152969079	-	KPN_00508	-	hypothetical protein
498	 55.30	0	561225..562148	+	307	152969080	-	KPN_00509	-	putative periplasmic binding protein
499	 56.36	0	562181..563665	+	494	152969081	-	KPN_00510	-	putative ABC transporter
500	 59.14	0	563685..564707	+	340	152969082	-	KPN_00511	-	putative inner-membrane translocator
501	 62.99	0	565547..566551	-	334	152969083	-	KPN_00512	-	LacI transcriptional regulator
502	 65.60	+1	566581..567981	-	466	152969084	-	KPN_00513	-	beta-fructofuranosidase; sucrose-6-phosphate hydrolase
503	 61.27	0	567981..569351	-	456	152969085	-	KPN_00514	-	sucrose-specific enzyme II
504	 60.14	0	569456..570973	-	505	152969086	-	KPN_00515	-	sucrose porin
505	 67.75	+1	571138..572061	-	307	152969087	-	KPN_00516	-	aminoimidazole riboside kinase
506	 60.89	0	573421..574563	+	380	152969088	-	KPN_00517	-	putative secretion protein HlyD
507	 65.29	+1	574604..575401	-	265	152969089	-	KPN_00518	-	putative ABC transporter
508	 63.62	0	575398..576480	-	360	152969090	-	KPN_00519	-	putative ABC transporter permease
509	 60.05	0	576488..577606	-	372	152969091	-	KPN_00520	-	putative periplasmic binding protein
510	 53.33	0	577878..578267	+	129	152969092	-	KPN_00521	-	hypothetical protein
511	 51.59	-1	578967..579092	-	41	152969093	-	KPN_00522	-	hypothetical protein
512	 59.37	0	579408..580586	+	392	152969094	-	KPN_00523	-	aminobenzoyl-glutamate utilization protein
513	 56.99	0	580639..581382	+	247	152969095	-	KPN_00524	-	extracellular solute-binding family protein 3
514	 62.16	0	581511..582464	+	317	152969096	-	KPN_00525	-	putative aldo/keto reductase
515	 68.60	+1	584069..584845	-	258	152969097	-	KPN_00526	-	putative 3-ketoacyl-(acyl-carrier-protein) reductase
516	 60.33	0	584933..586651	-	572	152969098	-	KPN_00527	-	putative arylsulfatase
517	 62.46	0	586711..587898	-	395	152969099	-	KPN_00528	-	putative iron-sulfur modifier protein
518	 57.92	0	588459..589007	+	182	152969100	-	KPN_00529	-	LuxR transcriptional regulator
519	 63.53	0	590348..591463	+	371	152969101	-	KPN_00530	-	putative deacetylase
520	 61.45	0	591470..592063	-	197	152969102	-	KPN_00531	-	hypothetical protein
521	 62.87	0	592041..593540	-	499	152969103	-	KPN_00532	-	putative amino acid/amine transport protein
522	 62.57	0	593917..594282	-	121	152969104	-	KPN_00533	-	hypothetical protein
523	 58.60	0	594296..595597	-	433	152969105	-	KPN_00534	-	hypothetical protein
524	 63.03	0	595756..597240	+	494	152969106	-	KPN_00535	-	putative aldehyde dehydrogenase
525	 59.11	0	598764..600974	+	736	152969107	-	KPN_00536	-	putative TonB-dependent receptor
526	 59.62	0	601082..602458	+	458	152969108	-	KPN_00537	-	phenylalanine transporter
527	 59.66	0	602610..603851	+	413	152969109	-	KPN_00538	-	putative nucleoside H+ symporter
528	 63.25	0	603868..604890	+	340	152969110	-	KPN_00539	-	putative xylose isomerase-like TIM barrel
529	 63.79	+1	604862..606043	+	393	152969111	-	KPN_00540	-	putative NADH-dependent dehydrogenase
530	 59.13	0	606063..606500	-	145	152969112	-	KPN_00541	-	hypothetical protein
531	 62.49	0	606728..607708	+	326	152969113	-	KPN_00542	-	LacI transcriptional regulator
532	 55.90	0	607712..608956	-	414	152969114	ybdG	KPN_00543	-	putative transport
533	 64.94	+1	610563..611429	+	288	152969115	-	KPN_00544	-	hypothetical protein
534	 61.74	0	612096..613130	+	344	152969116	-	KPN_00545	-	putative permease
535	 51.58	-1	613227..615956	+	909	152969117	-	KPN_00546	-	putative inner membrane protein
536	 54.31	0	616009..616995	-	328	152969118	-	KPN_00547	-	putative phosphosugar isomerases
537	 55.93	0	617060..618121	-	353	152969119	-	KPN_00548	-	putative inner membrane protein
538	 56.26	0	618139..618993	-	284	152969120	-	KPN_00549	-	putative transport protein, PTS system
539	 56.32	0	618996..619739	-	247	152969121	-	KPN_00550	-	putative inner membrane protein
540	 53.29	0	619754..620224	-	156	152969122	-	KPN_00551	-	putative transport protein, PTS system
541	 53.56	0	620217..620651	-	144	152969123	-	KPN_00552	-	putative transport protein, PTS system
542	 57.65	0	620899..621552	-	217	152969124	nfnB	KPN_00553	-	dihydropteridine reductase
543	 56.37	0	621672..622040	-	122	152969125	ybdF	KPN_00554	-	hypothetical protein
544	 61.17	0	622040..622621	-	193	152969126	-	KPN_00555	-	putative regulatory protein
545	 55.26	0	623947..624288	+	113	152969127	-	KPN_00556	-	putative regulatory protein
546	 57.83	0	624306..624554	-	82	152969128	ybdJ	KPN_00557	-	putative inner membrane protein
547	 50.45	-1	624744..624854	-	36	152969129	-	KPN_00558	-	hypothetical protein
548	 62.65	0	625066..627780	+	904	152969130	-	KPN_00559	-	Mg2+ transport ATPase, P-type 1
549	 66.48	+1	627833..628912	+	359	152969131	-	KPN_00560	-	putative secretion protein HlyD
550	 65.92	+1	628926..632018	+	1030	152969132	-	KPN_00561	-	putative acridine efflux pump
551	 61.67	0	632367..633086	-	239	152969133	-	KPN_00562	-	hypothetical protein
552	 62.28	0	633134..634249	-	371	152969134	-	KPN_00563	-	carboxylate-amine ligase
553	 61.93	0	634576..636243	+	555	152969135	-	KPN_00564	-	extracellular solute-binding family protein 5
554	 62.89	0	636262..637215	+	317	152969136	-	KPN_00565	-	putative binding-protein-dependent transport systems inner membrane component
555	 63.53	0	637218..638111	+	297	152969137	-	KPN_00566	-	putative binding-protein-dependent transport systems inner membrane component
556	 64.64	+1	638115..639152	+	345	152969138	-	KPN_00567	-	putative ABC transporter
557	 67.66	+1	639142..640152	+	336	152969139	-	KPN_00568	-	putative ABC transport system ATP-binding protein
558	 64.70	+1	640250..641518	+	422	152969140	-	KPN_00569	-	putative amidohydrolase
559	 65.39	+1	642655..643989	+	444	152969141	-	KPN_00570	-	aminotransferase regulator domain-containing protein
560	 63.59	0	643986..645545	-	519	152969142	-	KPN_00571	-	GntR transcriptional regulator
561	 54.87	0	645712..646542	+	276	152969143	-	KPN_00572	-	glutamine ABC transporter periplasmic-binding protein
562	 61.06	0	646590..647231	+	213	152969144	-	KPN_00573	-	putative binding-protein-dependent transport systems inner membrane component
563	 50.30	-1	647246..647911	+	221	152969145	-	KPN_00574	-	putative binding-protein-dependent transport systems inner membrane component
564	 58.66	0	647904..648665	+	253	152969146	-	KPN_00575	-	putative ABC transporter
565	 63.53	0	648719..649483	-	254	152969147	-	KPN_00576	-	putative oxidoreductase
566	 63.83	+1	649664..651001	+	445	152969148	-	KPN_00577	-	hypothetical protein
567	 63.40	0	651248..651952	-	234	152969149	-	KPN_00578	-	putative ATP-binding component of a transport system
568	 67.14	+1	651939..652775	-	278	152969150	-	KPN_00579	-	putative ABC transporter
569	 68.59	+1	652768..653601	-	277	152969151	-	KPN_00580	-	putative ABC transport system permease protein
570	 64.52	+1	653601..654623	-	340	152969152	-	KPN_00581	-	putative ABC transport system permease protein
571	 60.04	0	654743..656311	-	522	152969153	-	KPN_00582	-	putative ABC transport system periplasmic binding protein
572	 63.82	+1	656511..657212	+	233	152969154	-	KPN_00583	-	putative GCN5-related N-acetyltransferase
573	 63.24	0	657333..658997	-	554	152969155	-	KPN_00584	-	choline dehydrogenase
574	 62.57	0	659011..660474	-	487	152969156	-	KPN_00585	-	betaine aldehyde dehydrogenase
575	 62.21	0	660497..661102	-	201	152969157	-	KPN_00586	-	transcriptional regulator BetI
576	 59.83	0	661213..663246	+	677	152969158	-	KPN_00587	-	choline transport protein BetT
577	 53.46	0	663963..665219	+	418	152969159	-	KPN_00588	-	putative transport
578	 66.78	+1	665216..666109	-	297	152969160	-	KPN_00589	-	transcriptional regulator LysR
579	 62.87	0	666364..666969	+	201	152969161	-	KPN_00590	-	putative S-transferase
580	 59.80	0	667028..668527	-	499	152969162	-	KPN_00591	-	putative carbohydrate kinase
581	 56.90	0	668542..669933	-	463	152969163	-	KPN_00592	-	putative L-fucose isomerase, C-terminal
582	 59.41	0	669995..670945	-	316	152969164	-	KPN_00593	-	putative transketolase C-terminal section
583	 56.80	0	670938..671768	-	276	152969165	-	KPN_00594	-	putative transketolase
584	 56.80	0	672038..673030	+	330	152969166	-	KPN_00595	-	putative sugar-binding region
585	 55.24	0	673027..673989	-	320	152969167	-	KPN_00596	-	putative transposase, YhgA-like protein
586	 56.20	0	674145..675233	-	362	152969168	-	KPN_00597	-	putative inner-membrane translocator
587	 55.99	0	675235..676761	-	508	152969169	-	KPN_00598	-	putative ABC transporter
588	 58.66	0	676761..677372	-	203	152969170	-	KPN_00599	-	hypothetical protein
589	 54.26	0	677380..678282	-	300	152969171	-	KPN_00600	-	D-ribose periplasmic binding protein
590	 63.33	0	678439..679098	-	219	152969172	entD	KPN_00601	-	enterochelin synthetase, component D
591	 59.89	0	679165..681393	-	742	152969173	fepA	KPN_00602	-	outer membrane receptor FepA
57.88	MEAN

5.81	STD DEV
