IslandPath Analysis: Klebsiella pneumoniae subsp. pneumoniae MGH 78578

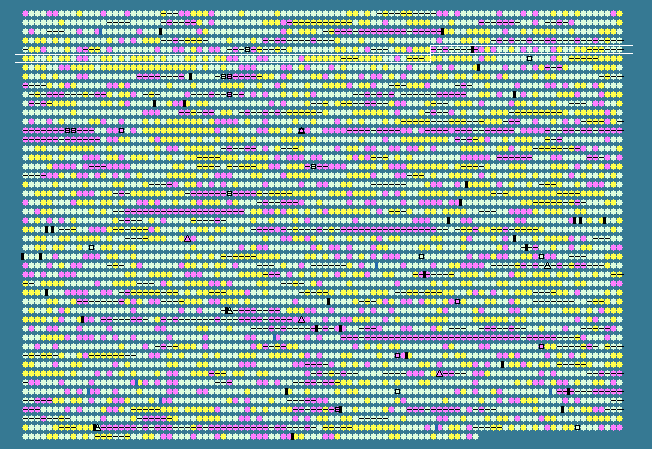

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.88 STD DEV: 5.81
Klebsiella pneumoniae subsp. pneumoniae MGH 78578, complete genome - 1..5315120
4776 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
469	 51.13	-1	527146..527454	-	102	152969051	ybjC	KPN_00479	-	hypothetical protein
470	 58.09	0	527592..528314	-	240	152969052	ybbF	KPN_00480	-	UDP-2,3-diacylglucosamine hydrolase
471	 52.73	0	528318..528848	-	176	152969053	ppiB	KPN_00481	-	peptidyl-prolyl cis-trans isomerase B (rotamase B)
472	 58.44	0	528988..530373	+	461	152969054	cysS	KPN_00482	-	cysteinyl-tRNA synthetase
473	 60.09	0	530419..530631	-	70	152969055	ybcJ	KPN_00483	-	hypothetical protein
474	 59.86	0	530633..531499	-	288	152969056	folD	KPN_00484	-	bifunctional 5,10-methylene-tetrahydrofolate dehydrogenase/ 5,10-methylene-tetrahydrofolate cyclohydrolase
475	 55.11	0	531637..531861	+	74	152969057	-	KPN_00485	-	hypothetical protein
476	 49.66	-1	532378..532671	+	97	152969058	-	KPN_00487	-	hypothetical protein
477	 50.75	-1	533067..533468	+	133	152969059	-	KPN_00488	-	hypothetical protein
478	 61.61	0	534228..535532	+	434	152969060	-	KPN_00489	-	putative citrate synthase
479	 50.08	-1	535868..536530	-	220	152969061	-	KPN_00490	-	two-component regulatory system response regulator
480	 56.30	0	537022..537561	+	179	152969062	-	KPN_00491	-	putative fimbrial-like protein
481	 57.33	0	537620..538315	+	231	152969063	-	KPN_00492	-	pilin chaperone
482	 62.03	0	538326..540761	+	811	152969064	-	KPN_00493	-	putative outer membrane protein
483	 55.80	0	540841..541788	+	315	152969065	-	KPN_00494	-	putative fimbrial biogenesis outer membrane usher protein
484	 49.94	-1	541811..542677	-	288	152969066	-	KPN_00495	-	GNAT family acetyltransferase
485	 59.28	0	543188..544108	+	306	152969067	-	KPN_00496	-	lipid A biosynthesis lauroyl acyltransferase
486	 53.85	0	544209..544481	+	90	152969068	-	KPN_00497	-	hypothetical protein
487	 55.64	0	544775..546343	+	522	152969069	cadC	KPN_00498	-	DNA-binding transcriptional activator CadC
488	 54.61	0	546709..548043	+	444	152969070	cadB	KPN_00499	-	lysine/cadaverine antiporter
489	 53.12	0	548126..550273	+	715	152969071	cadA	KPN_00500	-	lysine decarboxylase 1
490	 62.13	0	550333..551808	+	491	152969072	yjdL	KPN_00501	-	di-/tripeptide transport protein
491	 56.79	0	552140..553657	+	505	152969073	lysS	KPN_00502	-	lysyl-tRNA synthetase
492	 57.28	0	553734..554159	-	141	152969074	-	KPN_00503	-	hypothetical protein
493	 62.98	0	554731..555651	+	306	152969075	-	KPN_00504	-	hypothetical protein
494	 62.06	0	555648..556820	+	390	152969076	-	KPN_00505	-	putative oxidoreductase
495	 64.83	+1	556830..557861	+	343	152969077	-	KPN_00506	-	putative oxidoreductase
496	 66.07	+1	558667..559674	-	335	152969078	-	KPN_00507	-	putative oxidoreductase
497	 65.59	+1	559776..560795	+	339	152969079	-	KPN_00508	-	hypothetical protein
498	 55.30	0	561225..562148	+	307	152969080	-	KPN_00509	-	putative periplasmic binding protein
499	 56.36	0	562181..563665	+	494	152969081	-	KPN_00510	-	putative ABC transporter
500	 59.14	0	563685..564707	+	340	152969082	-	KPN_00511	-	putative inner-membrane translocator
501	 62.99	0	565547..566551	-	334	152969083	-	KPN_00512	-	LacI transcriptional regulator
502	 65.60	+1	566581..567981	-	466	152969084	-	KPN_00513	-	beta-fructofuranosidase; sucrose-6-phosphate hydrolase
503	 61.27	0	567981..569351	-	456	152969085	-	KPN_00514	-	sucrose-specific enzyme II
504	 60.14	0	569456..570973	-	505	152969086	-	KPN_00515	-	sucrose porin
505	 67.75	+1	571138..572061	-	307	152969087	-	KPN_00516	-	aminoimidazole riboside kinase
506	 60.89	0	573421..574563	+	380	152969088	-	KPN_00517	-	putative secretion protein HlyD
507	 65.29	+1	574604..575401	-	265	152969089	-	KPN_00518	-	putative ABC transporter
508	 63.62	0	575398..576480	-	360	152969090	-	KPN_00519	-	putative ABC transporter permease
509	 60.05	0	576488..577606	-	372	152969091	-	KPN_00520	-	putative periplasmic binding protein
510	 53.33	0	577878..578267	+	129	152969092	-	KPN_00521	-	hypothetical protein
511	 51.59	-1	578967..579092	-	41	152969093	-	KPN_00522	-	hypothetical protein
512	 59.37	0	579408..580586	+	392	152969094	-	KPN_00523	-	aminobenzoyl-glutamate utilization protein
513	 56.99	0	580639..581382	+	247	152969095	-	KPN_00524	-	extracellular solute-binding family protein 3
514	 62.16	0	581511..582464	+	317	152969096	-	KPN_00525	-	putative aldo/keto reductase
515	 68.60	+1	584069..584845	-	258	152969097	-	KPN_00526	-	putative 3-ketoacyl-(acyl-carrier-protein) reductase
516	 60.33	0	584933..586651	-	572	152969098	-	KPN_00527	-	putative arylsulfatase
517	 62.46	0	586711..587898	-	395	152969099	-	KPN_00528	-	putative iron-sulfur modifier protein
518	 57.92	0	588459..589007	+	182	152969100	-	KPN_00529	-	LuxR transcriptional regulator
519	 63.53	0	590348..591463	+	371	152969101	-	KPN_00530	-	putative deacetylase
520	 61.45	0	591470..592063	-	197	152969102	-	KPN_00531	-	hypothetical protein
521	 62.87	0	592041..593540	-	499	152969103	-	KPN_00532	-	putative amino acid/amine transport protein
522	 62.57	0	593917..594282	-	121	152969104	-	KPN_00533	-	hypothetical protein
523	 58.60	0	594296..595597	-	433	152969105	-	KPN_00534	-	hypothetical protein
524	 63.03	0	595756..597240	+	494	152969106	-	KPN_00535	-	putative aldehyde dehydrogenase
525	 59.11	0	598764..600974	+	736	152969107	-	KPN_00536	-	putative TonB-dependent receptor
526	 59.62	0	601082..602458	+	458	152969108	-	KPN_00537	-	phenylalanine transporter
527	 59.66	0	602610..603851	+	413	152969109	-	KPN_00538	-	putative nucleoside H+ symporter
528	 63.25	0	603868..604890	+	340	152969110	-	KPN_00539	-	putative xylose isomerase-like TIM barrel
529	 63.79	+1	604862..606043	+	393	152969111	-	KPN_00540	-	putative NADH-dependent dehydrogenase
530	 59.13	0	606063..606500	-	145	152969112	-	KPN_00541	-	hypothetical protein
531	 62.49	0	606728..607708	+	326	152969113	-	KPN_00542	-	LacI transcriptional regulator
532	 55.90	0	607712..608956	-	414	152969114	ybdG	KPN_00543	-	putative transport
533	 64.94	+1	610563..611429	+	288	152969115	-	KPN_00544	-	hypothetical protein
534	 61.74	0	612096..613130	+	344	152969116	-	KPN_00545	-	putative permease
535	 51.58	-1	613227..615956	+	909	152969117	-	KPN_00546	-	putative inner membrane protein
536	 54.31	0	616009..616995	-	328	152969118	-	KPN_00547	-	putative phosphosugar isomerases
537	 55.93	0	617060..618121	-	353	152969119	-	KPN_00548	-	putative inner membrane protein
538	 56.26	0	618139..618993	-	284	152969120	-	KPN_00549	-	putative transport protein, PTS system
539	 56.32	0	618996..619739	-	247	152969121	-	KPN_00550	-	putative inner membrane protein
540	 53.29	0	619754..620224	-	156	152969122	-	KPN_00551	-	putative transport protein, PTS system
541	 53.56	0	620217..620651	-	144	152969123	-	KPN_00552	-	putative transport protein, PTS system
542	 57.65	0	620899..621552	-	217	152969124	nfnB	KPN_00553	-	dihydropteridine reductase
543	 56.37	0	621672..622040	-	122	152969125	ybdF	KPN_00554	-	hypothetical protein
544	 61.17	0	622040..622621	-	193	152969126	-	KPN_00555	-	putative regulatory protein
545	 55.26	0	623947..624288	+	113	152969127	-	KPN_00556	-	putative regulatory protein
546	 57.83	0	624306..624554	-	82	152969128	ybdJ	KPN_00557	-	putative inner membrane protein
547	 50.45	-1	624744..624854	-	36	152969129	-	KPN_00558	-	hypothetical protein
548	 62.65	0	625066..627780	+	904	152969130	-	KPN_00559	-	Mg2+ transport ATPase, P-type 1
549	 66.48	+1	627833..628912	+	359	152969131	-	KPN_00560	-	putative secretion protein HlyD
550	 65.92	+1	628926..632018	+	1030	152969132	-	KPN_00561	-	putative acridine efflux pump
551	 61.67	0	632367..633086	-	239	152969133	-	KPN_00562	-	hypothetical protein
552	 62.28	0	633134..634249	-	371	152969134	-	KPN_00563	-	carboxylate-amine ligase
553	 61.93	0	634576..636243	+	555	152969135	-	KPN_00564	-	extracellular solute-binding family protein 5
554	 62.89	0	636262..637215	+	317	152969136	-	KPN_00565	-	putative binding-protein-dependent transport systems inner membrane component
555	 63.53	0	637218..638111	+	297	152969137	-	KPN_00566	-	putative binding-protein-dependent transport systems inner membrane component
556	 64.64	+1	638115..639152	+	345	152969138	-	KPN_00567	-	putative ABC transporter
557	 67.66	+1	639142..640152	+	336	152969139	-	KPN_00568	-	putative ABC transport system ATP-binding protein
558	 64.70	+1	640250..641518	+	422	152969140	-	KPN_00569	-	putative amidohydrolase
559	 65.39	+1	642655..643989	+	444	152969141	-	KPN_00570	-	aminotransferase regulator domain-containing protein
560	 63.59	0	643986..645545	-	519	152969142	-	KPN_00571	-	GntR transcriptional regulator
561	 54.87	0	645712..646542	+	276	152969143	-	KPN_00572	-	glutamine ABC transporter periplasmic-binding protein
562	 61.06	0	646590..647231	+	213	152969144	-	KPN_00573	-	putative binding-protein-dependent transport systems inner membrane component
563	 50.30	-1	647246..647911	+	221	152969145	-	KPN_00574	-	putative binding-protein-dependent transport systems inner membrane component
564	 58.66	0	647904..648665	+	253	152969146	-	KPN_00575	-	putative ABC transporter
565	 63.53	0	648719..649483	-	254	152969147	-	KPN_00576	-	putative oxidoreductase
566	 63.83	+1	649664..651001	+	445	152969148	-	KPN_00577	-	hypothetical protein
567	 63.40	0	651248..651952	-	234	152969149	-	KPN_00578	-	putative ATP-binding component of a transport system
568	 67.14	+1	651939..652775	-	278	152969150	-	KPN_00579	-	putative ABC transporter
57.88	MEAN

5.81	STD DEV
