IslandPath Analysis: Klebsiella pneumoniae subsp. pneumoniae MGH 78578

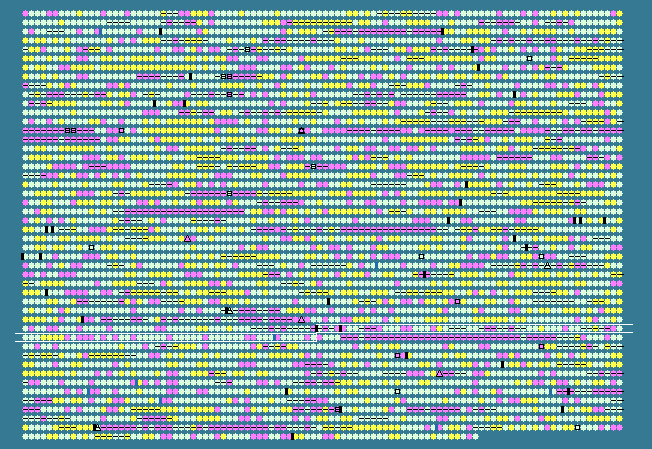

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.88 STD DEV: 5.81
Klebsiella pneumoniae subsp. pneumoniae MGH 78578, complete genome - 1..5315120
4776 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3550	 55.65	0	3942030..3943373	+	447	152972095	argG	KPN_03580	-	argininosuccinate synthase
3551	 49.21	-1	3943543..3944172	+	209	152972096	-	KPN_03581	-	hypothetical protein
3552	 54.53	0	3944514..3945065	+	183	152972097	-	KPN_03582	-	hypothetical protein
3553	 54.23	0	3945107..3945508	-	133	152972098	-	KPN_03583	-	hypothetical protein
3554	 53.33	0	3945749..3946078	-	109	152972099	secG	KPN_03585	-	preprotein translocase subunit SecG
3555	 59.27	0	3946308..3947645	-	445	152972100	glmM	KPN_03586	-	phosphoglucosamine mutase
3556	 56.42	0	3947638..3948486	-	282	152972101	folP	KPN_03587	-	dihydropteroate synthase
3557	 56.64	0	3948580..3950514	-	644	152972102	hflB	KPN_03588	-	ATP-dependent metalloprotease
3558	 50.48	-1	3950614..3951243	-	209	152972103	rrmJ	KPN_03589	-	23S rRNA methyltransferase J
3559	 51.36	-1	3951367..3951660	+	97	152972104	yhbY	KPN_03590	-	hypothetical protein
3560	 53.04	0	3951813..3952289	-	158	152972105	greA	KPN_03591	-	transcription elongation factor GreA
3561	 60.81	0	3952525..3953958	+	477	152972106	dacB	KPN_03592	-	D-alanyl-D-alanine carboxypeptidase/endopeptidase
3562	 57.34	0	3954010..3955188	-	392	152972107	yhbZ	KPN_03593	-	GTPase ObgE
3563	 56.00	0	3955204..3956169	-	321	152972108	yhbE	KPN_03594	-	hypothetical protein
3564	 49.61	-1	3956263..3956520	-	85	152972109	rpmA	KPN_03595	-	50S ribosomal protein L27
3565	 49.04	-1	3956541..3956852	-	103	152972110	rplU	KPN_03596	-	50S ribosomal protein L21
3566	 56.58	0	3957113..3958084	+	323	152972111	ispB	KPN_03597	-	octaprenyl-diphosphate synthase
3567	 56.41	0	3958282..3958554	+	90	152972112	nlp	KPN_03598	-	DNA-binding transcriptional regulator Nlp
3568	 60.16	0	3958610..3959869	-	419	152972113	murA	KPN_03599	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
3569	 53.73	0	3959923..3960177	-	84	152972114	yrbA	KPN_03600	-	BolA family transcriptional regulator
3570	 64.26	+1	3960314..3960604	-	96	152972115	yrbB	KPN_03601	-	hypothetical protein
3571	 55.82	0	3960604..3961239	-	211	152972116	yrbC	KPN_03602	-	ABC transporter ATP-binding protein
3572	 57.61	0	3961258..3961809	-	183	152972117	yrbD	KPN_03603	-	ABC transporter periplasmic substrate-binding protein
3573	 58.37	0	3961814..3962596	-	260	152972118	yrbE	KPN_03604	-	ABC transporter membrane protein
3574	 56.59	0	3962604..3963476	-	290	152972119	yrbF	KPN_03605	-	putative ABC transporter ATP-binding protein YrbF
3575	 59.30	0	3963626..3964603	+	325	152972120	yrbG	KPN_03606	-	putative calcium/sodium:proton antiporter
3576	 58.71	0	3964600..3965604	+	334	152972121	yrbH	KPN_03607	-	D-arabinose 5-phosphate isomerase
3577	 56.61	0	3965619..3966185	+	188	152972122	yrbI	KPN_03608	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
3578	 50.00	-1	3966182..3966757	+	191	152972123	yrbK	KPN_03609	-	hypothetical protein
3579	 54.40	0	3966726..3967271	+	181	152972124	yhbN	KPN_03610	-	hypothetical protein
3580	 57.58	0	3967278..3968003	+	241	152972125	yhbG	KPN_03611	-	putative ABC transporter ATP-binding protein YhbG
3581	 56.82	0	3968093..3969484	+	463	152972126	rpoN	KPN_03612	-	RNA polymerase factor sigma-54
3582	 46.53	-1	3969507..3969794	+	95	152972127	yhbH	KPN_03613	-	putative sigma(54) modulation protein
3583	 56.65	0	3969865..3970353	+	162	152972128	ptsN	KPN_03614	-	sugar-specific enzyme IIA component of PTS
3584	 57.19	0	3970399..3971253	+	284	152972129	yhbJ	KPN_03615	-	hypothetical protein
3585	 57.14	0	3971250..3971522	+	90	152972130	ptsO	KPN_03616	-	phosphohistidinoprotein-hexose phosphotransferase component of N-regulated PTS system (Npr)
3586	 61.02	0	3971586..3972311	-	241	152972131	mtgA	KPN_03617	-	monofunctional biosynthetic peptidoglycan transglycosylase
3587	 62.69	0	3972308..3972961	-	217	152972132	yhbL	KPN_03618	-	isoprenoid biosynthesis protein with amidotransferase-like domain
3588	 55.51	0	3973195..3975534	-	779	152972133	arcB	KPN_03619	-	aerobic respiration control sensor protein ArcB
3589	 55.40	0	3975681..3976745	-	354	152972134	-	KPN_03620	-	mannonate dehydratase
3590	 57.75	0	3977027..3978058	+	343	152972135	-	KPN_03621	-	putative dehydrogenase, NAD(P)-binding, starvation-sensing protein
3591	 52.53	0	3978240..3979427	+	395	152972136	-	KPN_03622	-	putative transport protein
3592	 59.38	0	3979479..3980411	-	310	152972137	yhcC	KPN_03623	-	putative enzyme
3593	 60.50	0	3981199..3985545	+	1448	152972138	gltB	KPN_03624	-	glutamate synthase subunit alpha
3594	 60.04	0	3985555..3986973	+	472	152972139	gltD	KPN_03625	-	glutamate synthase subunit beta
3595	 61.13	0	3987028..3987732	-	234	152972140	nanE	KPN_03626	-	N-acetylmannosamine-6-phosphate 2-epimerase
3596	 62.02	0	3987857..3988351	-	164	152972141	sspB	KPN_03627	-	ClpXP protease specificity-enhancing factor
3597	 55.56	0	3988355..3988993	-	212	152972142	sspA	KPN_03628	-	stringent starvation protein A
3598	 52.42	0	3989305..3989697	-	130	152972143	rpsI	KPN_03629	-	30S ribosomal protein S9
3599	 51.05	-1	3989713..3990141	-	142	152972144	rplM	KPN_03630	-	50S ribosomal protein L13
3600	 60.73	0	3990407..3991534	-	375	152972145	yhcM	KPN_03631	-	putative ATPase
3601	 56.30	0	3991719..3992123	+	134	152972146	yhcB	KPN_03632	-	cytochrome d ubiquinol oxidase subunit III
3602	 58.48	0	3992297..3993664	+	455	152972147	degQ	KPN_03633	-	serine endoprotease
3603	 60.25	0	3993752..3994810	+	352	152972148	degS	KPN_03634	-	serine endoprotease
3604	 65.43	+1	3994836..3995480	-	214	152972149	-	KPN_03635	-	hypothetical protein
3605	 67.13	+1	3995606..3996907	-	433	152972150	-	KPN_03636	-	putative oxaloacetate decarboxylase beta chain
3606	 66.72	+1	3996923..3998692	-	589	152972151	-	KPN_03637	-	pyruvate carboxylase subunit B
3607	 66.20	+1	3998726..3998938	+	70	152972152	-	KPN_03638	-	hypothetical protein
3608	 45.95	-2	3999101..3999718	-	205	152972153	-	KPN_03639	-	L(+)-tartrate dehydratase subunit beta
3609	 55.10	0	3999718..4000590	-	290	152972154	-	KPN_03640	-	tartrate dehydratase subunit alpha
3610	 54.06	0	4000650..4001918	-	422	152972155	-	KPN_03641	-	putative cation transporter
3611	 52.03	-1	4002130..4002744	-	204	152972156	-	KPN_03642	-	GntR family transcriptional regulator
3612	 53.16	0	4002782..4003366	-	194	152972157	-	KPN_03643	-	GntR family transcriptional regulator
3613	 56.98	0	4003542..4004480	-	312	152972158	mdh	KPN_03644	-	malate dehydrogenase
3614	 53.50	0	4004895..4005365	+	156	152972159	argR	KPN_03645	-	arginine repressor
3615	 55.43	0	4006102..4006368	+	88	152972160	yhcN	KPN_03647	-	hypothetical protein
3616	 50.00	-1	4006419..4006694	-	91	152972161	yhcO	KPN_03648	-	hypothetical protein
3617	 57.72	0	4006774..4008741	-	655	152972162	yhcP	KPN_03649	-	p-hydroxybenzoic acid efflux subunit AaeB
3618	 57.13	0	4008747..4009637	-	296	152972163	yhcQ	KPN_03650	-	p-hydroxybenzoic acid efflux subunit AaeA
3619	 46.91	-1	4009687..4009929	-	80	152972164	yhcR	KPN_03651	-	hypothetical protein
3620	 56.91	0	4010040..4010951	+	303	152972165	yhcS	KPN_03652	-	putative DNA-binding transcriptional regulator
3621	 61.07	0	4010987..4012432	-	481	152972166	tldD	KPN_03653	-	protease TldD
3622	 58.69	0	4012521..4016294	-	1257	152972167	yhdP	KPN_03654	-	hypothetical protein
3623	 54.83	0	4016356..4017825	-	489	152972168	rng	KPN_03655	-	ribonuclease G
3624	 58.08	0	4017828..4018409	-	193	152972169	maf	KPN_03656	-	Maf-like protein
3625	 53.58	0	4018417..4018905	-	162	152972170	mreD	KPN_03657	-	rod shape-determining protein MreD
3626	 60.83	0	4018905..4019897	-	330	152972171	mreC	KPN_03658	-	cell wall structural complex MreBCD transmembrane component MreC
3627	 57.85	0	4019968..4021011	-	347	152972172	mreB	KPN_03659	-	regulator of ftsI, penicillin binding protein 3, septation function
3628	 57.34	0	4021317..4023257	-	646	152972173	yhdA	KPN_03660	-	regulatory protein CsrD
3629	 60.47	0	4023742..4024758	+	338	152972174	-	KPN_03661	-	putative sulfite oxidase subunit YedY
3630	 56.98	0	4024758..4025366	+	202	152972175	-	KPN_03662	-	putative sulfite oxidase subunit YedZ
3631	 53.58	0	4025638..4026042	+	134	152972176	-	KPN_03663	-	hypothetical protein
3632	 54.91	0	4026065..4026532	+	155	152972177	accB	KPN_03664	-	acetyl-CoA carboxylase
3633	 56.22	0	4026543..4027892	+	449	152972178	accC	KPN_03665	-	acetyl-CoA carboxylase biotin carboxylase subunit
3634	 57.20	0	4028003..4028245	+	80	152972179	yhdT	KPN_03666	-	hypothetical protein
3635	 60.21	0	4028232..4029686	+	484	152972180	panF	KPN_03667	-	sodium/panthothenate symporter
3636	 58.39	0	4029698..4030579	+	293	152972181	prmA	KPN_03668	-	ribosomal protein L11 methyltransferase
3637	 54.75	0	4031030..4031902	+	290	152972182	yhdG	KPN_03669	-	FMN-linked protein
3638	 48.48	-1	4031927..4032223	+	98	152972183	fis	KPN_03670	-	DNA-binding protein Fis
3639	 51.22	-1	4032308..4032961	-	217	152972184	envR	KPN_03671	-	DNA-binding transcriptional regulator EnvR
3640	 57.98	0	4033340..4034479	+	379	152972185	acrE	KPN_03672	-	transmembrane protein affecting septum formation and cell membrane permeability
3641	 56.19	0	4034492..4037602	+	1036	152972186	acrF	KPN_03673	-	integral transmembrane protein; acridine resistance
3642	 56.76	0	4037895..4038116	+	73	152972187	yhdV	KPN_03674	-	hypothetical protein
3643	 51.53	-1	4043911..4044465	+	184	152972188	yrdA	KPN_03680	-	putative acyl transferase, ferripyochelin-binding
3644	 56.20	0	4044441..4044698	-	85	152972189	yrdB	KPN_03681	-	hypothetical protein
3645	 54.58	0	4044695..4045513	-	272	152972190	aroE	KPN_03682	-	shikimate 5-dehydrogenase
3646	 57.94	0	4045517..4046089	-	190	152972191	yrdC	KPN_03683	-	putative ribosome maturation factor
3647	 54.51	0	4046094..4046636	-	180	152972192	yrdD	KPN_03684	-	putative DNA topoisomerase
3648	 49.02	-1	4046663..4047121	-	152	152972193	smg	KPN_03685	-	hypothetical protein
3649	 58.67	0	4047108..4048232	-	374	152972194	smf	KPN_03686	-	hypothetical protein
57.88	MEAN

5.81	STD DEV
