IslandPath Analysis: Klebsiella pneumoniae subsp. pneumoniae MGH 78578

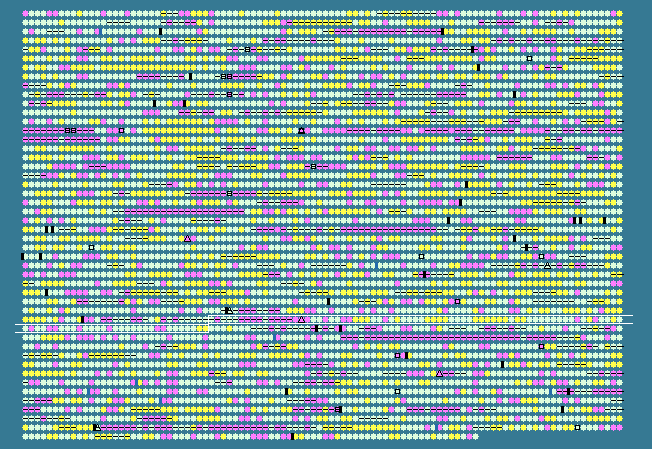

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.88 STD DEV: 5.81
Klebsiella pneumoniae subsp. pneumoniae MGH 78578, complete genome - 1..5315120
4776 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3432	 61.11	0	3821057..3821776	-	239	152973343	-	KPN_04879	-	putative prophage small terminase subunit
3433	 53.45	0	3821804..3822862	-	352	152973344	-	KPN_04880	-	putative prophage major capsid protein
3434	 54.85	0	3822936..3823790	-	284	152973345	-	KPN_04881	-	putative prophage capsid scaffolding protein
3435	 58.36	0	3823956..3825725	+	589	152973346	-	KPN_04882	-	putative prophage large terminase protein
3436	 56.23	0	3825725..3826768	+	347	152973347	-	KPN_04883	-	putative prophage presumed portal protein
3437	 37.58	-2	3827084..3827743	-	219	152973348	-	KPN_04884	-	putative prophage protein
3438	 41.80	-2	3827828..3828559	-	243	152973349	-	KPN_04885	-	putative prophage protein
3439	 44.72	-2	3828642..3829124	-	160	152973350	-	KPN_04886	-	putative prophage protein
3440	 52.83	0	3829192..3831012	-	606	152973351	-	KPN_04887	-	putative prophage protein
3441	 55.41	0	3831416..3831637	-	73	152973352	-	KPN_04888	-	putative prophage protein
3442	 50.00	-1	3831637..3831864	-	75	152973353	-	KPN_04889	-	putative prophage protein
3443	 46.90	-1	3831932..3832270	-	112	152973354	-	KPN_04890	-	putative prophage protein
3444	 53.53	0	3832442..3832951	-	169	152973355	-	KPN_04891	-	putative prophage protein for establishment of lysogeny
3445	 51.14	-1	3832982..3833245	-	87	152973356	-	KPN_04892	-	putative prophage excisionase
3446	 44.10	-2	3833375..3833950	+	191	152973357	-	KPN_04893	-	putative prophage repressor protein CI
3447	 47.72	-1	3833950..3834957	+	335	152973358	int	KPN_04894	-	putative prophage gp Int for integrase
3448	 35.25	-2	3834954..3835787	+	277	152971993	-	KPN_03477	-	hypothetical protein
3449	 59.34	0	3836493..3836765	+	90	152971994	-	KPN_03478	-	hypothetical protein
3450	 59.45	0	3836834..3837124	-	96	152971995	hdeB	KPN_03479	-	hypothetical protein
3451	 51.38	-1	3837501..3838115	+	204	152971996	evgA	KPN_03480	-	DNA-binding transcriptional activator EvgA
3452	 60.04	0	3838120..3841362	+	1080	152971997	evgS	KPN_03481	-	putative sensor protein EvgS1
3453	 56.41	0	3841453..3842115	-	220	152971998	yfdX	KPN_03482	-	hypothetical protein
3454	 51.81	-1	3842434..3842931	+	165	152971999	hdeD	KPN_03483	-	acid-resistance membrane protein
3455	 51.31	-1	3842958..3843263	+	101	152972000	hdeB	KPN_03484	-	acid-resistance protein
3456	 61.57	0	3843315..3844118	-	267	152972001	glpF	KPN_03485	-	putative major Intrinsic protein channel, glycerol diffusion
3457	 64.14	+1	3844172..3845995	-	607	152972002	orfZ	KPN_03486	-	glycerol dehyrdratase activator
3458	 61.74	0	3846008..3846433	-	141	152972003	dhaB3	KPN_03487	-	glycerol dehydratase
3459	 59.66	0	3846436..3847020	-	194	152972004	dhaB2	KPN_03488	-	glycerol dehydratase
3460	 60.73	0	3847033..3848700	-	555	152972005	dhaB1	KPN_03489	-	glycerol dehydratase
3461	 53.01	0	3849111..3849542	+	143	152972006	orfY	KPN_03490	-	hypothetical protein
3462	 61.17	0	3849564..3850727	+	387	152972007	dhaT	KPN_03491	-	1,3-propanediol oxidoreductase
3463	 64.03	+1	3851102..3851632	+	176	152972008	orfW	KPN_03492	-	hypothetical protein
3464	 61.20	0	3851610..3853457	-	615	152972009	dhaR	KPN_03493	-	DNA-binding transcriptional regulator DhaR
3465	 59.20	0	3853637..3854734	-	365	152972010	dhaD	KPN_03494	-	putative glycerol dehydrogenase
3466	 60.50	0	3855345..3856415	+	356	152972011	dhaK	KPN_03495	-	dihydroxyacetone kinase subunit DhaK
3467	 61.14	0	3856426..3857058	+	210	152972012	dhaL	KPN_03496	-	dihydroxyacetone kinase ADP-binding subunit
3468	 63.43	0	3857069..3858490	+	473	152972013	dhaM	KPN_03497	-	dihydroxyacetone kinase subunit M
3469	 64.55	+1	3858566..3860215	+	549	152972014	dhaK	KPN_03498	-	dihydroxyacetone kinase N-terminal domain-containing protein
3470	 61.78	0	3860371..3861147	-	258	152972015	yqjH	KPN_03499	-	putative enzyme, ferredoxin reductase-like, FAD-linked, NADP-linked
3471	 61.44	0	3861385..3861939	+	184	152972016	yqjI	KPN_03500	-	hypothetical protein
3472	 60.08	0	3862287..3863576	+	429	152972017	ygjG	KPN_03501	-	putrescine--2-oxoglutarate aminotransferase
3473	 55.56	0	3863623..3863919	-	98	152972018	yneC	KPN_03502	-	autoinducer-2 (AI-2) modifying protein LsrG
3474	 59.80	0	3863916..3864803	-	295	152972019	yneB	KPN_03503	-	aldolase
3475	 58.78	0	3864815..3865816	-	333	152972020	yneA	KPN_03504	-	putative LACI-type transcriptional regulator
3476	 62.06	0	3865818..3866816	-	332	152972021	ydeZ	KPN_03505	-	putative ABC transport system permease protein
3477	 63.00	0	3866817..3867851	-	344	152972022	ydeY	KPN_03506	-	putative ABC transport system permease protein
3478	 61.84	0	3867848..3869338	-	496	152972023	ego	KPN_03507	-	putative ATP-binding component of a transport system
3479	 64.51	+1	3869554..3870525	+	323	152972024	ydeW	KPN_03508	-	SorC family transcriptional regulator
3480	 63.98	+1	3870563..3872161	+	532	152972025	ydeV	KPN_03509	-	autoinducer-2 (AI-2) kinase
3481	 62.96	0	3872344..3874365	+	673	152972026	fadH	KPN_03510	-	2,4-dieonyl-CoA reductase, FMN-linked
3482	 58.71	0	3874474..3875604	-	376	152972027	ygjO	KPN_03511	-	putative enzyme
3483	 65.40	+1	3875690..3876397	-	235	152972028	-	KPN_03512	-	hypothetical protein
3484	 62.69	0	3876441..3877043	+	200	152972029	-	KPN_03513	-	helix-turn-helix motif-containing protein
3485	 54.49	0	3877063..3877563	+	166	152972030	ygjP	KPN_03514	-	hypothetical protein
3486	 56.87	0	3877637..3878626	+	329	152972031	ygjR	KPN_03515	-	putative NAD(P)-binding dehydrogenase
3487	 58.85	0	3878898..3879869	+	323	152972032	ygjT	KPN_03516	-	putative transmembrane protein
3488	 60.50	0	3880136..3881383	+	415	152972033	ygjU	KPN_03517	-	serine/threonine transporter SstT
3489	 57.48	0	3881399..3881953	-	184	152972034	ygjV	KPN_03518	-	hypothetical protein
3490	 58.27	0	3882083..3883570	-	495	152972035	uxaA	KPN_03519	-	altronate hydrolase
3491	 55.82	0	3883589..3884989	-	466	152972036	uxaC	KPN_03520	-	glucuronate isomerase
3492	 60.06	0	3885482..3886783	+	433	152972037	exuT	KPN_03521	-	major facilitator superfamily hexuronate transport protein
3493	 53.02	0	3886911..3887687	+	258	152972038	exuR	KPN_03522	-	DNA-binding transcriptional repressor ExuR
3494	 54.60	0	3888028..3888690	+	220	152972039	yqjA	KPN_03523	-	putative integral membrane protein
3495	 61.50	0	3888690..3889076	+	128	152972040	yqjB	KPN_03524	-	hypothetical protein
3496	 49.59	-1	3889226..3889594	+	122	152972041	yqjC	KPN_03525	-	hypothetical protein
3497	 56.54	0	3889640..3889945	+	101	152972042	yqjD	KPN_03526	-	hypothetical protein
3498	 59.40	0	3889948..3890346	+	132	152972043	yqjE	KPN_03527	-	hypothetical protein
3499	 64.65	+1	3890343..3890639	+	98	152972044	yqjK	KPN_03528	-	hypothetical protein
3500	 54.71	0	3890985..3891377	+	130	152972045	yqjF	KPN_03529	-	hypothetical protein
3501	 55.42	0	3891458..3892444	+	328	152972046	yqjG	KPN_03530	-	S-transferase domain-containing protein
3502	 53.39	0	3892571..3892939	+	122	152972047	yhaH	KPN_03531	-	putative cytochrome
3503	 59.31	0	3892981..3893877	-	298	152972048	yhaJ	KPN_03532	-	LysR family transcriptional regulator
3504	 57.69	0	3893982..3894683	+	233	152972049	yhaK	KPN_03533	-	hypothetical protein
3505	 49.39	-1	3894949..3895359	-	136	152972050	-	KPN_03534	-	periplasmic protein
3506	 50.32	-1	3895665..3896129	+	154	152972051	-	KPN_03535	-	hypothetical protein
3507	 60.21	0	3896774..3897919	-	381	152972052	garK	KPN_03536	-	glycerate kinase I
3508	 57.13	0	3897984..3898874	-	296	152972053	garR	KPN_03537	-	tartronate semialdehyde reductase
3509	 60.18	0	3898901..3899671	-	256	152972054	garL	KPN_03538	-	alpha-dehydro-beta-deoxy-D-glucarate aldolase
3510	 53.53	0	3899698..3901029	-	443	152972055	garP	KPN_03539	-	putative transport protein
3511	 58.97	0	3901422..3902993	+	523	152972056	garD	KPN_03540	-	(D)-galactarate dehydrogenase
3512	 55.63	0	3903048..3903998	-	316	152972057	ydjH	KPN_03541	-	putative kinase
3513	 56.07	0	3903998..3904837	-	279	152972058	agaR	KPN_03542	-	putative DEOR-type transcriptional regulator
3514	 55.79	0	3905152..3906006	+	284	152972059	gatY	KPN_03543	-	tagatose-bisphosphate aldolase
3515	 53.55	0	3906031..3906945	+	304	152972060	pfkB	KPN_03544	-	6-phosphofructokinase II
3516	 54.49	0	3906956..3908368	+	470	152972061	fruA	KPN_03545	-	PTS family enzyme IIB'BC, fructose-specific
3517	 58.09	0	3908379..3909194	+	271	152972062	fruB	KPN_03546	-	PTS family enzyme IIA/FPr
3518	 58.02	0	3909371..3910642	+	423	152972063	gatZ	KPN_03547	-	putative tagatose 6-phosphate kinase 1
3519	 57.91	0	3910657..3911124	+	155	152972064	gatA	KPN_03548	-	galactitol-specific PTS system component IIA
3520	 56.84	0	3911151..3911435	+	94	152972065	gatB	KPN_03549	-	galactitol-specific PTS system component IIB
3521	 56.54	0	3911441..3912823	+	460	152972066	gatC	KPN_03550	-	PTS family enzyme IIC, galactitol-specific
3522	 59.29	0	3912873..3913916	+	347	152972067	gatD	KPN_03551	-	galactitol-1-phosphate dehydrogenase
3523	 53.88	0	3914027..3914800	+	257	152972068	agaR	KPN_03552	-	putative DEOR-type transcriptional regulator
3524	 50.90	-1	3914835..3915836	-	333	152972069	fic	KPN_03553	-	hypothetical protein
3525	 57.87	0	3915840..3916703	-	287	152972070	yraL	KPN_03554	-	methyltransferase domain-containing protein
3526	 61.05	0	3916881..3918875	+	664	152972071	yraM	KPN_03555	-	putative enzyme
3527	 57.62	0	3918833..3919219	+	128	152972072	yraN	KPN_03556	-	hypothetical protein
3528	 56.51	0	3919245..3919835	+	196	152972073	yraO	KPN_03557	-	DnaA initiator-associating protein DiaA
3529	 59.90	0	3919845..3920420	+	191	152972074	yraP	KPN_03558	-	hypothetical protein
3530	 62.63	0	3920542..3921582	-	346	152972075	yraQ	KPN_03559	-	hypothetical protein
3531	 61.47	0	3921658..3922350	-	230	152972076	yraR	KPN_03560	-	putative NADH dehydrogenase
57.88	MEAN

5.81	STD DEV
