IslandPathversion 1.0

IslandPath Analysis: Klebsiella pneumoniae subsp. pneumoniae MGH 78578

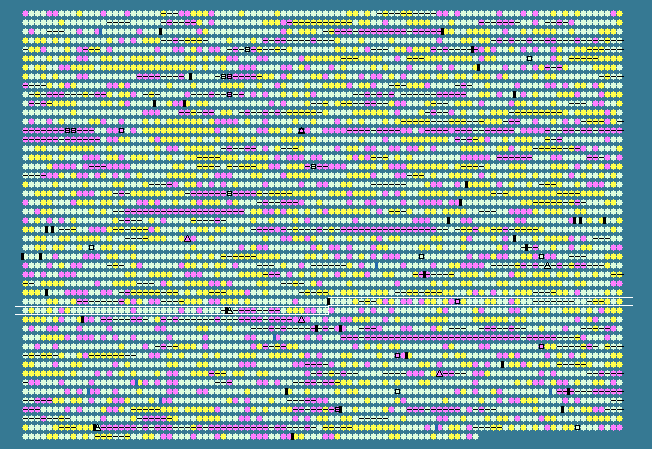

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.88 STD DEV: 5.81
Klebsiella pneumoniae subsp. pneumoniae MGH 78578, complete genome - 1..5315120
4776 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3252	 59.80	0	3635178..3635891	-	237	152971834	ygeR	KPN_03316	-	putative lipoprotein
3253	 61.08	0	3636208..3636762	+	184	152971835	idi	KPN_03317	-	isopentenyl-diphosphate delta-isomerase
3254	 56.32	0	3636997..3638514	-	505	152971836	lysS	KPN_03318	-	lysyl-tRNA synthetase
3255	 57.42	0	3638524..3639486	-	320	152971837	prfB	KPN_03319	-	peptide chain release factor 2
3256	 63.49	0	3639708..3641441	-	577	152971838	recJ	KPN_03320	-	ssDNA exonuclease RecJ
3257	 58.12	0	3641447..3642160	-	237	152971839	dsbC	KPN_03321	-	thiol:disulfide interchange protein DsbC
3258	 61.87	0	3642183..3643079	-	298	152971840	xerD	KPN_03322	-	site-specific tyrosine recombinase XerD
3259	 57.66	0	3643180..3643701	+	173	152971841	fldB	KPN_03323	-	flavodoxin FldB
3260	 63.26	0	3643708..3644118	-	136	152971842	ygfX	KPN_03324	-	hypothetical protein
3261	 53.18	0	3644099..3644365	-	88	152971843	ygfY	KPN_03325	-	hypothetical protein
3262	 62.12	0	3644605..3645594	+	329	152971844	ygfZ	KPN_03326	-	putative global regulator
3263	 57.12	0	3645693..3646352	-	219	152971845	yqfA	KPN_03327	-	putative oxidoreductase
3264	 53.85	0	3646516..3646827	-	103	152971846	yqfB	KPN_03328	-	hypothetical protein
3265	 51.44	-1	3646877..3647605	+	242	152971847	-	KPN_03329	-	putative regulator
3266	 57.74	0	3647724..3649157	+	477	152971848	bglA	KPN_03330	-	6-phospho-beta-glucosidase A
3267	 51.59	-1	3649158..3649283	-	41	152971849	-	KPN_03331	-	hypothetical protein
3268	 62.78	0	3649282..3649641	+	119	152971850	scsA	KPN_03332	-	suppression of copper sensitivity: putative copper binding protein
3269	 65.17	+1	3649691..3651700	+	669	152971851	scsB	KPN_03333	-	suppression of copper sensitivity protein
3270	 54.58	0	3651702..3652313	+	203	152971852	scsC	KPN_03334	-	suppression of copper sensitivity protein
3271	 63.49	0	3652303..3652806	+	167	152971853	scsD	KPN_03335	-	hypothetical protein
3272	 48.66	-1	3652949..3653470	+	173	152971854	-	KPN_03336	-	hypothetical protein
3273	 50.89	-1	3653527..3654312	+	261	152971855	-	KPN_03337	-	transposase
3274	 63.58	0	3654376..3655119	-	247	152971856	ygfF	KPN_03338	-	hypothetical protein
3275	 60.93	0	3655182..3658055	-	957	152971857	gcvP	KPN_03339	-	glycine dehydrogenase
3276	 56.67	0	3658262..3658651	-	129	152971858	gcvH	KPN_03340	-	glycine cleavage system protein H
3277	 59.91	0	3658676..3659770	-	364	152971859	gcvT	KPN_03341	-	glycine cleavage system aminomethyltransferase T
3278	 61.60	0	3660193..3661395	-	400	152971860	visC	KPN_03342	-	hypothetical protein
3279	 66.33	+1	3661406..3662584	-	392	152971861	ubiH	KPN_03343	-	2-octaprenyl-6-methoxyphenyl hydroxylase
3280	 58.69	0	3662581..3663897	-	438	152971862	pepP	KPN_03344	-	proline aminopeptidase P II
3281	 55.61	0	3663921..3664499	-	192	152971863	ygfB	KPN_03345	-	hypothetical protein
3282	 49.70	-1	3664666..3664995	+	109	152971864	ygfE	KPN_03346	-	Z-ring-associated protein
3283	 62.14	0	3665319..3665915	+	198	152971865	ygfA	KPN_03347	-	putative ligase
3284	 57.18	0	3665999..3667231	-	410	152971866	serA	KPN_03348	-	D-3-phosphoglycerate dehydrogenase
3285	 59.85	0	3667501..3668160	-	219	152971867	rpiA	KPN_03349	-	ribose-5-phosphate isomerase A
3286	 60.74	0	3668328..3669221	+	297	152971868	iciA	KPN_03350	-	chromosome replication initiation inhibitor protein
3287	 58.98	0	3669275..3670042	-	255	152971869	yggE	KPN_03351	-	hypothetical protein
3288	 55.82	0	3670132..3670767	-	211	152971870	yggA	KPN_03352	-	arginine exporter protein
3289	 57.23	0	3670919..3671776	-	285	152971871	yggB	KPN_03353	-	mechanosensitive channel MscS
3290	 54.91	0	3671967..3673046	-	359	152971872	fbaA	KPN_03354	-	fructose-bisphosphate aldolase
3291	 55.70	0	3673144..3674292	-	382	152971873	pgk	KPN_03355	-	phosphoglycerate kinase
3292	 55.98	0	3674347..3675375	-	342	152971874	epd	KPN_03356	-	erythrose 4-phosphate dehydrogenase
3293	 60.90	0	3675760..3677754	-	664	152971875	tktA	KPN_03357	-	transketolase
3294	 59.20	0	3678096..3678791	+	231	152971876	yggG	KPN_03358	-	hypothetical protein
3295	 55.71	0	3679169..3680437	+	422	152971877	-	KPN_03359	-	putative outer membrane protein
3296	 62.64	0	3680574..3682214	-	546	152971878	-	KPN_03360	-	hypothetical protein
3297	 61.84	0	3682228..3683697	-	489	152971879	-	KPN_03361	-	putative aldehyde dehydrogenase
3298	 63.41	0	3683713..3684480	-	255	152971880	-	KPN_03362	-	L-aspartate dehydrogenase
3299	 60.88	0	3684487..3685281	-	264	152971881	-	KPN_03363	-	short chain dehydrogenase
3300	 63.95	+1	3685265..3686038	-	257	152971882	-	KPN_03364	-	putative hydrolase
3301	 59.98	0	3686586..3687842	-	418	152971883	-	KPN_03365	-	major facilitator superfamily permease
3302	 62.99	0	3687869..3689065	-	398	152971884	-	KPN_03366	-	putative ferredoxin reductase subunit
3303	 60.30	0	3689062..3689988	-	308	152971885	-	KPN_03367	-	putative glyoxalase/bleomycin resistance protein/dioxygenas
3304	 59.06	0	3690077..3690865	-	262	152971886	-	KPN_03368	-	putative regulatory proteins, IclR
3305	 62.13	0	3690879..3691628	-	249	152971887	-	KPN_03369	-	short chain dehydrogenase
3306	 58.85	0	3691628..3692650	-	340	152971888	-	KPN_03370	-	3-phenylpropionate dioxygenase, alpha subunit
3307	 52.47	0	3692966..3693289	-	107	152971889	-	KPN_03371	-	putative ferredoxin
3308	 61.76	0	3694020..3694937	+	305	152971890	-	KPN_03372	-	putative transport protein
3309	 60.26	0	3695065..3695985	-	306	152971891	speB	KPN_03373	-	agmatinase
3310	 60.04	0	3696219..3698195	-	658	152971892	speA	KPN_03374	-	arginine decarboxylase
3311	 57.23	0	3699037..3700191	+	384	152971893	metK	KPN_03375	-	S-adenosylmethionine synthetase
3312	 58.06	0	3700578..3701972	+	464	152971894	galP	KPN_03376	-	galactose-proton symport of transport system
3313	 61.08	0	3702050..3702550	+	166	152971895	sprT	KPN_03377	-	hypothetical protein
3314	 55.65	0	3702645..3703352	+	235	152971896	endA	KPN_03378	-	DNA-specific endonuclease I
3315	 58.88	0	3703444..3704175	+	243	152971897	yggJ	KPN_03379	-	hypothetical protein
3316	 57.20	0	3704196..3705146	+	316	152971898	gshB	KPN_03380	-	glutathione synthetase
3317	 55.67	0	3705321..3705884	+	187	152971899	yqgE	KPN_03381	-	hypothetical protein
3318	 57.79	0	3705884..3706300	+	138	152971900	yqgF	KPN_03382	-	Holliday junction resolvase-like protein
3319	 49.24	-1	3706353..3707006	-	217	152971901	-	KPN_03383	-	DNA-binding transcriptional regulator CsgD
3320	 60.65	0	3707355..3708335	-	326	152971902	yggR	KPN_03384	-	hypothetical protein
3321	 57.55	0	3708352..3709053	+	233	152971903	yggS	KPN_03385	-	PLP-binding domain-containing protein
3322	 55.91	0	3709074..3709640	+	188	152971904	yggT	KPN_03386	-	hypothetical protein
3323	 57.04	0	3709637..3709927	+	96	152971905	yggU	KPN_03387	-	hypothetical protein
3324	 60.77	0	3709940..3710533	+	197	152971906	yggV	KPN_03388	-	putative deoxyribonucleotide triphosphate pyrophosphatase
3325	 60.86	0	3710526..3711662	+	378	152971907	yggW	KPN_03389	-	coproporphyrinogen III oxidase
3326	 59.03	0	3711703..3712422	-	239	152971908	yggN	KPN_03390	-	hypothetical protein
3327	 53.21	0	3712473..3712799	-	108	152971909	yggL	KPN_03391	-	hypothetical protein
3328	 55.97	0	3712799..3713518	-	239	152971910	yggH	KPN_03392	-	tRNA (guanine-N(7))-methyltransferase
3329	 59.30	0	3713655..3714713	+	352	152971911	mutY	KPN_03393	-	adenine DNA glycosylase
3330	 52.54	0	3714742..3715017	+	91	152971912	yggX	KPN_03394	-	hypothetical protein
3331	 57.46	0	3715064..3716149	+	361	152971913	mltC	KPN_03395	-	murein transglycosylase C
3332	 56.38	0	3716341..3717594	+	417	152971914	nupG	KPN_03396	-	MFS family nucleoside transporter
3333	 60.14	0	3717638..3719767	-	709	152971915	speC	KPN_03397	-	ornithine decarboxylase
3334	 57.71	0	3720229..3720909	+	226	152971916	yqgA	KPN_03398	-	putative transport protein
3335	 59.95	0	3721890..3722753	+	287	152971917	int	KPN_03400	-	putative phage integrase
3336	 55.67	0	3725589..3728198	-	869	152971918	fim	KPN_03401	-	putative fimbrial biogenesis outer membrane usher protein
3337	 47.40	-1	3728230..3728940	-	236	152971919	fim	KPN_03402	-	putative pili assembly chaperone
3338	 48.68	-1	3729003..3729797	-	264	152971920	fim	KPN_03403	-	putative fimbrial chaperone
3339	 48.01	-1	3729790..3730368	-	192	152971921	fim	KPN_03404	-	putative fimbrial-like protein
3340	 54.96	0	3730387..3730890	-	167	152971922	fim	KPN_03405	-	putative fimbrial-like protein
3341	 54.92	0	3730919..3731650	-	243	152971923	fim	KPN_03406	-	putative fimbrial chaperone
3342	 50.00	-1	3731701..3732216	-	171	152971924	fim	KPN_03407	-	putative fimbrial-like protein
3343	 38.19	-2	3732648..3732791	+	47	152971925	-	KPN_03408	-	hypothetical protein
3344	 60.98	0	3733931..3735301	+	456	152971926	-	KPN_03409	-	putative pyridoxal-5'-phosphate-dependent enzyme, beta subunit
3345	 63.62	0	3735312..3736460	+	382	152971927	metB	KPN_03410	-	putative cystathionine gamma-synthase
3346	 66.45	+1	3736461..3737372	-	303	152971928	yhcS	KPN_03411	-	LysR family transcriptional regulator
3347	 62.19	0	3737470..3738072	+	200	152971929	-	KPN_03412	-	short chain dehydrogenase
3348	 53.91	0	3738159..3738503	+	114	152971930	-	KPN_03413	-	hypothetical protein
3349	 43.39	-2	3738703..3738891	+	62	152971931	-	KPN_03414	-	hypothetical protein
3350	 59.39	0	3739068..3740249	-	393	152971932	-	KPN_03415	-	putative aminotransferase
3351	 57.07	0	3740395..3742260	-	621	152971933	gss	KPN_03416	-	bifunctional glutathionylspermidine amidase/glutathionylspermidine synthetase
57.88	MEAN

5.81	STD DEV
