IslandPath Analysis: Klebsiella pneumoniae subsp. pneumoniae MGH 78578

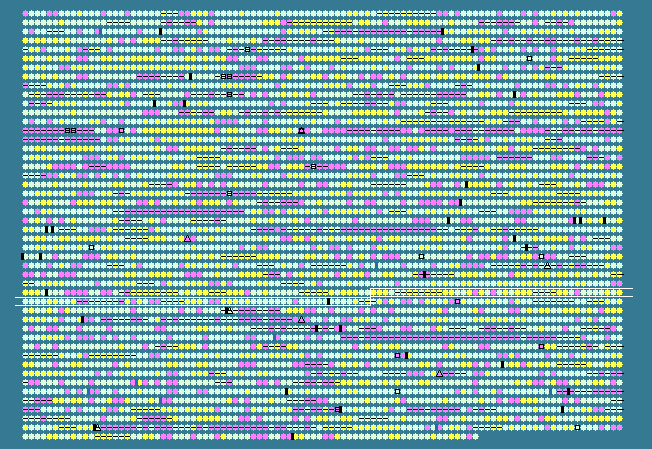

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.88 STD DEV: 5.81
Klebsiella pneumoniae subsp. pneumoniae MGH 78578, complete genome - 1..5315120
4776 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3159	 61.98	0	3530605..3531819	+	404	152971741	pduW	KPN_03222	-	propionate kinase
3160	 66.11	+1	3531875..3532777	+	300	152971742	pduX	KPN_03223	-	propanediol utilization
3161	 65.00	+1	3532781..3533857	-	358	152971743	cobD	KPN_03224	-	threonine-phosphate decarboxylase
3162	 60.45	0	3533875..3535128	-	417	152971744	amiC	KPN_03225	-	N-acetylmuramoyl-L-alanine amidase
3163	 58.26	0	3535356..3536687	+	443	152971745	argA	KPN_03226	-	N-acetylglutamate synthase
3164	 56.07	0	3536917..3537237	+	106	152971746	-	KPN_03227	-	hypothetical protein
3165	 68.13	+1	3537295..3539139	-	614	152971747	recD	KPN_03228	-	exonuclease V subunit alpha
3166	 64.12	+1	3539136..3542672	-	1178	152971748	recB	KPN_03229	-	exonuclease V subunit beta
3167	 59.60	0	3542669..3545554	-	961	152971749	ptr	KPN_03230	-	protease III
3168	 62.46	0	3545675..3549004	-	1109	152971750	recC	KPN_03231	-	exonuclease V subunit gamma
3169	 62.96	0	3549065..3549388	-	107	152971751	ppdC	KPN_03232	-	hypothetical protein
3170	 66.92	+1	3549373..3549762	-	129	152971752	ygdB	KPN_03233	-	hypothetical protein
3171	 69.18	+1	3549777..3550334	-	185	152971753	ppdB	KPN_03234	-	hypothetical protein
3172	 63.59	0	3550331..3550882	-	183	152971754	ppdA	KPN_03235	-	hypothetical protein
3173	 57.74	0	3551066..3551860	-	264	152971755	thyA	KPN_03236	-	thymidylate synthase
3174	 59.13	0	3551867..3552742	-	291	152971756	lgt	KPN_03237	-	prolipoprotein diacylglyceryl transferase
3175	 62.75	0	3552988..3555234	-	748	152971757	ptsP	KPN_03238	-	fused phosphoenolpyruvate-protein phosphotransferase PtsP/GAF domain
3176	 53.48	0	3555247..3555777	-	176	152971758	ygdP	KPN_03239	-	dinucleoside polyphosphate hydrolase
3177	 64.94	+1	3556460..3557155	+	231	152971759	mutH	KPN_03240	-	DNA mismatch repair protein
3178	 54.90	0	3557219..3557932	+	237	152971760	ygdQ	KPN_03241	-	putative transmembrane protein, transport
3179	 47.49	-1	3558056..3558274	+	72	152971761	ygdR	KPN_03242	-	hypothetical protein
3180	 60.33	0	3558495..3559535	+	346	152971762	tas	KPN_03243	-	putative aldo-keto reductase
3181	 62.90	0	3559638..3560831	-	397	152971763	ygeD	KPN_03244	-	hypothetical protein
3182	 60.79	0	3560824..3562983	-	719	152971764	aas	KPN_03245	-	bifunctional acyl-[acyl carrier protein] synthetase/2-acylglycerophosphoethanolamine acyltransferase
3183	 63.23	0	3563605..3564621	+	338	152971765	galR	KPN_03246	-	DNA-binding transcriptional regulator GalR
3184	 65.42	+1	3564582..3565061	-	159	152971766	-	KPN_03247	-	putative acyltransferase
3185	 61.37	0	3565058..3565831	-	257	152971767	-	KPN_03248	-	putative regulatory protein, GntR
3186	 58.75	0	3565899..3567326	-	475	152971768	-	KPN_03249	-	glycoside hydrolase family protein 1
3187	 57.92	0	3567334..3568671	-	445	152971769	-	KPN_03250	-	putative phosphotransferase system, EIIC
3188	 59.15	0	3568962..3569972	+	336	152971770	-	KPN_03251	-	putative transcriptional regulator
3189	 63.18	0	3569965..3571227	-	420	152971771	lysA	KPN_03252	-	diaminopimelate decarboxylase
3190	 65.70	+1	3571364..3572290	+	308	152971772	lysR	KPN_03253	-	DNA-binding transcriptional regulator LysR
3191	 62.46	0	3572256..3572969	-	237	152971773	ygeA	KPN_03254	-	putative racemase
3192	 56.88	0	3573109..3573435	+	108	152971774	-	KPN_03255	-	hypothetical protein
3193	 53.87	0	3573888..3574778	+	296	152971775	-	KPN_03256	-	putative inner membrane permease of oligogalacturonide ABC transporter
3194	 57.25	0	3574771..3575673	+	300	152971776	-	KPN_03257	-	putative binding-protein-dependent transport systems inner membrane component
3195	 55.67	0	3575686..3576813	+	375	152971777	-	KPN_03258	-	putative ATP-binding component of a transport system
3196	 56.80	0	3576830..3578116	+	428	152971778	-	KPN_03259	-	putative ABC transporter periplasmic binding protein
3197	 56.59	0	3578176..3579465	-	429	152971779	-	KPN_03260	-	putative outer membrane protein
3198	 62.56	0	3579641..3581077	-	478	152971780	-	KPN_03261	-	glycoside hydrolase family protein 32
3199	 57.73	0	3581094..3582335	-	413	152971781	-	KPN_03262	-	galactoside permease
3200	 61.72	0	3582562..3583572	+	336	152971782	-	KPN_03263	-	LacI transcriptional regulator
3201	 58.81	0	3583569..3584930	-	453	152971783	araE	KPN_03264	-	low-affinity L-arabinose transport system proton symport protein
3202	 60.89	0	3585286..3586047	-	253	152971784	kduD	KPN_03265	-	2-deoxy-D-gluconate 3-dehydrogenase
3203	 57.23	0	3586533..3587708	+	391	152971785	tolB	KPN_03266	-	translocation protein TolB precursor
3204	 55.17	0	3587844..3588539	-	231	152971786	yjhA	KPN_03267	-	hypothetical protein
3205	 64.60	+1	3588787..3589950	-	387	152971787	yqeF	KPN_03268	-	acetyl-CoA acetyltransferase
3206	 64.48	+1	3590069..3590938	-	289	152971788	ybbS	KPN_03269	-	LysR family transcriptional regulator
3207	 61.04	0	3591041..3591502	+	153	152971789	rnfA	KPN_03270	-	Na(+)-translocating NADH-quinone reductase subunit E
3208	 56.26	0	3591626..3592855	+	409	152971790	yqeG	KPN_03271	-	HAAAP family transporter
3209	 62.46	0	3592974..3593852	+	292	152971791	-	KPN_03272	-	putative aldo/keto reductase
3210	 46.95	-1	3594957..3595529	+	190	152971792	-	KPN_03273	-	LuxR transcriptional regulator
3211	 46.86	-1	3595673..3596389	+	238	152971793	-	KPN_03274	-	hypothetical protein
3212	 57.39	0	3596424..3597059	-	211	152971794	-	KPN_03275	-	putative fimbrial-like protein
3213	 58.13	0	3597073..3598068	-	331	152971795	-	KPN_03276	-	putative fimbrial-like protein
3214	 58.62	0	3598059..3600545	-	828	152971796	-	KPN_03277	-	putative fimbrial usher protein
3215	 54.84	0	3600557..3601258	-	233	152971797	-	KPN_03278	-	putative pili assembly chaperone
3216	 54.64	0	3601354..3601935	-	193	152971798	-	KPN_03279	-	putative fimbrial-like protein
3217	 52.38	0	3602668..3602877	+	69	152971799	-	KPN_03280	-	hypothetical protein
3218	 64.66	+1	3602973..3603869	-	298	152971800	-	KPN_03281	-	hypothetical protein
3219	 34.52	-2	3603868..3603951	+	27	152971801	-	KPN_03282	-	hypothetical protein
3220	 63.12	0	3603951..3604457	+	168	152971802	-	KPN_03283	-	putative regulatory protein  MarR
3221	 61.23	0	3604454..3605410	-	318	152971803	-	KPN_03284	-	hypothetical protein
3222	 52.97	0	3606628..3607233	+	201	152971804	fimB	KPN_03285	-	tyrosine recombinase
3223	 53.79	0	3607740..3608306	+	188	152971805	fimE	KPN_03286	-	tyrosine recombinase
3224	 59.38	0	3608786..3609334	+	182	152971806	fimA	KPN_03287	-	major type 1 subunit fimbrin (pilin)
3225	 58.90	0	3609414..3609941	+	175	152971807	fimI	KPN_03288	-	fimbrial protein
3226	 57.21	0	3610009..3610695	+	228	152971808	fimC	KPN_03289	-	periplasmic chaperone
3227	 61.88	0	3610777..3613389	+	870	152971809	fimD	KPN_03290	-	outer membrane protein; export and assembly of type 1 fimbriae
3228	 61.58	0	3613397..3613927	+	176	152971810	fimF	KPN_03291	-	fimbrial morphology
3229	 62.48	0	3613940..3614440	+	166	152971811	fimG	KPN_03292	-	fimbrial morphology
3230	 61.48	0	3614455..3615360	+	301	152971812	fimH	KPN_03293	-	minor fimbrial subunit
3231	 60.93	0	3615357..3616769	+	470	152971813	-	KPN_03294	-	putative fimbrial protein
3232	 50.55	-1	3616812..3617084	-	90	152971814	-	KPN_03295	-	acyltransferase domain-containing protein
3233	 52.22	0	3617096..3617365	-	89	152971815	-	KPN_03296	-	hypothetical protein
3234	 63.84	+1	3617811..3618836	+	341	152971816	-	KPN_03297	-	multidrug resistance protein MdtN
3235	 65.63	+1	3618849..3620786	+	645	152971817	-	KPN_03298	-	multidrug efflux system protein MdtO
3236	 64.46	+1	3620783..3622231	+	482	152971818	-	KPN_03299	-	putative outer membrane efflux protein MdtP
3237	 55.67	0	3622497..3622796	-	99	152971819	-	KPN_03300	-	hypothetical protein
3238	 66.18	+1	3622981..3623394	-	137	152971820	-	KPN_03301	-	hypothetical protein
3239	 57.13	0	3623370..3624533	-	387	152971821	-	KPN_03302	-	hypothetical protein
3240	 60.76	0	3625006..3625428	-	140	152971822	arsC	KPN_03303	-	arsenate reductase
3241	 60.79	0	3625438..3626730	-	430	152971823	arsB	KPN_03304	-	Ars family arsenical pump
3242	 60.91	0	3626782..3627111	-	109	152971824	arsR	KPN_03305	-	arsenical resistance transcriptional repressor
3243	 56.46	0	3627330..3627623	+	97	152971825	-	KPN_03306	-	hypothetical protein
3244	 61.26	0	3627654..3628226	+	190	152971826	-	KPN_03307	-	hypothetical protein
3245	 54.48	0	3628230..3629156	-	308	152971827	-	KPN_03308	-	LysR family transcriptional regulator
3246	 51.78	-1	3629295..3629603	+	102	152971828	-	KPN_03309	-	putative superoxide dismutase, iron
3247	 56.45	0	3629612..3630169	+	185	152971829	-	KPN_03310	-	putative NAD(P)H oxidoreductase
3248	 59.48	0	3630250..3631209	+	319	152971830	-	KPN_03311	-	putative NAD(P)H-dependent xylose reductase
3249	 59.58	0	3631242..3632045	+	267	152971831	-	KPN_03312	-	putative carboxymuconolactone decarboxylase
3250	 56.45	0	3632409..3633338	-	309	152971832	-	KPN_03313	-	transcriptional regulator LysR
3251	 58.69	0	3633465..3634856	+	463	152971833	-	KPN_03314	-	putative transport protein
3252	 59.80	0	3635178..3635891	-	237	152971834	ygeR	KPN_03316	-	putative lipoprotein
3253	 61.08	0	3636208..3636762	+	184	152971835	idi	KPN_03317	-	isopentenyl-diphosphate delta-isomerase
3254	 56.32	0	3636997..3638514	-	505	152971836	lysS	KPN_03318	-	lysyl-tRNA synthetase
3255	 57.42	0	3638524..3639486	-	320	152971837	prfB	KPN_03319	-	peptide chain release factor 2
3256	 63.49	0	3639708..3641441	-	577	152971838	recJ	KPN_03320	-	ssDNA exonuclease RecJ
3257	 58.12	0	3641447..3642160	-	237	152971839	dsbC	KPN_03321	-	thiol:disulfide interchange protein DsbC
3258	 61.87	0	3642183..3643079	-	298	152971840	xerD	KPN_03322	-	site-specific tyrosine recombinase XerD
57.88	MEAN

5.81	STD DEV
