IslandPath Analysis: Klebsiella pneumoniae subsp. pneumoniae MGH 78578

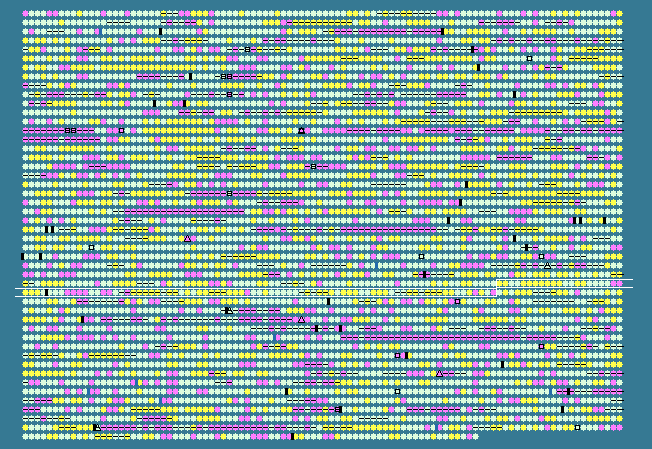

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.88 STD DEV: 5.81
Klebsiella pneumoniae subsp. pneumoniae MGH 78578, complete genome - 1..5315120
4776 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3080	 61.92	0	3443851..3445218	+	455	152971662	sdaB	KPN_03140	-	L-serine deaminase 2
3081	 62.53	0	3445357..3446298	+	313	152971663	-	KPN_03141	-	putative ABC-type transport protein
3082	 58.65	0	3447578..3448999	-	473	152971664	-	KPN_03142	-	putative general substrate transporter
3083	 56.66	0	3449193..3450071	-	292	152971665	-	KPN_03143	-	putative ABC-type metal ion transport system, periplasmic component/surface antigen
3084	 62.23	0	3450068..3450766	-	232	152971666	-	KPN_03144	-	putative ABC-type metal ion transport system, permease component
3085	 67.17	+1	3451194..3451784	-	196	152971667	-	KPN_03145	-	D- and L-methionine ABC transporter ATP-binding protein
3086	 69.38	+1	3453261..3454658	-	465	152971668	-	KPN_03146	-	putative oxidoreductase
3087	 63.34	0	3454705..3455877	-	390	152971669	-	KPN_03147	-	alkanesulfonate monooxygenase
3088	 65.64	+1	3456149..3458092	+	647	152971670	-	KPN_03148	-	putative transcriptional regulator
3089	 67.72	+1	3458189..3458944	+	251	152971671	xni	KPN_03149	-	exonuclease IX
3090	 63.85	+1	3459003..3460139	-	378	152971672	fucO	KPN_03150	-	L-1,2-propanediol oxidoreductase
3091	 60.03	0	3460179..3460826	-	215	152971673	fucA	KPN_03151	-	L-fuculose phosphate aldolase
3092	 55.66	0	3461432..3462703	+	423	152971674	fucP	KPN_03152	-	L-fucose transporter
3093	 62.27	0	3462736..3464511	+	591	152971675	fucI	KPN_03153	-	L-fucose isomerase
3094	 64.98	+1	3464619..3466037	+	472	152971676	fucK	KPN_03154	-	L-fuculokinase
3095	 57.68	0	3466039..3466461	+	140	152971677	fucU	KPN_03155	-	fucose operon protein
3096	 59.92	0	3466520..3467230	+	236	152971678	fucR	KPN_03156	-	DNA-binding transcriptional activator FucR
3097	 59.13	0	3467279..3468379	-	366	152971679	ygdE	KPN_03157	-	putative RNA 2'-O-ribose methyltransferase
3098	 54.55	0	3468372..3468767	-	131	152971680	ygdD	KPN_03158	-	hypothetical protein
3099	 53.05	0	3468787..3469704	-	305	152971681	gcvA	KPN_03159	-	DNA-binding transcriptional activator GcvA
3100	 49.78	-1	3470056..3470286	-	76	152971682	ygdI	KPN_03160	-	hypothetical protein
3101	 65.92	+1	3470478..3471683	+	401	152971683	csdA	KPN_03161	-	cysteine sulfinate desulfinase
3102	 63.66	0	3471683..3472114	+	143	152971684	ygdK	KPN_03162	-	hypothetical protein
3103	 61.92	0	3472157..3472978	-	273	152971685	ygdL	KPN_03163	-	putative enzyme
3104	 59.93	0	3473066..3474163	-	365	152971686	mltA	KPN_03164	-	murein transglycosylase A
3105	 55.03	0	3476167..3477507	+	446	152971687	-	KPN_03168	-	hypothetical protein
3106	 59.27	0	3478172..3479875	+	567	152971688	-	KPN_03169	-	hypothetical protein
3107	 56.81	0	3480091..3482646	+	851	152971689	-	KPN_03170	-	hypothetical protein
3108	 45.94	-2	3482649..3484100	+	483	152971690	-	KPN_03171	-	hypothetical protein
3109	 52.28	0	3484185..3485213	+	342	152971691	-	KPN_03172	-	hypothetical protein
3110	 37.90	-2	3485322..3485693	+	123	152971692	-	KPN_03173	-	hypothetical protein
3111	 38.95	-2	3485999..3487138	+	379	152971693	-	KPN_03174	-	hypothetical protein
3112	 59.91	0	3487423..3490500	+	1025	152971694	-	KPN_03175	-	hypothetical protein
3113	 59.54	0	3490493..3490885	+	130	152971695	-	KPN_03176	-	hypothetical protein
3114	 41.54	-2	3491456..3492418	+	320	152971696	-	KPN_03177	-	hypothetical protein
3115	 36.52	-2	3492511..3493107	+	198	152971697	-	KPN_03178	-	hypothetical protein
3116	 56.79	0	3493264..3495024	+	586	152971698	-	KPN_03179	-	hypothetical protein
3117	 56.42	0	3494988..3496070	+	360	152971699	-	KPN_03180	-	hypothetical protein
3118	 53.29	0	3496588..3497013	+	141	152971700	-	KPN_03181	-	hypothetical protein
3119	 66.00	+1	3497239..3498294	-	351	152971701	cobT	KPN_03182	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
3120	 63.55	0	3498338..3498883	-	181	152971702	cobU	KPN_03183	-	adenosylcobinamide kinase/adenosylcobinamide-phosphate guanylyltransferase
3121	 64.04	+1	3498877..3500400	-	507	152971703	cbiP	KPN_03184	-	cobyric acid synthase
3122	 62.30	0	3500397..3501221	-	274	152971704	cbiO	KPN_03185	-	cobalt transporter ATP-binding subunit
3123	 62.09	0	3501230..3501907	-	225	152971705	cboQ	KPN_03186	-	hypothetical protein
3124	 58.16	0	3501894..3502175	-	93	152971706	cbiN	KPN_03187	-	cobalt transport protein CbiN
3125	 62.47	0	3502177..3502914	-	245	152971707	cbiM	KPN_03188	-	cobalt transport protein CbiM
3126	 66.39	+1	3502914..3503624	-	236	152971708	cbiL	KPN_03189	-	cobalt-precorrin-2 C(20)-methyltransferase
3127	 61.26	0	3503621..3504415	-	264	152971709	cbiK	KPN_03190	-	hypothetical protein
3128	 65.78	+1	3504426..3505211	-	261	152971710	cbiJ	KPN_03191	-	cobalt-precorrin-6x reductase
3129	 60.61	0	3505208..3505933	-	241	152971711	cbiH	KPN_03192	-	hypothetical protein
3130	 66.57	+1	3505933..3506988	-	351	152971712	cbiG	KPN_03193	-	cobalamin biosynthesis protein CbiG
3131	 63.82	+1	3506969..3507742	-	257	152971713	cbiF	KPN_03194	-	hypothetical protein
3132	 64.56	+1	3507735..3508304	-	189	152971714	cbiT	KPN_03195	-	cobalt-precorrin-6Y C(15)-methyltransferase
3133	 67.33	+1	3508294..3508899	-	201	152971715	cbiE	KPN_03196	-	cobalt-precorrin-6Y C(5)-methyltransferase
3134	 62.46	0	3508893..3510032	-	379	152971716	cbiD	KPN_03197	-	cobalt-precorrin-6A synthase
3135	 64.31	+1	3510029..3510664	-	211	152971717	cbiC	KPN_03198	-	precorrin-8X methylmutase
3136	 65.00	+1	3510675..3511634	-	319	152971718	cibB	KPN_03199	-	cobalamin biosynthesis protein
3137	 62.96	0	3511631..3513085	-	484	152971719	cbiA	KPN_03200	-	cobyrinic acid a,c-diamide synthase
3138	 53.62	0	3513560..3514471	-	303	152971720	pocR	KPN_03201	-	hypothetical protein
3139	 58.27	0	3514675..3515484	-	269	152971721	pduF	KPN_03202	-	propanediol utilization: propanediol diffusion facilitator
3140	 55.44	0	3516010..3516294	+	94	152971722	pduA	KPN_03203	-	propanediol utilization: polyhedral bodies
3141	 61.99	0	3516291..3517103	+	270	152971723	pudB	KPN_03204	-	propanediol utilization: polyhedral bodies
3142	 58.56	0	3517122..3518786	+	554	152971724	pduC	KPN_03205	-	propanediol utilization: dehydratase, large subunit
3143	 58.84	0	3518797..3519486	+	229	152971725	pduD	KPN_03206	-	propanediol utilization: dehydratase, medium subunit
3144	 60.19	0	3519501..3520025	+	174	152971726	pduE	KPN_03207	-	propanediol utilization: dehydratase, small subunit
3145	 60.83	0	3520038..3521870	+	610	152971727	pduG	KPN_03208	-	propanediol utilization: diol dehydratase reactivation
3146	 58.40	0	3521860..3522210	+	116	152971728	pduH	KPN_03209	-	propanediol utilization: diol dehydratase reactivation
3147	 59.06	0	3522229..3522504	+	91	152971729	pduJ	KPN_03210	-	propanediol utilization: polyhedral bodies
3148	 66.22	+1	3522526..3522972	+	148	152971730	pduK	KPN_03211	-	propanediol utilization: polyhedral bodies
3149	 60.35	0	3522972..3523604	+	210	152971731	pduL	KPN_03212	-	propanediol utilization
3150	 66.67	+1	3523601..3524092	+	163	152971732	pduM	KPN_03213	-	propanediol utilization
3151	 62.32	0	3524096..3524371	+	91	152971733	pduN	KPN_03214	-	propanediol utilization: polyhedral bodies
3152	 63.82	+1	3524382..3525398	+	338	152971734	pduO	KPN_03215	-	propanediol utilization: B12 related
3153	 60.98	0	3525395..3526783	+	462	152971735	pduP	KPN_03216	-	propanediol utilization: CoA-dependent propionaldehyde dehydrogenase
3154	 65.23	+1	3526795..3527907	+	370	152971736	pduQ	KPN_03217	-	propanediol utilization: propanol dehydrogenase
3155	 64.45	+1	3527904..3529256	+	450	152971737	pduS	KPN_03218	-	propanediol utilization: polyhedral bodies
3156	 64.32	+1	3529259..3529813	+	184	152971738	pduT	KPN_03219	-	propanediol utilization: polyhedral bodies
3157	 58.69	0	3529813..3530163	+	116	152971739	pduU	KPN_03220	-	propanediol utilization: polyhedral bodies
3158	 60.09	0	3530168..3530608	+	146	152971740	pduV	KPN_03221	-	propanediol utilization
3159	 61.98	0	3530605..3531819	+	404	152971741	pduW	KPN_03222	-	propionate kinase
3160	 66.11	+1	3531875..3532777	+	300	152971742	pduX	KPN_03223	-	propanediol utilization
3161	 65.00	+1	3532781..3533857	-	358	152971743	cobD	KPN_03224	-	threonine-phosphate decarboxylase
3162	 60.45	0	3533875..3535128	-	417	152971744	amiC	KPN_03225	-	N-acetylmuramoyl-L-alanine amidase
3163	 58.26	0	3535356..3536687	+	443	152971745	argA	KPN_03226	-	N-acetylglutamate synthase
3164	 56.07	0	3536917..3537237	+	106	152971746	-	KPN_03227	-	hypothetical protein
3165	 68.13	+1	3537295..3539139	-	614	152971747	recD	KPN_03228	-	exonuclease V subunit alpha
3166	 64.12	+1	3539136..3542672	-	1178	152971748	recB	KPN_03229	-	exonuclease V subunit beta
3167	 59.60	0	3542669..3545554	-	961	152971749	ptr	KPN_03230	-	protease III
3168	 62.46	0	3545675..3549004	-	1109	152971750	recC	KPN_03231	-	exonuclease V subunit gamma
3169	 62.96	0	3549065..3549388	-	107	152971751	ppdC	KPN_03232	-	hypothetical protein
3170	 66.92	+1	3549373..3549762	-	129	152971752	ygdB	KPN_03233	-	hypothetical protein
3171	 69.18	+1	3549777..3550334	-	185	152971753	ppdB	KPN_03234	-	hypothetical protein
3172	 63.59	0	3550331..3550882	-	183	152971754	ppdA	KPN_03235	-	hypothetical protein
3173	 57.74	0	3551066..3551860	-	264	152971755	thyA	KPN_03236	-	thymidylate synthase
3174	 59.13	0	3551867..3552742	-	291	152971756	lgt	KPN_03237	-	prolipoprotein diacylglyceryl transferase
3175	 62.75	0	3552988..3555234	-	748	152971757	ptsP	KPN_03238	-	fused phosphoenolpyruvate-protein phosphotransferase PtsP/GAF domain
3176	 53.48	0	3555247..3555777	-	176	152971758	ygdP	KPN_03239	-	dinucleoside polyphosphate hydrolase
3177	 64.94	+1	3556460..3557155	+	231	152971759	mutH	KPN_03240	-	DNA mismatch repair protein
3178	 54.90	0	3557219..3557932	+	237	152971760	ygdQ	KPN_03241	-	putative transmembrane protein, transport
3179	 47.49	-1	3558056..3558274	+	72	152971761	ygdR	KPN_03242	-	hypothetical protein
57.88	MEAN

5.81	STD DEV
