IslandPath Analysis: Klebsiella pneumoniae subsp. pneumoniae MGH 78578

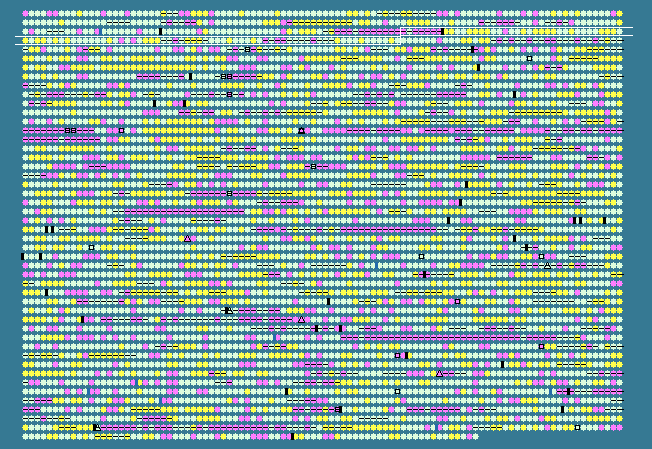

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.88 STD DEV: 5.81
Klebsiella pneumoniae subsp. pneumoniae MGH 78578, complete genome - 1..5315120
4776 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
264	 40.12	-2	307297..308121	-	274	152968846	-	KPN_00272	-	putative sensory transducer
265	 55.25	0	308354..309334	-	326	152968847	-	KPN_00273	-	hypothetical protein
266	 45.71	-2	309928..310323	+	131	152968848	-	KPN_00274	-	hypothetical protein
267	 52.41	0	311624..312142	+	172	152968849	-	KPN_00275	-	fimbrial subunit
268	 43.92	-2	312191..312889	+	232	152968850	-	KPN_00276	-	putative fimbrial chaparone
269	 52.98	0	312969..315452	+	827	152968851	-	KPN_00277	-	putativie fimbrial usher
270	 49.87	-1	315503..316657	+	384	152968852	-	KPN_00278	-	hypothetical protein
271	 62.52	0	317320..318573	-	417	152968853	proA	KPN_00280	-	gamma-glutamyl phosphate reductase
272	 63.13	0	318584..319687	-	367	152968854	proB	KPN_00281	-	gamma-glutamyl kinase
273	 54.91	0	320001..321029	+	342	152968855	phoE	KPN_00282	-	outer membrane phosphoporin protein E
274	 59.52	0	321074..321535	-	153	152968856	nlpC	KPN_00283	-	lipoprotein
275	 66.67	+1	324274..324444	-	56	152968857	yeiE	KPN_00284	-	putative transcriptional regulator (LysR familiy)
276	 67.20	+1	324595..324780	-	61	152968858	yhhM	KPN_00285	-	putative receptor
277	 64.18	+1	324994..325878	-	294	152968859	phnE	KPN_00286	-	membrane channel protein component of Pn transporter
278	 61.63	0	325875..326747	-	290	152968860	-	KPN_00287	-	hypothetical protein
279	 60.53	0	327775..328638	-	287	152968861	phnC	KPN_00288	-	ATP-binding component of phosphonate transport
280	 55.30	0	328747..328878	+	43	152968862	yfeU	KPN_00289	-	hypothetical protein
281	 41.07	-2	329466..330008	+	180	152968863	ykgK	KPN_00290	-	putative regulator
282	 57.99	0	330083..330670	+	195	152968864	yagZ	KPN_00291	-	hypothetical protein
283	 59.79	0	330729..331397	+	222	152968865	yagY	KPN_00292	-	hypothetical protein
284	 62.22	0	331474..333948	+	824	152968866	yagX	KPN_00293	-	putative enzyme
285	 57.79	0	333938..335581	+	547	152968867	yagW	KPN_00294	-	putative receptor
286	 61.74	0	335550..336260	+	236	152968868	yagV	KPN_00295	-	hypothetical protein
287	 66.52	+1	336264..336953	-	229	152968869	yhdY	KPN_00296	-	amino acid ABC transporter membrane protein
288	 65.46	+1	336943..337686	-	247	152968870	gltJ	KPN_00297	-	glutamate/aspartate ABC transporter membrane protein
289	 63.98	+1	337692..338510	-	272	152968871	gltL	KPN_00298	-	ATP-binding protein of glutamate/aspartate transport system
290	 60.62	0	338512..339321	-	269	152968872	fliY	KPN_00299	-	cysteine ABC transporter periplasmic substrate binding protein
291	 57.89	0	339656..339826	+	56	152968873	umuC	KPN_00300	-	DNA polymerase IV
292	 61.64	0	339943..340638	-	231	152968874	livF	KPN_00301	-	ATP-binding component of leucine transport
293	 60.79	0	340631..341413	-	260	152968875	livG	KPN_00302	-	ATP-binding component of high-affinity branched-chain amino acid transport system
294	 61.05	0	341400..342449	-	349	152968876	livM	KPN_00303	-	high-affinity branched-chain amino acid transport
295	 59.44	0	342449..343348	-	299	152968877	livH	KPN_00304	-	high-affinity branched-chain amino acid ABC transporter membrane protein
296	 58.90	0	343368..344474	-	368	152968878	livJ	KPN_00305	-	high-affinity branched-chain amino acid ABC transporter periplasmic substrate-binding protein
297	 65.64	+1	345049..345825	-	258	152968879	eutC	KPN_00306	-	ethanolamine ammonia-lyase small subunit
298	 62.99	0	345822..347210	-	462	152968880	eutB	KPN_00307	-	ethanolamine ammonia-lyase, heavy chain
299	 64.42	+1	347220..348599	-	459	152968881	yhfM	KPN_00308	-	putative amino acid/amine transport protein
300	 61.13	0	348873..350282	+	469	152968882	mmuP	KPN_00309	-	S-methylmethionine transporter
301	 67.52	+1	350269..351201	+	310	152968883	mmuM	KPN_00310	-	homocysteine methyltransferase
302	 61.27	0	351442..352404	+	320	152968884	tauA	KPN_00311	-	taurine ABC transporter periplasmic substrate-binding protein
303	 61.98	0	352416..353183	+	255	152968885	tauB	KPN_00312	-	taurine transporter ATP-binding subunit
304	 64.98	+1	353180..354007	+	275	152968886	tauC	KPN_00313	-	taurine transporter subunit
305	 60.33	0	354004..354855	+	283	152968887	tauD	KPN_00314	-	taurine dioxygenase
306	 61.37	0	355011..356729	-	572	152968888	yhjT	KPN_00315	-	hypothetical protein
307	 59.08	0	356933..357907	-	324	152968889	hemB	KPN_00316	-	delta-aminolevulinic acid dehydratase
308	 61.76	0	358014..359174	-	386	152968890	ampH	KPN_00317	-	beta-lactamase/D-alanine carboxypeptidase
309	 59.55	0	359373..359906	+	177	152968891	-	KPN_00318	-	isochorismatase family protein
310	 56.94	0	360021..361244	+	407	152968892	sbmA	KPN_00319	-	transport protein
311	 59.89	0	361263..362369	+	368	152968893	yaiW	KPN_00320	-	hypothetical protein
312	 58.75	0	362366..362668	-	100	152968894	yaiY	KPN_00321	-	hypothetical protein
313	 56.37	0	362921..363124	+	67	152968895	yaiZ	KPN_00322	-	hypothetical protein
314	 58.97	0	363157..364287	-	376	152968896	ddl	KPN_00323	-	D-alanylalanine synthetase
315	 65.65	+1	364348..365037	+	229	152968897	-	KPN_00324	-	putative inner membrane protein
316	 58.83	0	365207..366406	+	399	152968898	-	KPN_00325	-	putative permease
317	 50.96	-1	366706..366966	+	86	152968899	yaiB	KPN_00326	-	hypothetical protein
318	 59.19	0	367056..368486	+	476	152968900	phoA	KPN_00327	-	bacterial alkaline phosphatase
319	 53.33	0	368596..368895	+	99	152968901	psiF	KPN_00328	-	hypothetical protein
320	 59.68	0	368962..369777	-	271	152968902	proC	KPN_00329	-	pyrroline-5-carboxylate reductase
321	 63.62	0	369888..370346	+	152	152968903	yaiI	KPN_00330	-	hypothetical protein
322	 62.45	0	370343..371053	-	236	152968904	-	KPN_00331	-	hypothetical protein
323	 61.80	0	371382..371915	+	177	152968905	aroL	KPN_00332	-	shikimate kinase II
324	 55.21	0	371987..372178	+	63	152968906	yaiA	KPN_00333	-	hypothetical protein
325	 56.83	0	372434..373114	+	226	152968907	aroM	KPN_00334	-	hypothetical protein
326	 54.04	0	373192..373476	+	94	152968908	yaiE	KPN_00335	-	hypothetical protein
327	 58.00	0	373548..374459	-	303	152968909	rdgC	KPN_00336	-	recombination associated protein
328	 61.92	0	374516..375463	+	315	152968910	yajF	KPN_00337	-	NAGC-like transcriptional regulator
329	 63.86	+1	375537..378674	-	1045	152968911	sbcC	KPN_00338	-	exonuclease subunit SbcC
330	 62.60	0	378671..379876	-	401	152968912	sbcD	KPN_00339	-	exonuclease subunit SbcD
331	 56.09	0	380059..380748	+	229	152968913	phoB	KPN_00340	-	transcriptional regulator PhoB
332	 58.80	0	380770..382065	+	431	152968914	phoR	KPN_00341	-	phosphate regulon sensor protein
333	 60.91	0	382480..383799	+	439	152968915	brnQ	KPN_00342	-	branched chain amino acid transport system II carrier protein
334	 59.02	0	383940..385259	+	439	152968916	proY	KPN_00343	-	putative proline-specific permease
335	 62.76	0	385411..387228	+	605	152968917	malZ	KPN_00344	-	maltodextrin glucosidase
336	 59.91	0	387225..388127	-	300	152968918	-	KPN_00345	-	LysR family transcriptional regulator
337	 57.01	0	388394..389035	+	213	152968919	-	KPN_00346	-	putative cysteine hydrolase
338	 59.71	0	389222..389767	+	181	152968920	-	KPN_00347	-	putative transport protein
339	 62.33	0	389792..391660	+	622	152968921	-	KPN_00348	-	hypothetical protein
340	 57.26	0	391719..392579	-	286	152968922	-	KPN_00349	-	putative fructose-1,6-bisphosphate aldolase type II
341	 50.67	-1	392609..393571	-	320	152968923	-	KPN_00350	-	putative kinase
342	 57.10	0	393637..394974	-	445	152968924	-	KPN_00351	-	putative sugar-specific permeas
343	 47.22	-1	395049..395336	-	95	152968925	-	KPN_00352	-	putative phosphotransferase system, lactose/cellobiose-specific IIB subunit
344	 50.00	-1	395342..395785	-	147	152968926	-	KPN_00353	-	putative phosphoenolpyruvate-dependent sugar phosphotransferase system
345	 55.06	0	396132..396734	-	200	152968927	-	KPN_00354	-	putative thiol - alkyl hydroperoxide reductase
346	 61.00	0	396862..397443	-	193	152968928	yajB	KPN_00355	-	acyl carrier protein phosphodiesterase
347	 59.81	0	397699..398763	+	354	152968929	queA	KPN_00356	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
348	 55.85	0	398872..399999	+	375	152968930	tgt	KPN_00357	-	queuine tRNA-ribosyltransferase
349	 52.55	0	400022..400354	+	110	152968931	yajC	KPN_00358	-	preprotein translocase subunit YajC
350	 58.02	0	400414..402228	+	604	152968932	secD	KPN_00359	-	preprotein translocase subunit SecD
351	 57.61	0	402239..403210	+	323	152968933	secF	KPN_00360	-	preprotein translocase subunit SecF
352	 61.20	0	403347..403712	+	121	152968934	-	KPN_00361	-	hypothetical protein
353	 61.78	0	403736..404431	+	231	152968935	-	KPN_00362	-	DeoR family transcriptional regulator
354	 54.80	0	404486..405370	-	294	152968936	tsx	KPN_00363	-	nucleoside channel; receptor of phage T6 and colicin K
355	 60.56	0	405669..406208	-	179	152968937	yajI	KPN_00364	-	hypothetical protein
356	 55.56	0	406356..406805	+	149	152968938	ybaD	KPN_00365	-	transcriptional regulator NrdR
357	 64.22	+1	406809..407912	+	367	152968939	ribD	KPN_00366	-	bifunctional diaminohydroxyphosphoribosylaminopyrimidine deaminase/5-amino-6-(5-phosphoribosylamino)uracil reductase
358	 55.20	0	408000..408470	+	156	152968940	ribH	KPN_00367	-	riboflavin synthase subunit beta
359	 55.48	0	408490..408909	+	139	152968941	nusB	KPN_00368	-	transcription antitermination protein NusB
360	 61.21	0	408981..409952	+	323	152968942	thiL	KPN_00369	-	thiamine monophosphate kinase
361	 59.19	0	409981..410448	+	155	152968943	pgpA	KPN_00370	-	phosphatidylglycerophosphatase A
362	 63.28	0	410494..411408	-	304	152968944	yajO	KPN_00371	-	putative NAD(P)H-dependent xylose reductase
363	 60.06	0	411529..413391	-	620	152968945	dxs	KPN_00372	-	1-deoxy-D-xylulose-5-phosphate synthase
57.88	MEAN

5.81	STD DEV
