IslandPath Analysis: Klebsiella pneumoniae subsp. pneumoniae MGH 78578

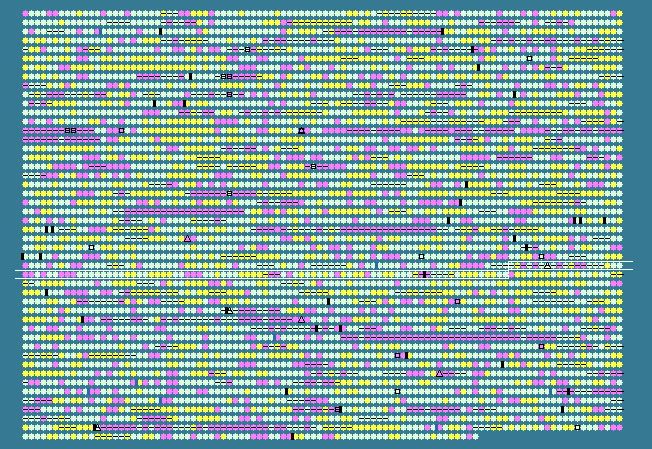

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.88 STD DEV: 5.81
Klebsiella pneumoniae subsp. pneumoniae MGH 78578, complete genome - 1..5315120
4776 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2882	 57.68	0	3226616..3227494	+	292	152971464	ppnK	KPN_02937	-	inorganic polyphosphate/ATP-NAD kinase
2883	 62.52	0	3227581..3229242	+	553	152971465	recN	KPN_02938	-	recombination and repair protein
2884	 52.63	0	3229390..3229731	+	113	152971466	smpA	KPN_02939	-	hypothetical protein
2885	 58.42	0	3229797..3230087	-	96	152971467	yfjF	KPN_02940	-	hypothetical protein
2886	 52.51	0	3230077..3230514	-	145	152971468	yfjG	KPN_02941	-	hypothetical protein
2887	 55.69	0	3230664..3231146	+	160	152971469	smpB	KPN_02942	-	SsrA-binding protein
2888	 56.49	0	3231820..3233067	+	415	152971470	intA	KPN_02943	-	putative integrase
2889	 56.74	0	3233069..3233713	+	214	152971471	-	KPN_02944	-	hypothetical protein
2890	 33.13	-2	3233876..3238348	+	1490	152971472	-	KPN_02945	-	hypothetical protein
2891	 55.09	0	3238767..3238982	+	71	152971473	-	KPN_02946	-	hypothetical protein
2892	 63.92	+1	3239415..3240143	+	242	152971474	-	KPN_02947	-	hypothetical protein
2893	 38.61	-2	3240525..3242477	-	650	152971475	-	KPN_02948	-	hypothetical protein
2894	 44.67	-2	3242611..3242910	-	99	152971476	-	KPN_02949	-	putative transcriptional regulator
2895	 57.19	0	3243062..3243346	+	94	152971477	-	KPN_02950	-	putative cytoplasmic protein
2896	 60.73	0	3243459..3243980	+	173	152971478	-	KPN_02951	-	putative PTS system glucitol/sorbitol-specific enzyme II
2897	 60.80	0	3243977..3244351	+	124	152971479	-	KPN_02952	-	putative glucitol-specific PTS enzyme III
2898	 62.79	0	3244348..3245328	+	326	152971480	-	KPN_02953	-	putative glucitol-specific PTS enzyme III
2899	 61.36	0	3245336..3245881	+	181	152971481	-	KPN_02954	-	putative dehydrogenase
2900	 59.75	0	3245886..3246362	+	158	152971482	-	KPN_02955	-	putative dehydrogenase
2901	 33.33	-2	3246498..3247382	-	294	152971483	-	KPN_02956	-	hypothetical protein
2902	 54.40	0	3247510..3248145	-	211	152971484	-	KPN_02957	-	putative hexulose 6 phosphate synthase
2903	 57.14	0	3248169..3248735	-	188	152971485	-	KPN_02958	-	putative sugar phosphate aminotransferase
2904	 54.21	0	3248732..3249574	-	280	152971486	-	KPN_02959	-	putative cytoplasmic protein
2905	 58.13	0	3249571..3251046	-	491	152971487	-	KPN_02960	-	putative phosphotransferase system IIC component
2906	 57.92	0	3251320..3252999	+	559	152971488	-	KPN_02961	-	putative dipeptide/oligopeptide/nickel ABC-type transport system periplasmic component
2907	 53.63	0	3253350..3253886	-	178	152971489	-	KPN_02962	-	putative bifunctional deaminase-reductase
2908	 45.18	-2	3254111..3256600	-	829	152971490	-	KPN_02963	-	hypothetical protein
2909	 47.25	-1	3256978..3258867	-	629	152971491	-	KPN_02964	-	hypothetical protein
2910	 55.68	0	3259607..3260407	-	266	152971492	-	KPN_02965	-	hypothetical protein
2911	 60.67	0	3260532..3261398	-	288	152971493	-	KPN_02966	-	LysR family transcriptional regulator
2912	 55.67	0	3261628..3262200	+	190	152971494	-	KPN_02967	-	hypothetical protein
2913	 57.65	0	3262211..3262576	-	121	152971495	-	KPN_02968	-	putative helix-turn-helix, AraC type
2914	 59.95	0	3262907..3264082	+	391	152971496	-	KPN_02969	-	putative secretion protein HlyD
2915	 61.18	0	3264106..3267258	+	1050	152971497	-	KPN_02970	-	integral transmembrane protein; acridine resistance
2916	 56.46	0	3267328..3267807	-	159	152971498	-	KPN_02971	-	putative transcriptional regulator
2917	 59.65	0	3268206..3269117	-	303	152971499	-	KPN_02972	-	transcriptional regulator LysR
2918	 61.62	0	3269233..3270183	+	316	152971500	-	KPN_02973	-	putative arginase/agmatinase/formiminoglutamase
2919	 65.62	+1	3270194..3271057	+	287	152971501	-	KPN_02974	-	putative xylose isomerase-like protein
2920	 61.05	0	3271054..3272121	+	355	152971502	-	KPN_02975	-	putative oxidoreductase
2921	 60.22	0	3272138..3272944	+	268	152971503	-	KPN_02976	-	extracellular solute-binding family protein 3
2922	 61.67	0	3272975..3274495	+	506	152971504	-	KPN_02977	-	glutamine ABC transporter ATP-binding component
2923	 62.69	0	3274496..3275224	+	242	152971505	-	KPN_02978	-	L-fuculose phosphate aldolase
2924	 65.81	+1	3275230..3276162	+	310	152971506	-	KPN_02979	-	2-ketoacid reductase
2925	 63.77	+1	3276223..3277017	+	264	152971507	-	KPN_02980	-	putative short-chain dehydrogenase/reductase
2926	 60.06	0	3277173..3277793	+	206	152971508	-	KPN_02981	-	putative transport protein
2927	 59.25	0	3277849..3278697	-	282	152971509	-	KPN_02982	-	hypothetical protein
2928	 39.81	-2	3279051..3279668	+	205	152971510	fimZ	KPN_02983	-	putative transcriptional regulator of fimbrial expression
2929	 50.00	-1	3279799..3280320	+	173	152971511	fimA	KPN_02984	-	major type 1 subunit fimbrin (pilin)
2930	 47.53	-1	3280362..3281030	+	222	152971512	fim	KPN_02985	-	pilin chaperone
2931	 55.59	0	3281060..3283597	+	845	152971513	fimD	KPN_02986	-	outer membrane protein; export and assembly of type 1 fimbriae
2932	 61.28	0	3284641..3285735	-	364	152971514	fim	KPN_02987	-	putative fimbrial-like protein
2933	 62.41	0	3285743..3288232	-	829	152971515	fimD	KPN_02988	-	putative export and assembly of type 1 fimbriae, usher
2934	 56.11	0	3288335..3288997	-	220	152971516	fim	KPN_02989	-	putative chaperone
2935	 55.15	0	3289192..3289773	-	193	152971517	fim	KPN_02990	-	putative fimbrial-like protein
2936	 60.62	0	3290475..3291995	-	506	152971518	aldB	KPN_02991	-	aldehyde dehydrogenase B (lactaldehyde dehydrogenase)
2937	 65.77	+1	3292260..3294047	+	595	152971519	prpR	KPN_02992	-	putative helix-turn-helix, Fis-type
2938	 65.24	+1	3294130..3295038	-	302	152971520	yafC	KPN_02993	-	LysR family transcriptional regulator
2939	 63.37	0	3295142..3295747	+	201	152971521	acpD	KPN_02994	-	acyl carrier protein phosphodiesterase
2940	 63.00	0	3295823..3296122	+	99	152971522	ygaV	KPN_02995	-	hypothetical protein
2941	 64.84	+1	3296130..3296675	+	181	152971523	ygaP	KPN_02996	-	putative phosphatase
2942	 53.27	0	3296656..3297558	-	300	152971524	-	KPN_02997	-	hypothetical protein
2943	 51.65	-1	3298016..3298408	-	130	152971525	stpA	KPN_02998	-	DNA binding protein, nucleoid-associated
2944	 57.33	0	3299146..3299595	+	149	152971526	ygaW	KPN_02999	-	hypothetical protein
2945	 49.59	-1	3299681..3300043	-	120	152971527	ygaC	KPN_03000	-	hypothetical protein
2946	 56.90	0	3300194..3300541	+	115	152971528	ygaM	KPN_03001	-	hypothetical protein
2947	 65.73	+1	3300762..3302036	-	424	152971529	-	KPN_03002	-	GntR transcriptional regulator
2948	 59.03	0	3302125..3302556	+	143	152971530	-	KPN_03003	-	hypothetical protein
2949	 66.13	+1	3302800..3302985	+	61	152971531	nrdH	KPN_03004	-	glutaredoxin-like protein; hydrogen donor
2950	 60.10	0	3302982..3303392	+	136	152971532	nrdI	KPN_03005	-	ribonucleotide reductase stimulatory protein
2951	 61.58	0	3303425..3305506	+	693	152971533	nrdE	KPN_03006	-	ribonucleotide-diphosphate reductase subunit alpha
2952	 57.11	0	3305517..3306479	+	320	152971534	nrdF	KPN_03007	-	ribonucleotide-diphosphate reductase subunit beta
2953	 54.11	0	3306836..3308038	+	400	152971535	proV	KPN_03008	-	ATP-binding component of transport system for glycine, betaine and proline
2954	 65.36	+1	3308031..3309098	+	355	152971536	proW	KPN_03009	-	glycine betaine transporter membrane protein
2955	 57.83	0	3309192..3310175	+	327	152971537	proX	KPN_03010	-	glycine betaine transporter periplasmic subunit
2956	 62.52	0	3310354..3311100	+	248	152971538	ygaZ	KPN_03011	-	putative amino acid transport protein
2957	 63.10	0	3311090..3311425	+	111	152971539	ygaH	KPN_03012	-	hypothetical protein
2958	 52.78	0	3311615..3312046	+	143	152971540	emrR	KPN_03013	-	transcriptional repressor MprA
2959	 58.99	0	3312172..3313344	+	390	152971541	emrA	KPN_03014	-	multidrug resistance secretion protein
2960	 61.14	0	3313360..3314898	+	512	152971542	emrB	KPN_03015	-	multidrug resistance protein membrane translocase
2961	 63.39	0	3315035..3316711	+	558	152971543	-	KPN_03016	-	putative isopropylmalate/homocitrate/citramalate synthase
2962	 66.41	+1	3316690..3317457	-	255	152971544	-	KPN_03017	-	putative helix-turn-helix, AraC type
2963	 56.39	0	3317510..3317986	-	158	152971545	ygaG	KPN_03018	-	S-ribosylhomocysteinase
2964	 57.68	0	3318182..3319738	-	518	152971546	gshA	KPN_03019	-	glutamate--cysteine ligase
2965	 58.04	0	3319805..3320233	-	142	152971547	yqaA	KPN_03020	-	putative integral membrane protein
2966	 61.38	0	3320230..3320796	-	188	152971548	yqaB	KPN_03021	-	fructose-1-phosphatase
2967	 52.70	0	3320922..3321236	-	104	152971549	-	KPN_03022	-	hypothetical protein
2968	 47.85	-1	3322756..3322941	-	61	152971550	csrA	KPN_03028	-	carbon storage regulator
2969	 59.06	0	3323305..3325932	-	875	152971551	alaS	KPN_03029	-	alanyl-tRNA synthetase
2970	 59.28	0	3326183..3326683	-	166	152971552	recX	KPN_03030	-	recombination regulator RecX
2971	 56.75	0	3326751..3327809	-	352	152971553	recA	KPN_03031	-	recombinase A
2972	 62.45	0	3327900..3328397	-	165	152971554	ygaD	KPN_03032	-	competence damage-inducible protein A
2973	 59.64	0	3328537..3329418	-	293	152971555	-	KPN_03033	-	putative periplasmic solute binding protein
2974	 64.47	+1	3329423..3330286	-	287	152971556	-	KPN_03034	-	putative ABC transporter membrane protein
2975	 65.54	+1	3330283..3330993	-	236	152971557	-	KPN_03035	-	putative ABC transporter ATP-binding protein
2976	 62.02	0	3331332..3332321	-	329	152971558	mltB	KPN_03036	-	murein hydrolase B
2977	 57.62	0	3332688..3333251	+	187	152971559	srlA	KPN_03037	-	PTS family enzyme IIC, glucitol/sorbitol-specific
2978	 62.69	0	3333248..3334228	+	326	152971560	srlE	KPN_03038	-	PTS family enzyme IIBC, glucitol/sorbitol-specific
2979	 62.81	0	3334242..3334604	+	120	152971561	srlB	KPN_03039	-	glucitol/sorbitol-specific PTS system component IIA
2980	 59.62	0	3334617..3335396	+	259	152971562	srlD	KPN_03040	-	sorbitol-6-phosphate dehydrogenase
2981	 60.88	0	3335565..3335858	-	97	152971563	-	KPN_03041	-	hypothetical protein
57.88	MEAN

5.81	STD DEV
