IslandPath Analysis: Klebsiella pneumoniae subsp. pneumoniae MGH 78578

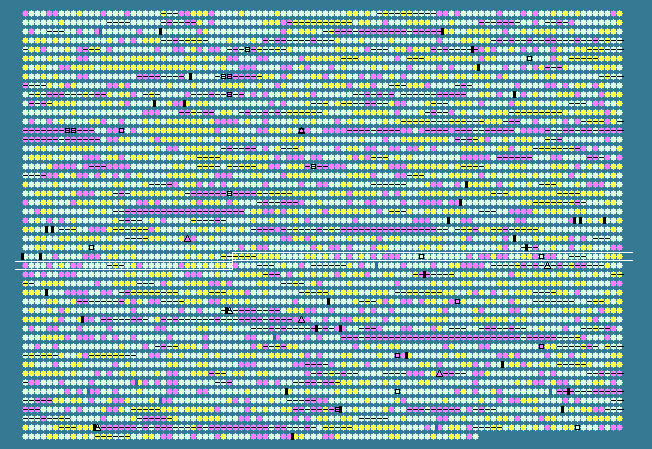

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.88 STD DEV: 5.81
Klebsiella pneumoniae subsp. pneumoniae MGH 78578, complete genome - 1..5315120
4776 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2736	 65.74	+1	3054892..3056079	-	395	152971318	eutG	KPN_02787	-	ethanolamine utilization enzyme
2737	 62.77	0	3056069..3056914	-	281	152971319	eutJ	KPN_02788	-	ethanolamine utilization protein
2738	 62.82	0	3056918..3058321	-	467	152971320	eutE	KPN_02789	-	ethanolamine utilization protein
2739	 62.85	0	3058333..3058620	-	95	152971321	cchB	KPN_02790	-	detox protein
2740	 62.20	0	3058749..3059039	-	96	152971322	cchA	KPN_02791	-	detox protein
2741	 67.55	+1	3059078..3060094	-	338	152971323	eutI	KPN_02792	-	phosphotransacetylase
2742	 62.59	0	3060084..3060893	-	269	152971324	eutT	KPN_02793	-	putative cobalamin adenosyltransferase in ethanolamine utilization
2743	 61.59	0	3060890..3061579	-	229	152971325	eutQ	KPN_02794	-	putative regulator of ethanolamine utilization
2744	 55.00	0	3061557..3062036	-	159	152971326	eutP	KPN_02795	-	putative ethanolamine utilization protein
2745	 57.14	0	3062049..3062384	-	111	152971327	ypfE	KPN_02796	-	putative carboxysome structural protein, ethanol utilization
2746	 60.57	0	3062603..3064882	-	759	152971328	maeB	KPN_02797	-	malic enzyme
2747	 60.19	0	3065177..3066133	+	318	152971329	talA	KPN_02798	-	transaldolase A
2748	 61.80	0	3066150..3068144	+	664	152971330	tktB	KPN_02799	-	transketolase
2749	 63.52	0	3068134..3069150	-	338	152971331	ypfG	KPN_02800	-	hypothetical protein
2750	 57.62	0	3069244..3069840	-	198	152971332	yffH	KPN_02801	-	MutT-like protein
2751	 64.94	+1	3069899..3071812	-	637	152971333	aegA	KPN_02802	-	putative oxidoreductase Fe-S binding subunit
2752	 60.95	0	3072254..3075367	+	1037	152971334	acrD	KPN_02803	-	aminoglycoside/multidrug efflux system
2753	 54.24	0	3075920..3076273	+	117	152971335	yffB	KPN_02804	-	hypothetical protein
2754	 60.28	0	3076277..3077404	+	375	152971336	dapE	KPN_02805	-	succinyl-diaminopimelate desuccinylase
2755	 46.08	-2	3077431..3077634	+	67	152971337	yhaI	KPN_02806	-	hypothetical protein
2756	 58.33	0	3077683..3078378	-	231	152971338	ypfH	KPN_02807	-	esterase YpfH
2757	 68.06	+1	3078455..3080458	-	667	152971339	ypfI	KPN_02808	-	putative acyl-CoA N-acyltransferase
2758	 60.16	0	3080468..3081343	-	291	152971340	ypfJ	KPN_02809	-	hypothetical protein
2759	 52.80	0	3081463..3082176	-	237	152971341	purC	KPN_02810	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
2760	 60.39	0	3082405..3083439	-	344	152971342	nlpB	KPN_02811	-	lipoprotein
2761	 54.27	0	3083456..3084334	-	292	152971343	dapA	KPN_02812	-	dihydrodipicolinate synthase
2762	 52.73	0	3084488..3085054	+	188	152971344	gcvR	KPN_02813	-	glycine cleavage system transcriptional repressor
2763	 50.96	-1	3085058..3085528	+	156	152971345	bcp	KPN_02814	-	thioredoxin-dependent thiol peroxidase
2764	 58.57	0	3085590..3086651	-	353	152971346	perM	KPN_02815	-	putative permease
2765	 60.66	0	3086874..3088337	+	487	152971347	yfgC	KPN_02816	-	hypothetical protein
2766	 60.28	0	3088347..3088706	+	119	152971348	yfgD	KPN_02817	-	putative arsenate reductase
2767	 58.39	0	3088828..3089745	+	305	152971349	-	KPN_02818	-	putative transposase, YhgA-like protein
2768	 59.73	0	3089742..3090419	-	225	152971350	hda	KPN_02819	-	DNA replication initiation factor
2769	 58.66	0	3090542..3091828	-	428	152971351	uraA	KPN_02820	-	uracil transporter
2770	 56.14	0	3091924..3092550	-	208	152971352	upp	KPN_02821	-	uracil phosphoribosyltransferase
2771	 55.86	0	3092768..3094201	-	477	152971353	-	KPN_02822	-	6-phospho-beta-glucosidase
2772	 57.61	0	3094211..3095104	-	297	152971354	-	KPN_02823	-	putative beta-glucoside kinase
2773	 58.67	0	3095368..3096405	+	345	152971355	purM	KPN_02824	-	phosphoribosylaminoimidazole synthetase
2774	 60.90	0	3096402..3097043	+	213	152971356	purN	KPN_02825	-	phosphoribosylglycinamide formyltransferase
2775	 54.00	0	3097224..3099284	+	686	152971357	ppk	KPN_02826	-	polyphosphate kinase
2776	 58.45	0	3099288..3100820	+	510	152971358	ppx	KPN_02827	-	exopolyphosphatase
2777	 52.98	0	3100874..3103102	-	742	152971359	yfgF	KPN_02828	-	putative cytochrome C-type biogenesis protein
2778	 49.28	-1	3103380..3103586	-	68	152971360	-	KPN_02829	-	putative inner membrane protein
2779	 62.73	0	3103743..3104630	-	295	152971361	-	KPN_02830	-	LysR family transcriptional regulator
2780	 52.53	0	3106365..3107432	+	355	152971362	-	KPN_02831	-	putative arylsulfatase regulator
2781	 51.31	-1	3107416..3109284	+	622	152971363	-	KPN_02832	-	putative phosphatase/sulfatase
2782	 58.75	0	3109379..3110956	-	525	152971364	guaA	KPN_02833	-	bifunctional GMP synthase/glutamine amidotransferase protein
2783	 59.30	0	3111024..3112490	-	488	152971365	guaB	KPN_02834	-	inositol-5-monophosphate dehydrogenase
2784	 61.85	0	3112649..3114040	+	463	152971366	xseA	KPN_02835	-	exodeoxyribonuclease VII large subunit
2785	 64.44	+1	3114292..3115371	-	359	152971367	-	KPN_02836	-	hypothetical protein
2786	 47.34	-1	3116256..3116612	-	118	152971368	-	KPN_02837	-	hypothetical protein
2787	 55.16	0	3116660..3117163	-	167	152971369	-	KPN_02838	-	IS1 transposase
2788	 53.62	0	3117082..3117357	-	91	152971370	-	KPN_02839	-	insertion element protein
2789	 37.71	-2	3117408..3117818	-	136	152971371	-	KPN_02840	-	hypothetical protein
2790	 58.15	0	3118092..3119570	-	492	152971372	yfgK	KPN_02841	-	GTP-binding protein EngA
2791	 58.44	0	3119684..3120862	-	392	152971373	yfgL	KPN_02842	-	outer membrane protein assembly complex subunit YfgL
2792	 54.91	0	3120873..3121493	-	206	152971374	yfgM	KPN_02843	-	hypothetical protein
2793	 59.84	0	3121528..3122772	-	414	152971375	hisS	KPN_02844	-	histidyl-tRNA synthetase
2794	 56.06	0	3122894..3124015	-	373	152971376	ispG	KPN_02845	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
2795	 61.35	0	3124042..3125037	-	331	152971377	yfgA	KPN_02846	-	hypothetical protein
2796	 57.67	0	3125314..3126480	-	388	152971378	yfgB	KPN_02847	-	hypothetical protein
2797	 56.25	0	3126833..3127264	-	143	152971379	ndk	KPN_02848	-	nucleoside diphosphate kinase
2798	 66.28	+1	3127425..3129749	-	774	152971380	pbpC	KPN_02849	-	penicillin-binding protein 1C
2799	 63.03	0	3129750..3134699	-	1649	152971381	yfhM	KPN_02850	-	hypothetical protein
2800	 63.05	0	3134905..3135762	+	285	152971382	sseA	KPN_02851	-	3-mercaptopyruvate sulfurtransferase
2801	 52.38	0	3135927..3136577	+	216	152971383	-	KPN_02852	-	hypothetical protein
2802	 59.79	0	3136680..3137522	+	280	152971384	-	KPN_02853	-	hypothetical protein
2803	 57.73	0	3137593..3138375	-	260	152971385	sseB	KPN_02854	-	enhanced serine sensitivity protein SseB
2804	 60.84	0	3138474..3139760	-	428	152971386	pepB	KPN_02855	-	aminopeptidase B
2805	 49.75	-1	3139831..3140031	-	66	152971387	yfhJ	KPN_02856	-	hypothetical protein
2806	 56.25	0	3140033..3140368	-	111	152971388	fdx	KPN_02857	-	[2FE-2S] ferredoxin, electron carrer protein
2807	 62.99	0	3140370..3142220	-	616	152971389	hscA	KPN_02858	-	chaperone protein HscA
2808	 55.62	0	3142236..3142751	-	171	152971390	hscB	KPN_02859	-	co-chaperone HscB
2809	 54.01	0	3142826..3143149	-	107	152971391	iscA	KPN_02860	-	iron-sulfur cluster assembly protein
2810	 54.26	0	3143167..3143553	-	128	152971392	iscU	KPN_02861	-	scaffold protein
2811	 55.39	0	3143580..3144794	-	404	152971393	iscS	KPN_02862	-	cysteine desulfurase
2812	 57.72	0	3144973..3145464	-	163	152971394	iscR	KPN_02863	-	DNA-binding transcriptional regulator IscR
2813	 61.36	0	3145699..3146433	-	244	152971395	yfhQ	KPN_02864	-	tRNA/rRNA methyltransferase
2814	 57.46	0	3146554..3147357	+	267	152971396	suhB	KPN_02865	-	inositol monophosphatase
2815	 59.98	0	3147404..3148240	-	278	152971397	ynfA	KPN_02866	-	hypothetical protein
2816	 64.42	+1	3148340..3149320	-	326	152971398	yohM	KPN_02867	-	putative transmembrane protein
2817	 56.17	0	3149311..3149910	-	199	152971399	ycjP	KPN_02868	-	ABC transporter membrane protein
2818	 58.22	0	3150074..3151351	+	425	152971400	csiE	KPN_02869	-	stationary phase inducible protein CsiE
2819	 62.53	0	3151348..3152484	-	378	152971401	hcaT	KPN_02870	-	putative 3-phenylpropionic acid transporter
2820	 54.20	0	3152567..3153400	-	277	152971402	-	KPN_02871	-	hypothetical protein
2821	 57.07	0	3153400..3154899	-	499	152971403	-	KPN_02872	-	putative general substrate transporter
2822	 56.26	0	3154906..3158181	-	1091	152971404	yphG	KPN_02873	-	putative transferase
2823	 55.05	0	3158294..3159490	+	398	152971405	yphH	KPN_02874	-	putative NAGC-like transcriptional regulator
2824	 57.21	0	3159564..3159986	+	140	152971406	yphA	KPN_02875	-	putative transmembrane protein
2825	 56.38	0	3160042..3161295	-	417	152971407	glyA	KPN_02876	-	serine hydroxymethyltransferase
2826	 57.26	0	3161621..3162811	+	396	152971408	hmpA	KPN_02877	-	nitric oxide dioxygenase
2827	 50.15	-1	3162886..3163224	-	112	152971409	glnB	KPN_02878	-	nitrogen regulatory protein P-II 1
2828	 61.66	0	3163290..3164627	-	445	152971410	yfhA	KPN_02879	-	putative 2-component transcriptional regulator
2829	 64.34	+1	3164614..3165300	-	228	152971411	yfhG	KPN_02880	-	hypothetical protein
2830	 60.35	0	3165330..3166769	-	479	152971412	yfhK	KPN_02881	-	putative 2-component sensor protein
2831	 62.76	0	3167342..3171229	-	1295	152971413	purL	KPN_02882	-	phosphoribosylformylglycinamidine synthase
2832	 57.08	0	3171404..3173020	+	538	152971414	yfhD	KPN_02883	-	putative transglycosylase
2833	 62.81	0	3173017..3173535	-	172	152971415	tadA	KPN_02884	-	tRNA-specific adenosine deaminase
2834	 61.79	0	3173589..3174203	-	204	152971416	yfhB	KPN_02885	-	hypothetical protein
2835	 60.54	0	3174438..3175286	+	282	152971417	yfhH	KPN_02886	-	putative DNA-binding transcriptional regulator
57.88	MEAN

5.81	STD DEV
