IslandPathversion 1.0

IslandPath Analysis: Klebsiella pneumoniae subsp. pneumoniae MGH 78578

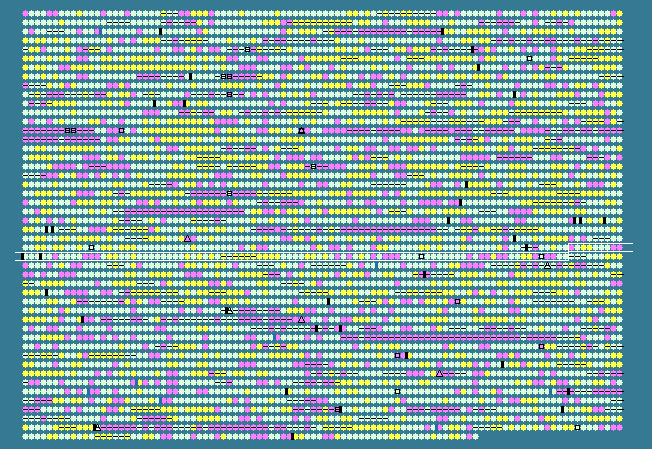

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.88 STD DEV: 5.81
Klebsiella pneumoniae subsp. pneumoniae MGH 78578, complete genome - 1..5315120
4776 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2692	 50.07	-1	3008728..3009480	+	250	152971274	ypdB	KPN_02737	-	putative 2-component transcriptional regulator
2693	 58.70	0	3009534..3010499	-	321	152971275	glk	KPN_02738	-	glucokinase
2694	 63.53	0	3010787..3011998	+	403	152971276	yfeO	KPN_02739	-	hypothetical protein
2695	 61.93	0	3011995..3013662	-	555	152971277	-	KPN_02740	-	putative pyruvate decarboxylase
2696	 57.89	0	3013873..3014829	+	318	152971278	yghZ	KPN_02741	-	putative oxidoreductase
2697	 58.89	0	3014960..3015319	+	119	152971279	ypeC	KPN_02742	-	hypothetical protein
2698	 58.70	0	3015377..3016618	-	413	152971280	mntH	KPN_02743	-	manganese transport protein MntH
2699	 52.29	0	3016965..3018167	+	400	152971281	nupC	KPN_02744	-	NupC family nucleoside transporter
2700	 51.13	-1	3018174..3020387	-	737	152971282	yfeA	KPN_02745	-	hypothetical protein
2701	 57.23	0	3021024..3021362	+	112	152971283	yfeC	KPN_02748	-	putative negative regulator
2702	 57.76	0	3021366..3021758	+	130	152971284	yfeD	KPN_02749	-	putative negative regulator
2703	 55.32	0	3021810..3023228	-	472	152971285	gltX	KPN_02750	-	glutamyl-tRNA synthetase
2704	 59.86	0	3023971..3024822	-	283	152971286	yfeR	KPN_02755	-	LysR family transcriptional regulator
2705	 57.86	0	3024986..3025984	+	332	152971287	yfeH	KPN_02756	-	putative cytochrome oxidase
2706	 52.97	0	3025981..3026199	-	72	152971288	yfeC	KPN_02757	-	putative negative regulator
2707	 60.96	0	3026201..3028216	-	671	152971289	ligA	KPN_02758	-	NAD-dependent DNA ligase LigA
2708	 60.64	0	3028286..3029347	-	353	152971290	zipA	KPN_02759	-	cell division protein ZipA
2709	 57.35	0	3029578..3030339	+	253	152971291	cysZ	KPN_02760	-	putative sulfate transport protein CysZ
2710	 56.69	0	3030516..3031487	+	323	152971292	cysK	KPN_02761	-	cysteine synthase A
2711	 52.33	0	3031868..3032125	+	85	152971293	ptsH	KPN_02762	-	phosphohistidinoprotein-hexose phosphotransferase component of PTS system (Hpr)
2712	 52.03	-1	3032170..3033897	+	575	152971294	ptsI	KPN_02763	-	phosphoenolpyruvate-protein phosphotransferase
2713	 48.82	-1	3033940..3034449	+	169	152971295	crr	KPN_02764	-	glucose-specific PTS system component
2714	 59.58	0	3034491..3034730	-	79	152971296	-	KPN_02765	-	hypothetical protein
2715	 62.40	0	3034727..3035593	-	288	152971297	pdxK	KPN_02766	-	pyridoxal kinase
2716	 64.82	+1	3035676..3036974	+	432	152971298	-	KPN_02767	-	putative regulatory protein
2717	 55.56	0	3037115..3037510	+	131	152971299	-	KPN_02768	-	hypothetical protein
2718	 60.86	0	3037507..3038418	-	303	152971300	cysM	KPN_02769	-	cysteine synthase B
2719	 62.19	0	3038537..3039631	-	364	152971301	cysA	KPN_02770	-	sulfate/thiosulfate transporter subunit
2720	 58.11	0	3039621..3040496	-	291	152971302	cysW	KPN_02771	-	sulfate/thiosulfate transporter permease subunit
2721	 59.83	0	3040496..3041329	-	277	152971303	cysU	KPN_02772	-	sulfate/thiosulfate transporter subunit
2722	 55.36	0	3041329..3042345	-	338	152971304	cysP	KPN_02773	-	thiosulfate transporter subunit
2723	 58.22	0	3042984..3043883	-	299	152971305	yfeX	KPN_02774	-	hypothetical protein
2724	 57.64	0	3043978..3044553	-	191	152971306	yfeY	KPN_02775	-	hypothetical protein
2725	 60.44	0	3044615..3045064	-	149	152971307	yfeZ	KPN_02776	-	hypothetical protein
2726	 56.69	0	3045051..3045491	-	146	152971308	ypeA	KPN_02777	-	putative acetyltransferase
2727	 57.50	0	3045688..3046560	+	290	152971309	amiA	KPN_02778	-	N-acetylmuramoyl-l-alanine amidase I
2728	 61.67	0	3046560..3047459	+	299	152971310	hemF	KPN_02779	-	coproporphyrinogen III oxidase
2729	 59.83	0	3047503..3048555	-	350	152971311	yfeG	KPN_02780	-	transcriptional regulator EutR
2730	 65.46	+1	3048601..3049098	-	165	152971312	yffI	KPN_02781	-	putative carboxysome structural protein, ethanolamine utilization
2731	 60.71	0	3049098..3049718	-	206	152971313	eutL	KPN_02782	-	putative carboxysome structural protein, ethanolamine utilization
2732	 63.89	+1	3049767..3050666	-	299	152971314	eutC	KPN_02783	-	ethanolamine ammonia-lyase small subunit
2733	 59.25	0	3050687..3052048	-	453	152971315	eutB	KPN_02784	-	ethanolamine ammonia-lyase, heavy chain
2734	 64.60	+1	3052060..3053463	-	467	152971316	eutA	KPN_02785	-	reactivating factor for ethanolamine ammonia lyase
2735	 59.53	0	3053460..3054692	-	410	152971317	eutH	KPN_02786	-	ethanolamine utilization; putative transport protein
2736	 65.74	+1	3054892..3056079	-	395	152971318	eutG	KPN_02787	-	ethanolamine utilization enzyme
2737	 62.77	0	3056069..3056914	-	281	152971319	eutJ	KPN_02788	-	ethanolamine utilization protein
2738	 62.82	0	3056918..3058321	-	467	152971320	eutE	KPN_02789	-	ethanolamine utilization protein
2739	 62.85	0	3058333..3058620	-	95	152971321	cchB	KPN_02790	-	detox protein
2740	 62.20	0	3058749..3059039	-	96	152971322	cchA	KPN_02791	-	detox protein
2741	 67.55	+1	3059078..3060094	-	338	152971323	eutI	KPN_02792	-	phosphotransacetylase
2742	 62.59	0	3060084..3060893	-	269	152971324	eutT	KPN_02793	-	putative cobalamin adenosyltransferase in ethanolamine utilization
2743	 61.59	0	3060890..3061579	-	229	152971325	eutQ	KPN_02794	-	putative regulator of ethanolamine utilization
2744	 55.00	0	3061557..3062036	-	159	152971326	eutP	KPN_02795	-	putative ethanolamine utilization protein
2745	 57.14	0	3062049..3062384	-	111	152971327	ypfE	KPN_02796	-	putative carboxysome structural protein, ethanol utilization
2746	 60.57	0	3062603..3064882	-	759	152971328	maeB	KPN_02797	-	malic enzyme
2747	 60.19	0	3065177..3066133	+	318	152971329	talA	KPN_02798	-	transaldolase A
2748	 61.80	0	3066150..3068144	+	664	152971330	tktB	KPN_02799	-	transketolase
2749	 63.52	0	3068134..3069150	-	338	152971331	ypfG	KPN_02800	-	hypothetical protein
2750	 57.62	0	3069244..3069840	-	198	152971332	yffH	KPN_02801	-	MutT-like protein
2751	 64.94	+1	3069899..3071812	-	637	152971333	aegA	KPN_02802	-	putative oxidoreductase Fe-S binding subunit
2752	 60.95	0	3072254..3075367	+	1037	152971334	acrD	KPN_02803	-	aminoglycoside/multidrug efflux system
2753	 54.24	0	3075920..3076273	+	117	152971335	yffB	KPN_02804	-	hypothetical protein
2754	 60.28	0	3076277..3077404	+	375	152971336	dapE	KPN_02805	-	succinyl-diaminopimelate desuccinylase
2755	 46.08	-2	3077431..3077634	+	67	152971337	yhaI	KPN_02806	-	hypothetical protein
2756	 58.33	0	3077683..3078378	-	231	152971338	ypfH	KPN_02807	-	esterase YpfH
2757	 68.06	+1	3078455..3080458	-	667	152971339	ypfI	KPN_02808	-	putative acyl-CoA N-acyltransferase
2758	 60.16	0	3080468..3081343	-	291	152971340	ypfJ	KPN_02809	-	hypothetical protein
2759	 52.80	0	3081463..3082176	-	237	152971341	purC	KPN_02810	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
2760	 60.39	0	3082405..3083439	-	344	152971342	nlpB	KPN_02811	-	lipoprotein
2761	 54.27	0	3083456..3084334	-	292	152971343	dapA	KPN_02812	-	dihydrodipicolinate synthase
2762	 52.73	0	3084488..3085054	+	188	152971344	gcvR	KPN_02813	-	glycine cleavage system transcriptional repressor
2763	 50.96	-1	3085058..3085528	+	156	152971345	bcp	KPN_02814	-	thioredoxin-dependent thiol peroxidase
2764	 58.57	0	3085590..3086651	-	353	152971346	perM	KPN_02815	-	putative permease
2765	 60.66	0	3086874..3088337	+	487	152971347	yfgC	KPN_02816	-	hypothetical protein
2766	 60.28	0	3088347..3088706	+	119	152971348	yfgD	KPN_02817	-	putative arsenate reductase
2767	 58.39	0	3088828..3089745	+	305	152971349	-	KPN_02818	-	putative transposase, YhgA-like protein
2768	 59.73	0	3089742..3090419	-	225	152971350	hda	KPN_02819	-	DNA replication initiation factor
2769	 58.66	0	3090542..3091828	-	428	152971351	uraA	KPN_02820	-	uracil transporter
2770	 56.14	0	3091924..3092550	-	208	152971352	upp	KPN_02821	-	uracil phosphoribosyltransferase
2771	 55.86	0	3092768..3094201	-	477	152971353	-	KPN_02822	-	6-phospho-beta-glucosidase
2772	 57.61	0	3094211..3095104	-	297	152971354	-	KPN_02823	-	putative beta-glucoside kinase
2773	 58.67	0	3095368..3096405	+	345	152971355	purM	KPN_02824	-	phosphoribosylaminoimidazole synthetase
2774	 60.90	0	3096402..3097043	+	213	152971356	purN	KPN_02825	-	phosphoribosylglycinamide formyltransferase
2775	 54.00	0	3097224..3099284	+	686	152971357	ppk	KPN_02826	-	polyphosphate kinase
2776	 58.45	0	3099288..3100820	+	510	152971358	ppx	KPN_02827	-	exopolyphosphatase
2777	 52.98	0	3100874..3103102	-	742	152971359	yfgF	KPN_02828	-	putative cytochrome C-type biogenesis protein
2778	 49.28	-1	3103380..3103586	-	68	152971360	-	KPN_02829	-	putative inner membrane protein
2779	 62.73	0	3103743..3104630	-	295	152971361	-	KPN_02830	-	LysR family transcriptional regulator
2780	 52.53	0	3106365..3107432	+	355	152971362	-	KPN_02831	-	putative arylsulfatase regulator
2781	 51.31	-1	3107416..3109284	+	622	152971363	-	KPN_02832	-	putative phosphatase/sulfatase
2782	 58.75	0	3109379..3110956	-	525	152971364	guaA	KPN_02833	-	bifunctional GMP synthase/glutamine amidotransferase protein
2783	 59.30	0	3111024..3112490	-	488	152971365	guaB	KPN_02834	-	inositol-5-monophosphate dehydrogenase
2784	 61.85	0	3112649..3114040	+	463	152971366	xseA	KPN_02835	-	exodeoxyribonuclease VII large subunit
2785	 64.44	+1	3114292..3115371	-	359	152971367	-	KPN_02836	-	hypothetical protein
2786	 47.34	-1	3116256..3116612	-	118	152971368	-	KPN_02837	-	hypothetical protein
2787	 55.16	0	3116660..3117163	-	167	152971369	-	KPN_02838	-	IS1 transposase
2788	 53.62	0	3117082..3117357	-	91	152971370	-	KPN_02839	-	insertion element protein
2789	 37.71	-2	3117408..3117818	-	136	152971371	-	KPN_02840	-	hypothetical protein
2790	 58.15	0	3118092..3119570	-	492	152971372	yfgK	KPN_02841	-	GTP-binding protein EngA
2791	 58.44	0	3119684..3120862	-	392	152971373	yfgL	KPN_02842	-	outer membrane protein assembly complex subunit YfgL
57.88	MEAN

5.81	STD DEV
