IslandPath Analysis: Klebsiella pneumoniae subsp. pneumoniae MGH 78578

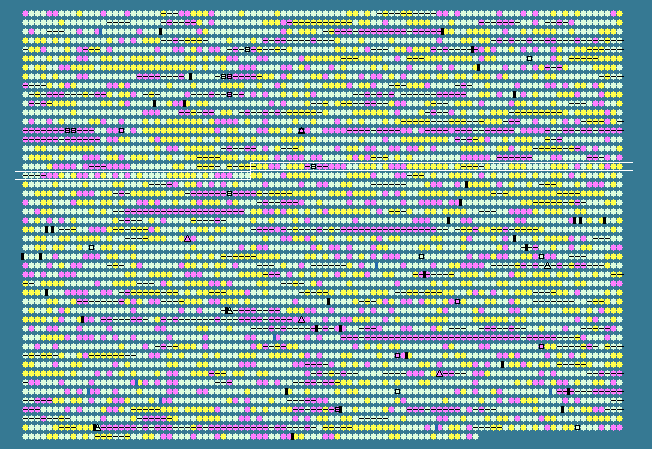

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.88 STD DEV: 5.81
Klebsiella pneumoniae subsp. pneumoniae MGH 78578, complete genome - 1..5315120
4776 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1739	 61.83	0	1951582..1951767	+	61	152970321	-	KPN_01769	-	hypothetical protein
1740	 67.31	+1	1951764..1953161	+	465	152970322	-	KPN_01770	-	amidase
1741	 64.34	+1	1953158..1953544	+	128	152970323	-	KPN_01771	-	hypothetical protein
1742	 49.41	-1	1953630..1954052	+	140	152970324	-	KPN_01772	-	acyltransferase domain-containing protein
1743	 51.47	-1	1954090..1955208	-	372	152970325	-	KPN_01773	-	aspartate-semialdehyde dehydrogenase
1744	 60.39	0	1955529..1956086	+	185	152970326	-	KPN_01774	-	putative transcriptional regulator
1745	 62.93	0	1956070..1957113	+	347	152970327	-	KPN_01775	-	multidrug resistance secretion protein
1746	 62.38	0	1957110..1958672	+	520	152970328	-	KPN_01776	-	multidrug resistance protein membrane translocase
1747	 64.78	+1	1958692..1959966	+	424	152970329	-	KPN_01777	-	putative beta-ketoacyl synthase
1748	 45.26	-2	1960261..1960671	+	136	152970330	-	KPN_01778	-	hypothetical protein
1749	 55.25	0	1961234..1962214	+	326	152970331	-	KPN_01779	-	putative transposase, IS4
1750	 51.44	-1	1962970..1963770	-	266	152970332	-	KPN_01780	-	putative ARAC-type regulatory protein
1751	 51.10	-1	1963863..1964588	+	241	152970333	-	KPN_01781	-	glutamine amidotransferase
1752	 46.80	-1	1964723..1965472	-	249	152970334	-	KPN_01782	-	putative deoxygluconate dehydrogenase
1753	 45.69	-2	1965792..1966301	+	169	152970335	-	KPN_01783	-	putative isochorismatase hydrolase
1754	 47.83	-1	1966562..1967182	-	206	152970336	-	KPN_01784	-	phosphoglycerate mutase
1755	 57.81	0	1967829..1968596	-	255	152970337	-	KPN_01785	-	putative ARAC-type regulatory protein
1756	 57.95	0	1968706..1969497	+	263	152970338	-	KPN_01786	-	hypothetical protein
1757	 63.02	0	1969586..1970518	-	310	152970339	-	KPN_01787	-	putative polysaccharide deacetylase
1758	 64.11	+1	1970531..1971274	-	247	152970340	-	KPN_01788	-	putative hydantoin racemase
1759	 63.18	0	1971274..1971990	-	238	152970341	-	KPN_01789	-	transcriptional regulator
1760	 59.85	0	1972135..1973631	+	498	152970342	-	KPN_01790	-	putative allantoin permease
1761	 61.78	0	1973733..1975043	+	436	152970343	-	KPN_01791	-	guanine deaminase
1762	 45.15	-2	1975138..1975797	-	219	152970344	-	KPN_01792	-	hypothetical protein
1763	 52.44	0	1975788..1977488	-	566	152970345	-	KPN_01793	-	hypothetical protein
1764	 50.91	-1	1978849..1980105	-	418	152970346	-	KPN_01794	-	hypothetical protein
1765	 62.54	0	1980504..1981544	+	346	152970347	-	KPN_01795	-	putative periplasmic binding protein/LacI transcriptional regulator
1766	 62.31	0	1981719..1982660	+	313	152970348	-	KPN_01796	-	putative epimerase/isomerase
1767	 63.34	0	1982674..1983846	+	390	152970349	-	KPN_01797	-	oxidoreductase
1768	 61.96	0	1983884..1985008	-	374	152970350	-	KPN_01798	-	hypothetical protein
1769	 63.07	0	1985425..1986120	+	231	152970351	-	KPN_01799	-	putative ABC transporter
1770	 69.00	+1	1986117..1986845	+	242	152970352	-	KPN_01800	-	putative ABC transporter
1771	 63.97	+1	1986842..1987582	+	246	152970353	-	KPN_01801	-	binding-protein dependent transport system inner membrane protein
1772	 60.10	0	1988849..1990234	+	461	152970354	-	KPN_01802	-	diaminobutyrate--2-oxoglutarate aminotransferase
1773	 61.71	0	1990253..1991725	+	490	152970355	-	KPN_01803	-	8-amino-7-oxononanoate synthase
1774	 65.32	+1	1991919..1992812	+	297	152970356	-	KPN_01804	-	LysR family NADH dehydrogenase transcriptional regulator
1775	 66.24	+1	1993052..1994212	-	386	152970357	-	KPN_01805	-	putative cytochrome c biogenesis protein
1776	 65.55	+1	1994345..1995688	-	447	152970358	-	KPN_01806	-	putative signal transduction histidine kinase
1777	 61.13	0	1995685..1996425	-	246	152970359	-	KPN_01807	-	putative transcriptional regulatory protein, C-terminal
1778	 62.05	0	1996512..1997528	-	338	152970360	-	KPN_01808	-	putative epoxide hydrolase protein
1779	 57.75	0	1997748..1998767	+	339	152970361	-	KPN_01809	-	proline dipeptidase
1780	 61.17	0	1999030..1999956	+	308	152970362	-	KPN_01810	-	pyrroloquinoline quinone biosynthesis protein PqqB
1781	 61.24	0	1999950..2000705	+	251	152970363	-	KPN_01811	-	pyrroloquinoline quinone biosynthesis protein PqqC
1782	 61.50	0	2000973..2002115	+	380	152970364	-	KPN_01812	-	pyrroloquinoline quinone biosynthesis protein PqqE
1783	 68.46	+1	2002115..2004400	+	761	152970365	-	KPN_01813	-	pyrroloquinolinquinone synthase F
1784	 65.18	+1	2004397..2005134	-	245	152970366	-	KPN_01814	-	glutamine amidotransferase
1785	 59.04	0	2005247..2007214	-	655	152970367	-	KPN_01815	-	cell elongation, e phase; peptidoglycan synthetase; penicillin-binding protein 2
1786	 60.59	0	2007356..2007832	-	158	152970368	-	KPN_01816	-	hypothetical protein
1787	 58.16	0	2007842..2008276	-	144	152970369	-	KPN_01817	-	hypothetical protein
1788	 60.34	0	2008376..2009308	+	310	152970370	-	KPN_01818	-	LysR family transcriptional regulator
1789	 62.81	0	2009577..2011754	+	725	152970371	-	KPN_01819	-	putative catalase (hydroperoxidase I)
1790	 62.01	0	2011789..2012775	-	328	152970372	-	KPN_01820	-	putative ATPase
1791	 61.71	0	2012948..2013592	-	214	152970373	-	KPN_01821	-	putative Mg(2+) transport ATPase
1792	 59.84	0	2014216..2015622	+	468	152970374	-	KPN_01822	-	putative transport protein
1793	 52.70	0	2015663..2015977	-	104	152970375	-	KPN_01823	-	putative phosphotransferase system PTS, lactose/cellobiose-specific IIA subunit
1794	 58.16	0	2016214..2017095	-	293	152970376	-	KPN_01824	-	transcriptional regulator LysR
1795	 62.19	0	2017245..2019545	-	766	152970377	-	KPN_01825	-	putative anaerobic dehydrogenases, typically selenocysteine-containing
1796	 58.71	0	2019861..2020778	-	305	152970378	-	KPN_01826	-	hypothetical protein
1797	 63.27	0	2021028..2021792	-	254	152970379	-	KPN_01827	-	putative cation efflux system
1798	 48.09	-1	2022001..2022183	+	60	152970380	-	KPN_01828	-	hypothetical protein
1799	 63.76	+1	2022173..2022859	+	228	152970381	-	KPN_01829	-	hypothetical protein
1800	 64.71	+1	2022861..2023730	-	289	152970382	-	KPN_01830	-	hypothetical protein
1801	 57.64	0	2023835..2024266	-	143	152970383	-	KPN_01831	-	osmotically inducible protein
1802	 60.54	0	2024380..2024526	-	48	152970384	-	KPN_01832	-	hypothetical protein
1803	 56.86	0	2024542..2024949	-	135	152970385	-	KPN_01833	-	hypothetical protein
1804	 49.40	-1	2025091..2025594	+	167	152970386	-	KPN_01834	-	hypothetical protein
1805	 44.74	-2	2025603..2026049	+	148	152970387	-	KPN_01835	-	hypothetical protein
1806	 43.75	-2	2026061..2026156	-	31	152970388	-	KPN_01836	-	hypothetical protein
1807	 62.75	0	2026368..2027363	+	331	152970389	-	KPN_01837	-	putative oxidoreductase
1808	 60.70	0	2027360..2028985	-	541	152970390	-	KPN_01838	-	putative glycosidase
1809	 65.03	+1	2029025..2029207	-	60	152970391	-	KPN_01839	-	PTS family enzyme IIBC component, cellobiose/salicin/arbutin-specific
1810	 53.25	0	2029224..2029730	-	168	152970392	-	KPN_01840	-	hypothetical protein
1811	 54.30	0	2030335..2030520	-	61	152970393	-	KPN_01841	-	hypothetical protein
1812	 59.67	0	2031176..2032090	+	304	152970394	-	KPN_01842	-	putative oxidoreductase
1813	 50.00	-1	2032287..2032532	+	81	152970395	-	KPN_01843	-	hypothetical protein
1814	 64.54	+1	2032600..2033493	-	297	152970396	-	KPN_01844	-	LysR family transcriptional regulator
1815	 59.27	0	2033607..2034458	+	283	152970397	-	KPN_01845	-	hypothetical protein
1816	 51.06	-1	2034636..2034776	+	46	152970398	rpsV	KPN_01846	-	30S ribosomal subunit S22
1817	 58.48	0	2034958..2036655	+	565	152970399	sfcA	KPN_01847	-	malate dehydrogenase
1818	 50.72	-1	2036839..2037534	+	231	152970400	-	KPN_01848	-	putative glycosyltransferase
1819	 55.90	0	2037531..2038217	+	228	152970401	-	KPN_01849	-	hypothetical protein
1820	 64.63	+1	2038579..2040294	+	571	152970402	-	KPN_01850	-	putative ATP-binding component of a transport system
1821	 61.11	0	2040331..2041284	-	317	152970403	-	KPN_01851	-	putative regulatory protein  MarR
1822	 58.50	0	2041458..2042057	-	199	152970404	-	KPN_01852	-	inorganic pyrophosphatase
1823	 60.63	0	2042310..2043320	+	336	152970405	adhP	KPN_01853	-	alcohol dehydrogenase
1824	 60.75	0	2043490..2045112	+	540	152970406	-	KPN_01854	-	nickel ABC transporter periplasmic substrate-binding protein
1825	 63.28	0	2045123..2046067	+	314	152970407	-	KPN_01855	-	peptide ABC transporter membrane protein
1826	 67.84	+1	2046064..2046912	+	282	152970408	-	KPN_01856	-	putative ABC transport system permease protein
1827	 64.25	+1	2046909..2048525	+	538	152970409	-	KPN_01857	-	putative ATP-binding component of a transport system
1828	 65.35	+1	2048525..2049511	+	328	152970410	-	KPN_01858	-	putative monooxygenase
1829	 65.66	+1	2049521..2050612	+	363	152970411	-	KPN_01859	-	hypothetical protein
1830	 60.87	0	2050619..2051773	-	384	152970412	-	KPN_01860	-	protein AraJ
1831	 62.36	0	2052038..2052478	+	146	152970413	-	KPN_01861	-	putative glyoxalase/bleomycin resistance protein/dioxygenase
1832	 57.94	0	2052540..2053364	+	274	152970414	-	KPN_01862	-	hypothetical protein
1833	 43.29	-2	2053498..2053728	+	76	152970415	-	KPN_01863	-	hypothetical protein
1834	 40.67	-2	2053725..2054051	+	108	152970416	-	KPN_01864	-	hypothetical protein
1835	 52.21	0	2054104..2054760	-	218	152970417	fdnI	KPN_01865	-	formate dehydrogenase-N subunit gamma
1836	 59.44	0	2054753..2055637	-	294	152970418	fdnH	KPN_01866	-	formate dehydrogenase-N, Fe-S beta subunit, nitrate-inducible
1837	 58.50	0	2055649..2058060	-	803	152970419	fdnG	KPN_01867	-	hypothetical protein
1838	 61.09	0	2058922..2059800	+	292	152970420	yddG	KPN_01868	-	hypothetical protein
57.88	MEAN

5.81	STD DEV
