IslandPathversion 1.0

IslandPath Analysis: Klebsiella pneumoniae subsp. pneumoniae MGH 78578

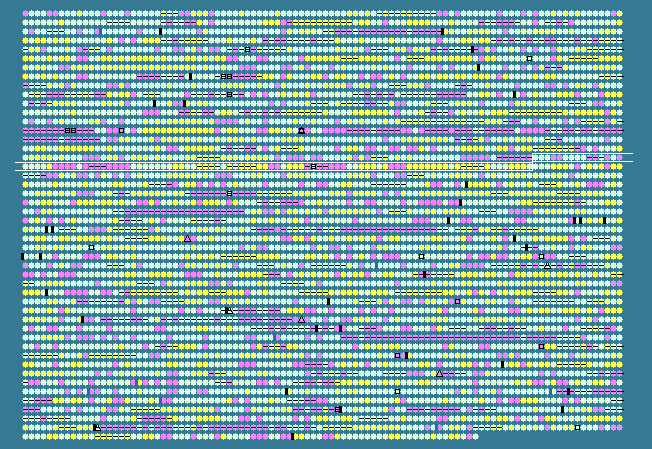

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.88 STD DEV: 5.81
Klebsiella pneumoniae subsp. pneumoniae MGH 78578, complete genome - 1..5315120
4776 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1686	 59.31	0	1896346..1897527	-	393	152970268	-	KPN_01716	-	putative dehydrogenase
1687	 57.24	0	1897574..1898560	-	328	152970269	-	KPN_01717	-	putative aldo/keto reductase
1688	 55.82	0	1898819..1899685	+	288	152970270	-	KPN_01718	-	LysR family transcriptional regulator
1689	 41.03	-2	1899754..1899870	+	38	152970271	-	KPN_01719	-	hypothetical protein
1690	 41.04	-2	1899867..1900385	-	172	152970272	-	KPN_01720	-	hypothetical protein
1691	 55.32	0	1900513..1901763	-	416	152970273	pgtA	KPN_01721	-	phosphoglycerate transport activator
1692	 56.67	0	1901753..1903762	-	669	152970274	pgtB	KPN_01722	-	phosphoglycerate transporter
1693	 57.24	0	1903759..1904988	-	409	152970275	pgtC	KPN_01723	-	phosphoglycerate transporter
1694	 55.23	0	1905466..1906776	+	436	152970276	pgtP	KPN_01724	-	phosphoglycerate transporter
1695	 49.56	-1	1906913..1907362	-	149	152970277	ygaU	KPN_01725	-	hypothetical protein
1696	 53.39	0	1907769..1908152	-	127	152970278	-	KPN_01726	-	hypothetical protein
1697	 56.59	0	1908742..1909386	-	214	152970279	-	KPN_01727	-	hypothetical protein
1698	 54.39	0	1909386..1910240	-	284	152970280	-	KPN_01728	-	hypothetical protein
1699	 58.76	0	1910258..1911130	+	290	152970281	-	KPN_01729	-	carbohydrate kinase
1700	 53.67	0	1911132..1912085	-	317	152970282	-	KPN_01730	-	putative ABC transporter, nucleotide binding/ATPase protein
1701	 59.53	0	1912432..1913454	+	340	152970283	-	KPN_01731	-	periplasmic binding protein/LacI transcriptional regulator
1702	 59.26	0	1913799..1914581	+	260	152970284	-	KPN_01732	-	putative ABC transporter
1703	 59.84	0	1914621..1915601	+	326	152970285	-	KPN_01733	-	putative ribose/xylose/arabinose/galactoside ABC-type transport systems, permease components
1704	 58.80	0	1915605..1916684	+	359	152970286	-	KPN_01734	-	putative hydrolase
1705	 61.85	0	1917454..1918596	+	380	152970287	-	KPN_01735	-	putative acetylornithine deacetylase
1706	 50.55	-1	1919242..1919967	-	241	152970288	-	KPN_01736	-	putative enzyme
1707	 52.65	0	1920179..1921084	+	301	152970289	-	KPN_01737	-	LysR family transcriptional regulator
1708	 48.62	-1	1921126..1922028	-	300	152970290	-	KPN_01738	-	LysR family transcriptional regulator
1709	 48.47	-1	1922132..1923340	+	402	152970291	-	KPN_01739	-	MFS family transporter
1710	 55.23	0	1923398..1924018	-	206	152970292	-	KPN_01740	-	amino acid exporter (homoserine, HSL)
1711	 52.03	-1	1924224..1925330	-	368	152970293	-	KPN_01741	-	putative phosphotransferase system, EIIC
1712	 46.15	-2	1925373..1925684	-	103	152970294	-	KPN_01742	-	PTS family enzyme IIB, fructose-mannitol-specific
1713	 45.01	-2	1925741..1926211	-	156	152970295	-	KPN_01743	-	PTS family enzyme IIA/ enzyme IIBC
1714	 46.30	-1	1926328..1926975	-	215	152970296	-	KPN_01744	-	allulose-6-phosphate 3-epimerase
1715	 52.57	0	1927029..1928291	-	420	152970297	-	KPN_01745	-	ascorbate-specific PTS system enzyme IIC
1716	 38.58	-2	1928322..1928588	-	88	152970298	-	KPN_01746	-	PTS family protein II component
1717	 45.43	-2	1928600..1929037	-	145	152970299	-	KPN_01747	-	PTS family enzyme IIA, mannitol-specific, cryptic
1718	 52.07	-1	1929246..1930307	+	353	152970300	-	KPN_01748	-	putative periplasmic binding protein/LacI transcriptional regulator
1719	 54.73	0	1930418..1930660	-	80	152970301	-	KPN_01749	-	hypothetical protein
1720	 59.58	0	1930853..1932151	+	432	152970302	-	KPN_01750	-	major facilitator superfamily permease
1721	 57.54	0	1932189..1932725	-	178	152970303	-	KPN_01751	-	putative acetyltransferase
1722	 56.82	0	1933365..1933943	+	192	152970304	-	KPN_01752	-	TetR/AcrR family transcriptional regulator
1723	 57.13	0	1933919..1935019	-	366	152970305	-	KPN_01753	-	putative ABC-type spermidine/putrescine transport systems
1724	 61.09	0	1935221..1936135	+	304	152970306	-	KPN_01754	-	hypothetical protein
1725	 59.94	0	1936176..1937408	-	410	152970307	-	KPN_01755	-	putative transporter
1726	 61.82	0	1937684..1939291	+	535	152970308	-	KPN_01756	-	hypothetical protein
1727	 64.21	+1	1939399..1940499	+	366	152970309	-	KPN_01757	-	putative NADH:flavin oxidoreductase/NADH oxidase
1728	 55.83	0	1940731..1941219	-	162	152970310	-	KPN_01758	-	putative cell envelope integrity inner membrane protein TolA
1729	 60.76	0	1941329..1942225	-	298	152970311	-	KPN_01759	-	LysR family transcriptional regulator
1730	 64.42	+1	1942394..1943371	+	325	152970312	-	KPN_01760	-	putative dehydrogenase
1731	 68.57	+1	1943404..1944663	-	419	152970313	-	KPN_01761	-	allantoate amidohydrolase
1732	 63.29	0	1944660..1945901	-	413	152970314	-	KPN_01762	-	Serine-pyruvate aminotransferase/ aspartate aminotransferase
1733	 59.76	0	1945917..1946654	-	245	152970315	-	KPN_01763	-	ATP-binding component of histidine transport
1734	 60.88	0	1946635..1947291	-	218	152970316	-	KPN_01764	-	amino acid ABC transporter membrane protein
1735	 62.31	0	1947291..1947956	-	221	152970317	-	KPN_01765	-	glutamine ABC transporter permease component
1736	 61.32	0	1947966..1948751	-	261	152970318	-	KPN_01766	-	cysteine ABC transporter periplasmic substrate binding protein
1737	 62.62	0	1948966..1949805	-	279	152970319	-	KPN_01767	-	putative sugar isomerase
1738	 68.30	+1	1949985..1951571	+	528	152970320	-	KPN_01768	-	gamma-glutamyltranspeptidase
1739	 61.83	0	1951582..1951767	+	61	152970321	-	KPN_01769	-	hypothetical protein
1740	 67.31	+1	1951764..1953161	+	465	152970322	-	KPN_01770	-	amidase
1741	 64.34	+1	1953158..1953544	+	128	152970323	-	KPN_01771	-	hypothetical protein
1742	 49.41	-1	1953630..1954052	+	140	152970324	-	KPN_01772	-	acyltransferase domain-containing protein
1743	 51.47	-1	1954090..1955208	-	372	152970325	-	KPN_01773	-	aspartate-semialdehyde dehydrogenase
1744	 60.39	0	1955529..1956086	+	185	152970326	-	KPN_01774	-	putative transcriptional regulator
1745	 62.93	0	1956070..1957113	+	347	152970327	-	KPN_01775	-	multidrug resistance secretion protein
1746	 62.38	0	1957110..1958672	+	520	152970328	-	KPN_01776	-	multidrug resistance protein membrane translocase
1747	 64.78	+1	1958692..1959966	+	424	152970329	-	KPN_01777	-	putative beta-ketoacyl synthase
1748	 45.26	-2	1960261..1960671	+	136	152970330	-	KPN_01778	-	hypothetical protein
1749	 55.25	0	1961234..1962214	+	326	152970331	-	KPN_01779	-	putative transposase, IS4
1750	 51.44	-1	1962970..1963770	-	266	152970332	-	KPN_01780	-	putative ARAC-type regulatory protein
1751	 51.10	-1	1963863..1964588	+	241	152970333	-	KPN_01781	-	glutamine amidotransferase
1752	 46.80	-1	1964723..1965472	-	249	152970334	-	KPN_01782	-	putative deoxygluconate dehydrogenase
1753	 45.69	-2	1965792..1966301	+	169	152970335	-	KPN_01783	-	putative isochorismatase hydrolase
1754	 47.83	-1	1966562..1967182	-	206	152970336	-	KPN_01784	-	phosphoglycerate mutase
1755	 57.81	0	1967829..1968596	-	255	152970337	-	KPN_01785	-	putative ARAC-type regulatory protein
1756	 57.95	0	1968706..1969497	+	263	152970338	-	KPN_01786	-	hypothetical protein
1757	 63.02	0	1969586..1970518	-	310	152970339	-	KPN_01787	-	putative polysaccharide deacetylase
1758	 64.11	+1	1970531..1971274	-	247	152970340	-	KPN_01788	-	putative hydantoin racemase
1759	 63.18	0	1971274..1971990	-	238	152970341	-	KPN_01789	-	transcriptional regulator
1760	 59.85	0	1972135..1973631	+	498	152970342	-	KPN_01790	-	putative allantoin permease
1761	 61.78	0	1973733..1975043	+	436	152970343	-	KPN_01791	-	guanine deaminase
1762	 45.15	-2	1975138..1975797	-	219	152970344	-	KPN_01792	-	hypothetical protein
1763	 52.44	0	1975788..1977488	-	566	152970345	-	KPN_01793	-	hypothetical protein
1764	 50.91	-1	1978849..1980105	-	418	152970346	-	KPN_01794	-	hypothetical protein
1765	 62.54	0	1980504..1981544	+	346	152970347	-	KPN_01795	-	putative periplasmic binding protein/LacI transcriptional regulator
1766	 62.31	0	1981719..1982660	+	313	152970348	-	KPN_01796	-	putative epimerase/isomerase
1767	 63.34	0	1982674..1983846	+	390	152970349	-	KPN_01797	-	oxidoreductase
1768	 61.96	0	1983884..1985008	-	374	152970350	-	KPN_01798	-	hypothetical protein
1769	 63.07	0	1985425..1986120	+	231	152970351	-	KPN_01799	-	putative ABC transporter
1770	 69.00	+1	1986117..1986845	+	242	152970352	-	KPN_01800	-	putative ABC transporter
1771	 63.97	+1	1986842..1987582	+	246	152970353	-	KPN_01801	-	binding-protein dependent transport system inner membrane protein
1772	 60.10	0	1988849..1990234	+	461	152970354	-	KPN_01802	-	diaminobutyrate--2-oxoglutarate aminotransferase
1773	 61.71	0	1990253..1991725	+	490	152970355	-	KPN_01803	-	8-amino-7-oxononanoate synthase
1774	 65.32	+1	1991919..1992812	+	297	152970356	-	KPN_01804	-	LysR family NADH dehydrogenase transcriptional regulator
1775	 66.24	+1	1993052..1994212	-	386	152970357	-	KPN_01805	-	putative cytochrome c biogenesis protein
1776	 65.55	+1	1994345..1995688	-	447	152970358	-	KPN_01806	-	putative signal transduction histidine kinase
1777	 61.13	0	1995685..1996425	-	246	152970359	-	KPN_01807	-	putative transcriptional regulatory protein, C-terminal
1778	 62.05	0	1996512..1997528	-	338	152970360	-	KPN_01808	-	putative epoxide hydrolase protein
1779	 57.75	0	1997748..1998767	+	339	152970361	-	KPN_01809	-	proline dipeptidase
1780	 61.17	0	1999030..1999956	+	308	152970362	-	KPN_01810	-	pyrroloquinoline quinone biosynthesis protein PqqB
1781	 61.24	0	1999950..2000705	+	251	152970363	-	KPN_01811	-	pyrroloquinoline quinone biosynthesis protein PqqC
1782	 61.50	0	2000973..2002115	+	380	152970364	-	KPN_01812	-	pyrroloquinoline quinone biosynthesis protein PqqE
1783	 68.46	+1	2002115..2004400	+	761	152970365	-	KPN_01813	-	pyrroloquinolinquinone synthase F
1784	 65.18	+1	2004397..2005134	-	245	152970366	-	KPN_01814	-	glutamine amidotransferase
1785	 59.04	0	2005247..2007214	-	655	152970367	-	KPN_01815	-	cell elongation, e phase; peptidoglycan synthetase; penicillin-binding protein 2
57.88	MEAN

5.81	STD DEV
