IslandPathversion 1.0

IslandPath Analysis: Klebsiella pneumoniae subsp. pneumoniae MGH 78578

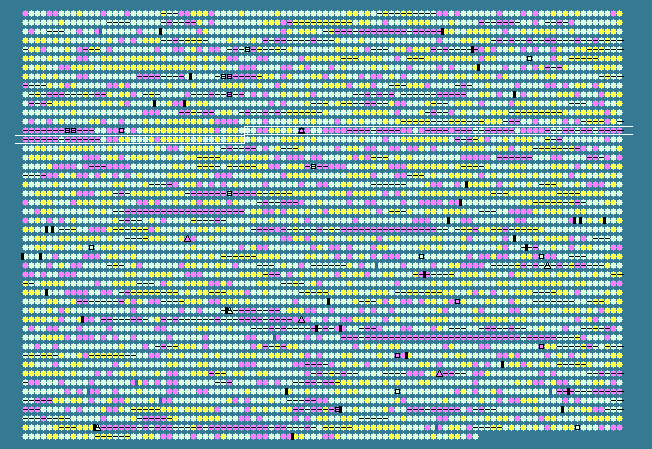

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 57.88 STD DEV: 5.81
Klebsiella pneumoniae subsp. pneumoniae MGH 78578, complete genome - 1..5315120
4776 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1338	 58.33	0	1532933..1533412	-	159	152969920	-	KPN_01367	-	regulator for leucine (or lrp) regulon and high-affinity branched-chain amino acid transport system
1339	 60.29	0	1533747..1535126	+	459	152969921	-	KPN_01368	-	aromatic amino acid transport protein
1340	 52.88	0	1535377..1536123	+	248	152969922	-	KPN_01369	-	hypothetical protein
1341	 45.64	-2	1536236..1536430	-	64	152969923	-	KPN_01370	-	hypothetical protein
1342	 62.83	0	1536667..1537761	-	364	152969924	-	KPN_01371	-	putative oxidoreductase
1343	 62.53	0	1537748..1538497	-	249	152969925	-	KPN_01372	-	DeoR transcriptional regulator
1344	 61.08	0	1538771..1539754	+	327	152969926	ydaN	KPN_01373	-	zinc transporter
1345	 62.52	0	1540280..1541653	+	457	152969927	dbpA	KPN_01374	-	ATP-dependent RNA helicase DbpA
1346	 55.66	0	1541699..1542634	-	311	152969928	ydaO	KPN_01375	-	C32 tRNA thiolase
1347	 46.25	-2	1542683..1543921	-	412	152969929	-	KPN_01376	-	putative transposase/integrase
1348	 46.01	-2	1543922..1544134	-	70	152969930	-	KPN_01377	-	putative excisionase
1349	 55.56	0	1544199..1544459	-	86	152969931	-	KPN_01378	-	hypothetical protein
1350	 58.58	0	1544446..1544754	-	102	152969932	-	KPN_01379	-	hypothetical protein
1351	 53.27	0	1544751..1545362	-	203	152969933	-	KPN_01380	-	hypothetical protein
1352	 50.48	-1	1545355..1545564	-	69	152969934	-	KPN_01381	-	hypothetical protein
1353	 50.20	-1	1545742..1546743	-	333	152969935	-	KPN_01382	-	putative entero exodeoxyribonuclease VIII
1354	 53.58	0	1546756..1549872	-	1038	152969936	-	KPN_01383	-	putative entero exodeoxyribonuclease VIII
1355	 53.50	0	1550010..1550366	-	118	152969937	-	KPN_01384	-	hypothetical protein
1356	 47.57	-1	1550662..1550970	-	102	152969938	-	KPN_01385	-	regulatory protein
1357	 38.51	-2	1551505..1551678	-	57	152969939	-	KPN_01386	-	hypothetical protein
1358	 39.21	-2	1551714..1552598	-	294	152969940	-	KPN_01387	-	hypothetical protein
1359	 56.56	0	1553547..1554011	+	154	152969941	-	KPN_01388	-	hypothetical protein
1360	 53.46	0	1554141..1554935	+	264	152969942	-	KPN_01389	-	hypothetical protein
1361	 51.69	-1	1554953..1555840	+	295	152969943	-	KPN_01390	-	hypothetical protein
1362	 54.00	0	1555843..1556592	+	249	152969944	-	KPN_01391	-	putative replication protein
1363	 47.26	-1	1556965..1557165	+	66	152969945	-	KPN_01392	-	hypothetical protein
1364	 47.62	-1	1557162..1557413	+	83	152969946	-	KPN_01393	-	hypothetical protein
1365	 52.22	0	1557410..1557679	+	89	152969947	-	KPN_01394	-	hypothetical protein
1366	 58.06	0	1557676..1559535	+	619	152969948	-	KPN_01395	-	putative site-specific DNA methylase
1367	 45.27	-2	1559689..1560132	+	147	152969949	-	KPN_01396	-	putative N-acetyltransferase
1368	 43.94	-2	1560133..1560264	+	43	152969950	-	KPN_01397	-	hypothetical protein
1369	 49.15	-1	1560612..1560845	+	77	152969951	-	KPN_01398	-	hypothetical protein
1370	 51.59	-1	1560881..1561477	+	198	152969952	-	KPN_01399	-	hypothetical protein
1371	 51.30	-1	1561979..1562323	+	114	152969953	-	KPN_01400	-	hypothetical protein
1372	 51.72	-1	1562496..1563251	+	251	152969954	-	KPN_01401	-	putative antitermination protein
1373	 43.15	-2	1563626..1564012	-	128	152969955	-	KPN_01402	-	hypothetical protein
1374	 49.49	-1	1564704..1565099	+	131	152969956	-	KPN_01403	-	hypothetical protein
1375	 51.42	-1	1565086..1565367	+	93	152969957	-	KPN_01404	-	hypothetical protein
1376	 54.70	0	1565367..1565993	+	208	152969958	-	KPN_01405	-	putative glycoside hydrolase
1377	 55.93	0	1566001..1566177	+	58	152969959	-	KPN_01406	-	hypothetical protein
1378	 39.34	-2	1566199..1566381	-	60	152969960	-	KPN_01407	-	hypothetical protein
1379	 46.63	-1	1567215..1567733	+	172	152969961	-	KPN_01408	-	hypothetical protein
1380	 39.95	-2	1567798..1568175	-	125	152969962	-	KPN_01409	-	hypothetical protein
1381	 47.92	-1	1568492..1568635	+	47	152969963	-	KPN_01410	-	hypothetical protein
1382	 38.38	-2	1569160..1569654	-	164	152969964	-	KPN_01411	-	hypothetical protein
1383	 55.22	0	1569749..1570753	+	334	152969965	-	KPN_01412	-	hypothetical protein
1384	 52.34	0	1570731..1572035	+	434	152969966	-	KPN_01413	-	hypothetical protein
1385	 52.42	0	1572040..1573464	+	474	152969967	-	KPN_01414	-	hypothetical protein
1386	 54.09	0	1573535..1574560	+	341	152969968	-	KPN_01415	-	hypothetical protein
1387	 52.29	0	1574667..1575431	+	254	152969969	-	KPN_01416	-	hypothetical protein
1388	 54.23	0	1575519..1576298	+	259	152969970	-	KPN_01417	-	hypothetical protein
1389	 57.50	0	1576295..1576654	+	119	152969971	-	KPN_01418	-	hypothetical protein
1390	 56.34	0	1576695..1576907	+	70	152969972	-	KPN_01419	-	hypothetical protein
1391	 49.15	-1	1576911..1577321	+	136	152969973	-	KPN_01420	-	hypothetical protein
1392	 50.17	-1	1577323..1577619	+	98	152969974	-	KPN_01421	-	hypothetical protein
1393	 56.77	0	1577591..1577974	+	127	152969975	-	KPN_01422	-	hypothetical protein
1394	 53.62	0	1577976..1578527	+	183	152969976	-	KPN_01423	-	hypothetical protein
1395	 54.20	0	1578524..1578916	+	130	152969977	-	KPN_01424	-	putative electron transfer flavoprotein subunit beta
1396	 54.66	0	1578940..1579872	+	310	152969978	-	KPN_01425	-	putative membrane component of transport system
1397	 51.72	-1	1579900..1580394	+	164	152969979	-	KPN_01426	-	hypothetical protein
1398	 46.07	-2	1581588..1581956	+	122	152969980	-	KPN_01427	-	hypothetical protein
1399	 49.78	-1	1582029..1585142	+	1037	152969981	-	KPN_01428	-	putative phage tail protein
1400	 34.23	-2	1585226..1585561	+	111	152969982	-	KPN_01429	-	hypothetical protein
1401	 51.90	-1	1585877..1586350	+	157	152969983	-	KPN_01430	-	alkanesulfonate ABC transporter membrane protein
1402	 49.28	-1	1586337..1586819	+	160	152969984	-	KPN_01431	-	arsenical resistance transcriptional repressor
1403	 54.16	0	1587206..1590292	+	1028	152969985	-	KPN_01432	-	putative kinase
1404	 50.63	-1	1590369..1593005	+	878	152969986	-	KPN_01433	-	flagellar biosynthesis, cell-distal portion of basal-body rod
1405	 51.86	-1	1593005..1593862	+	285	152969987	-	KPN_01434	-	hypothetical protein
1406	 45.98	-2	1593924..1594097	+	57	152969988	-	KPN_01435	-	RecA regulator RecX
1407	 56.99	0	1594184..1594462	+	92	152969989	-	KPN_01436	-	putative invertase
1408	 43.65	-2	1594546..1594962	+	138	152969990	-	KPN_01437	-	hypothetical protein
1409	 51.90	-1	1595512..1595931	+	139	152969991	umuD	KPN_01438	-	DNA polymerase V subunit UmuD
1410	 53.63	0	1596110..1597198	+	362	152969992	umuC	KPN_01439	-	DNA polymerase V subunit UmuC
1411	 46.39	-1	1597377..1598762	-	461	152969993	-	KPN_01440	-	hypothetical protein
1412	 50.80	-1	1598767..1599264	-	165	152969994	-	KPN_01441	-	hypothetical protein
1413	 39.57	-2	1599453..1600109	-	218	152969995	-	KPN_01442	-	hypothetical protein
1414	 55.01	0	1600280..1600957	-	225	152969996	-	KPN_01443	-	hypothetical protein
1415	 53.52	0	1601591..1602016	-	141	152969997	ynaF	KPN_01444	-	hypothetical protein
1416	 52.21	0	1602463..1603617	-	384	152969998	ompN	KPN_01445	-	outer membrane pore protein N, non-specific
1417	 61.73	0	1603974..1607501	-	1175	152969999	ydbK	KPN_01446	-	putative oxidoreductase, Fe-S subunit
1418	 66.27	+1	1607876..1608127	+	83	152970000	-	KPN_01447	-	hypothetical protein
1419	 58.73	0	1608173..1608613	-	146	152970001	hslJ	KPN_01448	-	heat shock protein hslJ
1420	 58.18	0	1608736..1609725	-	329	152970002	ldhA	KPN_01449	-	D-lactate dehydrogenase
1421	 60.28	0	1609873..1610373	-	166	152970003	-	KPN_01450	-	hypothetical protein
1422	 63.60	0	1610580..1613219	+	879	152970004	ydbH	KPN_01451	-	hypothetical protein
1423	 50.54	-1	1613216..1613401	+	61	152970005	ynbE	KPN_01452	-	hypothetical protein
1424	 62.96	0	1613409..1613732	+	107	152970006	ydbL	KPN_01453	-	hypothetical protein
1425	 63.01	0	1613733..1614635	-	300	152970007	feaR	KPN_01454	-	DNA-binding transcriptional activator FeaR
1426	 65.67	+1	1614871..1616370	+	499	152970008	feaB	KPN_01455	-	phenylacetaldehyde dehydrogenase
1427	 67.56	+1	1616495..1617385	+	296	152970009	-	KPN_01456	-	2-dehydropantoate 2-reductase
1428	 63.01	0	1617403..1618140	-	245	152970010	-	KPN_01457	-	hypothetical protein
1429	 58.97	0	1618140..1618970	-	276	152970011	-	KPN_01458	-	extracellular solute-binding family protein 3
1430	 64.03	+1	1618994..1619866	-	290	152970012	-	KPN_01459	-	putative dioxygenase
1431	 59.57	0	1619893..1621413	-	506	152970013	-	KPN_01460	-	putative ATP-binding component of a transport system
1432	 56.39	0	1621902..1622816	+	304	152970014	-	KPN_01461	-	LysR family transcriptional regulator
1433	 65.48	+1	1622986..1624245	+	419	152970015	-	KPN_01462	-	hypothetical protein
1434	 59.31	0	1624270..1624704	+	144	152970016	-	KPN_01463	-	putative endoribonuclease
1435	 65.98	+1	1625368..1626525	+	385	152970017	-	KPN_01464	-	acetylornithine deacetylase
1436	 64.10	+1	1626550..1627368	+	272	152970018	-	KPN_01465	-	putative phytanoyl-CoA dioxygenase
1437	 68.39	+1	1627391..1628374	+	327	152970019	-	KPN_01466	-	putative oxidoreductase
57.88	MEAN

5.81	STD DEV
