IslandPath Analysis: Janthinobacterium sp. Marseille

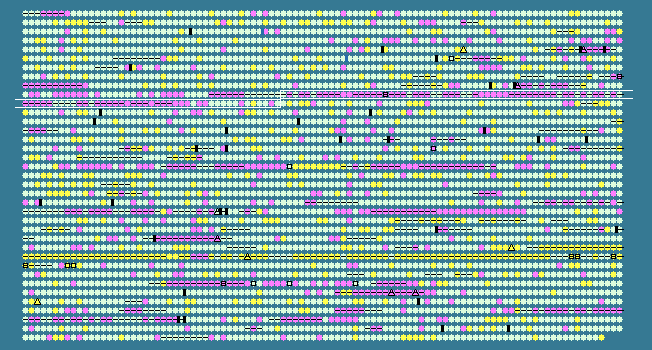

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 54.72   STD DEV: 4.12
Janthinobacterium sp. Marseille, complete genome - 1..4110251
3697 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
944	 53.70	0	1067338..1068093	-	251	152983049	ccmC	mma_0944	-	heme exporter protein CcmC
945	 51.19	0	1068110..1068781	-	223	152983050	ccmB	mma_0945	-	heme ABC export system, permease protein CcmB
946	 52.65	0	1068778..1069455	-	225	152983051	ccmA	mma_0946	-	cytochrome c biogenesis protein CcmA
947	 50.69	0	1069524..1070030	-	168	152983052	msrA1	mma_0947	-	methionine sulfoxide reductase A
948	 50.68	0	1070032..1070475	-	147	152983053	msrB1	mma_0948	-	methionine sulfoxide reductase B
949	 56.28	0	1070553..1071467	-	304	152983212	-	mma_0949	-	zinc-binding oxidoreductase
950	 50.78	0	1071709..1072287	-	192	152983454	-	mma_0950	-	cytochrome P460
951	 47.57	-1	1072334..1072930	-	198	152983335	cyp	mma_0951	-	cytochrome P460 precursor
952	 49.17	-1	1073228..1073770	-	180	152983054	cybB2	mma_0952	-	cytochrome B561
953	 43.55	-2	1073906..1074874	-	322	152983055	-	mma_0953	-	hypothetical protein
954	 49.96	-1	1074881..1076305	-	474	152983056	-	mma_0954	-	mercuric reductase
955	 46.88	-1	1076591..1078318	-	575	152982911	kefB1	mma_0955	-	glutathione-regulated potassium-efflux system protein kefB
956	 46.85	-1	1078580..1079578	-	332	152983057	-	mma_0956	-	AraC family transcriptional regulator
957	 39.82	-2	1080967..1081413	-	148	152983336	-	mma_0957	-	hypothetical protein
958	 42.52	-2	1081660..1082127	-	155	152983215	-	mma_0958	-	hypothetical protein
959	 50.59	-1	1082599..1083525	+	308	152983214	-	mma_0959	-	transcriptional regulator
960	 44.92	-2	1084105..1085709	+	534	152983213	-	mma_0960	-	hypothetical protein
961	 50.11	-1	1085666..1086571	+	301	152983058	-	mma_0961	-	transposase
962	 45.69	-2	1086572..1087291	+	239	152983337	-	mma_0962	-	hypothetical protein
963	 48.81	-1	1087538..1088500	+	320	152983216	-	mma_0963	-	diguanylate cyclase
964	 50.93	0	1088597..1089568	-	323	152983217	-	mma_0964	-	AraC family transcriptional regulator
965	 55.77	0	1089748..1090665	-	305	152983218	-	mma_0965	-	hypothetical protein
966	 50.47	-1	1090758..1092146	-	462	152980459	gor	mma_0966	-	glutathione reductase
967	 48.44	-1	1092287..1092736	-	149	152982912	-	mma_0967	-	acetyltransferase
968	 48.64	-1	1092815..1093291	-	158	152983219	-	mma_0968	-	hypothetical protein
969	 51.60	0	1093282..1093905	-	207	152983059	acpD2	mma_0969	-	acyl carrier protein phosphodiesterase
970	 53.36	0	1093965..1094663	-	232	152981682	gst3	mma_0970	-	glutathione S-transferase
971	 50.46	-1	1094690..1095232	-	180	152983060	mip	mma_0971	-	macrophage infectivity potentiator-related protein
972	 50.35	-1	1095274..1095984	-	236	152983220	-	mma_0972	-	short-chain dehydrogenase/reductase SDR
973	 50.92	0	1096145..1096690	-	181	152982018	-	mma_0973	-	hypothetical protein
974	 53.92	0	1096926..1097882	-	318	152983221	-	mma_0974	-	AraC family transcriptional regulator
975	 55.19	0	1098113..1098748	-	211	152982913	noxC	mma_0975	-	NADH oxidase
976	 49.07	-1	1098794..1099225	-	143	152983222	-	mma_0976	-	hypothetical protein
977	 48.99	-1	1099318..1099662	-	114	152983223	-	mma_0977	-	hypothetical protein
978	 50.14	-1	1099974..1101383	+	469	152983061	-	mma_0978	-	GntR family transcriptional regulator
979	 46.77	-1	1101437..1101823	-	128	152983062	-	mma_0979	-	uroporphyrin-III C-methyltransferase
980	 48.55	-1	1101846..1102430	-	194	152983063	-	mma_0980	-	uracil-DNA glycosylase
981	 50.75	0	1102600..1103064	+	154	152983453	-	mma_0981	-	hypothetical protein
982	 50.45	-1	1103135..1103911	-	258	152982543	-	mma_0982	-	hypothetical protein
983	 47.89	-1	1104151..1105359	+	402	152983452	-	mma_0983	-	hypothetical protein
984	 44.74	-2	1106007..1106690	+	227	152983451	-	mma_0984	-	hypothetical protein
985	 42.34	-2	1107003..1107224	+	73	152983225	alpA	mma_0985	-	prophage cp4-57 regulatory protein AlpA
986	 45.66	-2	1107984..1109435	+	483	152983224	-	mma_0986	-	hypothetical protein
987	 46.77	-1	1110697..1111269	-	190	152983064	radC1	mma_0987	-	DNA repair protein RadC
988	 49.57	-1	1111390..1112553	-	387	152983449	-	mma_0988	-	hypothetical protein
989	 47.84	-1	1112630..1113091	-	153	152983448	-	mma_0989	-	hypothetical protein
990	 53.33	0	1113111..1113455	-	114	152983226	-	mma_0990	-	hypothetical protein
991	 48.52	-1	1113553..1113789	+	78	152983227	hsdS	mma_0991	-	subunit S of type I restriction-modification system
992	 49.84	-1	1113801..1114757	-	318	152982914	-	mma_0992	-	hypothetical protein
993	 52.42	0	1114894..1115286	-	130	152983338	-	mma_0993	-	hypothetical protein
994	 47.27	-1	1115491..1116774	-	427	152983228	-	mma_0994	-	hypothetical protein
995	 53.26	0	1116829..1117596	-	255	152982915	-	mma_0995	-	hypothetical protein
996	 48.72	-1	1117583..1118011	-	142	152983447	-	mma_0996	-	hypothetical protein
997	 51.17	0	1118008..1118607	-	199	152982916	-	mma_0997	-	hypothetical protein
998	 56.14	0	1118747..1118974	+	75	152983229	-	mma_0998	-	hypothetical protein
999	 50.24	-1	1119071..1119892	+	273	152983065	-	mma_0999	-	hypothetical protein
1000	 52.30	0	1119905..1120816	+	303	152983066	-	mma_1000	-	hypothetical protein
1001	 48.28	-1	1120826..1121521	+	231	152983067	-	mma_1001	-	hypothetical protein
1002	 47.25	-1	1121634..1122725	+	363	152983446	-	mma_1002	-	hypothetical protein
1003	 44.44	-2	1122722..1123450	+	242	152983445	-	mma_1003	-	hypothetical protein
1004	 49.75	-1	1123758..1126169	+	803	152983444	-	mma_1004	-	hypothetical protein
1005	 50.69	0	1126126..1127571	+	481	152983443	-	mma_1005	-	hypothetical protein
1006	 53.26	0	1127825..1129114	-	429	152982917	-	mma_1006	-	hypothetical protein
1007	 53.65	0	1129066..1131876	-	936	152982918	-	mma_1007	-	hypothetical protein
1008	 52.46	0	1131876..1132565	-	229	152983339	-	mma_1008	-	hypothetical protein
1009	 52.85	0	1132558..1133787	-	409	152983442	-	mma_1009	-	hypothetical protein
1010	 49.09	-1	1134110..1134820	+	236	152983068	-	mma_1010	-	hypothetical protein
1011	 48.99	-1	1134893..1135435	+	180	152983340	-	mma_1011	-	hypothetical protein
1012	 53.64	0	1136739..1138166	+	475	152983230	-	mma_1012	-	hypothetical protein
1013	 43.31	-2	1138477..1139919	+	480	152983231	-	mma_1013	-	hypothetical protein
1014	 44.57	-2	1139949..1141043	+	364	152983341	-	mma_1014	-	hypothetical protein
1015	 42.50	-2	1141040..1141639	+	199	152983342	-	mma_1015	-	hypothetical protein
1016	 47.72	-1	1142269..1143255	+	328	152983343	-	mma_1016	-	hypothetical protein
1017	 48.47	-1	1143488..1144207	-	239	152982919	-	mma_1017	-	isochorismatase family protein
1018	 49.13	-1	1144271..1144846	-	191	152983069	-	mma_1018	-	TetR family transcriptional regulator
1019	 43.79	-2	1145024..1145587	+	187	152983070	-	mma_1019	-	TetR family transcriptional regulator
1020	 49.54	-1	1145665..1146978	+	437	152983071	fabF2	mma_1020	-	3-oxoacyl-acyl carrier protein synthase II
1021	 44.03	-2	1147382..1148344	+	320	152983072	ssuA2	mma_1021	-	sulfonate ABC transporter, periplasmic sulfonate-binding protein SsuA
1022	 46.81	-1	1148354..1149481	+	375	152983073	ssuD2	mma_1022	-	alkanesulfonate monooxygenase
1023	 44.59	-2	1150188..1150631	+	147	152983074	-	mma_1023	-	MarR family transcriptional regulator
1024	 50.09	-1	1150710..1151813	+	367	152983075	-	mma_1024	-	component of multidrug efflux system
1025	 48.94	-1	1151810..1154917	+	1035	152982920	-	mma_1025	-	cation efflux system protein
1026	 48.22	-1	1154914..1156344	+	476	152983076	opmR	mma_1026	-	outer membrane protein
1027	 40.89	-2	1157532..1157981	+	149	152983077	-	mma_1027	-	hypothetical protein
1028	 48.13	-1	1158048..1159865	+	605	152983078	-	mma_1028	-	hypothetical protein
1029	 51.63	0	1159865..1161586	+	573	152983232	-	mma_1029	-	ATP-dependent DNA helicase
1030	 45.35	-2	1161754..1163268	+	504	152983441	-	mma_1030	-	hypothetical protein
1031	 40.71	-2	1163832..1164983	-	383	152983440	-	mma_1031	-	hypothetical protein
1032	 52.69	0	1165687..1166244	+	185	152983079	-	mma_1032	-	transcriptional regulator
1033	 54.79	0	1166341..1167552	-	403	152983080	-	mma_1033	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1034	 52.20	0	1167957..1168889	-	310	152982921	-	mma_1035	-	TetR family transcriptional regulator
1035	 56.11	0	1168714..1169376	+	220	152980078	-	mma_1034	-	hypothetical protein
1036	 55.29	0	1169451..1170206	+	251	152980201	-	mma_1036	-	short-chain dehydrogenase/reductase SDR
1037	 50.64	0	1170301..1170768	-	155	152980442	-	mma_1037	-	hypothetical protein
1038	 54.75	0	1170913..1172196	-	427	152980202	fadL	mma_1038	-	long-chain fatty acid transport protein precursor
1039	 58.43	0	1172703..1173224	-	173	152980368	-	mma_1039	-	hypothetical protein
1040	 54.00	0	1173740..1174915	+	391	152980637	-	mma_1040	-	outer membrane protein (porin)
1041	 54.01	0	1175203..1176585	+	460	152982698	-	mma_1041	-	major facilitator transporter
1042	 42.94	-2	1176718..1176894	-	58	152983344	-	mma_1042	-	hypothetical protein
1043	 57.40	0	1177371..1178093	+	240	152982464	-	mma_1043	-	AraC family transcriptional regulator
54.72	MEAN

4.12	STD DEV
