IslandPath Analysis: Janthinobacterium sp. Marseille

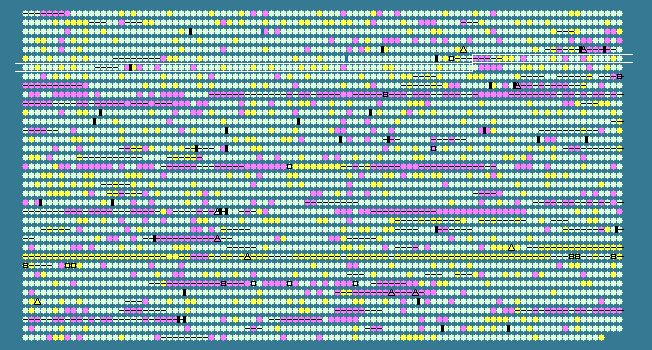

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.72 STD DEV: 4.12
Janthinobacterium sp. Marseille, complete genome - 1..4110251
3697 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
576	 50.21	-1	653133..653612	-	159	152981776	-	mma_0576	-	hypothetical protein
577	 41.25	-2	653609..655870	-	753	152983148	-	mma_0577	-	hypothetical protein
578	 40.07	-2	655883..656713	-	276	152983022	dam	mma_0578	-	DNA adenine methylase
579	 56.95	0	656710..658458	-	582	152980200	glnS	mma_0579	-	glutaminyl-tRNA synthetase
580	 58.92	+1	658665..659426	-	253	152981919	-	mma_0580	-	hypothetical protein
581	 59.66	+1	659601..661199	-	532	152979978	ggt1	mma_0581	-	gamma-glutamyltranspeptidase
582	 59.51	+1	661414..662196	+	260	152980071	glpQ	mma_0582	-	glycerophosphoryl diester phosphodiesterase
583	 56.86	0	662300..664909	+	869	152979781	alaS	mma_0583	-	alanyl-tRNA synthetase
584	 50.44	-1	665161..665388	+	75	152983203	-	mma_0584	-	hypothetical protein
585	 54.93	0	665616..666365	+	249	152979969	etfB	mma_0585	-	electron transfer flavoprotein beta subunit
586	 57.85	0	666428..667357	+	309	152980063	etfA	mma_0586	-	electron transfer flavoprotein alpha subunit
587	 57.90	0	667498..669288	+	596	152981179	-	mma_0587	-	acyl-CoA dehydrogenase
588	 58.07	0	669295..669678	-	127	152982846	-	mma_0588	-	hypothetical protein
589	 60.74	+1	669675..671126	-	483	152980667	amtB2	mma_0589	-	ammonium transporter
590	 56.98	0	671338..671688	-	116	152982371	-	mma_0590	-	hypothetical protein
591	 49.69	-1	671763..672245	+	160	152983023	rpsP	mma_0591	-	small subunit ribosomal protein S16
592	 52.22	0	672273..672812	+	179	152980656	rimM	mma_0592	-	16S rRNA processing protein RimM
593	 54.80	0	672839..673588	+	249	152980226	trmD	mma_0593	-	tRNA (guanine-N(1)-)-methyltransferase
594	 51.16	0	673701..674087	+	128	152980189	rplS	mma_0594	-	large subunit ribosomal protein L19
595	 59.19	+1	674354..675022	+	222	152982360	-	mma_0595	-	hypothetical protein
596	 57.89	0	675143..676099	+	318	152980221	cobD1	mma_0596	-	adenosylcobinamide-phosphate synthase
597	 55.07	0	676227..679097	+	956	152982119	-	mma_0597	-	hypothetical protein
598	 55.87	0	679104..680465	-	453	152982453	-	mma_0598	-	hypothetical protein
599	 59.52	+1	680462..681259	-	265	152982266	-	mma_0599	-	hypothetical protein
600	 57.63	0	681866..683293	+	475	152981237	dacB	mma_0600	-	D-alanyl-D-alanine carboxypeptidase
601	 56.22	0	683569..685320	+	583	152981219	ggt2	mma_0601	-	gamma-glutamyltranspeptidase
602	 55.09	0	685388..685888	-	166	152981857	-	mma_0602	-	hypothetical protein
603	 62.30	+1	685888..686712	-	274	152982154	-	mma_0603	-	hypothetical protein
604	 54.44	0	686726..687322	-	198	152981304	lemA2	mma_0604	-	LemA family protein
605	 55.89	0	687387..688277	-	296	152982701	-	mma_0605	-	transporter of the DMT superfamily
606	 56.62	0	688337..689152	+	271	152979998	pyrF	mma_0606	-	orotidine 5'-phosphate decarboxylase
607	 59.52	+1	689149..689652	-	167	152981356	cinA1	mma_0607	-	competence/damage inducible protein CinA
608	 55.56	0	689663..690184	-	173	152980547	pgpA	mma_0608	-	phosphatidylglycerophosphatase A
609	 60.58	+1	690181..691149	-	322	152980240	thiL	mma_0609	-	thiamine-monophosphate kinase
610	 56.47	0	691293..692498	-	401	152982729	rubB	mma_0610	-	rubredoxin reductase
611	 55.34	0	692836..695148	+	770	152981049	maeB	mma_0611	-	malic enzyme
612	 54.90	0	695209..696126	-	305	152982793	ushA	mma_0612	-	5'-nucleotidase
613	 56.96	0	696265..696645	+	126	152982029	-	mma_0613	-	hypothetical protein
614	 52.94	0	697118..697576	+	152	152981815	-	mma_0614	-	transcriptional regulator
615	 55.86	0	697664..698866	+	400	152981393	hmp	mma_0615	-	dihydropteridine reductase
616	 53.35	0	699526..702372	+	948	152982741	-	mma_0616	-	hybrid two-components system response regulator and sensor kinase
617	 53.11	0	702285..702911	+	208	152982896	-	mma_0617	-	hypothetical protein
618	 49.31	-1	702945..703595	+	216	152981623	rscB	mma_0618	-	positive response regulator for colanic capsule biosynthesis
619	 60.97	+1	703896..705632	-	578	152981917	-	mma_0619	-	hypothetical protein
620	 47.94	-1	705803..706069	-	88	152983163	rpmE	mma_0620	-	50S ribosomal protein L31
621	 57.03	0	706264..706896	+	210	152981420	-	mma_0621	-	hypothetical protein
622	 54.74	0	706989..708254	-	421	152980394	rho	mma_0622	-	transcription termination factor Rho
623	 50.15	-1	708363..708689	-	108	152982671	trxA	mma_0623	-	thioredoxin
624	 57.37	0	708988..711666	+	892	152981969	-	mma_0624	-	hypothetical protein
625	 57.50	0	711693..714944	+	1083	152981098	-	mma_0625	-	hypothetical protein
626	 55.09	0	715115..715330	+	71	152982442	-	mma_0626	-	hypothetical protein
627	 55.45	0	715327..715638	+	103	152982055	-	mma_0627	-	hypothetical protein
628	 58.17	0	715983..716441	+	152	152981413	-	mma_0628	-	hypothetical protein
629	 39.54	-2	716643..717077	-	144	152983461	-	mma_0629	-	hypothetical protein
630	 55.94	0	717118..718320	+	400	152982471	-	mma_0630	-	hypothetical protein
631	 55.63	0	718310..719713	+	467	152980978	-	mma_0631	-	capsular polysaccharide biosynthesis glycosyltransferase
632	 57.03	0	719751..720539	+	262	152980657	wza	mma_0632	-	polysaccharide export outer membrane protein
633	 56.99	0	720553..721947	+	464	152982045	-	mma_0633	-	exopolysaccharide biosynthesis protein
634	 60.24	+1	721981..722883	+	300	152981683	-	mma_0634	-	mrp-like protein
635	 56.39	0	722892..723932	+	346	152981458	-	mma_0635	-	exopolysaccharide biosynthesis protein
636	 58.12	0	723945..725021	+	358	152982243	-	mma_0636	-	hypothetical protein
637	 55.51	0	725077..726492	+	471	152982788	-	mma_0637	-	hypothetical protein
638	 54.86	0	726600..727463	+	287	152981957	-	mma_0638	-	hypothetical protein
639	 58.33	0	727484..728899	+	471	152982357	-	mma_0639	-	hypothetical protein
640	 57.14	0	728899..729465	+	188	152981743	cysE1	mma_0640	-	serine O-acetyltransferase
641	 57.75	0	729462..730706	+	414	152981672	-	mma_0641	-	glycosyl transferase, group 1 family protein
642	 58.84	0	730703..731890	+	395	152982337	-	mma_0642	-	glycosyl transferase, group 2 family protein
643	 57.60	0	731880..733070	+	396	152981529	-	mma_0643	-	teichoic acid biosynthesis protein
644	 54.71	0	733307..734326	+	339	152980429	galE	mma_0644	-	UDP-glucose 4-epimerase
645	 53.71	0	734379..735536	+	385	152979925	mpg	mma_0645	-	mannose-1-phosphate guanylyltransferase
646	 57.54	0	735554..736966	+	470	152981626	xanB	mma_0646	-	mannose-6-phosphate isomerase / mannose-1-phosphate guanylyltransferase
647	 59.19	+1	736966..738195	+	409	152982679	-	mma_0647	-	hypothetical protein
648	 57.59	0	738201..739643	+	480	152981930	-	mma_0648	-	hypothetical protein
649	 58.58	0	739646..740251	-	201	152982255	-	mma_0649	-	hypothetical protein
650	 56.27	0	740277..741074	-	265	152980504	lgt	mma_0650	-	prolipoprotein diacylglyceryl transferase
651	 58.84	0	741078..741971	-	297	152982593	-	mma_0651	-	LysR family transcriptional regulator
652	 56.09	0	742159..743832	+	557	152979865	ilvD	mma_0652	-	dihydroxy-acid dehydratase
653	 57.06	0	744043..745416	-	457	152981463	-	mma_0653	-	signal transduction protein
654	 50.30	-1	745515..745850	+	111	152983460	-	mma_0654	-	hypothetical protein
655	 51.78	0	745971..746279	+	102	152981937	cyt	mma_0655	-	cytochrome c-552 precursor
656	 53.91	0	746908..748083	+	391	152981482	livK2	mma_0656	-	ABC-type branched-chain amino acid transport systems, periplasmic component
657	 55.05	0	748175..749104	+	309	152981508	livH2	mma_0657	-	branched chain amino acid ABC transporter permease
658	 56.62	0	749106..750269	+	387	152981704	livM2	mma_0658	-	ABC-type branched-chain amino acid transport system, permease component
659	 53.33	0	750269..751093	+	274	152982550	livG2	mma_0659	-	ABC-type branched-chain amino acid transport systems, ATPase component
660	 56.92	0	751090..751797	+	235	152980280	livF2	mma_0660	-	ABC-type branched-chain amino acid transport system ATP-binding protein
661	 61.27	+1	751813..753108	+	431	152981221	-	mma_0661	-	amidase
662	 58.70	0	753123..754415	+	430	152981550	amaB2	mma_0662	-	beta-ureidopropionase (N-carbamoyl-beta-alanine amidohydrolase)
663	 54.61	0	754466..755062	+	198	152982219	-	mma_0663	-	Cro/CI family transcriptional regulator
664	 56.11	0	755510..758380	+	956	152981527	-	mma_0664	-	autotransporter
665	 55.58	0	758483..759628	-	381	152981349	-	mma_0665	-	ABC-type branched-chain amino acid transport systems, periplasmic component
666	 54.12	0	759769..760278	+	169	152981736	-	mma_0666	-	AsnC family transcriptional regulator
667	 57.78	0	760351..761667	-	438	152982324	dadA2	mma_0667	-	D-amino-acid dehydrogenase, small subunit
668	 53.85	0	761804..762193	-	129	152982640	-	mma_0668	-	hypothetical protein
669	 56.57	0	762190..762615	-	141	152980235	holC	mma_0669	-	DNA polymerase III chi subunit
670	 58.70	0	762674..763288	-	204	152982235	-	mma_0670	-	hypothetical protein
671	 56.31	0	763329..765404	-	691	152981132	prlC	mma_0671	-	oligopeptidase A
672	 56.46	0	765404..766255	-	283	152980196	folD	mma_0672	-	methylenetetrahydrofolate dehydrogenase (NADP+)
673	 55.77	0	766560..769256	+	898	152980292	aceE1	mma_0673	-	pyruvate dehydrogenase subunit E1
674	 58.02	0	769365..770741	+	458	152980112	aceF	mma_0674	-	pyruvate dehydrogenase E2 component (dihydrolipoamide acetyltransferase)
675	 52.46	0	770758..771327	+	189	152981668	-	mma_0675	-	hypothetical protein
54.72	MEAN

4.12	STD DEV
