IslandPathversion 1.0

IslandPath Analysis: Janthinobacterium sp. Marseille

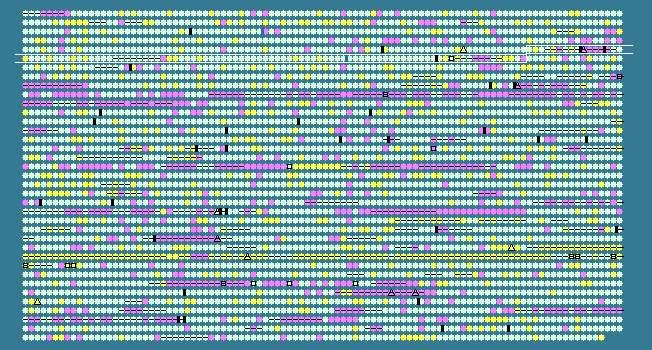

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.72 STD DEV: 4.12
Janthinobacterium sp. Marseille, complete genome - 1..4110251
3697 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
485	 57.30	0	536511..539330	+	939	152982608	nasA	mma_0485	-	nitrate reductase catalytic subunit
486	 58.21	0	539393..540409	+	338	152981385	trpD2	mma_0486	-	hypothetical protein
487	 57.44	0	540387..541199	+	270	152980308	cobA	mma_0487	-	uroporphyrin-III C-methyltransferase
488	 56.98	0	541271..542467	+	398	152980938	-	mma_0488	-	hypothetical protein
489	 59.10	+1	542560..542982	+	140	152982649	gloA2	mma_0489	-	lactoylglutathione lyase
490	 51.17	0	543131..543343	+	70	152983162	rpsU	mma_0490	-	small subunit ribosomal protein S21
491	 56.67	0	543472..543921	+	149	152981641	-	mma_0491	-	hypothetical protein
492	 59.00	+1	543947..545746	+	599	152979908	dnaG	mma_0492	-	DNA primase
493	 53.04	0	545965..548445	+	826	152980761	rpoD	mma_0493	-	RNA polymerase primary sigma factor
494	 48.53	-1	548709..549695	+	328	152983145	-	mma_0494	-	phage integrase family site specific recombinase
495	 43.03	-2	549692..550588	-	298	152983146	-	mma_0495	-	hypothetical protein
496	 45.01	-2	550702..551403	+	233	152983201	-	mma_0496	-	hypothetical protein
497	 44.44	-2	551563..553110	-	515	152983147	-	mma_0497	-	hypothetical protein
498	 45.39	-2	553720..554457	+	245	152983349	-	mma_0498	-	hypothetical protein
499	 55.23	0	554698..556122	+	474	152981505	-	mma_0499	-	hypothetical protein
500	 53.42	0	556301..557395	+	364	152981718	-	mma_0500	-	porin
501	 58.64	0	557446..559002	-	518	152982562	-	mma_0501	-	major facilitator superfamily drug efflux transporter
502	 55.05	0	558995..559588	-	197	152982366	-	mma_0502	-	acetyltransferase
503	 56.95	0	559636..560520	+	294	152982810	-	mma_0503	-	LysR family transcriptional regulator
504	 56.60	0	560564..561874	-	436	152980309	guaD	mma_0504	-	guanine deaminase
505	 58.76	0	561928..562977	-	349	152979887	xdhC1	mma_0505	-	xanthine and CO dehydrogenases maturation factor
506	 58.10	0	562987..565344	-	785	152980612	xdhB	mma_0506	-	xanthine dehydrogenase, subunit B
507	 57.08	0	565363..566853	-	496	152980541	xdhA	mma_0507	-	xanthine dehydrogenase, subunit A
508	 56.94	0	566971..568266	-	431	152981023	-	mma_0508	-	uracil/xanthine permease
509	 58.22	0	568466..569827	-	453	152981228	-	mma_0509	-	hydroxydechloroatrazine ethylaminohydrolase
510	 57.52	0	570121..571749	-	542	152981467	tar7	mma_0510	-	methyl-accepting chemotaxis protein
511	 58.91	+1	571764..573530	-	588	152981424	-	mma_0511	-	unknown domain/N-carbamoyl-L-amino acid hydrolase fusion protein
512	 57.20	0	573632..575026	-	464	152980454	pbuX2	mma_0512	-	xanthine permease
513	 54.91	0	575271..576206	-	311	152982787	-	mma_0513	-	LysR family transcriptional regulator
514	 54.69	0	576579..577814	+	411	152981072	-	mma_0514	-	hypothetical protein
515	 56.77	0	577863..579488	+	541	152979924	hutH	mma_0515	-	histidine ammonia-lyase
516	 52.88	0	579597..580691	-	364	152981709	-	mma_0516	-	porin
517	 56.99	0	580817..581767	-	316	152981727	-	mma_0517	-	polysaccharide deacetylase family protein
518	 54.06	0	581955..582311	+	118	152981524	-	mma_0518	-	transthyretin-like protein
519	 56.31	0	582357..584288	-	643	152982241	-	mma_0519	-	two component sensor histidine kinase
520	 54.13	0	584576..588412	+	1278	152981624	-	mma_0520	-	autotransporter
521	 55.01	0	588438..591209	+	923	152981607	-	mma_0521	-	outer membrane autotransporter
522	 57.19	0	591219..593318	+	699	152982107	-	mma_0522	-	hypothetical protein
523	 55.56	0	593327..593938	+	203	152980747	cysC	mma_0523	-	adenylylsulfate kinase
524	 48.40	-1	594033..594251	-	72	152982460	-	mma_0524	-	hypothetical protein
525	 58.59	0	594410..595573	-	387	152980092	cfa1	mma_0525	-	cyclopropane fatty acyl phospholipid synthase
526	 59.14	+1	595760..596623	+	287	152982688	-	mma_0526	-	LysR family transcriptional regulator
527	 57.25	0	596787..598454	+	555	152981373	aer	mma_0527	-	aerotaxis sensor receptor (chemotaxis transducer) transmembrane protein
528	 57.26	0	598777..600318	+	513	152981130	-	mma_0528	-	ATP-dependent RNA helicase
529	 56.24	0	600385..601266	-	293	152980417	-	mma_0529	-	glutamyl-tRNA synthetase related protein
530	 59.37	+1	601270..602187	-	305	152982198	-	mma_0530	-	LysR family transcriptional regulator
531	 54.08	0	602311..603009	+	232	152981404	-	mma_0531	-	pirin-related protein
532	 54.26	0	603076..603921	-	281	152980539	kdsA	mma_0532	-	2-dehydro-3-deoxyphosphooctonate aldolase
533	 55.83	0	603997..604836	-	279	152981253	-	mma_0533	-	hypothetical protein
534	 55.25	0	605048..608506	+	1152	152980633	dnaE1	mma_0534	-	DNA polymerase III alpha subunit
535	 53.94	0	608549..610285	+	578	152982174	msbA	mma_0535	-	ABC-type multidrug transport system, ATPase and permease components
536	 53.86	0	610326..611090	+	254	152982713	-	mma_0536	-	hypothetical protein
537	 55.05	0	611167..612630	-	487	152980616	cafA	mma_0537	-	ribonuclease G (RNAse G) (cytoplasmic axial filament protein)
538	 56.36	0	612627..613247	-	206	152981387	maf1	mma_0538	-	nucleotide-binding protein implicated in inhibition of septum formation
539	 56.69	0	613255..613725	-	156	152981375	-	mma_0539	-	SPOUT methyltransferase superfamily protein
540	 56.41	0	613738..614400	-	220	152982104	-	mma_0540	-	hypothetical protein
541	 54.61	0	614400..615071	-	223	152980100	nadD	mma_0541	-	nicotinate-nucleotide adenylyltransferase
542	 56.96	0	615073..616071	-	332	152979898	hemF	mma_0542	-	coproporphyrinogen III oxidase
543	 57.63	0	616114..617385	-	423	152979938	purD	mma_0543	-	phosphoribosylamine--glycine ligase
544	 56.47	0	617509..618234	-	241	152981153	-	mma_0544	-	hypothetical protein
545	 55.64	0	618325..619830	+	501	152981573	-	mma_0545	-	hypothetical protein
546	 58.42	0	619889..620797	-	302	152982816	-	mma_0546	-	LysR family transcriptional regulator
547	 53.01	0	620972..621586	+	204	152980412	acpD1	mma_0547	-	acyl carrier protein phosphodiesterase
548	 57.43	0	621672..622310	+	212	152980494	ribA	mma_0548	-	GTP cyclohydrolase II
549	 53.31	0	622385..623290	+	301	152982668	-	mma_0549	-	transporter of the DMT superfamily
550	 59.87	+1	623300..624079	+	259	152982386	-	mma_0550	-	short chain dehydrogenase/reductase family oxidoreductase
551	 57.95	0	624114..625088	+	324	152980998	qor2	mma_0551	-	NADPH2:quinone reductase
552	 52.43	0	625323..625940	-	205	152982450	-	mma_0552	-	hypothetical protein
553	 57.14	0	626182..628836	+	884	152980567	pepN	mma_0553	-	aminopeptidase N
554	 55.62	0	628927..629931	+	334	152979833	fbp	mma_0554	-	fructose-1,6-bisphosphatase I
555	 53.66	0	636336..637511	+	391	152980194	atoB	mma_0555	-	acetyl-CoA C-acetyltransferase
556	 53.98	0	637556..638296	+	246	152981402	phbB	mma_0556	-	acetoacetyl-CoA reductase
557	 53.68	0	638354..638992	-	212	152981446	-	mma_0557	-	hypothetical protein
558	 55.95	0	639049..639636	-	195	152979979	-	mma_0558	-	hypothetical protein
559	 56.31	0	639689..639910	-	73	152983202	-	mma_0559	-	hypothetical protein
560	 57.88	0	639940..640212	-	90	152982712	-	mma_0560	-	hypothetical protein
561	 54.26	0	640244..640630	-	128	152981837	-	mma_0561	-	hypothetical protein
562	 57.79	0	640729..642159	-	476	152980617	sbcB	mma_0562	-	exonuclease I
563	 57.76	0	642196..643161	-	321	152982877	-	mma_0563	-	hypothetical protein
564	 54.34	0	643171..644046	-	291	152981680	-	mma_0564	-	signal transduction protein
565	 56.07	0	644043..644363	-	106	152982592	-	mma_0565	-	hypothetical protein
566	 54.03	0	644545..645810	-	421	152982756	-	mma_0566	-	hypothetical protein
567	 53.44	0	645888..646280	-	130	152981506	-	mma_0567	-	hypothetical protein
568	 52.84	0	646352..646756	-	134	152982746	-	mma_0568	-	hypothetical protein
569	 55.50	0	646943..647587	-	214	152981789	rhtB	mma_0569	-	homoserine/homoserine lactone efflux protein
570	 56.44	0	647835..648734	-	299	152981665	penP	mma_0570	-	Beta-lactamase class A
571	 58.66	0	648758..649144	-	128	152982605	-	mma_0571	-	hypothetical protein
572	 52.65	0	649298..650410	+	370	152982895	-	mma_0572	-	IS30 family transposase
573	 61.72	+1	650476..651687	-	403	152982482	-	mma_0573	-	major facilitator transporter
574	 57.56	0	651783..652748	+	321	152981643	-	mma_0574	-	LysR family transcriptional regulator
575	 54.13	0	652745..653119	-	124	152982276	-	mma_0575	-	hypothetical protein
576	 50.21	-1	653133..653612	-	159	152981776	-	mma_0576	-	hypothetical protein
577	 41.25	-2	653609..655870	-	753	152983148	-	mma_0577	-	hypothetical protein
578	 40.07	-2	655883..656713	-	276	152983022	dam	mma_0578	-	DNA adenine methylase
579	 56.95	0	656710..658458	-	582	152980200	glnS	mma_0579	-	glutaminyl-tRNA synthetase
580	 58.92	+1	658665..659426	-	253	152981919	-	mma_0580	-	hypothetical protein
581	 59.66	+1	659601..661199	-	532	152979978	ggt1	mma_0581	-	gamma-glutamyltranspeptidase
582	 59.51	+1	661414..662196	+	260	152980071	glpQ	mma_0582	-	glycerophosphoryl diester phosphodiesterase
583	 56.86	0	662300..664909	+	869	152979781	alaS	mma_0583	-	alanyl-tRNA synthetase
584	 50.44	-1	665161..665388	+	75	152983203	-	mma_0584	-	hypothetical protein
54.72	MEAN

4.12	STD DEV
