IslandPathversion 1.0

IslandPath Analysis: Janthinobacterium sp. Marseille

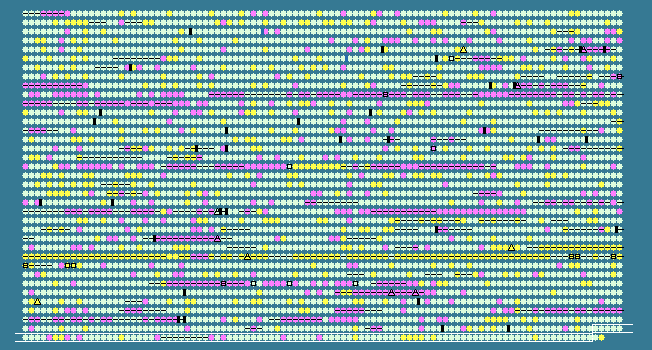

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.72 STD DEV: 4.12
Janthinobacterium sp. Marseille, complete genome - 1..4110251
3697 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3596	 57.45	0	3995394..3995762	-	122	152983018	-	mma_3596	-	transport associated protein
3597	 55.93	0	3996023..3996637	-	204	152982054	-	mma_3597	-	multiple antibiotic transporter
3598	 54.86	0	3996667..3997581	-	304	152982024	-	mma_3598	-	L-proline 4-hydroxylase
3599	 54.11	0	3997595..3998032	-	145	152982350	ectC	mma_3599	-	L-ectoine synthase
3600	 56.40	0	3998029..3999324	-	431	152982546	ectB	mma_3600	-	diaminobutyrate--2-oxoglutarate aminotransferase
3601	 55.36	0	3999373..3999894	-	173	152982599	ectA	mma_3601	-	L-2,4-diaminobutyric acid acetyltransferase
3602	 54.35	0	4000016..4000486	-	156	152982012	-	mma_3602	-	MarR family transcriptional regulator
3603	 58.17	0	4000657..4001115	-	152	152981535	elaA	mma_3603	-	ElaA protein
3604	 55.89	0	4001115..4001513	-	132	152981983	-	mma_3604	-	hypothetical protein
3605	 50.79	0	4001516..4001767	-	83	152983330	-	mma_3605	-	hypothetical protein
3606	 58.43	0	4001789..4003840	-	683	152980398	priA	mma_3606	-	primosomal protein N'
3607	 58.73	0	4004988..4006070	-	360	152980188	hemE	mma_3607	-	uroporphyrinogen decarboxylase
3608	 50.78	0	4006171..4006680	-	169	152982407	-	mma_3608	-	hypothetical protein
3609	 56.42	0	4006782..4008323	+	513	152980663	glpD	mma_3609	-	glycerol-3-phosphate dehydrogenase
3610	 50.94	0	4008515..4009099	+	194	152982863	-	mma_3610	-	hypothetical protein
3611	 51.79	0	4009242..4009577	+	111	152981987	-	mma_3611	-	hypothetical protein
3612	 53.20	0	4009665..4010117	-	150	152981791	ibpA	mma_3612	-	16 kDa heat shock protein A
3613	 51.80	0	4010440..4011078	+	212	152981414	-	mma_3613	-	hypothetical protein
3614	 55.75	0	4011106..4011618	+	170	152981392	-	mma_3614	-	hypothetical protein
3615	 56.37	0	4011636..4012490	+	284	152979843	-	mma_3615	-	ABC-type transport system, periplasmic component
3616	 57.90	0	4012571..4013608	+	345	152980515	apbE	mma_3616	-	thiamine biosynthesis lipoprotein
3617	 60.03	+1	4013605..4014975	+	456	152980682	-	mma_3617	-	oxidoreductase
3618	 54.04	0	4014992..4015672	-	226	152980388	piuC1	mma_3618	-	PiuC iron-regulated protein
3619	 52.57	0	4015753..4018008	-	751	152980708	-	mma_3619	-	TonB-dependent receptor for iron transport
3620	 53.89	0	4018301..4018981	-	226	152979871	piuC2	mma_3620	-	PiuC iron-regulated protein
3621	 52.83	0	4019064..4021325	-	753	152980420	-	mma_3621	-	catecholate siderophore receptor Fiu
3622	 56.59	0	4021555..4022685	-	376	152980545	piuB	mma_3622	-	iron-regulated membrane protein
3623	 50.19	-1	4022752..4024875	-	707	152980274	fecA	mma_3623	-	FecA iron(III) dicitrate transport protein
3624	 53.95	0	4025087..4025896	-	269	152979926	-	mma_3624	-	hypothetical protein
3625	 57.17	0	4025899..4026351	-	150	152980016	-	mma_3625	-	CoA-binding protein
3626	 54.61	0	4026419..4026841	-	140	152980662	atpC	mma_3626	-	F0F1 ATP synthase subunit epsilon
3627	 51.82	0	4026939..4028339	-	466	152980404	atpD	mma_3627	-	F0F1 ATP synthase subunit beta
3628	 51.72	0	4028416..4029285	-	289	152979965	atpG	mma_3628	-	F-type H+-transporting ATPase gamma chain
3629	 53.32	0	4029313..4030848	-	511	152980082	atpA	mma_3629	-	F-type H+-transporting ATPase alpha chain
3630	 54.68	0	4030901..4031434	-	177	152980165	atpH	mma_3630	-	F0F1 ATP synthase subunit delta
3631	 53.72	0	4031437..4031907	-	156	152980004	atpF	mma_3631	-	F-type H+-transporting ATPase b chain
3632	 47.15	-1	4031976..4032221	-	81	152982295	atpE	mma_3632	-	F0F1 ATP synthase subunit C
3633	 51.70	0	4032303..4033124	-	273	152980638	atpB	mma_3633	-	F0F1 ATP synthase subunit A
3634	 50.44	-1	4033126..4033464	-	112	152980514	atpI	mma_3634	-	ATP synthase protein I
3635	 57.89	0	4033814..4034713	-	299	152980336	parB2	mma_3635	-	ParB chromosome partitioning protein
3636	 53.57	0	4034780..4035550	-	256	152981293	parA3	mma_3636	-	chromosome partitioning protein ParA
3637	 54.64	0	4035616..4036164	-	182	152981562	blc	mma_3637	-	lipocalin
3638	 53.24	0	4036161..4036823	-	220	152979952	gidB	mma_3638	-	glucose inhibited division protein B
3639	 56.66	0	4036820..4038757	-	645	152980753	gidA	mma_3639	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
3640	 52.10	0	4038910..4039671	-	253	152982049	-	mma_3640	-	hypothetical protein
3641	 53.49	0	4039734..4041350	-	538	152980062	betA	mma_3641	-	choline dehydrogenase
3642	 54.48	0	4041496..4043013	-	505	152980306	mmsA	mma_3642	-	methylmalonate-semialdehyde dehydrogenase
3643	 51.70	0	4044148..4046151	-	667	152981266	asmA	mma_3643	-	AsmA protein
3644	 51.07	0	4046369..4046977	-	202	152981990	-	mma_3645	-	MerR family transcriptional regulator
3645	 53.55	0	4046880..4047725	+	281	152982874	-	mma_3644	-	UbiE/COQ5 family methlytransferase
3646	 53.78	0	4047756..4048523	+	255	152981489	-	mma_3646	-	GMP synthase (glutamine-hydrolyzing)
3647	 57.40	0	4048568..4049527	-	319	152982346	-	mma_3647	-	LysR family transcriptional regulator
3648	 56.24	0	4049681..4050169	+	162	152982818	-	mma_3648	-	hypothetical protein
3649	 53.01	0	4050987..4051799	-	270	152981272	tupB	mma_3649	-	ABC-type tungstate transport system, permease component
3650	 48.48	-1	4051901..4052131	-	76	152983331	fdsD	mma_3650	-	NAD-dependent formate dehydrogenase delta subunit
3651	 54.11	0	4052152..4052979	-	275	152981193	fdsC	mma_3651	-	formate dehydrogenase associated protein
3652	 54.49	0	4053009..4055882	-	957	152981248	fdsA	mma_3652	-	NAD-dependent formate dehydrogenase alpha subunit
3653	 56.78	0	4055899..4057455	-	518	152981173	fdsB	mma_3653	-	NAD-dependent formate dehydrogenase beta subunit
3654	 57.50	0	4057452..4057931	-	159	152981548	fdnI	mma_3654	-	formate dehydrogenase, cytochrome b556 subunit (formate dehydrogenase gamma subunit)
3655	 55.28	0	4058173..4059261	+	362	152982031	-	mma_3655	-	LysR family transcriptional regulator
3656	 58.38	0	4059268..4060425	-	385	152981123	modC	mma_3656	-	ABC-type molybdate transport system ATP-binding protein
3657	 56.89	0	4060341..4061015	-	224	152981300	modB	mma_3657	-	molybdate transport system permease protein
3658	 53.44	0	4061028..4061783	-	251	152980263	modA2	mma_3658	-	ABC-type molybdate transport system substrate-binding protein
3659	 57.36	0	4061813..4062607	-	264	152981988	modE1	mma_3659	-	molybdenum transport regulatory protein ModE
3660	 57.19	0	4062882..4063820	+	312	152982152	-	mma_3660	-	LysR family transcriptional regulator
3661	 52.54	0	4063948..4065150	+	400	152982514	fdh	mma_3661	-	formate dehydrogenase
3662	 53.92	0	4065284..4065793	+	169	152981790	-	mma_3662	-	hypothetical protein
3663	 51.97	0	4065881..4066159	-	92	152982402	-	mma_3663	-	hypothetical protein
3664	 58.27	0	4066504..4066920	-	138	152981866	modE2	mma_3664	-	molybdenum-binding transcriptional regulator
3665	 58.79	0	4066997..4067770	-	257	152981479	iclR2	mma_3665	-	IclR family transcriptional regulator
3666	 58.87	+1	4067944..4068828	+	294	152981993	-	mma_3666	-	hypothetical protein
3667	 60.34	+1	4068884..4069894	+	336	152981299	ansA2	mma_3667	-	L-asparaginase
3668	 53.52	0	4069948..4071156	+	402	152982314	-	mma_3668	-	major facilitator transporter
3669	 58.59	0	4071516..4072889	-	457	152981025	-	mma_3669	-	thiol oxidoreductase
3670	 54.94	0	4072886..4074232	-	448	152982498	pgtC	mma_3670	-	phosphoglycerate transport regulatory protein PgtC
3671	 52.84	0	4074243..4076267	-	674	152982710	-	mma_3671	-	TonB-dependent outer membrane receptor
3672	 55.91	0	4076704..4078107	+	467	152982379	oxlT6	mma_3672	-	major facilitator superfamily oxalate/formate antiporter
3673	 56.57	0	4078382..4079827	+	481	152981133	-	mma_3673	-	sigma-54 dependent response regulator
3674	 55.01	0	4079852..4081867	+	671	152982390	-	mma_3674	-	signal transduction histidine kinase
3675	 55.93	0	4082450..4083799	-	449	152981004	pbuX7	mma_3675	-	xanthine permease
3676	 54.67	0	4083974..4084648	-	224	152981788	gst9	mma_3676	-	glutathione S-transferase
3677	 56.74	0	4084658..4086400	-	580	152981877	-	mma_3677	-	hypothetical protein
3678	 56.46	0	4086421..4087272	-	283	152981996	-	mma_3678	-	hypothetical protein
3679	 52.04	0	4087549..4088211	-	220	152982451	-	mma_3679	-	GntR family transcriptional regulator
3680	 56.39	0	4088540..4089541	+	333	152981498	-	mma_3680	-	flavin dependant oxidoreductase
3681	 56.71	0	4089576..4090439	+	287	152981226	tesB	mma_3681	-	acyl-CoA thioesterase II
3682	 57.67	0	4090436..4091146	+	236	152981656	-	mma_3682	-	PAP2 superfamily protein
3683	 51.53	0	4091143..4091631	-	162	152982181	-	mma_3683	-	hypothetical protein
3684	 57.20	0	4091691..4091933	+	80	152982095	-	mma_3684	-	hypothetical protein
3685	 56.48	0	4092078..4093049	+	323	152982822	serA	mma_3685	-	D-isomer specific 2-hydroxyacid dehydrogenase
3686	 59.66	+1	4093080..4093850	-	256	152982700	-	mma_3686	-	hypothetical protein
3687	 56.84	0	4094199..4096772	+	857	152982817	-	mma_3687	-	hypothetical protein
3688	 54.32	0	4096943..4097428	+	161	152981882	ansA3	mma_3688	-	L-asparaginase
3689	 57.03	0	4097465..4099519	-	684	152982814	-	mma_3689	-	TonB-dependent receptor
3690	 56.81	0	4099718..4101553	+	611	152982231	-	mma_3690	-	hypothetical protein
3691	 54.93	0	4102153..4103055	-	300	152981274	lpxO	mma_3691	-	membrane-bound beta-hydroxylase
3692	 56.39	0	4103258..4105486	-	742	152981102	icd	mma_3692	-	isocitrate dehydrogenase
3693	 57.87	0	4105889..4107286	-	465	152981181	trmE	mma_3693	-	tRNA modification GTPase
3694	 54.10	0	4107389..4109083	-	564	152980131	yidC	mma_3694	-	preprotein translocase YidC subunit
3695	 52.49	0	4109102..4109362	-	86	152983020	-	mma_3695	-	alpha-hemolysin
54.72	MEAN

4.12	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
