IslandPathversion 1.0

IslandPath Analysis: Janthinobacterium sp. Marseille

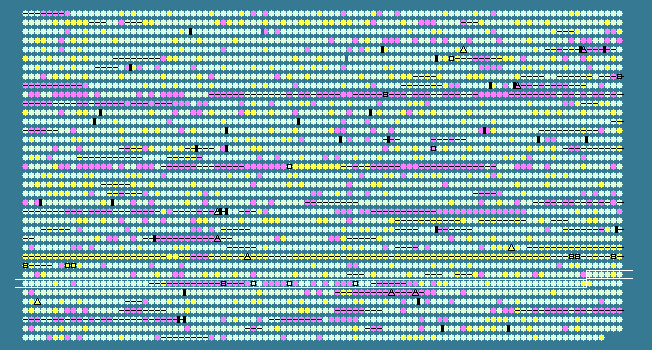

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.72 STD DEV: 4.12
Janthinobacterium sp. Marseille, complete genome - 1..4110251
3697 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2995	 55.92	0	3356982..3357986	+	334	152980282	ispB	mma_2995	-	octaprenyl-diphosphate synthase
2996	 56.41	0	3358230..3359915	+	561	152980438	pilB	mma_2996	-	PilB type IV pilus assembly protein
2997	 54.66	0	3359926..3361158	+	410	152980730	pilC	mma_2997	-	PilC type IV pilus assembly protein
2998	 57.61	0	3361161..3362021	+	286	152980010	pilD	mma_2998	-	leader peptidase (prepilin peptidase) / N-methyltransferase
2999	 60.13	+1	3362026..3362652	+	208	152980135	coaE	mma_2999	-	dephospho-CoA kinase
3000	 54.23	0	3362842..3363597	+	251	152981169	-	mma_3000	-	hypothetical protein
3001	 54.36	0	3363615..3363809	+	64	152983302	-	mma_3001	-	hypothetical protein
3002	 57.86	0	3363826..3364245	-	139	152982879	mutT	mma_3002	-	mutator MutT protein (7,8-dihydro-8-oxoguanine-triphosphatase)
3003	 56.62	0	3364320..3365195	-	291	152981247	-	mma_3003	-	hypothetical protein
3004	 56.39	0	3365248..3366483	-	411	152980606	argJ	mma_3004	-	arginine biosynthesis bifunctional protein
3005	 53.96	0	3366644..3369406	-	920	152979895	secA	mma_3005	-	preprotein translocase SecA subunit
3006	 58.31	0	3369645..3370589	-	314	152981693	-	mma_3006	-	M23B family peptidase
3007	 53.29	0	3370638..3371138	+	166	152983303	-	mma_3007	-	hypothetical protein
3008	 54.49	0	3371202..3372137	-	311	152979936	lpxC	mma_3008	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
3009	 51.19	0	3372315..3372818	-	167	152981331	ahp1	mma_3009	-	peroxiredoxin
3010	 55.78	0	3372972..3374156	-	394	152980453	ftsZ	mma_3010	-	FtsZ cell division protein
3011	 54.91	0	3374265..3375497	-	410	152980244	ftsA	mma_3011	-	FtsA cell division protein
3012	 55.34	0	3375508..3376275	-	255	152980000	ftsQ	mma_3012	-	FtsQ cell division protein
3013	 55.66	0	3376301..3377263	-	320	152980554	ddlA	mma_3013	-	D-alanine--D-alanine ligase
3014	 55.44	0	3377291..3378688	-	465	152980186	murC	mma_3014	-	UDP-N-acetylmuramate--L-alanine ligase
3015	 57.10	0	3378685..3379761	-	358	152980501	murG	mma_3015	-	UDP-N-acetylglucosamine--N-acetylmuramyl-(pentapeptide)
3016	 52.77	0	3379758..3380966	-	402	152980610	ftsW	mma_3016	-	FtsW cell division protein
3017	 56.31	0	3380963..3382459	-	498	152980553	murD	mma_3017	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
3018	 54.10	0	3382459..3383628	-	389	152979913	mraY	mma_3018	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
3019	 56.51	0	3383630..3384997	-	455	152980017	murF	mma_3019	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl- D-alanine ligase
3020	 57.89	0	3384997..3386523	-	508	152980734	murE	mma_3020	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
3021	 55.82	0	3386523..3388283	-	586	152979995	ftsI	mma_3021	-	FtsI cell division protein
3022	 55.68	0	3388280..3388552	-	90	152980159	ftsL	mma_3022	-	FtsL cell division protein
3023	 55.93	0	3388549..3389517	-	322	152980341	mraW	mma_3023	-	S-adenosyl-methyltransferase MraW
3024	 58.28	0	3389525..3389953	-	142	152980138	mraZ	mma_3024	-	cell division protein MraZ
3025	 46.42	-2	3390963..3391772	+	269	152983389	-	mma_3025	-	hypothetical protein
3026	 42.72	-2	3391776..3393725	+	649	152983388	-	mma_3026	-	hypothetical protein
3027	 43.49	-2	3393731..3394675	+	314	152983387	-	mma_3027	-	hypothetical protein
3028	 48.43	-1	3394685..3395896	-	403	152983386	-	mma_3028	-	hypothetical protein
3029	 43.94	-2	3395963..3396292	+	109	152983385	-	mma_3029	-	hypothetical protein
3030	 40.35	-2	3396318..3397001	+	227	152983384	-	mma_3030	-	hypothetical protein
3031	 49.16	-1	3397263..3398033	-	256	152983383	-	mma_3031	-	hypothetical protein
3032	 50.32	-1	3398115..3398426	+	103	152983382	-	mma_3032	-	hypothetical protein
3033	 47.56	-1	3398718..3399434	+	238	152983381	-	mma_3033	-	hypothetical protein
3034	 46.97	-1	3399629..3401461	+	610	152983304	-	mma_3034	-	transposase
3035	 45.61	-2	3401458..3402516	+	352	152983380	-	mma_3035	-	hypothetical protein
3036	 40.85	-2	3402513..3403670	+	385	152983379	-	mma_3036	-	hypothetical protein
3037	 42.02	-2	3403676..3404458	+	260	152983305	-	mma_3037	-	metallophosphoesterase
3038	 46.05	-2	3404753..3405271	+	172	152983378	-	mma_3038	-	hypothetical protein
3039	 52.38	0	3405386..3406498	-	370	152982996	-	mma_3039	-	IS30 family transposase
3040	 51.46	0	3407226..3408014	+	262	152980731	phnC	mma_3040	-	phosphonate ABC-type transport system ATP-binding protein
3041	 48.90	-1	3408024..3408884	+	286	152980686	phnD2	mma_3041	-	phosphonate ABC-type transport system substrate-binding protein
3042	 51.13	0	3408902..3409699	+	265	152980578	phnE	mma_3042	-	phosphonate ABC-type transport system permease protein
3043	 50.45	-1	3409708..3410718	+	336	152982997	-	mma_3043	-	glycerate dehydrogenase
3044	 48.95	-1	3410715..3411572	+	285	152983122	-	mma_3044	-	LysR family transcriptional regulator
3045	 52.74	0	3412023..3413135	-	370	152982998	-	mma_3045	-	IS30 family transposase
3046	 44.27	-2	3413269..3413652	-	127	152983377	-	mma_3046	-	hypothetical protein
3047	 51.89	0	3413690..3415063	-	457	152981658	chrA2	mma_3047	-	chromate transport protein chrA
3048	 51.77	0	3415060..3415992	-	310	152982999	chrB	mma_3048	-	chromate resistance signal peptide protein
3049	 49.85	-1	3416219..3416545	+	108	152983376	-	mma_3049	-	hypothetical protein
3050	 53.66	0	3416655..3417869	+	404	152983123	-	mma_3050	-	outer membrane cation efflux system protein
3051	 50.87	0	3417908..3418426	+	172	152983375	-	mma_3051	-	hypothetical protein
3052	 52.23	0	3418419..3419540	+	373	152983000	mexC	mma_3052	-	RND multidrug efflux membrane fusion protein MexC precursor
3053	 50.85	0	3419551..3422655	+	1034	152983001	-	mma_3053	-	CzcA family heavy metal efflux protein
3054	 42.40	-2	3422645..3423085	+	146	152983374	-	mma_3054	-	hypothetical protein
3055	 44.16	-2	3423201..3423551	+	116	152983306	-	mma_3055	-	hypothetical protein
3056	 52.65	0	3423885..3424997	-	370	152983002	-	mma_3056	-	IS30 family transposase
3057	 51.25	0	3425202..3425999	-	265	152983124	-	mma_3057	-	hypothetical protein
3058	 55.94	0	3426008..3426445	-	145	152983125	-	mma_3058	-	hypothetical protein
3059	 57.64	0	3426456..3426887	-	143	152983126	-	mma_3059	-	hypothetical protein
3060	 47.03	-1	3426892..3427278	-	128	152983003	-	mma_3060	-	ArsR family transcriptional regulator
3061	 50.80	0	3427333..3428082	+	249	152983004	-	mma_3061	-	hypothetical protein
3062	 49.85	-1	3428157..3429494	-	445	152983127	-	mma_3062	-	two-component sensor kinase
3063	 49.44	-1	3429491..3430210	-	239	152983128	-	mma_3063	-	two-component response regulator
3064	 49.38	-1	3430308..3432083	+	591	152983129	dsbD1	mma_3064	-	thiol:disulfide interchange protein DsbD
3065	 48.93	-1	3432083..3432922	+	279	152983130	dsbE2	mma_3065	-	thiol:disulfide interchange protein
3066	 49.48	-1	3432919..3433686	+	255	152983131	dsbG	mma_3066	-	disulfide isomerase/thiol-disulfide oxidase
3067	 58.24	0	3434204..3434713	-	169	152982422	-	mma_3067	-	hypothetical protein
3068	 51.63	0	3434790..3434942	-	50	152983307	-	mma_3068	-	hypothetical protein
3069	 50.27	-1	3435117..3435671	-	184	152981663	-	mma_3069	-	beta-Ig-H3/fasciclin repeat-containing protein
3070	 60.76	+1	3436263..3437684	+	473	152980987	-	mma_3070	-	GntR family transcriptional regulator
3071	 61.07	+1	3437910..3438641	+	243	152981980	-	mma_3071	-	cytochrome C
3072	 57.26	0	3438653..3439939	+	428	152982318	-	mma_3072	-	cytochrome c
3073	 54.34	0	3439955..3440392	+	145	152982172	-	mma_3073	-	hypothetical protein
3074	 55.38	0	3440437..3441402	+	321	152982782	-	mma_3074	-	LysR family transcriptional regulator
3075	 55.10	0	3441447..3442544	-	365	152981406	manR	mma_3075	-	mandelate racemase
3076	 54.96	0	3442606..3443673	-	355	152980899	-	mma_3076	-	nitrilase
3077	 55.27	0	3443828..3445477	-	549	152979882	lldP1	mma_3077	-	lactate transporter
3078	 60.16	+1	3445924..3447720	+	598	152979784	uahA	mma_3078	-	amidase
3079	 55.23	0	3447747..3448454	+	235	152982182	-	mma_3079	-	GntR family transcriptional regulator
3080	 56.42	0	3448477..3449169	-	230	152982559	-	mma_3080	-	iron-sulfur cluster-binding protein
3081	 57.79	0	3449378..3450346	+	322	152981075	-	mma_3081	-	AraC family transcriptional regulator
3082	 56.13	0	3450453..3451439	+	328	152981191	-	mma_3082	-	AraC family transcriptional regulator
3083	 57.42	0	3451436..3452257	-	273	152982503	-	mma_3083	-	hypothetical protein
3084	 55.14	0	3452358..3453155	-	265	152981069	-	mma_3084	-	sulfonate/nitrate transport system ATP-binding protein
3085	 54.03	0	3453148..3453978	-	276	152981435	-	mma_3085	-	ABC-type nitrate/sulfonate/bicarbonate transport system, permease component
3086	 53.59	0	3454042..3454989	-	315	152982522	-	mma_3086	-	ABC-type nitrate/sulfonate/bicarbonate transport systems, periplasmic component
3087	 54.34	0	3455634..3456566	-	310	152982298	-	mma_3087	-	AraC family transcriptional regulator
3088	 54.22	0	3456662..3457408	+	248	152982575	-	mma_3088	-	short-chain dehydrogenase/reductase SDR
3089	 56.06	0	3457494..3458690	-	398	152979836	fadA	mma_3089	-	acetyl-CoA acetyltransferase
3090	 55.03	0	3458704..3461091	-	795	152983308	-	mma_3090	-	3-hydroxyacyl-CoA dehydrogenase oxidoreductase protein
3091	 54.77	0	3461155..3462945	-	596	152980951	-	mma_3091	-	acyl-CoA dehydrogenase oxidoreductase protein
3092	 55.38	0	3463030..3463410	-	126	152981918	hslR	mma_3092	-	heat shock protein 15
3093	 54.34	0	3463624..3464199	+	191	152981836	rpoE6	mma_3093	-	ECF subfamily RNA polymerase sigma factor
3094	 59.32	+1	3464196..3464930	+	244	152981673	-	mma_3094	-	hypothetical protein
54.72	MEAN

4.12	STD DEV
