IslandPath Analysis: Janthinobacterium sp. Marseille

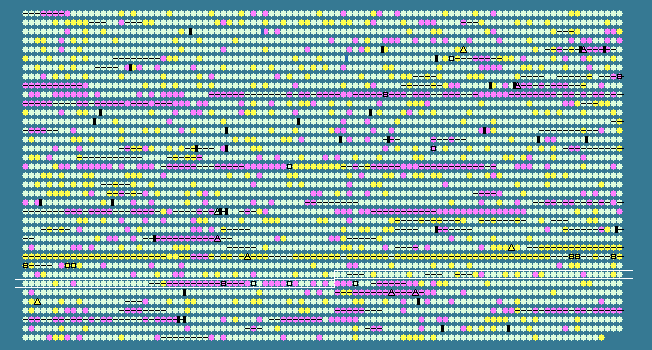

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.72 STD DEV: 4.12
Janthinobacterium sp. Marseille, complete genome - 1..4110251
3697 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2953	 55.37	0	3313994..3316276	-	760	152981516	pilJ	mma_2953	-	PilJ twitching motility protein
2954	 57.12	0	3316329..3316904	-	191	152981964	pilI	mma_2954	-	PilI twitching motility protein
2955	 51.37	0	3316915..3317280	-	121	152982489	pilH	mma_2955	-	twitching motility two-component response regulator transcription regulator protein
2956	 51.99	0	3317301..3317702	-	133	152982173	pilG	mma_2956	-	PilG twitching motility two-component system response regulator
2957	 55.38	0	3317854..3318048	-	64	152983300	rubA	mma_2957	-	rubredoxin
2958	 57.83	0	3318103..3318951	+	282	152981526	thiD2	mma_2958	-	phosphomethylpyrimidine kinase
2959	 59.89	+1	3318985..3320283	+	432	152979840	hemL	mma_2959	-	glutamate-1-semialdehyde 2,1-aminomutase
2960	 53.62	0	3320326..3321291	-	321	152980712	corA2	mma_2960	-	Mg2+/Co2+ transporter
2961	 53.88	0	3321713..3322408	-	231	152982155	mtgA	mma_2961	-	monofunctional biosynthetic peptidoglycan transglycosylase
2962	 57.42	0	3322500..3323321	-	273	152980054	aroE	mma_2962	-	shikimate 5-dehydrogenase
2963	 53.44	0	3323322..3324236	-	304	152980914	-	mma_2963	-	hypothetical protein
2964	 55.91	0	3324291..3326345	-	684	152982558	-	mma_2964	-	exoribonuclease R
2965	 60.36	+1	3326456..3327073	-	205	152980471	ubiC	mma_2965	-	chorismate--pyruvate lyase
2966	 56.24	0	3327043..3327627	-	194	152981432	-	mma_2966	-	hypothetical protein
2967	 57.21	0	3327624..3328997	-	457	152980991	mpl	mma_2967	-	UDP-N-acetylmuramate: L-alanyl-gamma-D-glutamyl-meso-diaminopimelate ligase
2968	 53.48	0	3329012..3329686	+	224	152982804	-	mma_2968	-	hypothetical protein
2969	 55.94	0	3329689..3330210	+	173	152982711	-	mma_2969	-	thioredoxin-related transmembrane protein
2970	 52.28	0	3330294..3330731	+	145	152980561	aroQ	mma_2970	-	3-dehydroquinate dehydratase II
2971	 55.27	0	3330811..3331275	+	154	152980262	fabE	mma_2971	-	biotin carboxyl carrier protein of acetyl-CoA carboxylase
2972	 55.73	0	3331372..3332733	+	453	152981095	accC	mma_2972	-	biotin carboxylase
2973	 58.52	0	3332877..3333809	+	310	152980437	prmA	mma_2973	-	ribosomal protein L11 methyltransferase
2974	 56.60	0	3333748..3334989	+	413	152982692	-	mma_2974	-	hypothetical protein
2975	 54.77	0	3335075..3336007	+	310	152980922	pfkB	mma_2975	-	sugar kinase
2976	 59.12	+1	3336060..3336602	-	180	152982148	-	mma_2976	-	hypothetical protein
2977	 45.13	-2	3336695..3337330	-	211	152983390	bph1	mma_2977	-	histone H1 protein
2978	 51.65	0	3337821..3338999	-	392	152980709	nrdF	mma_2978	-	ribonucleotide-diphosphate reductase subunit beta
2979	 54.60	0	3339183..3342074	-	963	152979866	nrdA	mma_2979	-	ribonucleotide-diphosphate reductase subunit alpha
2980	 54.72	0	3342459..3343094	-	211	152980729	ampD	mma_2980	-	N-acetyl-anhydromuranmyl-L-alanine amidase
2981	 58.69	0	3343081..3344496	-	471	152979868	pilR	mma_2981	-	two-components system response regulator
2982	 56.55	0	3344526..3346226	-	566	152980591	pilS	mma_2982	-	two-component system sensor kinase
2983	 59.17	+1	3346230..3346469	-	79	152983301	-	mma_2983	-	hypothetical protein
2984	 54.94	0	3346466..3347275	-	269	152981551	-	mma_2984	-	ABC-type transport system, permease component
2985	 57.46	0	3347620..3348987	+	455	152980389	ffh	mma_2985	-	signal recognition particle, subunit SRP54
2986	 48.75	-1	3349347..3349787	+	146	152982995	-	mma_2986	-	hypothetical protein
2987	 58.94	+1	3349865..3350692	-	275	152981989	-	mma_2987	-	hypothetical protein
2988	 56.11	0	3350625..3352358	-	577	152981235	proS	mma_2988	-	prolyl-tRNA synthetase
2989	 57.44	0	3352561..3353145	+	194	152982856	nudH	mma_2989	-	dinucleoside polyphosphate hydrolase
2990	 53.72	0	3353138..3353701	+	187	152982744	-	mma_2990	-	hypothetical protein
2991	 57.82	0	3353741..3354859	-	372	152980673	proB	mma_2991	-	gamma-glutamyl kinase
2992	 53.78	0	3354947..3356056	-	369	152981094	-	mma_2992	-	GTPase ObgE
2993	 51.94	0	3356148..3356405	-	85	152983167	rpmA	mma_2993	-	50S ribosomal protein L27
2994	 48.40	-1	3356444..3356755	-	103	152980719	rplU	mma_2994	-	large subunit ribosomal protein L21
2995	 55.92	0	3356982..3357986	+	334	152980282	ispB	mma_2995	-	octaprenyl-diphosphate synthase
2996	 56.41	0	3358230..3359915	+	561	152980438	pilB	mma_2996	-	PilB type IV pilus assembly protein
2997	 54.66	0	3359926..3361158	+	410	152980730	pilC	mma_2997	-	PilC type IV pilus assembly protein
2998	 57.61	0	3361161..3362021	+	286	152980010	pilD	mma_2998	-	leader peptidase (prepilin peptidase) / N-methyltransferase
2999	 60.13	+1	3362026..3362652	+	208	152980135	coaE	mma_2999	-	dephospho-CoA kinase
3000	 54.23	0	3362842..3363597	+	251	152981169	-	mma_3000	-	hypothetical protein
3001	 54.36	0	3363615..3363809	+	64	152983302	-	mma_3001	-	hypothetical protein
3002	 57.86	0	3363826..3364245	-	139	152982879	mutT	mma_3002	-	mutator MutT protein (7,8-dihydro-8-oxoguanine-triphosphatase)
3003	 56.62	0	3364320..3365195	-	291	152981247	-	mma_3003	-	hypothetical protein
3004	 56.39	0	3365248..3366483	-	411	152980606	argJ	mma_3004	-	arginine biosynthesis bifunctional protein
3005	 53.96	0	3366644..3369406	-	920	152979895	secA	mma_3005	-	preprotein translocase SecA subunit
3006	 58.31	0	3369645..3370589	-	314	152981693	-	mma_3006	-	M23B family peptidase
3007	 53.29	0	3370638..3371138	+	166	152983303	-	mma_3007	-	hypothetical protein
3008	 54.49	0	3371202..3372137	-	311	152979936	lpxC	mma_3008	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
3009	 51.19	0	3372315..3372818	-	167	152981331	ahp1	mma_3009	-	peroxiredoxin
3010	 55.78	0	3372972..3374156	-	394	152980453	ftsZ	mma_3010	-	FtsZ cell division protein
3011	 54.91	0	3374265..3375497	-	410	152980244	ftsA	mma_3011	-	FtsA cell division protein
3012	 55.34	0	3375508..3376275	-	255	152980000	ftsQ	mma_3012	-	FtsQ cell division protein
3013	 55.66	0	3376301..3377263	-	320	152980554	ddlA	mma_3013	-	D-alanine--D-alanine ligase
3014	 55.44	0	3377291..3378688	-	465	152980186	murC	mma_3014	-	UDP-N-acetylmuramate--L-alanine ligase
3015	 57.10	0	3378685..3379761	-	358	152980501	murG	mma_3015	-	UDP-N-acetylglucosamine--N-acetylmuramyl-(pentapeptide)
3016	 52.77	0	3379758..3380966	-	402	152980610	ftsW	mma_3016	-	FtsW cell division protein
3017	 56.31	0	3380963..3382459	-	498	152980553	murD	mma_3017	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
3018	 54.10	0	3382459..3383628	-	389	152979913	mraY	mma_3018	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
3019	 56.51	0	3383630..3384997	-	455	152980017	murF	mma_3019	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl- D-alanine ligase
3020	 57.89	0	3384997..3386523	-	508	152980734	murE	mma_3020	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
3021	 55.82	0	3386523..3388283	-	586	152979995	ftsI	mma_3021	-	FtsI cell division protein
3022	 55.68	0	3388280..3388552	-	90	152980159	ftsL	mma_3022	-	FtsL cell division protein
3023	 55.93	0	3388549..3389517	-	322	152980341	mraW	mma_3023	-	S-adenosyl-methyltransferase MraW
3024	 58.28	0	3389525..3389953	-	142	152980138	mraZ	mma_3024	-	cell division protein MraZ
3025	 46.42	-2	3390963..3391772	+	269	152983389	-	mma_3025	-	hypothetical protein
3026	 42.72	-2	3391776..3393725	+	649	152983388	-	mma_3026	-	hypothetical protein
3027	 43.49	-2	3393731..3394675	+	314	152983387	-	mma_3027	-	hypothetical protein
3028	 48.43	-1	3394685..3395896	-	403	152983386	-	mma_3028	-	hypothetical protein
3029	 43.94	-2	3395963..3396292	+	109	152983385	-	mma_3029	-	hypothetical protein
3030	 40.35	-2	3396318..3397001	+	227	152983384	-	mma_3030	-	hypothetical protein
3031	 49.16	-1	3397263..3398033	-	256	152983383	-	mma_3031	-	hypothetical protein
3032	 50.32	-1	3398115..3398426	+	103	152983382	-	mma_3032	-	hypothetical protein
3033	 47.56	-1	3398718..3399434	+	238	152983381	-	mma_3033	-	hypothetical protein
3034	 46.97	-1	3399629..3401461	+	610	152983304	-	mma_3034	-	transposase
3035	 45.61	-2	3401458..3402516	+	352	152983380	-	mma_3035	-	hypothetical protein
3036	 40.85	-2	3402513..3403670	+	385	152983379	-	mma_3036	-	hypothetical protein
3037	 42.02	-2	3403676..3404458	+	260	152983305	-	mma_3037	-	metallophosphoesterase
3038	 46.05	-2	3404753..3405271	+	172	152983378	-	mma_3038	-	hypothetical protein
3039	 52.38	0	3405386..3406498	-	370	152982996	-	mma_3039	-	IS30 family transposase
3040	 51.46	0	3407226..3408014	+	262	152980731	phnC	mma_3040	-	phosphonate ABC-type transport system ATP-binding protein
3041	 48.90	-1	3408024..3408884	+	286	152980686	phnD2	mma_3041	-	phosphonate ABC-type transport system substrate-binding protein
3042	 51.13	0	3408902..3409699	+	265	152980578	phnE	mma_3042	-	phosphonate ABC-type transport system permease protein
3043	 50.45	-1	3409708..3410718	+	336	152982997	-	mma_3043	-	glycerate dehydrogenase
3044	 48.95	-1	3410715..3411572	+	285	152983122	-	mma_3044	-	LysR family transcriptional regulator
3045	 52.74	0	3412023..3413135	-	370	152982998	-	mma_3045	-	IS30 family transposase
3046	 44.27	-2	3413269..3413652	-	127	152983377	-	mma_3046	-	hypothetical protein
3047	 51.89	0	3413690..3415063	-	457	152981658	chrA2	mma_3047	-	chromate transport protein chrA
3048	 51.77	0	3415060..3415992	-	310	152982999	chrB	mma_3048	-	chromate resistance signal peptide protein
3049	 49.85	-1	3416219..3416545	+	108	152983376	-	mma_3049	-	hypothetical protein
3050	 53.66	0	3416655..3417869	+	404	152983123	-	mma_3050	-	outer membrane cation efflux system protein
3051	 50.87	0	3417908..3418426	+	172	152983375	-	mma_3051	-	hypothetical protein
3052	 52.23	0	3418419..3419540	+	373	152983000	mexC	mma_3052	-	RND multidrug efflux membrane fusion protein MexC precursor
54.72	MEAN

4.12	STD DEV
