IslandPathversion 1.0

IslandPath Analysis: Janthinobacterium sp. Marseille

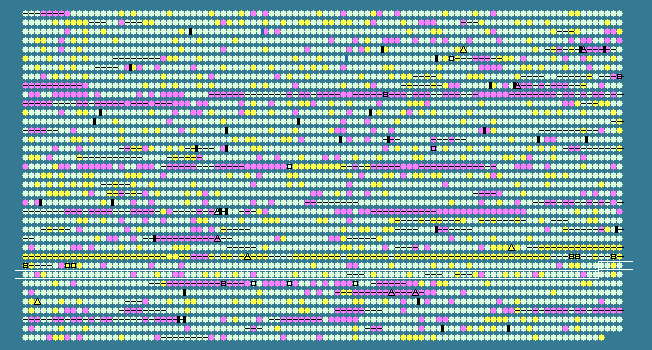

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.72 STD DEV: 4.12
Janthinobacterium sp. Marseille, complete genome - 1..4110251
3697 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2897	 54.67	0	3248142..3248666	+	174	152980524	rlpB	mma_2897	-	rare lipoprotein B
2898	 57.82	0	3248650..3249666	+	338	152980551	holA	mma_2898	-	DNA polymerase III subunit delta
2899	 58.81	0	3249781..3251028	+	415	152980424	proA	mma_2899	-	glutamate-5-semialdehyde dehydrogenase
2900	 56.19	0	3251082..3251501	+	139	152981640	-	mma_2900	-	hypothetical protein
2901	 56.55	0	3251520..3252122	+	200	152980925	nahD	mma_2901	-	2-hydroxychromene-2-carboxylate isomerase
2902	 56.84	0	3252230..3253450	+	406	152981177	-	mma_2902	-	N6-adenine-specific DNA methylase
2903	 49.87	-1	3253536..3253910	+	124	152981911	-	mma_2903	-	glyoxalase/bleomycin resistance protein/dioxygenase superfamily protein
2904	 59.71	+1	3254051..3254740	+	229	152981365	-	mma_2904	-	transcriptional regulator
2905	 55.74	0	3254852..3256324	+	490	152979948	gabD	mma_2905	-	succinate-semialdehyde dehydrogenase (NADP+)
2906	 57.53	0	3256389..3257657	+	422	152982580	bcr	mma_2906	-	major facilitator superfamily drug (bicyclomycin) resistance translocase
2907	 57.64	0	3257674..3259833	-	719	152982088	-	mma_2907	-	hypothetical protein
2908	 57.10	0	3259996..3261762	-	588	152982821	-	mma_2909	-	sensory box histidine kinase/response regulator
2909	 54.48	0	3261751..3262497	+	248	152981499	citB5	mma_2908	-	LuxR family DNA-binding response regulator
2910	 54.10	0	3262506..3263921	-	471	152982684	-	mma_2910	-	hypothetical protein
2911	 52.38	0	3263893..3265782	-	629	152982141	-	mma_2911	-	hypothetical protein
2912	 55.99	0	3266415..3268109	-	564	152980411	ggt5	mma_2912	-	gamma-glutamyltranspeptidase
2913	 54.17	0	3268311..3268862	-	183	152982672	-	mma_2913	-	hypothetical protein
2914	 53.76	0	3268894..3270210	-	438	152981517	codA	mma_2914	-	cytosine deaminase
2915	 58.13	0	3270235..3271827	-	530	152980349	ggt6	mma_2915	-	gamma-glutamyltranspeptidase
2916	 52.40	0	3271947..3272591	-	214	152981412	-	mma_2916	-	LuxR family DNA-binding response regulator
2917	 53.52	0	3272588..3273652	-	354	152981531	-	mma_2917	-	Signal transduction histidine kinase
2918	 52.88	0	3273695..3275101	-	468	152982250	-	mma_2918	-	hypothetical protein
2919	 50.58	-1	3275346..3275774	-	142	152982391	usp2	mma_2919	-	universal stress protein (Usp)
2920	 54.98	0	3275803..3276495	-	230	152981754	-	mma_2920	-	TerC family integral membrane protein
2921	 57.25	0	3276621..3278033	-	470	152982775	-	mma_2921	-	two-components system response regulator
2922	 56.52	0	3278008..3278697	-	229	152981323	ompR6	mma_2922	-	two components system response regulator
2923	 59.19	+1	3278910..3280247	+	445	152981688	-	mma_2923	-	6-aminohexanoate-dimer hydrolase
2924	 54.73	0	3280388..3281443	+	351	152982125	-	mma_2924	-	hypothetical protein
2925	 53.25	0	3281534..3282025	-	163	152981507	ohr1	mma_2925	-	organic hydroperoxide resistance protein
2926	 51.02	0	3282143..3282634	-	163	152982016	-	mma_2927	-	MarR family transcriptional regulator
2927	 48.10	-1	3282618..3282827	+	69	152982992	-	mma_2926	-	hypothetical protein
2928	 55.79	0	3282837..3283553	+	238	152981154	trmB	mma_2928	-	tRNA (guanine-N7-)-methyltransferase
2929	 55.32	0	3283567..3285390	-	607	152980056	recQ	mma_2929	-	ATP-dependent DNA helicase
2930	 54.20	0	3285400..3286233	-	277	152979814	bacA	mma_2930	-	undecaprenol kinase
2931	 58.33	0	3286471..3286998	-	175	152982993	-	mma_2931	-	hypothetical protein
2932	 54.22	0	3287116..3287766	+	216	152981335	pcm2	mma_2932	-	protein-L-isoaspartate(D-aspartate) O-methyltransferase
2933	 59.57	+1	3287776..3288099	+	107	152981948	-	mma_2933	-	hypothetical protein
2934	 56.63	0	3288152..3289456	+	434	152981557	tolC6	mma_2934	-	outer membrane protein, tolC-like
2935	 54.36	0	3289501..3290142	-	213	152982014	acrR	mma_2935	-	TetR/AcrR family transcriptional regulator
2936	 59.50	+1	3290388..3291656	+	422	152981741	acrA5	mma_2936	-	acriflavin resistance lipoprotein A precursor
2937	 55.33	0	3291669..3294818	+	1049	152980474	acrB3	mma_2937	-	acriflavin resistance transmembrane protein
2938	 57.54	0	3294818..3296263	+	481	152981001	-	mma_2938	-	drug efflux lipoprotein
2939	 49.83	-1	3296361..3296657	-	98	152982723	-	mma_2939	-	hypothetical protein
2940	 53.11	0	3296853..3297383	+	176	152982205	-	mma_2940	-	hypothetical protein
2941	 54.85	0	3297482..3297811	+	109	152982994	-	mma_2941	-	virulence protein
2942	 57.92	0	3297836..3299104	-	422	152980275	kdta	mma_2942	-	3-deoxy-D-manno-octulosonic-acid transferase
2943	 55.92	0	3299284..3300660	-	458	152981058	algC	mma_2943	-	phosphomannomutase
2944	 56.61	0	3300962..3301786	+	274	152982132	apaH	mma_2944	-	diadenosine tetraphosphatase
2945	 55.02	0	3301783..3302529	-	248	152980297	plsC2	mma_2945	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
2946	 59.11	+1	3302604..3303887	-	427	152981059	pyrC2	mma_2946	-	dihydroorotase, multifunctional complex type
2947	 54.90	0	3303892..3304851	-	319	152980634	pyrB	mma_2947	-	aspartate carbamoyltransferase catalytic chain
2948	 54.96	0	3304844..3305407	-	187	152981536	pyrR1	mma_2948	-	pyrimidine regulatory protein PyrR
2949	 53.03	0	3305343..3305738	-	131	152981739	ruvX	mma_2949	-	Hollyday junction resolvase
2950	 57.66	0	3305754..3306419	-	221	152981307	-	mma_2950	-	transcriptional regulator
2951	 58.27	0	3306533..3308020	+	495	152981216	phrB	mma_2951	-	deoxyribodipyrimidine photo-lyase
2952	 55.98	0	3308067..3313772	-	1901	152980997	-	mma_2952	-	two-component hybrid sensor and regulator
2953	 55.37	0	3313994..3316276	-	760	152981516	pilJ	mma_2953	-	PilJ twitching motility protein
2954	 57.12	0	3316329..3316904	-	191	152981964	pilI	mma_2954	-	PilI twitching motility protein
2955	 51.37	0	3316915..3317280	-	121	152982489	pilH	mma_2955	-	twitching motility two-component response regulator transcription regulator protein
2956	 51.99	0	3317301..3317702	-	133	152982173	pilG	mma_2956	-	PilG twitching motility two-component system response regulator
2957	 55.38	0	3317854..3318048	-	64	152983300	rubA	mma_2957	-	rubredoxin
2958	 57.83	0	3318103..3318951	+	282	152981526	thiD2	mma_2958	-	phosphomethylpyrimidine kinase
2959	 59.89	+1	3318985..3320283	+	432	152979840	hemL	mma_2959	-	glutamate-1-semialdehyde 2,1-aminomutase
2960	 53.62	0	3320326..3321291	-	321	152980712	corA2	mma_2960	-	Mg2+/Co2+ transporter
2961	 53.88	0	3321713..3322408	-	231	152982155	mtgA	mma_2961	-	monofunctional biosynthetic peptidoglycan transglycosylase
2962	 57.42	0	3322500..3323321	-	273	152980054	aroE	mma_2962	-	shikimate 5-dehydrogenase
2963	 53.44	0	3323322..3324236	-	304	152980914	-	mma_2963	-	hypothetical protein
2964	 55.91	0	3324291..3326345	-	684	152982558	-	mma_2964	-	exoribonuclease R
2965	 60.36	+1	3326456..3327073	-	205	152980471	ubiC	mma_2965	-	chorismate--pyruvate lyase
2966	 56.24	0	3327043..3327627	-	194	152981432	-	mma_2966	-	hypothetical protein
2967	 57.21	0	3327624..3328997	-	457	152980991	mpl	mma_2967	-	UDP-N-acetylmuramate: L-alanyl-gamma-D-glutamyl-meso-diaminopimelate ligase
2968	 53.48	0	3329012..3329686	+	224	152982804	-	mma_2968	-	hypothetical protein
2969	 55.94	0	3329689..3330210	+	173	152982711	-	mma_2969	-	thioredoxin-related transmembrane protein
2970	 52.28	0	3330294..3330731	+	145	152980561	aroQ	mma_2970	-	3-dehydroquinate dehydratase II
2971	 55.27	0	3330811..3331275	+	154	152980262	fabE	mma_2971	-	biotin carboxyl carrier protein of acetyl-CoA carboxylase
2972	 55.73	0	3331372..3332733	+	453	152981095	accC	mma_2972	-	biotin carboxylase
2973	 58.52	0	3332877..3333809	+	310	152980437	prmA	mma_2973	-	ribosomal protein L11 methyltransferase
2974	 56.60	0	3333748..3334989	+	413	152982692	-	mma_2974	-	hypothetical protein
2975	 54.77	0	3335075..3336007	+	310	152980922	pfkB	mma_2975	-	sugar kinase
2976	 59.12	+1	3336060..3336602	-	180	152982148	-	mma_2976	-	hypothetical protein
2977	 45.13	-2	3336695..3337330	-	211	152983390	bph1	mma_2977	-	histone H1 protein
2978	 51.65	0	3337821..3338999	-	392	152980709	nrdF	mma_2978	-	ribonucleotide-diphosphate reductase subunit beta
2979	 54.60	0	3339183..3342074	-	963	152979866	nrdA	mma_2979	-	ribonucleotide-diphosphate reductase subunit alpha
2980	 54.72	0	3342459..3343094	-	211	152980729	ampD	mma_2980	-	N-acetyl-anhydromuranmyl-L-alanine amidase
2981	 58.69	0	3343081..3344496	-	471	152979868	pilR	mma_2981	-	two-components system response regulator
2982	 56.55	0	3344526..3346226	-	566	152980591	pilS	mma_2982	-	two-component system sensor kinase
2983	 59.17	+1	3346230..3346469	-	79	152983301	-	mma_2983	-	hypothetical protein
2984	 54.94	0	3346466..3347275	-	269	152981551	-	mma_2984	-	ABC-type transport system, permease component
2985	 57.46	0	3347620..3348987	+	455	152980389	ffh	mma_2985	-	signal recognition particle, subunit SRP54
2986	 48.75	-1	3349347..3349787	+	146	152982995	-	mma_2986	-	hypothetical protein
2987	 58.94	+1	3349865..3350692	-	275	152981989	-	mma_2987	-	hypothetical protein
2988	 56.11	0	3350625..3352358	-	577	152981235	proS	mma_2988	-	prolyl-tRNA synthetase
2989	 57.44	0	3352561..3353145	+	194	152982856	nudH	mma_2989	-	dinucleoside polyphosphate hydrolase
2990	 53.72	0	3353138..3353701	+	187	152982744	-	mma_2990	-	hypothetical protein
2991	 57.82	0	3353741..3354859	-	372	152980673	proB	mma_2991	-	gamma-glutamyl kinase
2992	 53.78	0	3354947..3356056	-	369	152981094	-	mma_2992	-	GTPase ObgE
2993	 51.94	0	3356148..3356405	-	85	152983167	rpmA	mma_2993	-	50S ribosomal protein L27
2994	 48.40	-1	3356444..3356755	-	103	152980719	rplU	mma_2994	-	large subunit ribosomal protein L21
2995	 55.92	0	3356982..3357986	+	334	152980282	ispB	mma_2995	-	octaprenyl-diphosphate synthase
2996	 56.41	0	3358230..3359915	+	561	152980438	pilB	mma_2996	-	PilB type IV pilus assembly protein
54.72	MEAN

4.12	STD DEV
