IslandPath Analysis: Janthinobacterium sp. Marseille

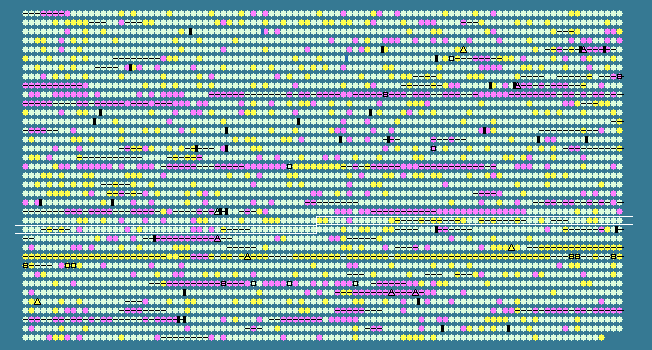

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.72 STD DEV: 4.12
Janthinobacterium sp. Marseille, complete genome - 1..4110251
3697 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2350	 59.32	+1	2633831..2634211	+	126	152980829	fecI9	mma_2350	-	ECF subfamily RNA polymerase sigma factor
2351	 59.55	+1	2634190..2635173	+	327	152980828	fecR9	mma_2351	-	Fe2+-dicitrate sensor, membrane component
2352	 56.58	0	2635275..2637773	+	832	152980827	fhuE2	mma_2352	-	outer membrane receptor for ferric coprogen and ferric-rhodotorulic acid
2353	 56.17	0	2637815..2639215	-	466	152980826	czcS	mma_2353	-	heavy metal sensor kinase
2354	 53.87	0	2639212..2639883	-	223	152980825	czcR2	mma_2354	-	heavy metal response regulator
2355	 48.67	-1	2640083..2640421	+	112	152982170	-	mma_2355	-	hypothetical protein
2356	 54.28	0	2640517..2641533	-	338	152980824	wcaA	mma_2356	-	glycosyltransferase involved in cell wall biogenesis
2357	 54.04	0	2641691..2642086	-	131	152982789	-	mma_2357	-	hypothetical protein
2358	 53.03	0	2642238..2642699	-	153	152982551	-	mma_2358	-	AraC family transcriptional regulator
2359	 57.47	0	2643443..2645866	+	807	152981511	-	mma_2359	-	autotransporter
2360	 52.21	0	2646051..2647067	+	338	152982501	-	mma_2360	-	AraC family transcriptional regulator
2361	 58.00	0	2647148..2658439	-	3763	152982147	ugp3	mma_2361	-	hypothetical protein
2362	 59.14	+1	2658638..2659633	-	331	152980823	fecR10	mma_2362	-	Fe2+-dicitrate sensor, membrane component
2363	 59.50	+1	2659715..2660230	-	171	152980822	fecI10	mma_2363	-	ECF subfamily RNA polymerase sigma factor
2364	 57.62	0	2660273..2660935	-	220	152982320	-	mma_2364	-	hypothetical protein
2365	 58.08	0	2661119..2662480	-	453	152980821	mucD2	mma_2365	-	periplasmic serine protease
2366	 55.95	0	2662484..2662987	-	167	152982602	-	mma_2366	-	hypothetical protein
2367	 64.34	+2	2663016..2663747	-	243	152982751	-	mma_2367	-	hypothetical protein
2368	 58.18	0	2663909..2676499	-	4196	152982731	ugp4	mma_2368	-	hypothetical protein
2369	 59.38	+1	2676720..2677721	-	333	152980820	fecR11	mma_2369	-	Fe2+-dicitrate sensor, membrane component
2370	 61.39	+1	2677824..2678354	-	176	152982707	fecI11	mma_2370	-	ECF subfamily RNA polymerase sigma factor
2371	 57.75	0	2678354..2679037	-	227	152982642	-	mma_2371	-	hypothetical protein
2372	 57.95	0	2679184..2679447	-	87	152982767	-	mma_2372	-	hypothetical protein
2373	 58.29	0	2679503..2680027	-	174	152982702	-	mma_2373	-	hypothetical protein
2374	 58.77	0	2680102..2681025	-	307	152980819	ppiC	mma_2374	-	peptidyl-prolyl cis-trans isomerase, PpiC-type
2375	 57.46	0	2681088..2681771	-	227	152982171	-	mma_2375	-	hypothetical protein
2376	 56.35	0	2681783..2683576	-	597	152982583	-	mma_2376	-	hypothetical protein
2377	 60.75	+1	2683624..2684316	-	230	152982092	-	mma_2377	-	hypothetical protein
2378	 56.20	0	2684327..2684737	-	136	152980818	exbD4	mma_2378	-	ExbD transport protein
2379	 59.52	+1	2684751..2686526	-	591	152980817	exbB3	mma_2379	-	ExbB transport protein
2380	 56.79	0	2686595..2688235	-	546	152980816	fhaC5	mma_2380	-	hemolysin activation/secretion protein
2381	 57.54	0	2688507..2689634	-	375	152982257	-	mma_2381	-	hypothetical protein
2382	 57.03	0	2689552..2701275	-	3907	152982724	ugp5	mma_2382	-	hypothetical protein
2383	 59.23	+1	2701455..2702435	-	326	152980815	fecR12	mma_2383	-	Fe2+-dicitrate sensor, membrane component
2384	 54.64	0	2702452..2703000	-	182	152980814	fecI12	mma_2384	-	ECF subfamily RNA polymerase sigma factor
2385	 57.82	0	2703003..2703635	-	210	152982616	-	mma_2385	-	hypothetical protein
2386	 56.34	0	2703941..2704279	+	112	152982796	-	mma_2386	-	hypothetical protein
2387	 59.16	+1	2704857..2705882	+	341	152981061	tctC9	mma_2387	-	tricarboxylate binding receptor
2388	 56.55	0	2705923..2707158	+	411	152981233	-	mma_2388	-	hypothetical protein
2389	 57.78	0	2707155..2707559	+	134	152982040	-	mma_2389	-	hypothetical protein
2390	 53.30	0	2707611..2708276	-	221	152982459	-	mma_2390	-	Cro/CI family transcriptional regulator
2391	 52.50	0	2708279..2708899	-	206	152982839	-	mma_2391	-	AraC family transcriptional regulator
2392	 56.85	0	2709139..2710452	+	437	152982759	shiA2	mma_2392	-	shikimate transporter ShiA
2393	 51.40	0	2710496..2710888	+	130	152982118	-	mma_2393	-	hypothetical protein
2394	 51.59	0	2710908..2711252	+	114	152982480	fdxA3	mma_2394	-	ferredoxin
2395	 59.56	+1	2711783..2713147	-	454	152982191	phoQ	mma_2395	-	two component sensor histidine kinase
2396	 59.76	+1	2713144..2713809	-	221	152981423	phoP	mma_2396	-	two-components system response regulator
2397	 53.47	0	2713822..2714124	-	100	152982080	-	mma_2397	-	hypothetical protein
2398	 55.05	0	2714247..2714573	+	108	152982738	-	mma_2398	-	hypothetical protein
2399	 53.33	0	2714676..2715395	-	239	152982225	-	mma_2399	-	short chain dehydrogenase
2400	 55.62	0	2715492..2715989	+	165	152981772	-	mma_2400	-	transcriptional regulator
2401	 52.57	0	2716108..2717100	-	330	152982421	-	mma_2401	-	AraC family transcriptional regulator
2402	 51.72	0	2717639..2720227	+	862	152981521	-	mma_2402	-	autotransporter
2403	 57.46	0	2720271..2722463	-	730	152980893	-	mma_2403	-	patatin-like phospholipase
2404	 56.66	0	2722476..2723444	-	322	152982758	-	mma_2404	-	hypothetical protein
2405	 59.43	+1	2723456..2724712	-	418	152982326	-	mma_2405	-	hypothetical protein
2406	 53.50	0	2724783..2725640	-	285	152982681	-	mma_2406	-	hypothetical protein
2407	 59.96	+1	2725744..2728248	-	834	152982185	-	mma_2407	-	autotransporter
2408	 52.89	0	2728377..2729378	-	333	152982542	-	mma_2408	-	nonspecific acid phosphatase precursor
2409	 58.03	0	2729440..2730435	-	331	152981439	-	mma_2409	-	hypothetical protein
2410	 50.61	0	2730478..2730888	-	136	152982404	-	mma_2410	-	hypothetical protein
2411	 56.89	0	2730924..2732672	-	582	152980813	sul1	mma_2411	-	sulfate transporter
2412	 52.00	0	2732787..2734334	-	515	152980750	aslA1	mma_2412	-	arylsulfatase
2413	 54.94	0	2734452..2734937	-	161	152982057	-	mma_2413	-	hypothetical protein
2414	 57.57	0	2734973..2736346	-	457	152982483	-	mma_2414	-	hypothetical protein
2415	 56.71	0	2736533..2737225	-	230	152982834	-	mma_2415	-	hypothetical protein
2416	 56.56	0	2737299..2738465	-	388	152982811	-	mma_2416	-	hypothetical protein
2417	 55.24	0	2738475..2739419	-	314	152981830	-	mma_2417	-	hypothetical protein
2418	 51.09	0	2739455..2739775	+	106	152982962	-	mma_2418	-	hypothetical protein
2419	 54.01	0	2739779..2740165	+	128	152982809	-	mma_2419	-	hypothetical protein
2420	 59.38	+1	2740179..2740727	+	182	152982193	-	mma_2420	-	hypothetical protein
2421	 53.30	0	2741061..2741741	+	226	152981398	-	mma_2421	-	two-components system response regulator
2422	 53.40	0	2741888..2743651	+	587	152982333	-	mma_2422	-	two-component sensor histidine kinase
2423	 51.79	0	2743648..2744622	-	324	152982748	-	mma_2423	-	hypothetical protein
2424	 51.90	0	2745051..2746574	-	507	152979837	aslA2	mma_2424	-	arylsulfatase
2425	 57.38	0	2747018..2750311	+	1097	152982046	-	mma_2425	-	autotransporter
2426	 55.05	0	2750333..2751520	-	395	152982338	-	mma_2426	-	hypothetical protein
2427	 51.65	0	2751688..2753205	+	505	152982963	-	mma_2427	-	hypothetical protein
2428	 53.06	0	2753237..2754316	-	359	152982964	-	mma_2428	-	hypothetical protein
2429	 48.77	-1	2754357..2755211	-	284	152982965	-	mma_2429	-	mechanosensitive ion channel protein
2430	 47.97	-1	2755297..2756799	-	500	152980036	aslA3	mma_2430	-	arylsulfatase
2431	 53.09	0	2757164..2758894	+	576	152982966	-	mma_2431	-	mechanosensitive ion channel protein
2432	 45.66	-2	2758966..2759322	+	118	152982967	-	mma_2432	-	hypothetical protein
2433	 54.41	0	2759557..2760168	-	203	152980210	ribE	mma_2433	-	riboflavin synthase subunit alpha
2434	 58.33	0	2760186..2761277	-	363	152980375	ribD	mma_2434	-	5-amino-6-(5-phosphoribosylamino)uracil reductase
2435	 57.69	0	2761329..2761874	-	181	152980812	fimT	mma_2435	-	FimT type IV pilus assembly protein
2436	 53.33	0	2761861..2762265	-	134	152980811	pilE1	mma_2436	-	PilE type IV pilus assembly protein
2437	 55.07	0	2762292..2762972	-	226	152980810	pilX1	mma_2437	-	PilX type IV pilus assembly protein
2438	 55.23	0	2763035..2763952	-	305	152980809	pilW1	mma_2438	-	PilW type IV pilus assembly protein
2439	 56.06	0	2763991..2764452	-	153	152982968	-	mma_2439	-	hypothetical protein
2440	 54.76	0	2764643..2765524	-	293	152982626	-	mma_2440	-	transporter of the DMT superfamily
2441	 52.66	0	2765557..2765913	-	118	152982368	-	mma_2441	-	hypothetical protein
2442	 56.20	0	2765910..2766377	-	155	152981422	-	mma_2442	-	transcriptional regulator
2443	 54.54	0	2766577..2767821	-	414	152980047	glyA	mma_2443	-	glycine hydroxymethyltransferase
2444	 54.12	0	2768301..2769065	+	254	152980157	xthA2	mma_2444	-	exodeoxyribonuclease III
2445	 52.30	0	2769080..2769601	-	173	152981583	pat	mma_2445	-	phosphinothricin N-acetyltransferase
2446	 54.17	0	2769784..2770767	-	327	152980808	tctC10	mma_2446	-	tricarboxylate binding receptor
2447	 51.69	0	2770983..2771336	-	117	152982633	-	mma_2447	-	hypothetical protein
2448	 53.57	0	2771350..2771601	-	83	152983283	-	mma_2448	-	hypothetical protein
2449	 53.73	0	2771624..2772280	-	218	152982772	-	mma_2449	-	hypothetical protein
54.72	MEAN

4.12	STD DEV
