IslandPath Analysis: Janthinobacterium sp. Marseille

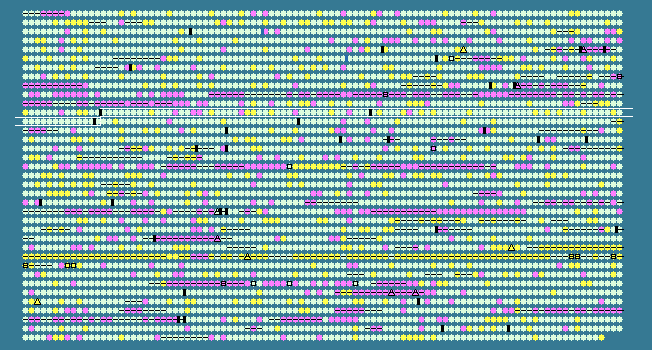

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.72 STD DEV: 4.12
Janthinobacterium sp. Marseille, complete genome - 1..4110251
3697 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1114	 53.14	0	1258451..1259056	+	201	152982111	-	mma_1114	-	transcription factor
1115	 53.11	0	1259084..1259983	+	299	152982597	-	mma_1115	-	hypothetical protein
1116	 53.51	0	1259973..1261523	+	516	152981509	yahF	mma_1116	-	oxidoreductase
1117	 55.77	0	1261520..1262950	+	476	152982286	yahG	mma_1117	-	hypothetical protein
1118	 56.24	0	1263175..1264728	+	517	152982495	-	mma_1118	-	hypothetical protein
1119	 54.09	0	1264815..1265768	+	317	152979964	arcC1	mma_1119	-	putative carbamate kinase
1120	 52.99	0	1265859..1266794	+	311	152982861	-	mma_1120	-	LysR family transcriptional regulator
1121	 56.38	0	1266921..1267406	+	161	152982023	-	mma_1121	-	MarR family transcriptional regulator
1122	 58.37	0	1267432..1268937	+	501	152981378	tolC4	mma_1122	-	outer membrane protein, tolC-like
1123	 57.58	0	1268934..1270133	+	399	152979788	emrA	mma_1123	-	multidrug resistance protein A, emrA
1124	 57.79	0	1270137..1271690	+	517	152982589	emrB	mma_1124	-	major facilitator superfamily multidrug resistance B translocase
1125	 58.14	0	1271749..1272909	+	386	152981009	-	mma_1125	-	hypothetical protein
1126	 46.35	-2	1273036..1273611	+	191	152981774	efp	mma_1126	-	elongation factor EF-P
1127	 54.95	0	1273678..1274667	-	329	152982516	-	mma_1127	-	hypothetical protein
1128	 52.95	0	1274683..1275972	-	429	152981024	-	mma_1128	-	hypothetical protein
1129	 51.10	0	1276228..1276908	+	226	152982105	-	mma_1129	-	hypothetical protein
1130	 51.21	0	1277073..1277939	+	288	152980435	purU	mma_1130	-	formyltetrahydrofolate deformylase
1131	 55.35	0	1278128..1278790	-	220	152981594	-	mma_1131	-	phospholipase/carboxylesterase
1132	 58.70	0	1278826..1279440	-	204	152980224	mog	mma_1132	-	Mog molybdopterin biosynthesis protein
1133	 56.29	0	1279424..1280011	-	195	152981589	-	mma_1133	-	hypothetical protein
1134	 55.16	0	1280100..1281464	+	454	152980976	pmbA	mma_1134	-	PmbA protein
1135	 51.30	0	1281644..1282723	+	359	152981760	fcbTp2	mma_1135	-	TRAP-type mannitol/chloroaromatic compound transport system, periplasmic component
1136	 53.78	0	1282958..1284649	-	563	152980992	fcbTl2	mma_1136	-	TRAP-type mannitol/chloroaromatic compound transport system, large permease component
1137	 50.94	0	1284665..1285249	-	194	152981355	fcbTs2	mma_1137	-	TRAP-type mannitol/chloroaromatic compound transport system, small permease component
1138	 58.21	0	1285591..1286985	-	464	152979989	argH	mma_1138	-	argininosuccinate lyase
1139	 58.23	0	1287140..1288111	+	323	152982870	-	mma_1139	-	two-component system sensor protein
1140	 56.78	0	1288108..1288896	+	262	152981608	algR	mma_1140	-	alginate biosynthesis regulatory protein AlgR
1141	 57.53	0	1288967..1291846	-	959	152980037	ppc	mma_1141	-	phosphoenolpyruvate carboxylase
1142	 60.80	+1	1292064..1293017	+	317	152980451	hemC	mma_1142	-	hydroxymethylbilane synthase
1143	 56.81	0	1293010..1293780	+	256	152981768	hemD	mma_1143	-	uroporphyrinogen-III synthase
1144	 56.48	0	1293786..1294934	+	382	152981436	hemX	mma_1144	-	uroporphyrin-III C-methyltransferase
1145	 57.23	0	1294995..1296191	+	398	152980339	hemY	mma_1145	-	HemY protein
1146	 51.11	0	1296350..1296889	+	179	152979859	ppa	mma_1146	-	inorganic pyrophosphatase
1147	 54.72	0	1296972..1297850	-	292	152982634	-	mma_1147	-	transporter of the DMT superfamily
1148	 57.03	0	1297921..1298958	-	345	152981619	-	mma_1148	-	serine/threonine protein kinase
1149	 56.89	0	1299035..1300180	-	381	152981091	-	mma_1149	-	hypothetical protein
1150	 56.32	0	1300261..1301874	+	537	152979996	nadE1	mma_1150	-	NAD synthetase
1151	 55.46	0	1301957..1302295	+	112	152981593	glnK2	mma_1151	-	nitrogen regulatory protein PII
1152	 58.26	0	1302343..1302984	-	213	152981621	-	mma_1152	-	hypothetical protein
1153	 57.65	0	1303075..1304028	-	317	152980722	trxB	mma_1153	-	thioredoxin reductase (NADPH)
1154	 56.68	0	1304327..1306660	+	777	152979986	ftsK	mma_1154	-	FtsK/SpoIIIE family DNA segregation ATPase
1155	 51.12	0	1306670..1307338	+	222	152981724	lolA	mma_1155	-	outer-membrane lipoprotein carrier protein
1156	 55.22	0	1307505..1308806	+	433	152980972	-	mma_1156	-	recombination factor protein RarA
1157	 55.48	0	1309188..1310483	+	431	152980660	serS	mma_1157	-	seryl-tRNA synthetase
1158	 54.48	0	1310491..1312467	-	658	152982527	-	mma_1158	-	hypothetical protein
1159	 57.39	0	1313019..1315508	-	829	152980886	fhuE1	mma_1159	-	outer membrane receptor for ferric coprogen and ferric-rhodotorulic acid
1160	 61.03	+1	1315651..1316643	-	330	152981311	fecR2	mma_1160	-	Fe2+-dicitrate sensor, membrane component
1161	 56.47	0	1316664..1317173	-	169	152981844	fecI2	mma_1161	-	hypothetical protein
1162	 57.47	0	1318681..1320039	+	452	152981735	mgtC2	mma_1162	-	magnesium transporter accessory protein
1163	 53.95	0	1320366..1321214	+	282	152982316	-	mma_1163	-	transcriptional regulator-related protein
1164	 58.70	0	1321295..1321984	-	229	152981732	-	mma_1164	-	OmpA family protein
1165	 47.22	-1	1322336..1322659	-	107	152982007	-	mma_1165	-	hypothetical protein
1166	 56.77	0	1322947..1324533	-	528	152980470	gshA2	mma_1166	-	glutamate--cysteine ligase
1167	 58.43	0	1324717..1326888	-	723	152981678	-	mma_1167	-	Fe-S oxidoreductase
1168	 57.52	0	1327305..1327949	+	214	152982344	-	mma_1168	-	hypothetical protein
1169	 59.24	+1	1328077..1328790	+	237	152981630	-	mma_1169	-	RNA pseudouridylate synthase
1170	 55.59	0	1329189..1330904	+	571	152981471	tar9	mma_1170	-	methyl-accepting chemotaxis protein
1171	 55.08	0	1330987..1331832	-	281	152981282	fghA	mma_1171	-	S-formylgluthatione hydrolase
1172	 56.28	0	1331843..1332949	-	368	152980956	adhI	mma_1172	-	bifunctional glutathione-dependent formaldehyde dehydrogenase /alcohol dehydrogenase class III oxidoreductase protein
1173	 53.33	0	1333093..1333362	-	89	152983234	minE	mma_1173	-	cell division topological specificity factor
1174	 53.68	0	1333365..1334180	-	271	152980103	minD	mma_1174	-	septum site-determining protein
1175	 58.71	0	1334209..1335000	-	263	152980736	minC	mma_1175	-	septum site-determining protein MinC
1176	 57.59	0	1335328..1336230	+	300	152979943	rdgC	mma_1176	-	recombination associated protein
1177	 54.75	0	1336331..1336783	+	150	152982703	-	mma_1177	-	hypothetical protein
1178	 54.21	0	1336849..1337121	-	90	152981596	-	mma_1178	-	hypothetical protein
1179	 57.74	0	1337252..1338562	-	436	152980008	argA	mma_1179	-	N-acetylglutamate synthase
1180	 57.85	0	1338648..1342607	+	1319	152980496	hrpA	mma_1180	-	ATP-dependent helicase
1181	 53.58	0	1342648..1343205	+	185	152982535	-	mma_1181	-	hypothetical protein
1182	 53.00	0	1343232..1343531	+	99	152982853	-	mma_1182	-	hypothetical protein
1183	 55.43	0	1343541..1343807	+	88	152983346	-	mma_1183	-	hypothetical protein
1184	 51.50	0	1343890..1344456	+	188	152980277	dcd	mma_1184	-	deoxycytidine triphosphate deaminase
1185	 57.83	0	1344477..1345178	+	233	152982237	-	mma_1185	-	hypothetical protein
1186	 59.49	+1	1345182..1346087	-	301	152981664	-	mma_1186	-	LysR family transcriptional regulator
1187	 55.84	0	1346186..1346767	+	193	152981870	-	mma_1187	-	ChrA half sized-like protein
1188	 60.08	+1	1346764..1347294	+	176	152981838	-	mma_1188	-	ChrA half sized-like protein
1189	 53.29	0	1347299..1347754	-	151	152982179	-	mma_1189	-	hypothetical protein
1190	 61.70	+1	1347809..1348231	-	140	152982210	-	mma_1190	-	hypothetical protein
1191	 56.19	0	1348258..1350510	-	750	152980132	adi	mma_1191	-	arginine decarboxylase
1192	 57.06	0	1350683..1351171	-	162	152980022	folA	mma_1192	-	dihydrofolate reductase
1193	 57.44	0	1351184..1352158	-	324	152980241	thyA	mma_1193	-	thymidylate synthase
1194	 59.68	+1	1352263..1354050	-	595	152981213	-	mma_1194	-	ABC-type multidrug transport system, ATPase and permease components
1195	 55.52	0	1354340..1355290	+	316	152981062	-	mma_1195	-	hypothetical protein
1196	 57.31	0	1355377..1356594	+	405	152981975	-	mma_1196	-	hypothetical protein
1197	 57.50	0	1356607..1358952	-	781	152980932	cti	mma_1197	-	fatty acid cis/trans isomerase
1198	 56.24	0	1359071..1360729	-	552	152979897	leuA2	mma_1198	-	2-isopropylmalate synthase
1199	 59.03	+1	1361225..1362271	-	348	152979877	selD	mma_1199	-	selenide,water dikinase
1200	 58.00	0	1362387..1363574	+	395	152981825	-	mma_1200	-	hypothetical protein
1201	 56.54	0	1363609..1364013	-	134	152982766	-	mma_1201	-	hypothetical protein
1202	 54.89	0	1364222..1365622	-	466	152981028	-	mma_1202	-	ATP-dependent RNA helicase
1203	 57.16	0	1366040..1366828	-	262	152980030	fabI	mma_1203	-	enoyl-[acyl-carrier protein] reductase (NADH)
1204	 54.37	0	1367057..1368877	+	606	152981157	-	mma_1204	-	ABC transporter, periplasmic substrate-binding protein
1205	 54.27	0	1368888..1369952	+	354	152981225	-	mma_1205	-	ABC-type uncharacterized transport system, permease component
1206	 55.08	0	1369949..1370992	+	347	152981281	-	mma_1206	-	ABC-type uncharacterized transport system, permease component
1207	 57.49	0	1370989..1372590	+	533	152981020	-	mma_1207	-	ABC-type uncharacterized transport system, duplicated ATPase component
1208	 54.57	0	1372606..1374201	-	531	152979878	mltD	mma_1208	-	membrane-bound lytic murein transglycosylase D precursor
1209	 55.73	0	1374435..1375211	-	258	152981854	gloB	mma_1210	-	hydroxyacylglutathione hydrolase
1210	 56.03	0	1375210..1375980	+	256	152982721	-	mma_1209	-	hypothetical protein
1211	 56.32	0	1376007..1376441	+	144	152980654	rnhA	mma_1211	-	ribonuclease HI
1212	 56.50	0	1376496..1377203	+	235	152980051	dnaQ	mma_1212	-	DNA polymerase III epsilon subunit
1213	 55.25	0	1377516..1378058	+	180	152980325	fecI3	mma_1213	-	ECF subfamily RNA polymerase sigma factor
54.72	MEAN

4.12	STD DEV
