IslandPathversion 1.0

IslandPath Analysis: Janthinobacterium sp. Marseille

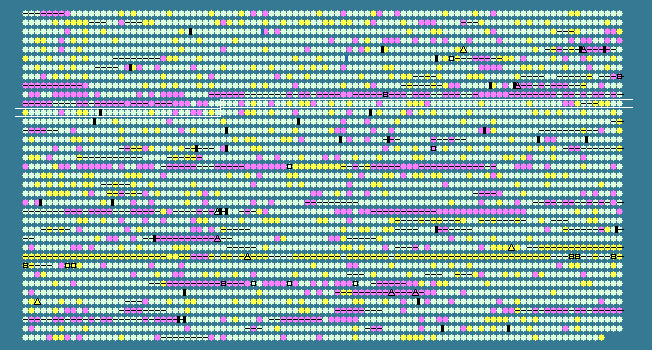

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 54.72 STD DEV: 4.12
Janthinobacterium sp. Marseille, complete genome - 1..4110251
3697 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1034	 52.20	0	1167957..1168889	-	310	152982921	-	mma_1035	-	TetR family transcriptional regulator
1035	 56.11	0	1168714..1169376	+	220	152980078	-	mma_1034	-	hypothetical protein
1036	 55.29	0	1169451..1170206	+	251	152980201	-	mma_1036	-	short-chain dehydrogenase/reductase SDR
1037	 50.64	0	1170301..1170768	-	155	152980442	-	mma_1037	-	hypothetical protein
1038	 54.75	0	1170913..1172196	-	427	152980202	fadL	mma_1038	-	long-chain fatty acid transport protein precursor
1039	 58.43	0	1172703..1173224	-	173	152980368	-	mma_1039	-	hypothetical protein
1040	 54.00	0	1173740..1174915	+	391	152980637	-	mma_1040	-	outer membrane protein (porin)
1041	 54.01	0	1175203..1176585	+	460	152982698	-	mma_1041	-	major facilitator transporter
1042	 42.94	-2	1176718..1176894	-	58	152983344	-	mma_1042	-	hypothetical protein
1043	 57.40	0	1177371..1178093	+	240	152982464	-	mma_1043	-	AraC family transcriptional regulator
1044	 58.14	0	1178143..1178904	+	253	152982093	-	mma_1044	-	hypothetical protein
1045	 59.45	+1	1179324..1180196	+	290	152980743	-	mma_1045	-	hypothetical protein
1046	 56.54	0	1180247..1180888	+	213	152982568	-	mma_1046	-	hypothetical protein
1047	 59.82	+1	1180892..1182103	-	403	152980302	yeaN	mma_1047	-	major facilitator transporter
1048	 58.72	0	1182208..1182987	+	259	152980647	-	mma_1048	-	AraC family transcriptional regulator
1049	 50.14	-1	1183146..1183841	+	231	152982454	-	mma_1049	-	hypothetical protein
1050	 55.12	0	1183886..1184734	+	282	152980379	-	mma_1050	-	hypothetical protein
1051	 57.01	0	1184847..1185488	+	213	152980175	-	mma_1051	-	TetR family transcriptional regulator
1052	 59.78	+1	1185485..1186123	+	212	152979953	-	mma_1052	-	hypothetical protein
1053	 55.65	0	1186120..1186854	+	244	152980265	pqiA	mma_1053	-	paraquat-inducible protein A
1054	 56.00	0	1186841..1188472	+	543	152980478	pqiB	mma_1054	-	paraquat-inducible protein B
1055	 60.03	+1	1188469..1189131	+	220	152980001	-	mma_1055	-	hypothetical protein
1056	 56.54	0	1189136..1190221	-	361	152979810	-	mma_1057	-	LysR family transcriptional regulator
1057	 54.67	0	1190172..1191338	+	388	152979769	-	mma_1056	-	mandelate racemase/muconate lactonizing enzyme family protein
1058	 51.82	0	1191592..1191975	-	127	152982544	-	mma_1058	-	hypothetical protein
1059	 54.80	0	1192078..1192431	-	117	152982490	-	mma_1059	-	hypothetical protein
1060	 49.44	-1	1192754..1193200	+	148	152980067	-	mma_1060	-	two-components system response regulator
1061	 57.33	0	1193294..1194193	+	299	152979983	-	mma_1061	-	hypothetical protein
1062	 56.67	0	1194138..1197299	-	1053	152980176	-	mma_1062	-	autotransporter
1063	 55.90	0	1197777..1198556	+	259	152980266	fpr	mma_1063	-	ferredoxin--NADP+ reductase
1064	 57.09	0	1198998..1200710	+	570	152981910	-	mma_1064	-	multidrug efflux system transmembrane protein
1065	 58.36	0	1200722..1202695	+	657	152980250	-	mma_1065	-	macrolide ABC efllux protein
1066	 59.82	+1	1202706..1204121	+	471	152979834	-	mma_1066	-	outer membrane efflux protein
1067	 59.30	+1	1204173..1205462	-	429	152980094	-	mma_1067	-	cytosine/purine/uracil/thiamine/allantoin permease family protein (NCS1 family)
1068	 50.55	-1	1205851..1206303	+	150	152980369	-	mma_1068	-	hypothetical protein
1069	 56.75	0	1206579..1207526	+	315	152980343	-	mma_1069	-	hypothetical protein
1070	 54.98	0	1207579..1208391	-	270	152980230	-	mma_1070	-	component of ABC-type phosphonate transport system
1071	 55.83	0	1208673..1209161	+	162	152982778	-	mma_1071	-	hypothetical protein
1072	 57.75	0	1209264..1209689	+	141	152982136	-	mma_1072	-	hypothetical protein
1073	 54.43	0	1209764..1210000	+	78	152983345	-	mma_1073	-	hypothetical protein
1074	 56.31	0	1210118..1211788	+	556	152979791	prfC	mma_1074	-	peptide chain release factor 3
1075	 54.47	0	1211933..1213309	+	458	152980380	-	mma_1075	-	hypothetical protein
1076	 57.42	0	1213317..1213781	-	154	152980622	-	mma_1076	-	hypothetical protein
1077	 58.96	+1	1213884..1215245	-	453	152979992	nhaA	mma_1077	-	NhaA family Na(+)/H(+) antiporter
1078	 52.40	0	1215696..1217111	+	471	152979825	glnA	mma_1078	-	glutamine synthetase
1079	 52.17	0	1217284..1217766	+	160	152980203	-	mma_1079	-	hypothetical protein
1080	 56.65	0	1217878..1218915	+	345	152980593	ntrB	mma_1080	-	nitrogen regulation (sensor protein kinase) transcription regulator
1081	 56.41	0	1218984..1220504	+	506	152980688	ntrC	mma_1081	-	nitrogen regulation protein NR(I)
1082	 55.89	0	1220874..1222562	+	562	152980725	-	mma_1082	-	alanine/aspartate exchanger
1083	 56.42	0	1222614..1224302	+	562	152980303	-	mma_1083	-	alanine/aspartate exchanger
1084	 52.17	0	1224362..1226017	+	551	152980283	asdA	mma_1084	-	aspartate aminotransferase
1085	 59.25	+1	1226088..1227935	-	615	152980198	cheA2	mma_1085	-	CheA chemotaxis protein
1086	 57.32	0	1227935..1228726	-	263	152981520	cheZ1	mma_1086	-	CheZ chemotaxis protein
1087	 57.32	0	1229229..1230266	+	345	152980374	cobT	mma_1087	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
1088	 55.72	0	1230286..1231098	+	270	152980635	cobS	mma_1088	-	cobalamin (5'-phosphate) synthase
1089	 54.05	0	1231107..1231661	+	184	152982696	-	mma_1089	-	phosphoglycerate mutase family protein
1090	 57.83	0	1231658..1232449	-	263	152982658	-	mma_1090	-	hypothetical protein
1091	 50.82	0	1232928..1234928	+	666	152982674	-	mma_1091	-	outer membrane hemin/siderophore receptor protein
1092	 48.18	-1	1235441..1237312	+	623	152981186	-	mma_1092	-	hypothetical protein
1093	 58.67	0	1237445..1238470	+	341	152982275	-	mma_1093	-	ABC-type transport system, permease component
1094	 56.55	0	1238470..1239240	+	256	152982657	-	mma_1094	-	ABC-type cobalamin/Fe3+-siderophores transport systems, ATPase components
1095	 55.71	0	1239237..1239866	+	209	152980675	cobO	mma_1095	-	cob(I)alamin adenosyltransferase
1096	 58.80	0	1239867..1241162	+	431	152979999	cobB	mma_1096	-	cobyrinic acid a,c-diamide synthase
1097	 58.65	0	1241162..1241710	+	182	152980495	cobU	mma_1097	-	cobinamide kinase / conamide phosphate guanylyltransferase
1098	 58.28	0	1241712..1242653	+	313	152980055	cobD2	mma_1098	-	cobalamin biosynthesis protein CobD
1099	 58.18	0	1242646..1243623	+	325	152981374	cobC	mma_1099	-	cobalamin biosynthetic protein CobC
1100	 55.41	0	1243643..1244539	+	298	152982795	-	mma_1100	-	ABC-type transport system, periplasmic component
1101	 60.80	+1	1244563..1245993	+	476	152980577	cobQ	mma_1101	-	cobyric acid synthase
1102	 55.61	0	1246183..1246797	+	204	152982303	parA2	mma_1102	-	ParA family protein
1103	 55.43	0	1246794..1247309	+	171	152981784	-	mma_1103	-	hypothetical protein
1104	 56.69	0	1247355..1247765	+	136	152982833	-	mma_1104	-	hypothetical protein
1105	 53.81	0	1247832..1248671	-	279	152980410	panC	mma_1105	-	pantoate--beta-alanine ligase
1106	 57.11	0	1248758..1249636	-	292	152981409	scpA	mma_1106	-	segregation and condensation protein A
1107	 50.70	0	1249637..1249849	-	70	152983233	-	mma_1107	-	hypothetical protein
1108	 55.42	0	1250071..1250550	+	159	152982144	-	mma_1108	-	hypothetical protein
1109	 57.23	0	1250547..1252253	-	568	152980676	sulP1	mma_1109	-	SulP family sulfate permease
1110	 59.55	+1	1252382..1253182	-	266	152981015	-	mma_1110	-	Short-chain dehydrogenase
1111	 58.87	+1	1253330..1253893	+	187	152982094	-	mma_1111	-	TetR family transcriptional regulator
1112	 55.92	0	1253977..1256079	-	700	152979917	metG	mma_1112	-	methionyl-tRNA synthetase
1113	 57.47	0	1256319..1257710	+	463	152980247	gltX	mma_1113	-	glutamyl-tRNA synthetase
1114	 53.14	0	1258451..1259056	+	201	152982111	-	mma_1114	-	transcription factor
1115	 53.11	0	1259084..1259983	+	299	152982597	-	mma_1115	-	hypothetical protein
1116	 53.51	0	1259973..1261523	+	516	152981509	yahF	mma_1116	-	oxidoreductase
1117	 55.77	0	1261520..1262950	+	476	152982286	yahG	mma_1117	-	hypothetical protein
1118	 56.24	0	1263175..1264728	+	517	152982495	-	mma_1118	-	hypothetical protein
1119	 54.09	0	1264815..1265768	+	317	152979964	arcC1	mma_1119	-	putative carbamate kinase
1120	 52.99	0	1265859..1266794	+	311	152982861	-	mma_1120	-	LysR family transcriptional regulator
1121	 56.38	0	1266921..1267406	+	161	152982023	-	mma_1121	-	MarR family transcriptional regulator
1122	 58.37	0	1267432..1268937	+	501	152981378	tolC4	mma_1122	-	outer membrane protein, tolC-like
1123	 57.58	0	1268934..1270133	+	399	152979788	emrA	mma_1123	-	multidrug resistance protein A, emrA
1124	 57.79	0	1270137..1271690	+	517	152982589	emrB	mma_1124	-	major facilitator superfamily multidrug resistance B translocase
1125	 58.14	0	1271749..1272909	+	386	152981009	-	mma_1125	-	hypothetical protein
1126	 46.35	-2	1273036..1273611	+	191	152981774	efp	mma_1126	-	elongation factor EF-P
1127	 54.95	0	1273678..1274667	-	329	152982516	-	mma_1127	-	hypothetical protein
1128	 52.95	0	1274683..1275972	-	429	152981024	-	mma_1128	-	hypothetical protein
1129	 51.10	0	1276228..1276908	+	226	152982105	-	mma_1129	-	hypothetical protein
1130	 51.21	0	1277073..1277939	+	288	152980435	purU	mma_1130	-	formyltetrahydrofolate deformylase
1131	 55.35	0	1278128..1278790	-	220	152981594	-	mma_1131	-	phospholipase/carboxylesterase
1132	 58.70	0	1278826..1279440	-	204	152980224	mog	mma_1132	-	Mog molybdopterin biosynthesis protein
1133	 56.29	0	1279424..1280011	-	195	152981589	-	mma_1133	-	hypothetical protein
54.72	MEAN

4.12	STD DEV
