IslandPath Analysis: Hyphomonas neptunium ATCC 15444

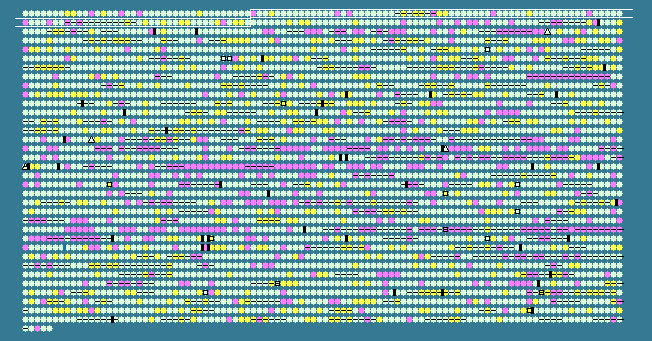

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.10 STD DEV: 3.66
Hyphomonas neptunium ATCC 15444, complete genome - 1..3705021
3505 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
39	 51.31	-2	29676..31655	-	659	114798513	-	HNE_0039	-	acyltransferase family protein
40	 64.70	0	31948..32811	+	287	114797587	-	HNE_0040	-	beta/gamma crystallin family protein
41	 63.55	0	32822..33367	+	181	114798866	rimM	HNE_0041	-	16S rRNA processing protein RimM
42	 70.09	+2	33458..34978	+	506	114798164	-	HNE_0042	-	beta/gamma crystallin domain-containing protein
43	 61.60	0	34988..35737	-	249	114797767	-	HNE_0043	-	glycosyl transferase, group 2 family protein
44	 64.34	0	35891..37696	+	601	114799732	kefC	HNE_0044	-	glutathione-regulated potassium-efflux system protein KefC
45	 63.10	0	37728..38483	+	251	114797793	trmD	HNE_0045	-	tRNA (guanine-N1)-methyltransferase
46	 60.90	0	38470..39024	+	184	114797917	rplS	HNE_0046	-	50S ribosomal protein L19
47	 63.30	0	39148..40545	+	465	114800168	leuC1	HNE_0047	-	isopropylmalate isomerase large subunit
48	 61.99	0	40571..41533	+	320	114800485	bioB	HNE_0048	-	biotin synthase
49	 63.21	0	41629..42612	+	327	114799333	cysK	HNE_0049	-	cysteine synthase A
50	 60.56	0	42705..43343	+	212	114798524	-	HNE_0050	-	glutathione S-transferase
51	 63.49	0	43340..44188	+	282	114798233	-	HNE_0051	-	glyoxalase family protein
52	 60.79	0	44200..44829	+	209	114799969	leuD1	HNE_0052	-	3-isopropylmalate dehydratase, small subunit
53	 57.63	-1	44952..45272	+	106	114798050	-	HNE_0053	-	putative lipoprotein
54	 59.09	0	45471..45668	+	65	114798012	-	HNE_0054	-	hypothetical protein
55	 57.94	-1	45729..46049	+	106	114797061	-	HNE_0055	-	putative lipoprotein
56	 64.86	0	46142..47194	+	350	114800090	leuB	HNE_0056	-	3-isopropylmalate dehydrogenase
57	 59.61	0	47276..48466	+	396	114799080	-	HNE_0057	-	amidohydrolase family protein
58	 60.43	0	48521..48889	+	122	114800136	-	HNE_0058	-	ArsR family transcriptional regulator
59	 58.80	0	48886..49419	+	177	114799115	-	HNE_0059	-	hypothetical protein
60	 59.41	0	49416..49787	-	123	114798586	-	HNE_0060	-	hypothetical protein
61	 59.42	0	49913..50947	+	344	114797625	asd	HNE_0061	-	aspartate-semialdehyde dehydrogenase
62	 61.24	0	51015..51512	-	165	114798905	-	HNE_0062	-	YbaK/prolyl-tRNA synthetase domain-containing protein
63	 60.00	0	51575..52309	+	244	114798190	-	HNE_0063	-	hypothetical protein
64	 72.73	+2	52373..52735	-	120	114797533	hisE	HNE_0064	-	phosphoribosyl-ATP diphosphatase
65	 63.38	0	52868..53689	+	273	114798522	-	HNE_0065	-	enoyl-CoA hydratase
66	 67.98	+1	53725..54483	-	252	114797557	hisF	HNE_0066	-	imidazoleglycerol phosphate synthase, cyclase subunit
67	 68.75	+1	54635..54826	+	63	114798515	-	HNE_0067	-	hypothetical protein
68	 64.70	0	54933..55694	+	253	114799626	-	HNE_0068	-	putative diguanylate cyclase
69	 50.95	-2	55978..56187	+	69	114799723	-	HNE_0069	-	hypothetical protein
70	 67.77	+1	56214..56939	-	241	114797166	hisA	HNE_0070	-	phosphoribosylformimino-5-aminoimidazole carboxamide ribotide isomerase
71	 67.93	+1	56936..57568	-	210	114798251	hisH	HNE_0071	-	imidazoleglycerol phosphate synthase, glutamine amidotransferase subunit
72	 62.16	0	57668..58975	+	435	114800187	-	HNE_0072	-	putative transporter
73	 60.29	0	58991..59617	-	208	114799970	hisB	HNE_0073	-	imidazoleglycerol-phosphate dehydratase
74	 63.03	0	59697..61481	+	594	114799436	-	HNE_0074	-	putative diguanylate cyclase
75	 63.39	0	61463..61981	-	172	114798620	-	HNE_0075	-	putative acetyltransferase
76	 61.38	0	61978..62412	-	144	114800214	-	HNE_0076	-	hypothetical protein
77	 62.00	0	62417..62845	-	142	114797338	-	HNE_0077	-	hypothetical protein
78	 63.92	0	62935..63990	-	351	114798208	mclA	HNE_0078	-	malyl-CoA lyase
79	 56.22	-1	64086..64286	+	66	114797180	-	HNE_0079	-	hypothetical protein
80	 64.41	0	64291..65220	-	309	114797932	xerD	HNE_0080	-	tyrosine recombinase XerD
81	 62.03	0	65507..66067	+	186	114800012	aroK	HNE_0081	-	shikimate kinase
82	 64.17	0	66064..67185	+	373	114797725	aroB	HNE_0082	-	3-dehydroquinate synthase
83	 61.33	0	67214..68488	+	424	114798726	-	HNE_0083	-	CBS/transporter associated domain-containing protein
84	 60.99	0	68495..68776	-	93	114799844	-	HNE_0084	-	BolA family protein
85	 66.51	+1	68808..69431	+	207	114797765	-	HNE_0085	-	DnaJ domain-containing protein
86	 59.57	0	69846..70310	+	154	114798718	-	HNE_0086	-	spore coat family protein
87	 63.14	0	70322..71002	+	226	114799312	-	HNE_0087	-	hypothetical protein
88	 63.69	0	71056..73308	+	750	114800318	-	HNE_0088	-	fimbrial usher protein
89	 59.48	0	73309..73767	+	152	114797879	-	HNE_0089	-	putative lipoprotein
90	 62.32	0	73871..74860	+	329	114798702	-	HNE_0090	-	putative NADH-quinone oxidoreductase
91	 64.34	0	74864..75721	-	285	114799349	-	HNE_0091	-	putative undecaprenol kinase
92	 61.96	0	75961..77406	+	481	114800319	gltD	HNE_0092	-	putative oxidoreductase
93	 61.05	0	77412..81953	+	1513	114798288	gltB	HNE_0093	-	glutamate synthase, large subunit
94	 61.15	0	82002..82889	-	295	114798674	-	HNE_0094	-	putative lipoprotein
95	 58.33	-1	83174..84337	+	387	114799939	-	HNE_0095	-	aminotransferase, classes I and II
96	 60.85	0	84385..85932	-	515	114797697	-	HNE_0096	-	carboxyl transferase domain-containing protein
97	 58.82	0	86041..86346	+	101	114797960	-	HNE_0097	-	SCP-2 sterol transfer family protein
98	 60.17	0	86433..87386	+	317	114799139	-	HNE_0098	-	alpha/beta fold family hydrolase
99	 60.77	0	87421..88878	+	485	114797267	baiB	HNE_0099	-	bile acid-coenzyme A ligase
100	 62.09	0	88934..89938	+	334	114797977	-	HNE_0100	-	alcohol dehydrogenase, class III
101	 58.20	-1	89975..91498	-	507	114798776	-	HNE_0101	-	amino acid carrier protein
102	 59.35	0	91544..91666	-	40	114799575	-	HNE_0102	-	hypothetical protein
103	 61.11	0	91688..93037	+	449	114799640	-	HNE_0103	-	tRNA-i(6)A37 thiotransferase enzyme MiaB
104	 62.33	0	93076..94020	+	314	114800486	-	HNE_0104	-	PhoH family protein
105	 55.19	-1	94031..94483	+	150	114798379	-	HNE_0105	-	hypothetical protein
106	 61.44	0	94489..95349	+	286	114798310	-	HNE_0106	-	CBS/transporter associated domain-containing protein
107	 61.44	0	95356..96999	+	547	114800455	lnt	HNE_0107	-	apolipoprotein N-acyltransferase
108	 57.53	-1	97041..97478	+	145	114799525	-	HNE_0108	-	DNA-binding protein
109	 61.36	0	97510..98169	+	219	114798099	trmB	HNE_0109	-	tRNA (guanine-N(7))-methyltransferase
110	 52.38	-2	98355..98564	+	69	114797127	-	HNE_0110	-	cold shock DNA-binding protein
111	 61.83	0	98773..99372	+	199	114800120	-	HNE_0111	-	hypothetical protein
112	 61.10	0	99369..101147	+	592	114799070	nusA	HNE_0112	-	transcription termination factor NusA
113	 61.57	0	101122..101808	+	228	114798650	-	HNE_0113	-	hypothetical protein
114	 62.72	0	101864..104425	+	853	114797688	infB	HNE_0114	-	translation initiation factor IF-2
115	 62.75	0	104435..104842	+	135	114799473	rbfA	HNE_0115	-	ribosome-binding factor A
116	 62.01	0	105005..105562	+	185	114800142	-	HNE_0116	-	hypothetical protein
117	 64.54	0	105695..106636	+	313	114799976	truB	HNE_0117	-	tRNA pseudouridine synthase B
118	 66.67	+1	106637..106873	-	78	114797236	-	HNE_0118	-	hypothetical protein
119	 61.86	0	107521..108228	-	235	114797682	-	HNE_0119	-	putative lipoprotein
120	 62.28	0	108400..108900	+	166	114800218	msrB1	HNE_0120	-	methionine-R-sulfoxide reductase
121	 67.94	+1	108966..109358	-	130	114798277	-	HNE_0121	-	hypothetical protein
122	 61.90	0	109355..109690	-	111	114797689	-	HNE_0122	-	hypothetical protein
123	 64.47	0	109703..110338	-	211	114797302	-	HNE_0123	-	hypothetical protein
124	 69.89	+2	110388..110759	-	123	114798871	-	HNE_0124	-	hypothetical protein
125	 61.94	0	110804..111586	-	260	114797825	bdhA	HNE_0125	-	3-hydroxybutyrate dehydrogenase
126	 61.38	0	111682..112116	+	144	114800450	-	HNE_0126	-	hypothetical protein
127	 66.24	+1	112243..112947	+	234	114799432	-	HNE_0127	-	hypothetical protein
128	 66.67	+1	112944..113813	+	289	114799810	pyrF	HNE_0128	-	orotidine 5'-phosphate decarboxylase
129	 63.93	0	113966..116119	+	717	114797244	adhA	HNE_0129	-	alcohol dehydrogenase (acceptor)
130	 65.00	0	116258..116797	+	179	114798229	-	HNE_0130	-	hypothetical protein
131	 59.39	0	116868..117692	+	274	114797508	-	HNE_0131	-	hypothetical protein
132	 62.34	0	117676..118368	-	230	114800131	-	HNE_0132	-	glutathione S-transferase
133	 65.99	+1	118365..118661	-	98	114797485	-	HNE_0133	-	hypothetical protein
134	 56.92	-1	118811..119518	+	235	114798071	-	HNE_0134	-	TetR family transcriptional regulator
135	 64.67	0	119583..119732	+	49	114799071	-	HNE_0135	-	hypothetical protein
136	 68.49	+1	119883..120980	-	365	114797789	gcp	HNE_0136	-	O-sialoglycoprotein endopeptidase
137	 68.02	+1	121016..121756	-	246	114798778	-	HNE_0137	-	YceI family protein
138	 58.80	0	122241..122672	+	143	114799309	-	HNE_0138	-	hypothetical protein
62.10	MEAN

3.66	STD DEV
