IslandPathversion 1.0

IslandPath Analysis: Hyphomonas neptunium ATCC 15444

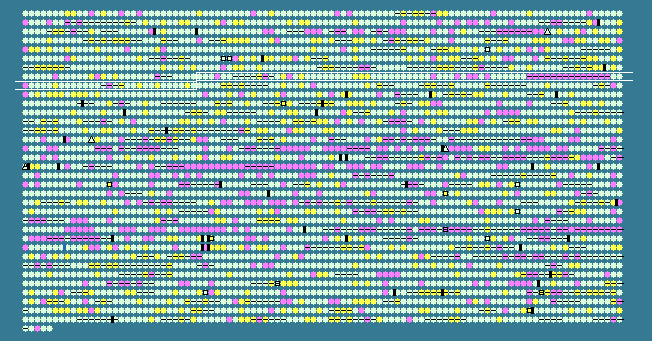

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.10 STD DEV: 3.66
Hyphomonas neptunium ATCC 15444, complete genome - 1..3705021
3505 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
730	 61.37	0	746933..748441	+	502	114797124	-	HNE_0736	-	putative NADH-quinone oxidoreductase
731	 60.59	0	748438..748881	+	147	114798330	-	HNE_0737	-	hypothetical protein
732	 60.47	0	748881..750656	+	591	114798610	-	HNE_0738	-	putative monovalent cation/H+ antiporter subunit D
733	 51.21	-2	750827..751240	+	137	114799831	-	HNE_0739	-	Ros/MucR family transcriptional regulator
734	 62.87	0	751388..751888	+	166	114797666	-	HNE_0740	-	hypothetical protein
735	 60.87	0	751990..752334	+	114	114799179	-	HNE_0741	-	DnaA domain-containing protein
736	 65.50	0	752331..753014	+	227	114800191	-	HNE_0742	-	hypothetical protein
737	 64.79	0	752667..752933	-	88	114800096	-	HNE_0743	-	hypothetical protein
738	 60.24	0	753021..753440	-	139	114797908	-	HNE_0744	-	SufE family Fe-S metabolism protein
739	 61.16	0	753527..754525	-	332	114797262	-	HNE_0745	-	hypothetical protein
740	 66.36	+1	754650..756269	+	539	114798414	-	HNE_0746	-	putative sensor histidine kinase DivJ
741	 57.69	-1	756361..756672	+	103	114799583	-	HNE_0747	-	putative lipoprotein
742	 64.66	0	756703..757050	+	115	114797676	-	HNE_0748	-	hypothetical protein
743	 62.47	0	757148..757552	+	134	114798927	-	HNE_0749	-	putative lipoprotein
744	 69.47	+2	757679..757999	+	106	114799697	-	HNE_0750	-	hypothetical protein
745	 56.02	-1	758071..758427	+	118	114798497	-	HNE_0751	-	hypothetical protein
746	 62.73	0	758558..760159	+	533	114798284	-	HNE_0752	-	putative peptide chain release factor 3
747	 65.63	0	760128..760610	-	160	114799424	-	HNE_0753	-	hypothetical protein
748	 64.20	0	760691..762517	-	608	114799256	-	HNE_0754	-	ABC transporter, ATP-binding protein
749	 63.11	0	762551..763225	-	224	114800237	rsuA	HNE_0755	-	ribosomal small subunit pseudouridine synthase A
750	 62.25	0	763233..764273	-	346	114797404	-	HNE_0756	-	putative methyltransferase
751	 65.13	0	764335..765243	-	302	114798177	-	HNE_0757	-	putative lipoprotein
752	 63.23	0	765360..766610	-	416	114798967	-	HNE_0758	-	acetyl-CoA acetyltransferase
753	 61.43	0	767029..767448	+	139	114799024	-	HNE_0759	-	TadE-like family protein
754	 64.07	0	767450..769180	+	576	114799760	-	HNE_0760	-	hypothetical protein
755	 64.43	0	769227..770387	-	386	114798754	dnaJ	HNE_0761	-	chaperone protein DnaJ
756	 65.82	+1	770487..771785	-	432	114799659	-	HNE_0762	-	hypothetical protein
757	 66.89	+1	771833..772708	+	291	114797084	-	HNE_0763	-	tetrapyrrole methylase family protein
758	 68.56	+1	772698..773066	+	122	114797099	-	HNE_0764	-	hypothetical protein
759	 62.37	0	773212..774978	+	588	114797969	-	HNE_0765	-	hypothetical protein
760	 64.10	0	774989..776116	+	375	114799183	-	HNE_0766	-	glycosyl transferase, group 2
761	 65.38	0	776126..776593	-	155	114799964	-	HNE_0767	-	cytochrome c family protein
762	 65.09	0	776708..778801	+	697	114798595	-	HNE_0768	-	1A family penicillin-binding protein
763	 61.79	0	778903..779886	-	327	114799344	-	HNE_0769	-	putative diguanylate cyclase
764	 62.89	0	780195..780776	+	193	114797253	-	HNE_0770	-	NnrU family protein
765	 64.61	0	780833..781660	+	275	114797775	panB	HNE_0771	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
766	 65.27	0	781740..782456	+	238	114799082	-	HNE_0772	-	hypothetical protein
767	 63.56	0	782453..783802	+	449	114798096	-	HNE_0773	-	PQQ repeat-containing protein
768	 63.14	0	783855..785387	+	510	114798294	engA	HNE_0774	-	GTP-binding protein EngA
769	 55.00	-1	785452..786522	-	356	114797309	-	HNE_0775	-	mannose-1-phosphate guanylyltransferase
770	 61.34	0	786610..788541	-	643	114799988	cysNC	HNE_0776	-	sulfate adenylyltransferase, large subunit/adenylylsulfate kinase
771	 62.51	0	788541..789527	-	328	114799213	cysD	HNE_0777	-	sulfate adenylyltransferase subunit 2
772	 63.49	0	789693..791519	+	608	114800082	glmS	HNE_0778	-	glucosamine--fructose-6-phosphate aminotransferase, isomerizing
773	 54.30	-2	791573..792154	+	193	114799033	rfbC	HNE_0779	-	dTDP-4-dehydrorhamnose 3,5-epimerase
774	 61.84	0	792151..793041	+	296	114798649	rfbD	HNE_0780	-	dTDP-4-dehydrorhamnose reductase
775	 56.59	-1	793156..793989	+	277	114797221	-	HNE_0781	-	hypothetical protein
776	 57.13	-1	793956..795161	-	401	114797227	-	HNE_0782	-	N-acylglucosamine 2-epimerase
777	 62.25	0	795428..796582	+	384	114799993	-	HNE_0783	-	DegT/DnrJ/EryC1/StrS aminotransferase family protein
778	 50.23	-2	796755..796973	-	72	114800368	-	HNE_0784	-	DNA-binding protein
779	 61.73	0	797474..798142	+	222	114797997	-	HNE_0785	-	ECF subfamily RNA polymerase sigma factor
780	 62.77	0	798390..799571	-	393	114798411	metK	HNE_0786	-	S-adenosylmethionine synthetase
781	 62.35	0	799594..800451	-	285	114797552	purU	HNE_0787	-	formyltetrahydrofolate deformylase
782	 61.42	0	800471..801880	-	469	114798407	ahcY	HNE_0788	-	S-adenosyl-L-homocysteine hydrolase
783	 62.79	0	801993..802868	-	291	114797641	rfbA	HNE_0789	-	glucose-1-phosphate thymidylyltransferase
784	 60.56	0	802980..804077	-	365	114799940	rfbB	HNE_0790	-	dTDP-glucose 4,6-dehydratase
785	 56.74	-1	804078..804470	-	130	114798886	-	HNE_0791	-	putative dTDP-4-dehydrorhamnose 3,5-epimerase
786	 56.88	-1	804821..806005	+	394	114798947	-	HNE_0792	-	putative glycosyl transferase
787	 54.91	-1	806469..807446	+	325	114798249	gmd	HNE_0793	-	GDP-mannose 4,6-dehydratase
788	 56.31	-1	807479..808453	+	324	114797456	-	HNE_0794	-	putative GDP-6-deoxy-D-lyxo-4-hexulose reductase
789	 52.58	-2	808521..809315	+	264	114800250	-	HNE_0795	-	lipopolysaccharide ABC transporter, permease protein
790	 50.64	-2	809312..810565	+	417	114799437	-	HNE_0796	-	lipopolysaccharide ABC transporter, ATP-binding protein
791	 51.93	-2	810562..811959	+	465	114798665	-	HNE_0797	-	FkbM family methyltransferase
792	 50.48	-2	812047..814221	-	724	114797898	-	HNE_0798	-	hypothetical protein
793	 49.40	-2	814238..815158	-	306	114799784	-	HNE_0799	-	hypothetical protein
794	 51.64	-2	815165..815803	-	212	114798982	-	HNE_0800	-	3-demethylubiquinone-9 3-methyltransferase domain-containing protein
795	 46.90	-2	815822..816772	-	316	114798217	-	HNE_0801	-	glycosyl transferase, group 2 family protein
796	 46.93	-2	818133..820280	+	715	114799742	-	HNE_0803	-	hypothetical protein
797	 52.22	-2	820414..824136	-	1240	114799110	-	HNE_0804	-	putative mannosyltransferase
798	 56.99	-1	824692..825735	-	347	114798009	-	HNE_0805	-	glycosyl transferase, group 2 family protein
799	 60.33	0	825754..826605	-	283	114797175	kdsA	HNE_0806	-	2-dehydro-3-deoxyphosphooctonate aldolase
800	 59.35	0	827102..827566	+	154	114800116	-	HNE_0807	-	hypothetical protein
801	 57.18	-1	827714..828103	-	129	114799321	-	HNE_0808	-	hypothetical protein
802	 60.03	0	828265..829605	+	446	114798494	-	HNE_0809	-	acyl-CoA dehydrogenase family protein
803	 62.56	0	829662..831026	-	454	114800287	tnaA	HNE_0810	-	tryptophanase
804	 60.44	0	831075..833033	+	652	114799965	-	HNE_0811	-	hypothetical protein
805	 62.08	0	833040..834020	-	326	114798051	-	HNE_0812	-	oxidoreductase, NAD-binding
806	 67.14	+1	834208..834633	+	141	114797297	-	HNE_0813	-	hypothetical protein
807	 62.37	0	834705..834983	+	92	114800053	-	HNE_0814	-	hypothetical protein
808	 60.03	0	834989..838228	-	1079	114800248	-	HNE_0815	-	AcrB/AcrD/AcrF family protein
809	 62.29	0	838225..839343	-	372	114799367	-	HNE_0816	-	RND family efflux transporter MFP subunit
810	 65.40	0	839464..840963	-	499	114797830	-	HNE_0817	-	putative 6-aminohexanoate-cyclic-dimer hydrolase
811	 63.87	0	841126..841875	+	249	114798580	-	HNE_0818	-	hemolysin A
812	 65.10	0	841876..842451	-	191	114799835	-	HNE_0819	-	putative lipoprotein
813	 64.56	0	842544..843443	-	299	114799517	-	HNE_0820	-	hypothetical protein
814	 62.84	0	843453..844550	+	365	114798952	-	HNE_0821	-	hypothetical protein
815	 58.48	0	844701..845201	+	166	114799703	-	HNE_0822	-	hypothetical protein
816	 65.20	0	845285..846376	-	363	114797430	aroC	HNE_0823	-	chorismate synthase
817	 66.36	+1	846461..847120	+	219	114798246	pdxH	HNE_0824	-	pyridoxamine 5'-phosphate oxidase
818	 65.11	0	847137..847586	-	149	114798862	-	HNE_0825	-	hypothetical protein
819	 61.20	0	847870..848253	+	127	114799860	-	HNE_0826	-	hypothetical protein
820	 65.61	0	848319..849167	-	282	114797643	-	HNE_0827	-	glycerophosphoryl diester phosphodiesterase family protein
821	 62.42	0	849439..851064	+	541	114798331	alkK	HNE_0828	-	putative acyl-CoA synthetase
822	 64.94	0	851073..851420	+	115	114799627	-	HNE_0829	-	hypothetical protein
823	 68.65	+1	851485..852393	+	302	114799715	-	HNE_0830	-	hypothetical protein
824	 64.98	0	852397..852870	-	157	114799159	-	HNE_0831	-	putative lipoprotein
825	 64.36	0	853007..853483	-	158	114798113	-	HNE_0832	-	thioesterase family protein
826	 62.37	0	853480..853851	-	123	114798492	csaA	HNE_0833	-	export-related chaperone CsaA
827	 63.02	0	853851..854618	-	255	114800132	-	HNE_0834	-	short chain dehydrogenase/reductase family oxidoreductase
828	 71.32	+2	854792..855199	+	135	114800502	-	HNE_0835	-	hypothetical protein
829	 63.17	0	855275..857278	+	667	114799503	-	HNE_0836	-	TonB-dependent receptor
62.10	MEAN

3.66	STD DEV
