IslandPath Analysis: Hyphomonas neptunium ATCC 15444

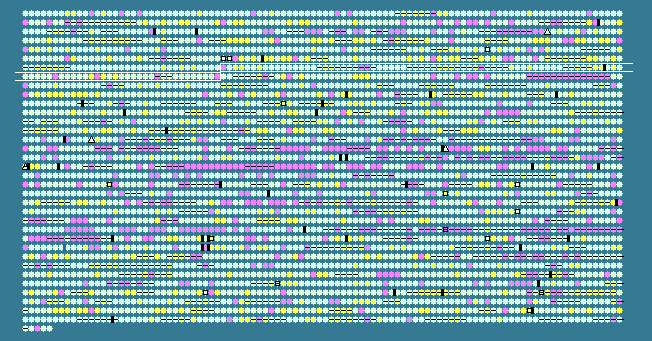

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.10 STD DEV: 3.66
Hyphomonas neptunium ATCC 15444, complete genome - 1..3705021
3505 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
634	 58.20	-1	642444..642809	+	121	114799911	cheY	HNE_0639	-	chemotaxis protein CheY
635	 64.16	0	642879..643715	+	278	114797580	cheR	HNE_0640	-	chemotaxis protein methyltransferase
636	 66.84	+1	643812..644996	+	394	114798727	trmU	HNE_0641	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
637	 67.70	+1	645005..646069	-	354	114799325	-	HNE_0642	-	hypothetical protein
638	 59.49	0	646081..646554	-	157	114799104	greA	HNE_0643	-	transcription elongation factor GreA
639	 62.82	0	646624..649902	-	1092	114798818	carB	HNE_0644	-	carbamoyl-phosphate synthase, large subunit
640	 66.92	+1	650025..650420	+	131	114798856	-	HNE_0645	-	putative lipoprotein
641	 61.42	0	650465..650788	+	107	114798318	-	HNE_0646	-	hypothetical protein
642	 60.75	0	650868..652100	+	410	114797333	-	HNE_0647	-	hypothetical protein
643	 61.74	0	652174..652518	-	114	114800337	-	HNE_0648	-	putative lipoprotein
644	 63.54	0	652594..653328	-	244	114799929	-	HNE_0649	-	metallo-beta-lactamase superfamily protein
645	 63.68	0	653440..654411	+	323	114797419	-	HNE_0650	-	M48 family peptidase
646	 62.77	0	654786..655376	+	196	114798400	-	HNE_0651	-	TetR family transcriptional regulator
647	 63.81	0	655476..656666	+	396	114800411	-	HNE_0652	-	aromatic amino acid aminotransferase
648	 59.72	0	656715..657002	-	95	114800365	-	HNE_0653	-	hypothetical protein
649	 64.29	0	657080..658003	-	307	114797914	-	HNE_0654	-	hypothetical protein
650	 60.99	0	658000..658563	-	187	114797229	-	HNE_0655	-	FUR family transcriptional regulator
651	 67.19	+1	658615..658998	+	127	114800409	-	HNE_0656	-	MarR family transcriptional regulator
652	 65.74	0	659030..659890	+	286	114799232	-	HNE_0657	-	NlpC/P60 family protein
653	 63.91	0	659971..660768	-	265	114797971	-	HNE_0658	-	cytochrome c family protein
654	 60.93	0	660931..661767	+	278	114799113	-	HNE_0659	-	prephenate dehydratase
655	 63.41	0	661751..662671	-	306	114800121	-	HNE_0660	-	LysR family transcriptional regulator
656	 59.76	0	662796..663287	+	163	114797703	-	HNE_0661	-	hypothetical protein
657	 54.68	-2	663353..663811	+	152	114797133	-	HNE_0662	-	YHS domain-containing protein
658	 56.14	-1	664050..664277	-	75	114800259	-	HNE_0663	-	hypothetical protein
659	 59.26	0	664382..665299	-	305	114798474	-	HNE_0664	-	NUDIX family hydrolase
660	 61.43	0	665431..667605	+	724	114798026	-	HNE_0665	-	putative lipoprotein
661	 62.77	0	667614..671330	-	1238	114797087	-	HNE_0666	-	putative localization factor protein PodJ
662	 60.21	0	671606..672085	+	159	114799069	-	HNE_0667	-	MerR family transcriptional regulator
663	 61.68	0	672196..673980	+	594	114800213	-	HNE_0668	-	acyl-CoA dehydrogenase family protein
664	 60.03	0	674093..675268	+	391	114799086	-	HNE_0669	-	acyl-CoA dehydrogenase
665	 61.68	0	675276..675716	+	146	114798681	-	HNE_0670	-	thioesterase family protein
666	 63.52	0	675735..676940	+	401	114797516	-	HNE_0671	-	acetyl-CoA acetyltransferase
667	 60.93	0	676970..679201	+	743	114797137	-	HNE_0672	-	enoyl-CoA hydratase/3-hydroxyacyl-CoA dehydrogenase/3-hydroxybutyryl-CoA epimerase
668	 63.96	0	679299..682028	-	909	114800079	-	HNE_0673	-	ribonuclease
669	 63.13	0	682424..683668	+	414	114800021	-	HNE_0674	-	N-acetylmuramoyl-L-alanine amidase
670	 65.89	+1	683559..685487	+	642	114799492	-	HNE_0675	-	TPR repeat-containing protein
671	 67.56	+1	685501..686397	+	298	114798429	ispE	HNE_0676	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
672	 67.60	+1	686394..687461	+	355	114797664	-	HNE_0677	-	glycosyl transferase, group 4 family protein
673	 64.30	0	687463..688476	-	337	114798232	-	HNE_0678	-	polyprenyl synthetase
674	 63.43	0	688650..689144	+	164	114798516	-	HNE_0679	-	putative lipoprotein
675	 60.39	0	689144..689350	+	68	114799829	-	HNE_0680	-	hypothetical protein
676	 66.40	+1	689347..690090	+	247	114798814	-	HNE_0681	-	hypothetical protein
677	 55.26	-1	690167..690280	+	37	114799568	-	HNE_0682	-	hypothetical protein
678	 63.18	0	690350..691237	+	295	114799009	glyQ	HNE_0683	-	glycyl-tRNA synthetase subunit alpha
679	 63.41	0	691318..691839	+	173	114798015	-	HNE_0684	-	putative lipoprotein
680	 64.55	0	691934..694054	+	706	114797868	glyS	HNE_0685	-	glycyl-tRNA synthetase, beta subunit
681	 63.54	0	694206..696923	+	905	114800443	ppdK	HNE_0686	-	pyruvate phosphate dikinase
682	 65.77	+1	697290..698519	+	409	114797673	-	HNE_0687	-	hydrolase
683	 64.20	0	698604..699413	-	269	114798485	-	HNE_0688	-	short chain dehydrogenase
684	 64.22	0	699469..700326	-	285	114797685	nadC	HNE_0689	-	nicotinate-nucleotide pyrophosphorylase
685	 69.02	+1	700323..701891	-	522	114800426	nadB	HNE_0690	-	L-aspartate oxidase
686	 61.88	0	701875..702354	-	159	114799594	-	HNE_0691	-	hypothetical protein
687	 61.23	0	702423..703433	-	336	114798115	nadA	HNE_0692	-	quinolinate synthetase complex, A subunit
688	 62.38	0	703802..705178	-	458	114799423	-	HNE_0693	-	hypothetical protein
689	 63.13	0	705219..706517	-	432	114799798	-	HNE_0694	-	amidohydrolase, carboxypeptidase-type
690	 63.81	0	707019..708629	-	536	114797080	-	HNE_0695	-	putative ATP-dependent RNA helicase RhlE
691	 60.03	0	708830..709492	-	220	114797796	sodB	HNE_0696	-	superoxide dismutase, Fe
692	 63.03	0	709495..710154	+	219	114799019	-	HNE_0697	-	hypothetical protein
693	 67.97	+1	710286..710822	+	178	114797576	-	HNE_0698	-	putative lipoprotein
694	 64.83	0	710832..711809	-	325	114798797	-	HNE_0699	-	lipid A biosynthesis acyltransferase
695	 67.77	+1	711806..712804	-	332	114799558	lpxK	HNE_0700	-	tetraacyldisaccharide 4'-kinase
696	 68.60	+1	712801..714090	-	429	114799880	kdtA	HNE_0701	-	3-deoxy-D-manno-octulosonic-acid transferase
697	 65.90	+1	714087..714866	-	259	114797159	-	HNE_0702	-	hypothetical protein
698	 63.17	0	715690..716403	-	237	114797471	gph	HNE_0704	-	phosphoglycolate phosphatase
699	 65.73	0	716484..717869	+	461	114797715	glmU	HNE_0705	-	UDP-N-acetylglucosamine pyrophosphorylase
700	 62.59	0	717870..718580	+	236	114798972	rpiA	HNE_0706	-	ribose 5-phosphate isomerase A
701	 61.98	0	718635..720020	+	461	114799468	gor	HNE_0707	-	glutathione-disulfide reductase
702	 63.23	0	720055..721362	-	435	114800256	-	HNE_0708	-	nucleotide binding protein
703	 63.62	0	721515..722891	+	458	114797431	-	HNE_0709	-	3-deoxy-7-phosphoheptulonate synthase
704	 65.27	0	722960..723676	+	238	114798192	-	HNE_0710	-	CAAX amino protease
705	 64.90	0	723851..725266	+	471	114798693	-	HNE_0711	-	MATE efflux family protein
706	 57.30	-1	725298..725564	-	88	114799692	hup1	HNE_0712	-	DNA-binding protein HU
707	 61.29	0	725664..726575	-	303	114800309	-	HNE_0713	-	hypothetical protein
708	 61.68	0	726579..727601	-	340	114799480	-	HNE_0714	-	L4BD family NADP-dependent oxidoreductase
709	 64.83	0	727824..728750	+	308	114798808	-	HNE_0715	-	Gfo/Idh/MocA family oxidoreductase
710	 63.88	0	728752..729468	-	238	114800463	-	HNE_0716	-	short chain dehydrogenase/reductase family oxidoreductase
711	 61.57	0	729490..730941	-	483	114797301	purF	HNE_0717	-	amidophosphoribosyltransferase
712	 66.08	+1	731057..731905	-	282	114798030	-	HNE_0718	-	hypothetical protein
713	 57.39	-1	731970..732497	-	175	114798180	-	HNE_0719	-	CvpA family protein
714	 67.03	+1	732490..733872	-	460	114799161	radA	HNE_0720	-	DNA repair protein RadA
715	 61.62	0	733871..734464	+	197	114797652	-	HNE_0721	-	hypothetical protein
716	 67.25	+1	734501..735694	+	397	114798488	-	HNE_0722	-	pyridine nucleotide-disulfide oxidoreductase
717	 61.83	0	736557..737321	-	254	114798614	-	HNE_0723	-	ABC transporter, ATP-binding protein
718	 65.01	0	737318..738103	-	261	114798102	-	HNE_0724	-	hypothetical protein
719	 62.78	0	738110..739165	-	351	114797948	alr1	HNE_0725	-	alanine racemase
720	 62.73	0	739198..740850	-	550	114797393	-	HNE_0726	-	major facilitator family protein
721	 60.19	0	740887..741318	+	143	114799912	-	HNE_0727	-	hypothetical protein
722	 61.42	0	741404..742585	+	393	114799373	-	HNE_0728	-	hypothetical protein
723	 57.82	-1	742679..743164	+	161	114799200	-	HNE_0729	-	MnhE/PhaE family monovalent cation/proton antiporter
724	 60.27	0	743164..743460	+	98	114799983	-	HNE_0730	-	MnhF/PhaF family monovalent cation/proton antiporter
725	 62.06	0	743462..743830	+	122	114797245	-	HNE_0731	-	MnhG/PhaG family monovalent cation/proton antiporter
726	 60.68	0	743827..744444	+	205	114797993	-	HNE_0732	-	hypothetical protein
727	 59.82	0	744444..744896	+	150	114799795	-	HNE_0733	-	putative monovalent cation/H+ antiporter subunit B
728	 60.68	0	744901..745401	+	166	114799114	-	HNE_0734	-	putative NADH-quinone oxidoreductase
729	 61.39	0	745440..746936	+	498	114800322	-	HNE_0735	-	putative monovalent cation/H+ antiporter subunit D
730	 61.37	0	746933..748441	+	502	114797124	-	HNE_0736	-	putative NADH-quinone oxidoreductase
731	 60.59	0	748438..748881	+	147	114798330	-	HNE_0737	-	hypothetical protein
732	 60.47	0	748881..750656	+	591	114798610	-	HNE_0738	-	putative monovalent cation/H+ antiporter subunit D
733	 51.21	-2	750827..751240	+	137	114799831	-	HNE_0739	-	Ros/MucR family transcriptional regulator
62.10	MEAN

3.66	STD DEV
