IslandPath Analysis: Hyphomonas neptunium ATCC 15444

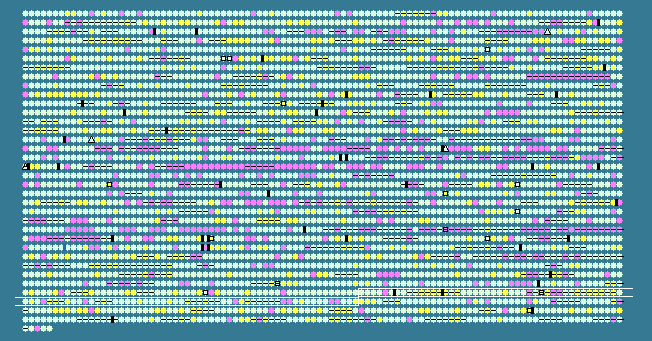

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.10 STD DEV: 3.66
Hyphomonas neptunium ATCC 15444, complete genome - 1..3705021
3505 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3157	 59.43	0	3387065..3387520	-	151	114798394	-	HNE_3216	-	putative lipoprotein
3158	 63.70	0	3387610..3387912	-	100	114798959	-	HNE_3217	-	antibiotic biosynthesis monooxygenase domain-containing protein
3159	 62.20	0	3387921..3388883	-	320	114799989	mdh	HNE_3218	-	malate dehydrogenase
3160	 60.85	0	3389030..3389803	-	257	114797078	-	HNE_3219	-	hypothetical protein
3161	 57.06	-1	3390182..3390514	+	110	114798253	-	HNE_3220	-	hypothetical protein
3162	 64.88	0	3390587..3391147	+	186	114799686	-	HNE_3221	-	2'-5' RNA ligase
3163	 61.77	0	3391323..3391955	+	210	114800438	-	HNE_3223	-	ExoD family protein
3164	 65.13	0	3392005..3392523	+	172	114797603	-	HNE_3224	-	hypothetical protein
3165	 62.29	0	3392543..3393706	-	387	114798370	-	HNE_3225	-	acyl-CoA dehydrogenase family protein
3166	 59.67	0	3393819..3395690	-	623	114800038	-	HNE_3226	-	putative lipoprotein
3167	 66.15	+1	3395793..3396758	+	321	114797250	hemC	HNE_3227	-	porphobilinogen deaminase
3168	 69.47	+2	3396755..3397468	+	237	114800364	hemD	HNE_3228	-	uroporphyrinogen-III synthase
3169	 67.04	+1	3397538..3398611	+	357	114799645	-	HNE_3229	-	hypothetical protein
3170	 67.29	+1	3398617..3400053	+	478	114798425	-	HNE_3230	-	HemY domain-containing protein
3171	 65.82	+1	3400244..3400954	+	236	114797653	-	HNE_3232	-	short chain dehydrogenase/reductase family oxidoreductase
3172	 63.61	0	3400965..3401783	-	272	114797308	-	HNE_3233	-	PhzF family phenazine biosynthesis protein
3173	 67.77	+1	3401871..3402689	-	272	114799777	thiD	HNE_3234	-	phosphomethylpyrimidine kinase
3174	 60.06	0	3402695..3403345	-	216	114799016	-	HNE_3235	-	putative transaldolase
3175	 59.57	0	3403379..3404689	-	436	114798680	-	HNE_3236	-	UDP-glucose dehydrogenase
3176	 63.00	0	3404841..3405467	+	208	114799400	-	HNE_3237	-	glutathione S-transferase
3177	 61.13	0	3405496..3407013	-	505	114798536	-	HNE_3238	-	putative phosphoglucomutase/phosphomannomutase
3178	 64.12	0	3407233..3408018	+	261	114798145	-	HNE_3239	-	surface antigen family protein
3179	 65.16	0	3408015..3408746	-	243	114799238	-	HNE_3240	-	class I glutamine amidotransferase domain-containing protein
3180	 62.49	0	3408743..3410611	-	622	114799785	-	HNE_3241	-	putative multidrug ABC transporter, permease/ATP-binding protein
3181	 66.00	+1	3410675..3412318	-	547	114797251	-	HNE_3242	-	hypothetical protein
3182	 64.91	0	3412514..3412912	+	132	114798487	sdhC	HNE_3243	-	succinate dehydrogenase, cytochrome b556 subunit
3183	 63.85	0	3412923..3413312	+	129	114799518	sdhD	HNE_3244	-	succinate dehydrogenase, hydrophobic membrane anchor protein
3184	 63.81	0	3413339..3415126	+	595	114798098	sdhA	HNE_3245	-	succinate dehydrogenase flavoprotein subunit
3185	 57.33	-1	3415160..3415459	+	99	114799101	-	HNE_3246	-	hypothetical protein
3186	 61.05	0	3415494..3416276	+	260	114799946	sdhB	HNE_3247	-	succinate dehydrogenase iron-sulfur subunit
3187	 67.63	+1	3416546..3417484	+	312	114797183	-	HNE_3248	-	ISHne3, transposase
3188	 65.66	0	3417711..3418109	+	132	114799532	-	HNE_3249	-	hypothetical protein
3189	 49.33	-2	3418314..3418613	+	99	114800529	-	HNE_3250	-	hypothetical protein
3190	 56.80	-1	3418733..3419026	+	97	114797497	-	HNE_3251	-	hypothetical protein
3191	 61.85	0	3419055..3419303	-	82	114798634	-	HNE_3252	-	hypothetical protein
3192	 64.53	0	3419300..3420187	-	295	114799083	-	HNE_3253	-	putative FolD bifunctional protein
3193	 67.67	+1	3420168..3420467	-	99	114798070	-	HNE_3254	-	hypothetical protein
3194	 59.87	0	3420489..3420797	-	102	114797565	-	HNE_3255	-	hypothetical protein
3195	 66.08	+1	3420990..3422183	+	397	114800188	-	HNE_3256	-	major facilitator family transporter
3196	 66.16	+1	3422336..3423523	+	395	114800147	-	HNE_3257	-	major facilitator family transporter
3197	 67.35	+1	3423520..3424251	-	243	114799477	-	HNE_3258	-	putative lipoprotein
3198	 62.14	0	3424306..3425079	-	257	114798449	-	HNE_3259	-	short chain dehydrogenase
3199	 66.21	+1	3425220..3425870	+	216	114797701	-	HNE_3260	-	hypothetical protein
3200	 62.81	0	3425939..3426301	+	120	114797190	-	HNE_3261	-	hypothetical protein
3201	 62.61	0	3426395..3427798	+	467	114797713	lpdA2	HNE_3262	-	dihydrolipoamide dehydrogenase
3202	 65.76	0	3427821..3428372	+	183	114798792	-	HNE_3263	-	acetyltransferase
3203	 62.63	0	3428377..3429714	+	445	114799334	-	HNE_3264	-	hypothetical protein
3204	 57.14	-1	3429721..3429951	-	76	114800220	-	HNE_3265	-	hypothetical protein
3205	 66.67	+1	3430013..3430216	-	67	114797838	-	HNE_3266	-	hypothetical protein
3206	 66.67	+1	3430329..3430784	-	151	114798633	dut	HNE_3267	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
3207	 64.96	0	3430830..3432056	-	408	114799868	coaBC	HNE_3268	-	phosphopantothenoylcysteine decarboxylase/phosphopantothenate--cysteine ligase
3208	 67.57	+1	3432173..3432505	-	110	114800496	-	HNE_3269	-	hypothetical protein
3209	 60.18	0	3432635..3433081	-	148	114799461	-	HNE_3270	-	hypothetical protein
3210	 65.49	0	3433142..3434665	-	507	114798427	ubiB	HNE_3271	-	2-polyprenylphenol 6-hydroxylase
3211	 53.25	-2	3434685..3434915	+	76	114800138	-	HNE_3272	-	hypothetical protein
3212	 62.61	0	3434927..3435715	-	262	114800122	ubiE	HNE_3273	-	ubiquinone/menaquinone biosynthesis methyltransferase UbiE
3213	 62.98	0	3435714..3436607	+	297	114799193	mutM	HNE_3274	-	formamidopyrimidine-DNA glycosylase
3214	 68.33	+1	3436604..3437806	-	400	114798759	-	HNE_3275	-	FAD-dependent oxidoreductase
3215	 62.20	0	3437881..3438843	-	320	114797186	-	HNE_3276	-	hypothetical protein
3216	 65.19	0	3438916..3440067	-	383	114800111	-	HNE_3277	-	putative hydrolase NrgC
3217	 64.54	0	3440070..3441809	-	579	114797081	-	HNE_3278	-	amidohydrolase family protein
3218	 63.82	0	3441884..3442234	-	116	114800031	-	HNE_3279	-	hypothetical protein
3219	 65.04	0	3442231..3443337	-	368	114799851	-	HNE_3280	-	hypothetical protein
3220	 65.99	+1	3443354..3444241	-	295	114798845	-	HNE_3281	-	acyltransferase domain-containing protein
3221	 64.51	0	3444241..3445401	-	386	114797258	-	HNE_3282	-	acyl-CoA dehydrogenase
3222	 59.48	0	3445416..3446333	-	305	114799570	metA	HNE_3283	-	homoserine O-succinyltransferase
3223	 62.12	0	3446538..3447350	-	270	114800473	-	HNE_3284	-	enoyl-CoA hydratase/isomerase domain-containing protein
3224	 61.14	0	3447492..3448142	+	216	114797158	-	HNE_3285	-	ExoD family protein
3225	 66.09	+1	3448157..3448504	+	115	114798128	-	HNE_3286	-	hypothetical protein
3226	 64.54	0	3448581..3449519	+	312	114797225	fabK	HNE_3287	-	trans-2-enoyl-ACP reductase II
3227	 61.94	0	3449649..3451829	+	726	114797980	dcp	HNE_3288	-	peptidyl-dipeptidase
3228	 66.67	+1	3451907..3452374	-	155	114799188	-	HNE_3289	-	sugar phosphotransferase system (PTS),mannose/fructose family protein
3229	 58.79	0	3452401..3452997	-	198	114800119	-	HNE_3290	-	hypothetical protein
3230	 61.99	0	3453225..3455342	-	705	114797169	-	HNE_3291	-	hypothetical protein
3231	 65.67	0	3455430..3456536	-	368	114799167	pspF	HNE_3292	-	psp operon transcription activator
3232	 63.54	0	3456687..3456878	+	63	114800010	-	HNE_3293	-	hypothetical protein
3233	 63.14	0	3456904..3457584	+	226	114797618	pspA	HNE_3294	-	phage shock protein A
3234	 65.12	0	3457698..3457955	+	85	114798410	pspB	HNE_3295	-	phage shock protein B
3235	 60.19	0	3457967..3458383	+	138	114798290	pspC	HNE_3296	-	phage shock protein C
3236	 58.06	-1	3458431..3458616	+	61	114797327	-	HNE_3297	-	hypothetical protein
3237	 67.66	+1	3458613..3460433	-	606	114799736	-	HNE_3298	-	FAD dependent oxidoreductase domain-containing protein
3238	 65.62	0	3460578..3460865	+	95	114799528	-	HNE_3299	-	hypothetical protein
3239	 62.65	0	3460891..3461139	+	82	114798729	-	HNE_3300	-	hypothetical protein
3240	 64.16	0	3461136..3461414	+	92	114797501	-	HNE_3301	-	hypothetical protein
3241	 62.00	0	3461419..3461868	+	149	114800294	-	HNE_3302	-	hypothetical protein
3242	 65.12	0	3461923..3462246	+	107	114799919	-	HNE_3303	-	ArsR family transcriptional regulator
3243	 61.64	0	3462243..3462461	+	72	114799160	-	HNE_3304	-	hypothetical protein
3244	 57.98	-1	3462468..3462893	+	141	114798014	-	HNE_3305	-	hypothetical protein
3245	 56.47	-1	3462890..3463291	+	133	114797620	-	HNE_3306	-	hypothetical protein
3246	 63.66	0	3463288..3463686	+	132	114798569	-	HNE_3307	-	hypothetical protein
3247	 67.33	+1	3463731..3464630	+	299	114798167	-	HNE_3308	-	putative tyrosine recombinase XerC
3248	 64.62	0	3464637..3465809	-	390	114797411	-	HNE_3309	-	putative oxygen-independent coproporphyrinogen III oxidase
3249	 61.04	0	3465806..3466462	-	218	114800076	rdgB	HNE_3310	-	non-canonical purine NTP pyrophosphatase
3250	 64.65	0	3466585..3467079	+	164	114799603	-	HNE_3311	-	hypothetical protein
3251	 63.75	0	3467095..3467334	+	79	114799014	-	HNE_3312	-	DNA-binding protein
3252	 56.98	-1	3467388..3468068	+	226	114797623	-	HNE_3313	-	putative satD protein
3253	 56.15	-1	3468055..3468444	+	129	114800112	-	HNE_3314	-	hypothetical protein
3254	 65.29	0	3468445..3469170	-	241	114798422	rph	HNE_3315	-	ribonuclease PH
3255	 64.33	0	3469261..3470931	+	556	114799647	fhs	HNE_3316	-	formate--tetrahydrofolate ligase
3256	 66.76	+1	3470977..3472065	+	362	114800305	hrcA	HNE_3317	-	heat-inducible transcription repressor
62.10	MEAN

3.66	STD DEV
