IslandPath Analysis: Hyphomonas neptunium ATCC 15444

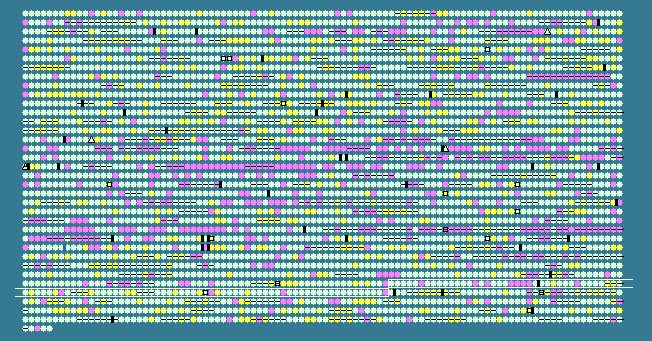

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.10 STD DEV: 3.66
Hyphomonas neptunium ATCC 15444, complete genome - 1..3705021
3505 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3062	 62.86	0	3301889..3302413	+	174	114797315	-	HNE_3120	-	hypothetical protein
3063	 64.72	0	3302571..3303032	+	153	114797453	-	HNE_3121	-	MarR family transcriptional regulator
3064	 62.53	0	3303048..3303506	-	152	114799699	-	HNE_3123	-	hypothetical protein
3065	 63.43	0	3303072..3303473	+	133	114799406	-	HNE_3122	-	hypothetical protein
3066	 65.12	0	3303596..3304888	-	430	114798213	purA	HNE_3124	-	adenylosuccinate synthetase
3067	 57.73	-1	3304973..3305554	-	193	114800229	-	HNE_3125	-	hypothetical protein
3068	 61.09	0	3305657..3307252	-	531	114800302	serA	HNE_3126	-	D-3-phosphoglycerate dehydrogenase
3069	 59.77	0	3307245..3307766	-	173	114798225	-	HNE_3127	-	putative aminoglycoside N6'-acetyltransferase
3070	 60.15	0	3308179..3309345	-	388	114797454	-	HNE_3128	-	phosphoserine aminotransferase
3071	 62.91	0	3309453..3310091	-	212	114799789	-	HNE_3129	-	hypothetical protein
3072	 65.17	0	3310088..3310489	-	133	114797407	-	HNE_3130	-	hypothetical protein
3073	 61.17	0	3310556..3311338	+	260	114799743	-	HNE_3131	-	oxidoreductase, short chain dehydrogenase/reductase family protein
3074	 60.77	0	3311506..3312183	+	225	114798977	-	HNE_3132	-	nitroreductase family protein
3075	 62.33	0	3312282..3313457	+	391	114798652	-	HNE_3133	-	acetyl-CoA acyltransferase/thiolase family protein
3076	 57.69	-1	3313519..3313986	-	155	114797878	-	HNE_3134	-	MaoC domain-containing protein
3077	 59.58	0	3314133..3314894	-	253	114800198	-	HNE_3135	-	hypothetical protein
3078	 58.14	-1	3315057..3315947	-	296	114798691	-	HNE_3136	-	fatty acid desaturase
3079	 62.07	0	3316180..3317397	+	405	114797663	-	HNE_3137	-	hypothetical protein
3080	 61.43	0	3317406..3318455	-	349	114797088	-	HNE_3138	-	putative L-lysine 2,3-aminomutase
3081	 60.82	0	3318452..3319495	-	347	114799660	-	HNE_3139	-	tRNA synthetase, class II
3082	 55.67	-1	3319629..3320201	+	190	114797547	efp	HNE_3140	-	elongation factor P
3083	 57.87	-1	3320760..3321134	+	124	114800165	-	HNE_3141	-	hypothetical protein
3084	 57.83	-1	3321307..3322008	+	233	114799615	-	HNE_3142	-	DNA-binding response regulator
3085	 58.20	-1	3322005..3324686	-	893	114798578	-	HNE_3143	-	sensory box sensor histidine kinase/response regulator
3086	 59.60	0	3324716..3325267	-	183	114798084	-	HNE_3144	-	hypothetical protein
3087	 64.01	0	3325621..3326712	-	363	114797132	-	HNE_3146	-	trypsin domain-containing lipoprotein
3088	 63.76	0	3326709..3327707	-	332	114798274	-	HNE_3147	-	T4 family peptidase
3089	 65.71	0	3327785..3329566	+	593	114799053	ggt2	HNE_3148	-	gamma-glutamyltransferase
3090	 61.56	0	3329589..3330176	+	195	114800430	tdk	HNE_3149	-	thymidine kinase
3091	 59.21	0	3330212..3330868	+	218	114797681	-	HNE_3150	-	rhodanese-like domain-containing protein
3092	 60.81	0	3330995..3331780	+	261	114797718	-	HNE_3151	-	ferredoxin-NADP reductase family protein
3093	 57.64	-1	3331781..3332644	-	287	114798695	-	HNE_3152	-	cation channel family protein
3094	 63.56	0	3332734..3333732	-	332	114799753	-	HNE_3153	-	alpha/beta fold family hydrolase
3095	 62.96	0	3333874..3334521	-	215	114797215	-	HNE_3154	-	hypothetical protein
3096	 63.96	0	3334570..3336636	-	688	114799507	-	HNE_3155	-	DsbD family thioredoxin
3097	 60.25	0	3336875..3337669	-	264	114800476	-	HNE_3156	-	SapC family protein
3098	 67.89	+1	3337776..3339659	+	627	114798309	-	HNE_3157	-	hypothetical protein
3099	 65.71	0	3339687..3339998	+	103	114799776	-	HNE_3158	-	hypothetical protein
3100	 64.31	0	3339690..3340028	-	112	114797239	-	HNE_3159	-	hypothetical protein
3101	 62.20	0	3340207..3340542	-	111	114798848	-	HNE_3160	-	hypothetical protein
3102	 67.31	+1	3340811..3341428	-	205	114798756	-	HNE_3161	-	rpsU-divergently transcribed protein
3103	 62.38	0	3341564..3341773	+	69	114799687	rpsU	HNE_3162	-	ribosomal protein S21
3104	 61.42	0	3341939..3342643	+	234	114800275	-	HNE_3163	-	hypothetical protein
3105	 63.29	0	3342654..3344045	-	463	114799293	-	HNE_3164	-	hypothetical protein
3106	 66.67	+1	3344045..3345016	-	323	114798859	-	HNE_3165	-	ABC transporter, ATP-binding protein
3107	 54.84	-1	3345051..3345143	-	30	114798064	-	HNE_3166	-	hypothetical protein
3108	 59.74	0	3345156..3345458	-	100	114798717	-	HNE_3167	-	hypothetical protein
3109	 63.13	0	3345569..3346021	-	150	114798809	-	HNE_3168	-	hypothetical protein
3110	 59.00	0	3346034..3346294	-	86	114800009	grxC	HNE_3169	-	glutaredoxin 3
3111	 69.70	+2	3346363..3347121	-	252	114797458	-	HNE_3170	-	ComF family protein
3112	 66.23	+1	3347132..3348043	+	303	114800231	-	HNE_3171	-	hypothetical protein
3113	 59.44	0	3348051..3348230	-	59	114797894	-	HNE_3172	-	flp/Fap pilus protein
3114	 63.07	0	3348230..3348646	-	138	114797108	-	HNE_3173	-	putative mutator mutT protein
3115	 65.55	0	3348643..3349893	-	416	114798075	argJ	HNE_3174	-	arginine biosynthesis bifunctional protein ArgJ
3116	 63.05	0	3349890..3350801	-	303	114799826	-	HNE_3175	-	peptidyl-prolyl cis-trans isomerase domain-containing protein
3117	 62.00	0	3350983..3353748	+	921	114797726	secA	HNE_3176	-	preprotein translocase, SecA subunit
3118	 69.57	+2	3353715..3354266	+	183	114799915	-	HNE_3177	-	hypothetical protein
3119	 69.22	+1	3354429..3355367	-	312	114797168	-	HNE_3178	-	hypothetical protein
3120	 60.04	0	3355564..3356574	+	336	114798520	gap	HNE_3179	-	glyceraldehyde-3-phosphate dehydrogenase, type I
3121	 63.24	0	3356687..3357883	+	398	114799328	pgk	HNE_3180	-	phosphoglycerate kinase
3122	 61.19	0	3357986..3358879	+	297	114797979	fda	HNE_3181	-	fructose-1,6-bisphosphate aldolase
3123	 62.96	0	3358987..3359283	+	98	114798750	-	HNE_3182	-	hypothetical protein
3124	 65.37	0	3359295..3359525	+	76	114799812	-	HNE_3183	-	hypothetical protein
3125	 62.64	0	3359559..3359831	-	90	114797287	-	HNE_3184	-	hypothetical protein
3126	 66.97	+1	3359940..3360605	+	221	114797291	thiE	HNE_3185	-	thiamine-phosphate pyrophosphorylase
3127	 59.60	0	3360625..3360921	-	98	114798326	-	HNE_3186	-	hypothetical protein
3128	 64.84	0	3361091..3361912	+	273	114797941	suhB	HNE_3187	-	inositol-1-monophosphatase
3129	 60.67	0	3362042..3363541	+	499	114800504	-	HNE_3188	-	hypothetical protein
3130	 68.03	+1	3363833..3364417	+	194	114799920	-	HNE_3189	-	hypothetical protein
3131	 64.88	0	3364547..3365722	+	391	114798588	-	HNE_3190	-	ISHne2, transposase
3132	 58.20	-1	3365876..3366064	+	62	114797847	-	HNE_3191	-	hypothetical protein
3133	 66.50	+1	3366046..3367878	-	610	114798592	-	HNE_3192	-	efflux ABC transporter, permease/ATP-binding protein
3134	 59.36	0	3368052..3368270	+	72	114800232	rpmE	HNE_3193	-	ribosomal protein L31
3135	 61.83	0	3368344..3369150	-	268	114799372	-	HNE_3194	-	glycosyl transferase, group 2 family protein
3136	 63.47	0	3369147..3370430	-	427	114797140	-	HNE_3195	-	putative O-antigen polymerase
3137	 62.11	0	3370437..3372410	-	657	114799933	thrS	HNE_3196	-	threonyl-tRNA synthetase
3138	 67.91	+1	3372681..3373001	-	106	114798636	-	HNE_3197	-	hypothetical protein
3139	 64.41	0	3373001..3373444	-	147	114799469	-	HNE_3198	-	hypothetical protein
3140	 61.67	0	3373637..3374257	-	206	114800206	-	HNE_3199	-	ExoD family protein
3141	 61.65	0	3374254..3374811	-	185	114797483	-	HNE_3200	-	phosphoglycerate mutase family protein
3142	 62.05	0	3374796..3376181	-	461	114797963	cysS	HNE_3201	-	cysteinyl-tRNA synthetase
3143	 58.87	0	3376206..3376436	+	76	114799006	-	HNE_3202	-	hypothetical protein
3144	 58.62	0	3376545..3377165	+	206	114797723	folE	HNE_3203	-	GTP cyclohydrolase I
3145	 64.17	0	3377229..3377948	-	239	114798758	-	HNE_3204	-	hypothetical protein
3146	 58.83	0	3377959..3378864	-	301	114797757	-	HNE_3205	-	putative branched-chain amino acid aminotransferase
3147	 59.19	0	3378888..3379649	-	253	114798796	-	HNE_3206	-	hypothetical protein
3148	 62.40	0	3379671..3380186	-	171	114800548	-	HNE_3207	-	NUDIX family hydrolase
3149	 62.25	0	3380183..3381472	-	429	114799786	-	HNE_3208	-	hypothetical protein
3150	 61.63	0	3381599..3382948	-	449	114798612	-	HNE_3209	-	carboxyl-terminal protease
3151	 61.25	0	3382981..3384216	-	411	114797629	-	HNE_3210	-	M23 family peptidase
3152	 65.20	0	3384234..3384848	-	204	114799936	-	HNE_3211	-	hypothetical protein
3153	 64.74	0	3384975..3385286	+	103	114799190	-	HNE_3212	-	hypothetical protein
3154	 60.94	0	3385406..3385702	+	98	114797972	-	HNE_3213	-	hypothetical protein
3155	 60.79	0	3385812..3386441	-	209	114797231	-	HNE_3214	-	hypothetical protein
3156	 64.81	0	3386512..3387051	-	179	114799548	-	HNE_3215	-	acetyltransferase
3157	 59.43	0	3387065..3387520	-	151	114798394	-	HNE_3216	-	putative lipoprotein
3158	 63.70	0	3387610..3387912	-	100	114798959	-	HNE_3217	-	antibiotic biosynthesis monooxygenase domain-containing protein
3159	 62.20	0	3387921..3388883	-	320	114799989	mdh	HNE_3218	-	malate dehydrogenase
3160	 60.85	0	3389030..3389803	-	257	114797078	-	HNE_3219	-	hypothetical protein
3161	 57.06	-1	3390182..3390514	+	110	114798253	-	HNE_3220	-	hypothetical protein
62.10	MEAN

3.66	STD DEV
