IslandPath Analysis: Hyphomonas neptunium ATCC 15444

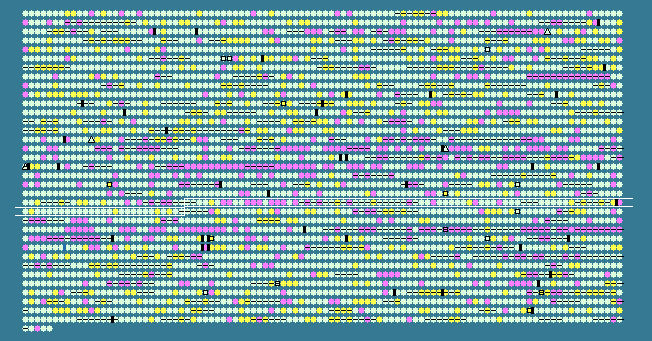

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.10 STD DEV: 3.66
Hyphomonas neptunium ATCC 15444, complete genome - 1..3705021
3505 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2128	 64.81	0	2251474..2251959	-	161	114798747	-	HNE_2165	-	CinA domain-containing protein
2129	 60.73	0	2251987..2252895	-	302	114799733	-	HNE_2166	-	enoyl-CoA hydratase/isomerase family protein
2130	 62.22	0	2253044..2254348	+	434	114797205	-	HNE_2167	-	amidohydrolase family protein
2131	 60.51	0	2254361..2255350	+	329	114798176	-	HNE_2168	-	hypothetical protein
2132	 66.47	+1	2255386..2256873	-	495	114799121	cobQ	HNE_2169	-	cobyric acid synthase CobQ
2133	 61.90	0	2256971..2257369	-	132	114797365	-	HNE_2170	-	hypothetical protein
2134	 52.90	-2	2257505..2257642	-	45	114798321	-	HNE_2171	-	hypothetical protein
2135	 58.47	0	2257608..2257790	-	60	114800469	-	HNE_2172	-	hypothetical protein
2136	 59.19	0	2257787..2258923	-	378	114799735	-	HNE_2173	-	PepSY-associated TM helix domain-containing protein
2137	 61.67	0	2258935..2261115	-	726	114798388	-	HNE_2174	-	TonB-dependent receptor family protein
2138	 58.20	-1	2262534..2264033	-	499	114797369	mmsA2	HNE_2176	-	methylmalonate-semialdehyde dehydrogenase
2139	 53.45	-2	2264088..2265698	-	536	114799711	-	HNE_2177	-	putative symporter YidK
2140	 56.98	-1	2265873..2267390	+	505	114798724	-	HNE_2178	-	sulfatase family protein
2141	 59.41	0	2267474..2268934	-	486	114800451	-	HNE_2179	-	putative lipoprotein
2142	 56.13	-1	2269081..2271357	-	758	114799262	-	HNE_2180	-	outer membrane receptor (OMR) family protein
2143	 56.68	-1	2271561..2272391	+	276	114798245	-	HNE_2181	-	SIS domain-containing protein
2144	 58.41	-1	2272534..2274447	+	637	114797675	iolC	HNE_2182	-	kinase IolC
2145	 58.86	0	2274466..2276310	+	614	114798854	iolD	HNE_2183	-	thiamine pyrophosphate-dependent enzyme IolD
2146	 58.20	-1	2276323..2277231	+	302	114798293	iolE	HNE_2184	-	2-keto-myo-inositol dehydratase
2147	 59.80	0	2277224..2278024	+	266	114797478	iolB	HNE_2185	-	myo-inositol catabolism protein IolB
2148	 57.69	-1	2278092..2279216	+	374	114799793	-	HNE_2186	-	oxidoreductase, NAD-binding
2149	 63.65	0	2280613..2282400	+	595	114797632	-	HNE_2187	-	putative outer membrane efflux protein
2150	 58.33	-1	2282460..2283143	+	227	114800395	-	HNE_2188	-	DNA-binding heavy metal response regulator
2151	 62.02	0	2283140..2284495	+	451	114798801	-	HNE_2189	-	heavy metal sensor histidine kinase
2152	 62.01	0	2284598..2287774	-	1058	114797722	-	HNE_2190	-	AcrB/AcrD/AcrF family protein
2153	 66.30	+1	2287828..2288928	-	366	114797259	-	HNE_2191	-	RND family efflux transporter MFP subunit
2154	 63.61	0	2289126..2290040	-	304	114799757	-	HNE_2192	-	short chain dehydrogenase/reductase family oxidoreductase
2155	 58.28	-1	2290265..2290729	+	154	114800040	-	HNE_2193	-	MarR family transcriptional regulator
2156	 62.38	0	2290726..2291541	+	271	114798483	-	HNE_2194	-	hypothetical protein
2157	 60.63	0	2291562..2292008	-	148	114797925	-	HNE_2195	-	DoxX family protein
2158	 63.56	0	2292141..2293235	-	364	114799498	-	HNE_2196	-	short chain dehydrogenase/reductase family oxidoreductase
2159	 67.39	+1	2293336..2294025	-	229	114798698	-	HNE_2197	-	hypothetical protein
2160	 59.92	0	2294035..2294508	-	157	114799027	-	HNE_2198	-	hypothetical protein
2161	 61.58	0	2294646..2295569	-	307	114799755	-	HNE_2199	-	AraC family transcriptional regulator
2162	 59.69	0	2296179..2296637	+	152	114800410	-	HNE_2200	-	putative isoquinoline 1-oxidoreductase, alpha subunit
2163	 64.59	0	2296615..2297337	+	240	114797647	-	HNE_2201	-	hypothetical protein
2164	 62.21	0	2297397..2299526	+	709	114797470	-	HNE_2202	-	putative isoquinoline 1-oxidoreductase, beta subunit
2165	 58.55	0	2299572..2300150	-	192	114798163	-	HNE_2203	-	sulfatase domain-containing protein
2166	 60.23	0	2300264..2301304	-	346	114798933	-	HNE_2204	-	aldo/keto reductase family oxidoreductase
2167	 64.85	0	2301362..2302186	-	274	114799710	-	HNE_2205	-	short chain dehydrogenase/reductase family oxidoreductase
2168	 63.41	0	2302532..2303299	+	255	114797204	-	HNE_2206	-	GntR family transcriptional regulator
2169	 58.49	0	2303327..2304622	-	431	114798191	-	HNE_2207	-	cytochrome P450 family protein
2170	 62.08	0	2304653..2306332	-	559	114799635	-	HNE_2208	-	hypothetical protein
2171	 63.66	0	2306592..2307290	-	232	114800415	-	HNE_2209	-	TetR family transcriptional regulator
2172	 59.35	0	2307522..2309858	+	778	114797247	-	HNE_2210	-	outer membrane receptor (OMR) family protein
2173	 61.23	0	2309894..2311567	+	557	114798044	-	HNE_2211	-	sulfatase family protein
2174	 61.54	0	2311633..2312724	+	363	114800456	-	HNE_2212	-	hypothetical protein
2175	 65.71	0	2312775..2314349	-	524	114797649	-	HNE_2213	-	hypothetical protein
2176	 58.28	-1	2314436..2314864	-	142	114798316	-	HNE_2214	-	hypothetical protein
2177	 61.79	0	2314889..2316220	-	443	114798445	-	HNE_2215	-	major facilitator family transporter
2178	 62.62	0	2316492..2317430	+	312	114798660	-	HNE_2216	-	LysR family transcriptional regulator
2179	 59.22	0	2317501..2318346	-	281	114798853	-	HNE_2217	-	fumarylacetoacetate hydrolase family protein
2180	 55.56	-1	2318411..2319058	-	215	114799506	-	HNE_2218	-	putative biphenyl-2,3-diol 1,2-dioxygenase
2181	 61.61	0	2319423..2320886	+	487	114799609	-	HNE_2219	-	aldehyde dehydrogenase family protein
2182	 60.42	0	2321028..2321780	+	250	114800399	-	HNE_2220	-	class II aldolase/adducin domain-containing protein
2183	 63.13	0	2321796..2322728	-	310	114800019	-	HNE_2221	-	short chain dehydrogenase/reductase family oxidoreductase
2184	 58.84	0	2322946..2323839	-	297	114798404	-	HNE_2222	-	AraC family transcriptional regulator
2185	 64.77	0	2324003..2325319	+	438	114799244	-	HNE_2223	-	major facilitator family transporter
2186	 60.86	0	2325531..2326322	+	263	114800020	-	HNE_2224	-	MipA family protein
2187	 60.39	0	2326743..2327714	-	323	114797195	-	HNE_2225	-	aldo/keto reductase family oxidoreductase
2188	 64.17	0	2327850..2328731	+	293	114798010	-	HNE_2226	-	AraC family transcriptional regulator
2189	 62.20	0	2328883..2329374	-	163	114797318	-	HNE_2227	-	hypothetical protein
2190	 63.20	0	2329387..2330280	-	297	114798645	-	HNE_2228	-	NAD-dependent epimerase/dehydratase family protein
2191	 65.56	0	2330384..2331193	+	269	114799172	-	HNE_2229	-	putative transcriptional regulator
2192	 66.67	+1	2331874..2332653	-	259	114799955	cobA	HNE_2230	-	uroporphyrin-III C-methyltransferase
2193	 62.87	0	2332650..2333861	-	403	114800210	-	HNE_2231	-	putative lipoprotein
2194	 67.02	+1	2334064..2335206	-	380	114797910	-	HNE_2232	-	putative nitrate transporter
2195	 64.12	0	2335203..2335949	-	248	114799661	nasT	HNE_2233	-	response regulator NasT
2196	 62.99	0	2336181..2338652	+	823	114800413	nirB	HNE_2234	-	nitrite reductase [NAD(P)H], large subunit
2197	 67.82	+1	2338649..2338996	+	115	114797238	nirD	HNE_2235	-	nitrite reductase [NAD(P)H], small subunit
2198	 61.45	0	2339011..2339853	+	280	114797947	fnt	HNE_2236	-	formate/nitrite transporter
2199	 67.94	+1	2339859..2341583	+	574	114798196	-	HNE_2237	-	carbohydrate kinase
2200	 56.19	-1	2342080..2342184	-	34	114798183	-	HNE_2239	-	hypothetical protein
2201	 65.09	0	2342174..2342869	-	231	114797199	-	HNE_2240	-	hypothetical protein
2202	 66.60	+1	2342950..2344371	-	473	114800524	-	HNE_2241	-	putative chain length determinant protein
2203	 62.87	0	2344554..2345501	+	315	114799572	-	HNE_2242	-	2OG-Fe(II) oxygenase family oxidoreductase
2204	 63.59	0	2345591..2346727	+	378	114797797	-	HNE_2243	-	aminotransferase
2205	 62.84	0	2346810..2348351	-	513	114800349	pepA	HNE_2244	-	cytosol aminopeptidase
2206	 62.09	0	2348467..2349099	-	210	114799358	-	HNE_2245	-	HAD family hydrolase
2207	 64.04	0	2349106..2349903	-	265	114799032	thiG	HNE_2246	-	thiazole synthase
2208	 63.85	0	2350028..2350240	-	70	114798481	thiS	HNE_2247	-	thiamine biosynthesis protein ThiS
2209	 59.23	0	2350304..2350747	+	147	114797900	aroQ	HNE_2248	-	3-dehydroquinate dehydratase
2210	 62.21	0	2350750..2351220	+	156	114797700	accB	HNE_2249	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
2211	 62.08	0	2351222..2352595	+	457	114798573	accC	HNE_2250	-	acetyl-CoA carboxylase, biotin carboxylase
2212	 62.03	0	2352653..2353429	+	258	114797414	aat	HNE_2251	-	leucyl/phenylalanyl-tRNA--protein transferase
2213	 60.72	0	2353273..2353827	-	184	114799292	-	HNE_2252	-	hypothetical protein
2214	 60.93	0	2353824..2354381	-	185	114797425	-	HNE_2253	-	hypothetical protein
2215	 61.07	0	2354374..2354766	-	130	114798194	-	HNE_2254	-	putative NADH:ubiquinone oxidoreductase
2216	 66.27	+1	2354987..2357239	+	750	114799028	-	HNE_2255	-	ribonucleoside reductase-like protein
2217	 63.69	0	2357402..2358139	+	245	114799805	-	HNE_2256	-	pentapeptide repeat-containing protein
2218	 62.95	0	2358217..2360046	-	609	114800235	aspS	HNE_2257	-	aspartyl-tRNA synthetase
2219	 62.47	0	2360145..2361311	+	388	114797633	rnd	HNE_2258	-	ribonuclease D
2220	 61.16	0	2361319..2362806	-	495	114800396	-	HNE_2259	-	Ppx/GppA family phosphatase
2221	 59.09	0	2362803..2364980	-	725	114799243	ppk	HNE_2260	-	polyphosphate kinase
2222	 64.48	0	2365009..2365740	-	243	114798512	-	HNE_2261	-	hypothetical protein
2223	 66.27	+1	2365737..2366756	-	339	114800481	-	HNE_2262	-	hypothetical protein
2224	 64.92	0	2366903..2367931	+	342	114798932	purM	HNE_2263	-	phosphoribosylformylglycinamidine cyclo-ligase
2225	 65.64	0	2367928..2368512	+	194	114797986	purN	HNE_2264	-	phosphoribosylglycinamide formyltransferase
2226	 64.13	0	2368620..2368934	+	104	114798803	-	HNE_2265	-	hypothetical protein
2227	 62.60	0	2368931..2369962	+	343	114798815	-	HNE_2266	-	zinc-binding dehydrogenase family oxidoreductase
62.10	MEAN

3.66	STD DEV
