IslandPathversion 1.0

IslandPath Analysis: Hyphomonas neptunium ATCC 15444

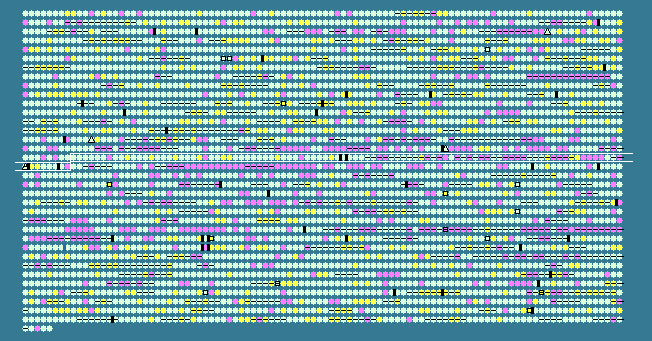

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.10 STD DEV: 3.66
Hyphomonas neptunium ATCC 15444, complete genome - 1..3705021
3505 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1609	 62.08	0	1671783..1672937	+	384	114798976	-	HNE_1635	-	hypothetical protein
1610	 62.11	0	1673109..1674425	+	438	114798139	-	HNE_1636	-	protein kinase
1611	 62.76	0	1674477..1675424	+	315	114798920	-	HNE_1637	-	cysteine protease
1612	 63.28	0	1675467..1675997	-	176	114798349	-	HNE_1638	-	MarR family transcriptional regulator
1613	 59.82	0	1676180..1676749	+	189	114797806	ectA	HNE_1639	-	L-2,4-diaminobutyric acid acetyltransferase
1614	 60.34	0	1676795..1678090	+	431	114799897	ectB	HNE_1640	-	diaminobutyrate--2-oxoglutarate aminotransferase
1615	 57.35	-1	1678102..1678509	+	135	114799353	ectC	HNE_1641	-	L-ectoine synthase
1616	 59.77	0	1678526..1679467	+	313	114798545	-	HNE_1642	-	ectoine hydroxylase
1617	 60.59	0	1679469..1680917	+	482	114800224	-	HNE_1643	-	aspartate kinase
1618	 67.78	+1	1680923..1682266	+	447	114798292	-	HNE_1644	-	major facilitator family transporter
1619	 62.53	0	1682263..1683714	+	483	114797475	-	HNE_1645	-	solute/sodium symporter (SSS) family protein
1620	 64.21	0	1684011..1685354	+	447	114799816	-	HNE_1646	-	RND family efflux transporter MFP subunit
1621	 65.33	0	1685368..1687305	+	645	114800370	-	HNE_1647	-	putative macrolide efflux ABC transporter, permease/ATP-binding protein
1622	 66.30	+1	1687311..1688663	+	450	114800045	-	HNE_1648	-	RND efflux system outer membrane lipoprotein
1623	 60.55	0	1688854..1689540	+	228	114798397	-	HNE_1649	-	hypothetical protein
1624	 63.37	0	1689551..1690066	+	171	114799383	-	HNE_1650	-	hypothetical protein
1625	 62.13	0	1690103..1690918	+	271	114799602	-	HNE_1651	-	hypothetical protein
1626	 66.15	+1	1690915..1691889	+	324	114798499	-	HNE_1652	-	ApbE family protein
1627	 58.75	0	1692075..1694474	+	799	114799533	-	HNE_1653	-	TonB-dependent receptor
1628	 63.36	0	1694636..1696297	+	553	114799766	dld	HNE_1654	-	D-lactate dehydrogenase
1629	 61.80	0	1696304..1697125	-	273	114797275	-	HNE_1655	-	putative transcriptional regulator
1630	 69.42	+1	1697350..1698039	-	229	114799125	-	HNE_1656	-	hypothetical protein
1631	 56.10	-1	1698153..1698275	-	40	114797694	-	HNE_1657	-	cyd operon protein YbgT
1632	 64.92	0	1698289..1699431	-	380	114798433	cydB	HNE_1658	-	cytochrome d ubiquinol oxidase, subunit II
1633	 60.47	0	1699444..1701024	-	526	114799451	cydA	HNE_1659	-	cytochrome d ubiquinol oxidase subunit I
1634	 67.56	+1	1701155..1702834	+	559	114800530	-	HNE_1660	-	amino acid ABC transporter, permease/ATP-binding protein CydD, putaive
1635	 68.74	+1	1702834..1704474	+	546	114798368	-	HNE_1661	-	putative amino acid ABC transporter, ATP-binding protein CydC
1636	 62.59	0	1704471..1705427	-	318	114797695	-	HNE_1662	-	hypothetical protein
1637	 64.97	0	1706392..1706979	+	195	114800196	-	HNE_1663	-	putative 2-hydroxychromene-2-carboxylate isomerase
1638	 62.00	0	1707008..1707457	+	149	114798878	-	HNE_1664	-	hypothetical protein
1639	 61.49	0	1707522..1708139	+	205	114798125	-	HNE_1665	-	hypothetical protein
1640	 63.29	0	1708256..1709026	+	256	114799422	-	HNE_1666	-	hypothetical protein
1641	 60.97	0	1709033..1710559	-	508	114798452	-	HNE_1667	-	sulfatase family protein
1642	 63.02	0	1710684..1712465	-	593	114797882	-	HNE_1668	-	sulfatase family protein
1643	 66.47	+1	1712611..1713612	+	333	114800462	-	HNE_1669	-	hypothetical protein
1644	 64.92	0	1713609..1715207	+	532	114799722	-	HNE_1670	-	putative DNA ligase, ATP-dependent
1645	 63.03	0	1715301..1717253	+	650	114799022	-	HNE_1671	-	metallo-beta-lactamase family protein
1646	 61.15	0	1717309..1717689	-	126	114798166	-	HNE_1672	-	hypothetical protein
1647	 58.49	0	1717774..1718739	-	321	114797388	-	HNE_1673	-	hypothetical protein
1648	 60.86	0	1718881..1719414	-	177	114799811	-	HNE_1674	-	acetyltransferase
1649	 65.56	0	1719404..1720306	-	300	114799029	-	HNE_1675	-	putative asparaginase
1650	 60.75	0	1720427..1723147	-	906	114798244	valS	HNE_1676	-	valyl-tRNA synthetase
1651	 63.94	0	1723237..1723896	-	219	114797380	-	HNE_1677	-	hypothetical protein
1652	 65.81	+1	1723997..1725277	-	426	114800241	-	HNE_1678	-	TolC family type I secretion outer membrane protein
1653	 64.54	0	1725372..1726028	-	218	114799434	-	HNE_1679	-	putative protein-L-isoaspartate(D-aspartate) O-methyltransferase
1654	 59.89	0	1726389..1726565	+	58	114799521	-	HNE_1681	-	hypothetical protein
1655	 64.22	0	1726709..1727281	-	190	114798376	-	HNE_1683	-	acetyltransferase
1656	 63.62	0	1727505..1728293	-	262	114800228	-	HNE_1684	-	short chain dehydrogenase
1657	 59.82	0	1728290..1728625	-	111	114799392	-	HNE_1685	-	hypothetical protein
1658	 60.48	0	1728726..1729097	+	123	114799063	-	HNE_1686	-	putative transcriptional regulator
1659	 62.75	0	1729596..1729901	+	101	114798120	-	HNE_1687	-	hypothetical protein
1660	 54.96	-1	1730095..1730487	-	130	114799442	merR	HNE_1688	-	mercuric resistance operon regulatory protein
1661	 57.33	-1	1730591..1730965	+	124	114798313	merT	HNE_1689	-	mercuric transport protein MerT
1662	 59.42	0	1731026..1731301	+	91	114797310	merP	HNE_1690	-	mercuric transport protein, periplasmic component
1663	 61.40	0	1731485..1732909	+	474	114799977	merA	HNE_1691	-	mercuric reductase
1664	 63.18	0	1733036..1733494	-	152	114799672	-	HNE_1692	-	hypothetical protein
1665	 62.96	0	1733491..1736700	-	1069	114800435	-	HNE_1693	-	CzcA family heavy metal efflux protein
1666	 63.90	0	1736697..1738505	-	602	114797593	-	HNE_1694	-	RND family efflux transporter MFP subunit
1667	 66.09	+1	1738502..1739719	-	405	114798550	-	HNE_1695	-	outer membrane efflux protein
1668	 57.54	-1	1739783..1740067	-	94	114798940	-	HNE_1696	-	hypothetical protein
1669	 59.72	0	1740074..1740217	+	47	114799808	-	HNE_1697	-	hypothetical protein
1670	 51.85	-2	1740863..1741699	+	278	114797482	-	HNE_1698	-	sigma-70 region 2
1671	 56.92	-1	1741696..1742331	+	211	114798155	-	HNE_1699	-	hypothetical protein
1672	 62.28	0	1742747..1745137	-	796	114798511	-	HNE_1700	-	copper-translocating P-type ATPase
1673	 58.36	-1	1745237..1746091	-	284	114799255	-	HNE_1701	-	hypothetical protein
1674	 63.41	0	1746176..1746913	-	245	114799885	-	HNE_1702	-	AraC family transcriptional regulator
1675	 57.50	-1	1746913..1747392	-	159	114798710	-	HNE_1703	-	hypothetical protein
1676	 64.62	0	1747403..1748233	-	276	114798187	copD	HNE_1704	-	copper resistance protein D
1677	 57.06	-1	1748245..1748598	-	117	114797680	copC	HNE_1705	-	copper resistance protein CopC
1678	 58.24	-1	1748640..1749422	-	260	114799827	-	HNE_1706	-	copper resistance protein B
1679	 61.81	0	1749437..1751290	-	617	114799240	-	HNE_1707	-	CopA family copper resistance protein
1680	 62.18	0	1751359..1751937	-	192	114798993	-	HNE_1708	-	putative copper resistance protein
1681	 55.80	-1	1752531..1752806	+	91	114799728	-	HNE_1709	-	hypothetical protein
1682	 56.45	-1	1752845..1753030	-	61	114797824	-	HNE_1710	-	hypothetical protein
1683	 58.46	0	1753123..1753317	+	64	114798627	-	HNE_1711	-	hypothetical protein
1684	 51.85	-2	1753481..1753588	-	35	114798289	-	HNE_1712	-	hypothetical protein
1685	 62.90	0	1753588..1755579	-	663	114799122	cadA	HNE_1713	-	cadmium-translocating P-type ATPase
1686	 61.72	0	1755655..1758768	-	1037	114799378	-	HNE_1714	-	CzcA family heavy metal efflux protein
1687	 62.84	0	1758795..1760099	-	434	114800179	-	HNE_1715	-	RND family efflux transporter MFP subunit
1688	 67.13	+1	1760096..1761391	-	431	114798625	-	HNE_1716	-	efflux transporter, outer membrane factor
1689	 58.48	0	1761469..1761993	-	174	114797850	-	HNE_1717	-	hypothetical protein
1690	 55.91	-1	1762406..1762591	-	61	114799241	-	HNE_1718	-	prophage CP4-57 regulatory protein AlpA family protein
1691	 58.50	0	1762696..1763001	-	101	114797995	-	HNE_1719	-	hypothetical protein
1692	 69.88	+2	1763238..1764482	-	414	114797320	-	HNE_1720	-	type IV secretion system protein TrbI family protein
1693	 66.56	+1	1764487..1765446	-	319	114799000	-	HNE_1721	-	type IV secretion system protein TrbG family protein
1694	 54.17	-2	1765486..1766685	+	399	114799573	-	HNE_1722	-	malate dehydrogenase domain-containing protein
1695	 56.28	-1	1766682..1767047	+	121	114800185	-	HNE_1723	-	hypothetical protein
1696	 56.18	-1	1767050..1767850	+	266	114799397	-	HNE_1724	-	hypothetical protein
1697	 54.34	-2	1768669..1769844	+	391	114797436	-	HNE_1725	-	putative helicase
1698	 59.82	0	1769754..1770410	-	218	114798193	-	HNE_1726	-	MerR family transcriptional regulator
1699	 60.77	0	1770472..1771098	+	208	114799140	-	HNE_1727	-	cation efflux family protein
1700	 58.06	-1	1771095..1771559	+	154	114797959	lspA2	HNE_1728	-	signal peptidase II
1701	 60.92	0	1771923..1773140	-	405	114797188	-	HNE_1729	-	phage integrase family site specific recombinase
1702	 65.77	0	1773446..1773667	-	73	114799923	-	HNE_1731	-	hypothetical protein
1703	 68.07	+1	1773664..1774734	-	356	114797667	-	HNE_1732	-	hypothetical protein
1704	 62.73	0	1774739..1776289	-	516	114798439	pgi	HNE_1733	-	glucose-6-phosphate isomerase
1705	 62.22	0	1776506..1777696	+	396	114799205	tuf1	HNE_1734	-	elongation factor Tu
1706	 61.02	0	1777764..1778312	-	182	114800212	-	HNE_1735	-	carboxymuconolactone decarboxylase domain-containing protein
1707	 59.62	0	1778583..1780199	+	538	114799867	-	HNE_1737	-	glycosy hydrolase family protein
1708	 58.57	0	1780289..1781758	+	489	114799637	zwf	HNE_1738	-	glucose-6-phosphate 1-dehydrogenase
62.10	MEAN

3.66	STD DEV
