IslandPath Analysis: Hyphomonas neptunium ATCC 15444

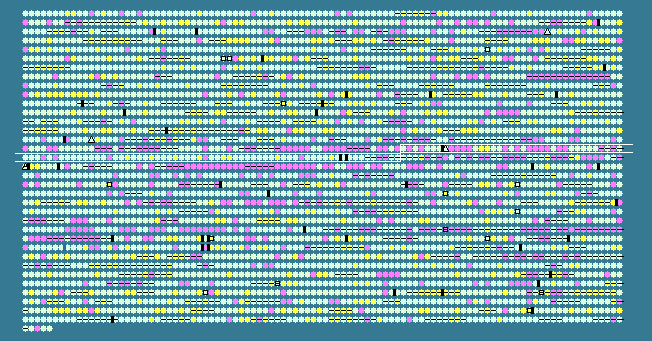

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.10 STD DEV: 3.66
Hyphomonas neptunium ATCC 15444, complete genome - 1..3705021
3505 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1564	 59.40	0	1620189..1621151	+	320	114799597	-	HNE_1588	-	hypothetical protein
1565	 57.39	-1	1621148..1622074	+	308	114800425	-	HNE_1589	-	hypothetical protein
1566	 59.21	0	1622095..1623288	-	397	114797693	-	HNE_1590	-	putative serine C-palmitoyltransferase
1567	 48.45	-2	1623278..1623535	-	85	114798454	acpP1	HNE_1591	-	acyl carrier protein
1568	 60.02	0	1623501..1624493	-	330	114797677	-	HNE_1592	-	putative UDP-glucose 4-epimerase
1569	 61.37	0	1624512..1626287	-	591	114797857	-	HNE_1593	-	putative AMP binding protein
1570	 60.00	0	1626486..1627790	-	434	114798863	-	HNE_1594	-	polysaccharide biosynthesis family protein
1571	 62.36	0	1628222..1629451	+	409	114799339	-	HNE_1596	-	phage integrase family site specific recombinase
1572	 51.08	-2	1629582..1629812	-	76	114800432	-	HNE_1597	-	DNA-binding protein
1573	 53.00	-2	1629960..1630376	+	138	114797198	-	HNE_1598	-	hypothetical protein
1574	 52.47	-2	1630706..1632163	-	485	114799629	-	HNE_1599	-	hypothetical protein
1575	 55.99	-1	1632909..1634987	+	692	114799218	-	HNE_1600	-	hypothetical protein
1576	 63.24	0	1636129..1637556	+	475	114798366	-	HNE_1602	-	putative 6-aminohexanoate-cyclic-dimer hydrolase
1577	 66.03	+1	1637611..1638546	-	311	114799182	-	HNE_1603	-	putative oxidoreductase
1578	 67.18	+1	1638546..1639526	-	326	114799460	-	HNE_1604	-	hypothetical protein
1579	 61.88	0	1639523..1640170	-	215	114797398	-	HNE_1605	-	acetyltransferase
1580	 61.46	0	1640251..1640826	+	191	114797884	-	HNE_1606	-	TetR family transcriptional regulator
1581	 52.42	-2	1640976..1641656	-	226	114798686	-	HNE_1607	-	hypothetical protein
1582	 60.84	0	1641813..1643819	-	668	114799769	-	HNE_1608	-	beta-lactamase
1583	 58.49	0	1643816..1644952	-	378	114797864	-	HNE_1609	-	hypothetical protein
1584	 60.32	0	1644949..1646019	-	356	114798174	-	HNE_1610	-	mandelate racemase/muconate lactonizing enzyme family protein
1585	 55.99	-1	1646125..1648494	-	789	114798992	-	HNE_1611	-	TonB-dependent receptor
1586	 55.24	-1	1648558..1648662	-	34	114800158	-	HNE_1612	-	hypothetical protein
1587	 54.32	-2	1648706..1649191	-	161	114798269	-	HNE_1613	-	AsnC family transcriptional regulator
1588	 52.86	-2	1649197..1649616	+	139	114800015	-	HNE_1614	-	hypothetical protein
1589	 61.07	0	1649609..1650697	+	362	114799095	ldh1	HNE_1615	-	leucine dehydrogenase
1590	 58.51	0	1650787..1651632	-	281	114798514	-	HNE_1616	-	hypothetical protein
1591	 58.30	-1	1651776..1654415	-	879	114797594	-	HNE_1617	-	outer membrane receptor (OMR) family protein
1592	 61.32	0	1654802..1655362	-	186	114799689	-	HNE_1618	-	ANTAR domain-containing protein
1593	 59.42	0	1655524..1655661	+	45	114798465	-	HNE_1619	-	hypothetical protein
1594	 62.38	0	1655756..1657552	-	598	114797678	-	HNE_1620	-	hypothetical protein
1595	 59.96	0	1657866..1658834	+	322	114797403	-	HNE_1621	-	2-nitropropane dioxygenase family oxidoreductase
1596	 62.58	0	1658917..1660458	-	513	114799145	-	HNE_1622	-	TraG/TraD family protein
1597	 58.40	-1	1660473..1661210	-	245	114798231	-	HNE_1623	-	hypothetical protein
1598	 59.49	0	1661301..1662038	-	245	114798697	sodA	HNE_1624	-	superoxide dismutase, Mn
1599	 57.48	-1	1662192..1662866	-	224	114797707	-	HNE_1625	-	2OG-Fe(II) oxygenase family oxidoreductase
1600	 63.37	0	1662962..1663810	+	282	114797119	-	HNE_1626	-	putative lipoprotein
1601	 60.99	0	1663866..1664147	-	93	114800550	-	HNE_1627	-	ArsR family transcriptional regulator
1602	 60.70	0	1664278..1664847	-	189	114799123	-	HNE_1628	-	hypothetical protein
1603	 59.86	0	1665211..1665930	+	239	114798105	-	HNE_1629	-	putative lipoprotein
1604	 53.61	-2	1666036..1666464	+	142	114800026	-	HNE_1630	-	hypothetical protein
1605	 58.76	0	1666472..1668850	-	792	114798837	-	HNE_1631	-	protein kinase
1606	 58.46	0	1668816..1669400	-	194	114798276	-	HNE_1632	-	ECF sigma factor family protein
1607	 60.11	0	1669548..1670111	+	187	114797413	-	HNE_1633	-	hypothetical protein
1608	 60.29	0	1670115..1671776	+	553	114799284	-	HNE_1634	-	hypothetical protein
1609	 62.08	0	1671783..1672937	+	384	114798976	-	HNE_1635	-	hypothetical protein
1610	 62.11	0	1673109..1674425	+	438	114798139	-	HNE_1636	-	protein kinase
1611	 62.76	0	1674477..1675424	+	315	114798920	-	HNE_1637	-	cysteine protease
1612	 63.28	0	1675467..1675997	-	176	114798349	-	HNE_1638	-	MarR family transcriptional regulator
1613	 59.82	0	1676180..1676749	+	189	114797806	ectA	HNE_1639	-	L-2,4-diaminobutyric acid acetyltransferase
1614	 60.34	0	1676795..1678090	+	431	114799897	ectB	HNE_1640	-	diaminobutyrate--2-oxoglutarate aminotransferase
1615	 57.35	-1	1678102..1678509	+	135	114799353	ectC	HNE_1641	-	L-ectoine synthase
1616	 59.77	0	1678526..1679467	+	313	114798545	-	HNE_1642	-	ectoine hydroxylase
1617	 60.59	0	1679469..1680917	+	482	114800224	-	HNE_1643	-	aspartate kinase
1618	 67.78	+1	1680923..1682266	+	447	114798292	-	HNE_1644	-	major facilitator family transporter
1619	 62.53	0	1682263..1683714	+	483	114797475	-	HNE_1645	-	solute/sodium symporter (SSS) family protein
1620	 64.21	0	1684011..1685354	+	447	114799816	-	HNE_1646	-	RND family efflux transporter MFP subunit
1621	 65.33	0	1685368..1687305	+	645	114800370	-	HNE_1647	-	putative macrolide efflux ABC transporter, permease/ATP-binding protein
1622	 66.30	+1	1687311..1688663	+	450	114800045	-	HNE_1648	-	RND efflux system outer membrane lipoprotein
1623	 60.55	0	1688854..1689540	+	228	114798397	-	HNE_1649	-	hypothetical protein
1624	 63.37	0	1689551..1690066	+	171	114799383	-	HNE_1650	-	hypothetical protein
1625	 62.13	0	1690103..1690918	+	271	114799602	-	HNE_1651	-	hypothetical protein
1626	 66.15	+1	1690915..1691889	+	324	114798499	-	HNE_1652	-	ApbE family protein
1627	 58.75	0	1692075..1694474	+	799	114799533	-	HNE_1653	-	TonB-dependent receptor
1628	 63.36	0	1694636..1696297	+	553	114799766	dld	HNE_1654	-	D-lactate dehydrogenase
1629	 61.80	0	1696304..1697125	-	273	114797275	-	HNE_1655	-	putative transcriptional regulator
1630	 69.42	+1	1697350..1698039	-	229	114799125	-	HNE_1656	-	hypothetical protein
1631	 56.10	-1	1698153..1698275	-	40	114797694	-	HNE_1657	-	cyd operon protein YbgT
1632	 64.92	0	1698289..1699431	-	380	114798433	cydB	HNE_1658	-	cytochrome d ubiquinol oxidase, subunit II
1633	 60.47	0	1699444..1701024	-	526	114799451	cydA	HNE_1659	-	cytochrome d ubiquinol oxidase subunit I
1634	 67.56	+1	1701155..1702834	+	559	114800530	-	HNE_1660	-	amino acid ABC transporter, permease/ATP-binding protein CydD, putaive
1635	 68.74	+1	1702834..1704474	+	546	114798368	-	HNE_1661	-	putative amino acid ABC transporter, ATP-binding protein CydC
1636	 62.59	0	1704471..1705427	-	318	114797695	-	HNE_1662	-	hypothetical protein
1637	 64.97	0	1706392..1706979	+	195	114800196	-	HNE_1663	-	putative 2-hydroxychromene-2-carboxylate isomerase
1638	 62.00	0	1707008..1707457	+	149	114798878	-	HNE_1664	-	hypothetical protein
1639	 61.49	0	1707522..1708139	+	205	114798125	-	HNE_1665	-	hypothetical protein
1640	 63.29	0	1708256..1709026	+	256	114799422	-	HNE_1666	-	hypothetical protein
1641	 60.97	0	1709033..1710559	-	508	114798452	-	HNE_1667	-	sulfatase family protein
1642	 63.02	0	1710684..1712465	-	593	114797882	-	HNE_1668	-	sulfatase family protein
1643	 66.47	+1	1712611..1713612	+	333	114800462	-	HNE_1669	-	hypothetical protein
1644	 64.92	0	1713609..1715207	+	532	114799722	-	HNE_1670	-	putative DNA ligase, ATP-dependent
1645	 63.03	0	1715301..1717253	+	650	114799022	-	HNE_1671	-	metallo-beta-lactamase family protein
1646	 61.15	0	1717309..1717689	-	126	114798166	-	HNE_1672	-	hypothetical protein
1647	 58.49	0	1717774..1718739	-	321	114797388	-	HNE_1673	-	hypothetical protein
1648	 60.86	0	1718881..1719414	-	177	114799811	-	HNE_1674	-	acetyltransferase
1649	 65.56	0	1719404..1720306	-	300	114799029	-	HNE_1675	-	putative asparaginase
1650	 60.75	0	1720427..1723147	-	906	114798244	valS	HNE_1676	-	valyl-tRNA synthetase
1651	 63.94	0	1723237..1723896	-	219	114797380	-	HNE_1677	-	hypothetical protein
1652	 65.81	+1	1723997..1725277	-	426	114800241	-	HNE_1678	-	TolC family type I secretion outer membrane protein
1653	 64.54	0	1725372..1726028	-	218	114799434	-	HNE_1679	-	putative protein-L-isoaspartate(D-aspartate) O-methyltransferase
1654	 59.89	0	1726389..1726565	+	58	114799521	-	HNE_1681	-	hypothetical protein
1655	 64.22	0	1726709..1727281	-	190	114798376	-	HNE_1683	-	acetyltransferase
1656	 63.62	0	1727505..1728293	-	262	114800228	-	HNE_1684	-	short chain dehydrogenase
1657	 59.82	0	1728290..1728625	-	111	114799392	-	HNE_1685	-	hypothetical protein
1658	 60.48	0	1728726..1729097	+	123	114799063	-	HNE_1686	-	putative transcriptional regulator
1659	 62.75	0	1729596..1729901	+	101	114798120	-	HNE_1687	-	hypothetical protein
1660	 54.96	-1	1730095..1730487	-	130	114799442	merR	HNE_1688	-	mercuric resistance operon regulatory protein
1661	 57.33	-1	1730591..1730965	+	124	114798313	merT	HNE_1689	-	mercuric transport protein MerT
1662	 59.42	0	1731026..1731301	+	91	114797310	merP	HNE_1690	-	mercuric transport protein, periplasmic component
1663	 61.40	0	1731485..1732909	+	474	114799977	merA	HNE_1691	-	mercuric reductase
62.10	MEAN

3.66	STD DEV
