IslandPath Analysis: Hyphomonas neptunium ATCC 15444

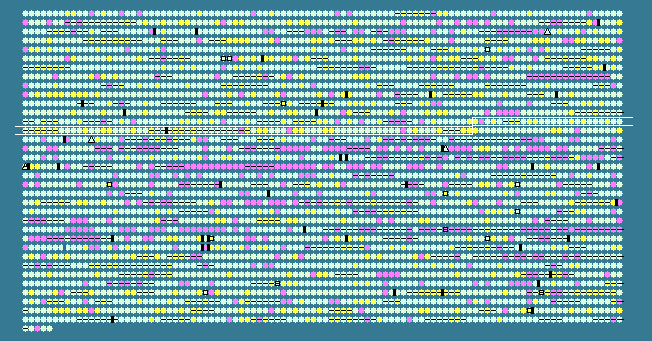

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 62.10 STD DEV: 3.66
Hyphomonas neptunium ATCC 15444, complete genome - 1..3705021
3505 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1276	 67.95	+1	1324475..1325563	-	362	114799524	-	HNE_1292	-	ribonuclease Z
1277	 51.52	-2	1325751..1326278	+	175	114800303	-	HNE_1293	-	hypothetical protein
1278	 63.04	0	1326469..1327929	+	486	114797261	amn	HNE_1294	-	AMP nucleosidase
1279	 69.19	+1	1327938..1328333	+	131	114798713	cdd	HNE_1295	-	cytidine deaminase
1280	 63.09	0	1328418..1329200	+	260	114799075	-	HNE_1296	-	hypothetical protein
1281	 63.38	0	1329328..1329753	+	141	114799967	-	HNE_1297	-	hypothetical protein
1282	 69.32	+1	1329927..1330340	-	137	114799130	-	HNE_1298	-	hypothetical protein
1283	 67.93	+1	1331462..1332094	-	210	114799739	-	HNE_1299	-	hypothetical protein
1284	 61.13	0	1332091..1332975	-	294	114798564	-	HNE_1300	-	CobQ/CobB/MinD/ParA nucleotide binding domain-containing protein
1285	 72.22	+2	1333574..1333807	-	77	114799540	-	HNE_1301	-	hypothetical protein
1286	 65.70	0	1334705..1335637	+	310	114799336	-	HNE_1302	-	putative dnaJ protein
1287	 62.90	0	1335738..1337462	+	574	114800313	-	HNE_1303	-	hypothetical protein
1288	 61.84	0	1337487..1338191	-	234	114797144	-	HNE_1304	-	hypothetical protein
1289	 61.16	0	1338426..1338752	+	108	114798361	-	HNE_1305	-	hypothetical protein
1290	 63.45	0	1338783..1339466	+	227	114797709	-	HNE_1306	-	DNA-binding response regulator
1291	 64.78	0	1339492..1340919	+	475	114797185	-	HNE_1307	-	sensor histidine kinase
1292	 67.84	+1	1340997..1341509	+	170	114799426	-	HNE_1308	-	TPR repeat-containing protein
1293	 64.79	0	1341563..1341988	+	141	114797067	ccmE	HNE_1309	-	cytochrome c-type biogenesis protein CcmE
1294	 66.25	+1	1341985..1343892	+	635	114797201	ccmF	HNE_1310	-	cytochrome c-type biogenesis protein CcmF
1295	 64.80	0	1343867..1345420	-	517	114799948	-	HNE_1311	-	sensor histidine kinase
1296	 62.99	0	1345454..1346161	-	235	114797880	-	HNE_1312	-	DNA-binding response regulator
1297	 63.35	0	1346194..1347732	-	512	114798730	-	HNE_1313	-	Do family protease
1298	 66.67	+1	1347886..1348284	-	132	114799452	-	HNE_1314	-	putative cytochrome c-type biogenesis protein CycL
1299	 59.95	0	1348338..1348769	-	143	114800208	-	HNE_1315	-	hypothetical protein
1300	 63.80	0	1348880..1351639	+	919	114797463	glnE	HNE_1316	-	glutamate ammonia ligase adenylyl-transferase
1301	 59.33	0	1351685..1352284	+	199	114798175	-	HNE_1317	-	EF hand domain-containing protein
1302	 63.74	0	1352385..1352930	+	181	114797400	-	HNE_1318	-	ECF subfamily RNA polymerase sigma factor
1303	 67.54	+1	1352927..1353382	+	151	114797919	-	HNE_1319	-	hypothetical protein
1304	 66.86	+1	1353379..1353900	+	173	114799779	-	HNE_1320	-	hypothetical protein
1305	 59.54	0	1353897..1354331	-	144	114799005	-	HNE_1321	-	hypothetical protein
1306	 66.53	+1	1354295..1355743	-	482	114798308	-	HNE_1322	-	6-aminohexanoate-cyclic-dimer hydrolase
1307	 58.88	0	1355984..1357357	+	457	114800254	-	HNE_1323	-	TrkH family potassium uptake protein
1308	 59.75	0	1357387..1357791	-	134	114799385	-	HNE_1324	-	hypothetical protein
1309	 61.37	0	1357788..1358108	-	106	114800163	-	HNE_1325	-	hypothetical protein
1310	 62.14	0	1358128..1360290	-	720	114799394	mutB	HNE_1326	-	methylmalonyl-CoA mutase
1311	 66.77	+1	1360287..1362206	-	639	114798788	mutA	HNE_1327	-	methylmalonyl-CoA mutase, small subunit
1312	 62.75	0	1362407..1362661	+	84	114799449	-	HNE_1328	-	hypothetical protein
1313	 61.66	0	1362968..1363966	+	332	114797358	-	HNE_1329	-	2-nitropropane dioxygenase family oxidoreductase
1314	 67.40	+1	1364260..1364667	+	135	114800050	-	HNE_1330	-	hypothetical protein
1315	 68.40	+1	1364664..1365125	+	153	114798831	-	HNE_1331	-	hypothetical protein
1316	 62.37	0	1365251..1366042	-	263	114798034	map2	HNE_1332	-	methionine aminopeptidase, type I
1317	 64.32	0	1366039..1366251	-	70	114797710	-	HNE_1333	-	hypothetical protein
1318	 65.57	0	1366391..1367755	+	454	114800494	-	HNE_1334	-	amidase family protein
1319	 68.62	+1	1367752..1369233	+	493	114799418	glpK	HNE_1335	-	glycerol kinase
1320	 59.30	0	1369307..1371328	-	673	114800155	-	HNE_1336	-	S9 family peptidase
1321	 59.53	0	1371644..1374640	+	998	114799350	-	HNE_1337	-	TonB-dependent receptor
1322	 66.82	+1	1374767..1376086	+	439	114798685	-	HNE_1338	-	amino acid permease family protein
1323	 63.60	0	1376170..1376397	+	75	114797504	-	HNE_1339	-	hypothetical protein
1324	 61.42	0	1376397..1376720	+	107	114800091	-	HNE_1340	-	hypothetical protein
1325	 64.67	0	1377007..1377156	+	49	114799109	-	HNE_1342	-	hypothetical protein
1326	 67.07	+1	1377163..1378389	+	408	114798086	-	HNE_1343	-	cytochrome P450 family protein
1327	 66.74	+1	1378444..1379724	+	426	114797160	murA	HNE_1344	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1328	 63.79	0	1379819..1380304	+	161	114797987	-	HNE_1345	-	hypothetical protein
1329	 68.44	+1	1380402..1381700	+	432	114797246	hisD	HNE_1346	-	histidinol dehydrogenase
1330	 64.01	0	1381705..1382193	+	162	114800489	-	HNE_1347	-	hypothetical protein
1331	 64.27	0	1382160..1383161	-	333	114797756	-	HNE_1348	-	hypothetical protein
1332	 64.91	0	1383258..1384166	+	302	114800127	-	HNE_1349	-	LysR family transcriptional regulator
1333	 62.06	0	1384163..1384987	-	274	114797395	-	HNE_1350	-	fatty acid desaturase family protein
1334	 62.50	0	1385023..1385238	-	71	114797523	-	HNE_1351	-	hypothetical protein
1335	 65.20	0	1385302..1386189	-	295	114798502	-	HNE_1352	-	putative DNA-binding protein
1336	 63.09	0	1386300..1387472	+	390	114799556	-	HNE_1353	-	acyltransferase family protein
1337	 54.34	-2	1387584..1387802	+	72	114800246	infA	HNE_1354	-	translation initiation factor IF-1
1338	 69.44	+2	1387808..1388383	+	191	114797086	maf	HNE_1355	-	maf protein
1339	 59.58	0	1388510..1389271	+	253	114798653	-	HNE_1356	-	hypothetical protein
1340	 66.09	+1	1389359..1389706	-	115	114797234	-	HNE_1357	-	hypothetical protein
1341	 65.74	0	1389720..1390256	-	178	114797984	-	HNE_1358	-	ECF subfamily RNA polymerase sigma factor
1342	 58.67	0	1390564..1390713	+	49	114800493	-	HNE_1359	-	hypothetical protein
1343	 60.64	0	1390847..1391560	+	237	114797931	-	HNE_1360	-	hypothetical protein
1344	 60.69	0	1391624..1391941	+	105	114797207	-	HNE_1361	-	putative lipoprotein
1345	 58.33	-1	1392063..1392338	+	91	114797616	-	HNE_1362	-	hypothetical protein
1346	 70.80	+2	1392447..1392833	+	128	114799093	-	HNE_1363	-	hypothetical protein
1347	 65.92	+1	1393000..1394346	+	448	114800402	pmbA	HNE_1364	-	pmbA protein
1348	 64.11	0	1394375..1395469	+	364	114799663	-	HNE_1365	-	inositol monophosphatase family protein
1349	 63.82	0	1395420..1397246	+	608	114797958	-	HNE_1366	-	efflux ABC transporter, permease/ATP-binding protein
1350	 65.02	0	1397251..1397916	-	221	114797219	-	HNE_1367	-	putative frnE protein
1351	 66.58	+1	1397975..1399102	-	375	114799354	ubiA	HNE_1368	-	4-hydroxybenzoate polyprenyl transferase
1352	 68.87	+1	1399220..1399990	+	256	114800139	-	HNE_1369	-	hypothetical protein
1353	 63.06	0	1400058..1401248	-	396	114797331	-	HNE_1370	-	major facilitator family transporter
1354	 62.22	0	1401263..1402297	-	344	114798006	-	HNE_1371	-	dimethylsulfoxide reductase chain B
1355	 62.68	0	1402384..1403286	+	300	114799792	-	HNE_1372	-	LysR family transcriptional regulator
1356	 61.58	0	1403307..1403837	-	176	114800381	-	HNE_1373	-	riboflavin biosynthesis protein RibD domain-containing protein
1357	 63.76	0	1404174..1405550	+	458	114797614	-	HNE_1374	-	glutamate--cysteine ligase
1358	 62.07	0	1405589..1406263	+	224	114798387	-	HNE_1375	-	hypothetical protein
1359	 61.58	0	1406411..1408435	+	674	114800217	-	HNE_1376	-	proton/peptide symporter family protein
1360	 61.62	0	1408518..1409804	-	428	114797476	-	HNE_1377	-	small conductance mechanosensitive ion channel (MscS) family protein
1361	 64.80	0	1409910..1410446	-	178	114798241	-	HNE_1378	-	RNA pseudouridine synthase family protein
1362	 62.75	0	1410647..1411003	+	118	114799018	panD	HNE_1379	-	aspartate alpha-decarboxylase
1363	 58.66	0	1411034..1411495	-	153	114798946	-	HNE_1380	-	MerR family transcriptional regulator
1364	 57.11	-1	1411500..1412294	+	264	114799712	-	HNE_1381	-	hypothetical protein
1365	 64.78	0	1412331..1413335	-	334	114798770	-	HNE_1382	-	luciferase family monooxygenase
1366	 65.71	0	1413457..1414503	-	348	114799553	-	HNE_1383	-	hypothetical protein
1367	 63.66	0	1414500..1415429	-	309	114797621	lgt	HNE_1384	-	prolipoprotein diacylglyceryl transferase
1368	 64.31	0	1415537..1415791	+	84	114798170	-	HNE_1385	-	hypothetical protein
1369	 62.30	0	1415903..1416406	+	167	114798921	-	HNE_1386	-	hypothetical protein
1370	 67.29	+1	1416416..1417222	+	268	114799869	proC	HNE_1387	-	pyrroline-5-carboxylate reductase
1371	 63.64	0	1417243..1417869	+	208	114797672	-	HNE_1388	-	hypothetical protein
1372	 61.36	0	1417866..1418957	+	363	114799215	-	HNE_1389	-	hypothetical protein
1373	 60.78	0	1419207..1419512	+	101	114798007	-	HNE_1390	-	hypothetical protein
1374	 69.21	+1	1419609..1420277	+	222	114800453	-	HNE_1391	-	hypothetical protein
1375	 69.07	+1	1420274..1421230	+	318	114799668	-	HNE_1392	-	putative flagellar motor switch protein FliG
62.10	MEAN

3.66	STD DEV
